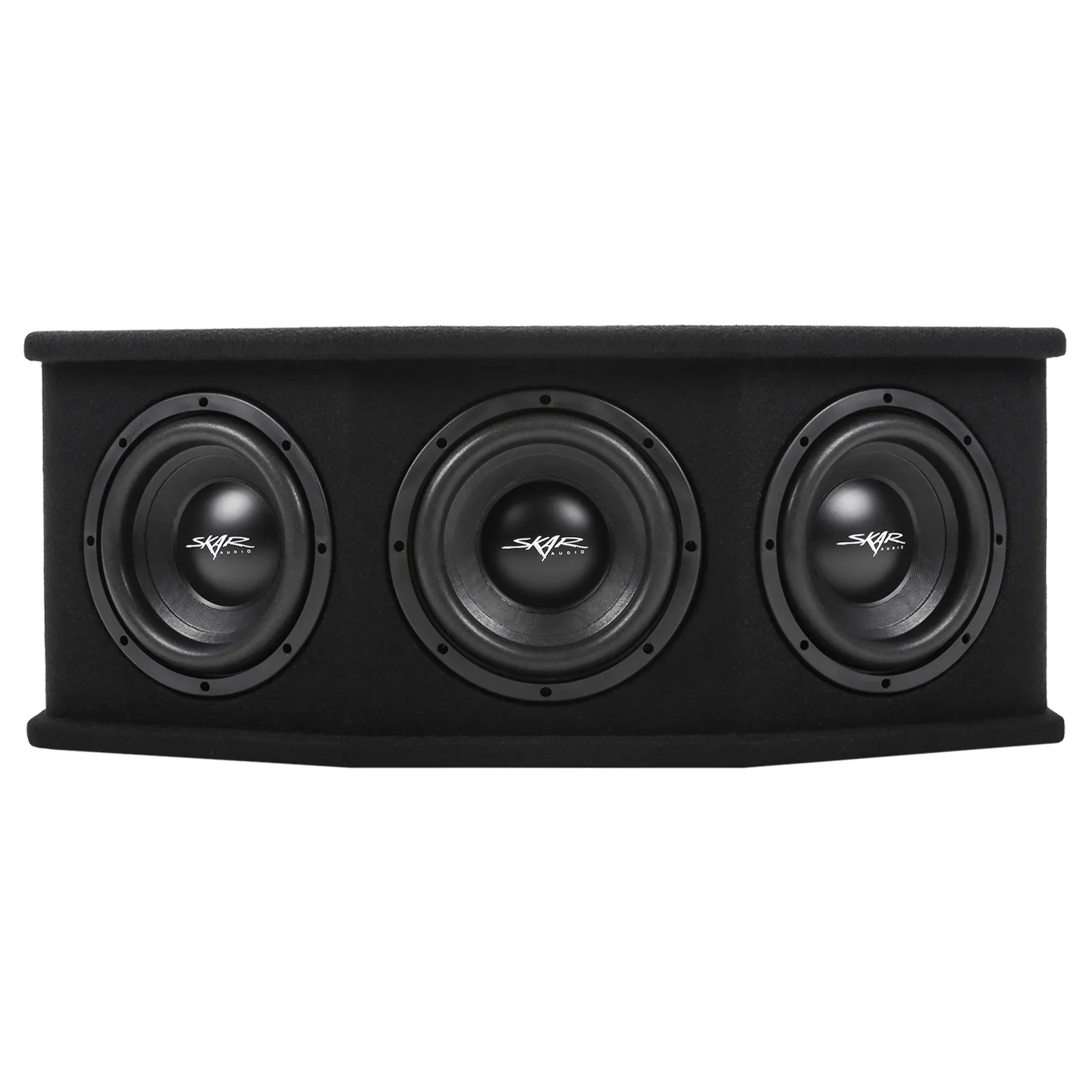

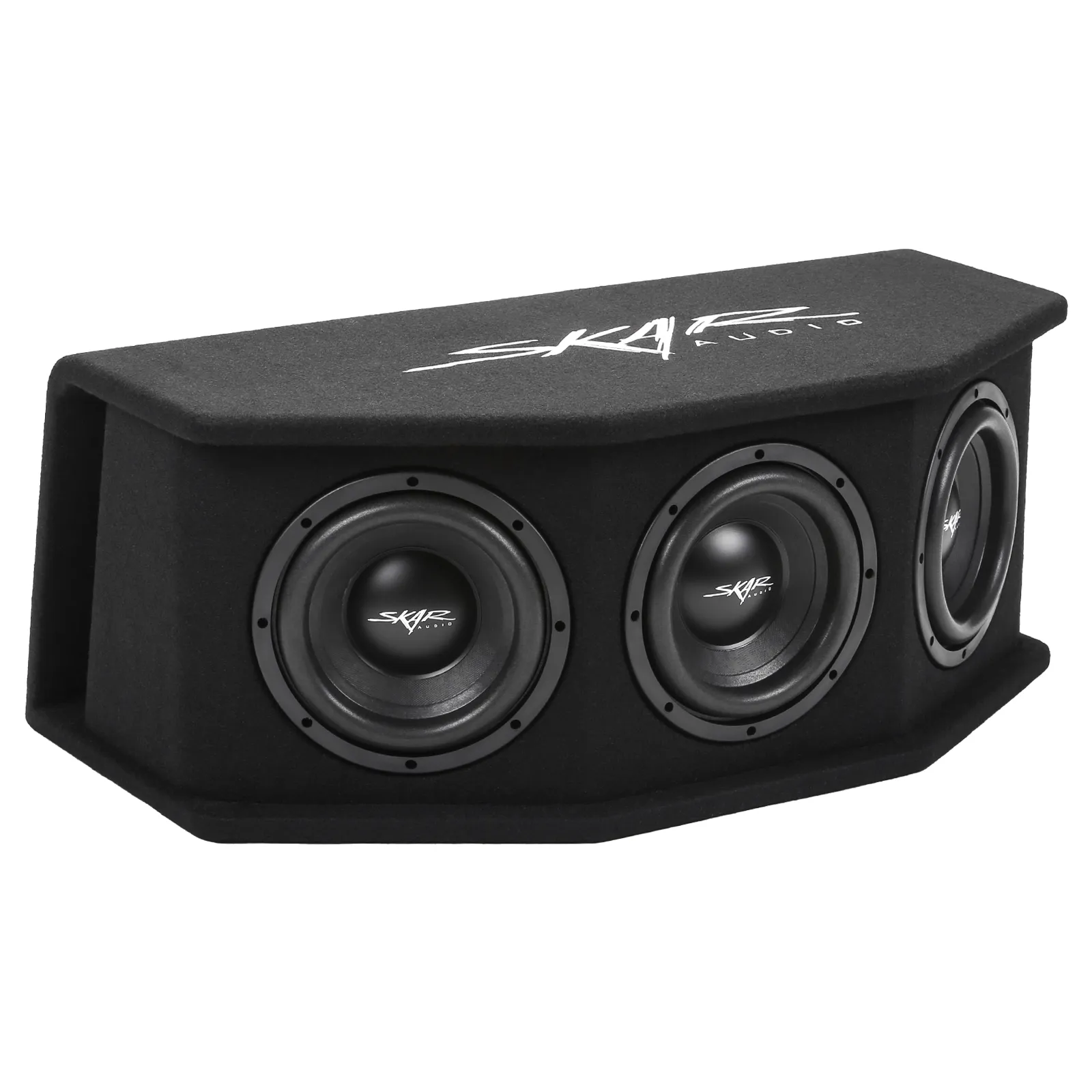

Triple 8" 2,100 Watt Loaded SDR Series Vented Subwoofer Enclosure

  • Skar Audio introduces the SDR-3X8D2 triple 8-inch loaded vented subwoofer enclosure for those seeking extreme bass output in their car audio system but who are limited by space in their vehicle. Featuring three of the Skar Audio SDR-8 700 Watt dual 2-ohm subwoofers, this 2,100 Watt max power loaded enclosure was engineered to get loud and low. Achieve head turning levels of bass output with this loaded enclosure and let size and space limitations be a thing of the past.

    The three dual 2-ohm subwoofers come pre-loaded and wired up inside of this custom triple 8" ported enclosure with a final impedance load of 1.33-ohms to a single speaker terminal cup located on the backside of the enclosure. This competition grade ported enclosure was designed for ultra responsive, low end frequency response, with all three drivers utilizing a single large shared chamber that shares two advanced slot ports located on opposites sides of the rear of the enclosure.

    Quick Facts
    RMS Power Handling 1,050 Watts
    Peak Power Handling 2,100 Watts
    Enclosure Configuration Triple 8" Ported
    Final Impedance Load 1.33 Ω

    We engineer our products to not only sound great, but to stand the test of time - which is why we construct this enclosure out of only the finest grade medium density fiberboard (MDF). Furthermore, the craftsmanship and build quality of this enclosure are world class and exemplified top to bottom. One such example of this being a double front baffle for enhanced strength that also doubles as a design enhancement allowing the subwoofers to be mounted with a flush finish. Finally, the loaded enclosure is finished in a premium black carpeting that features the Skar Audio logo centered across the top surface of the box. Peak Power: 2,100 Watts, RMS Power: 1,050 Watts.

  • General Specifications
    Enclosure Type Triple 8" Ported

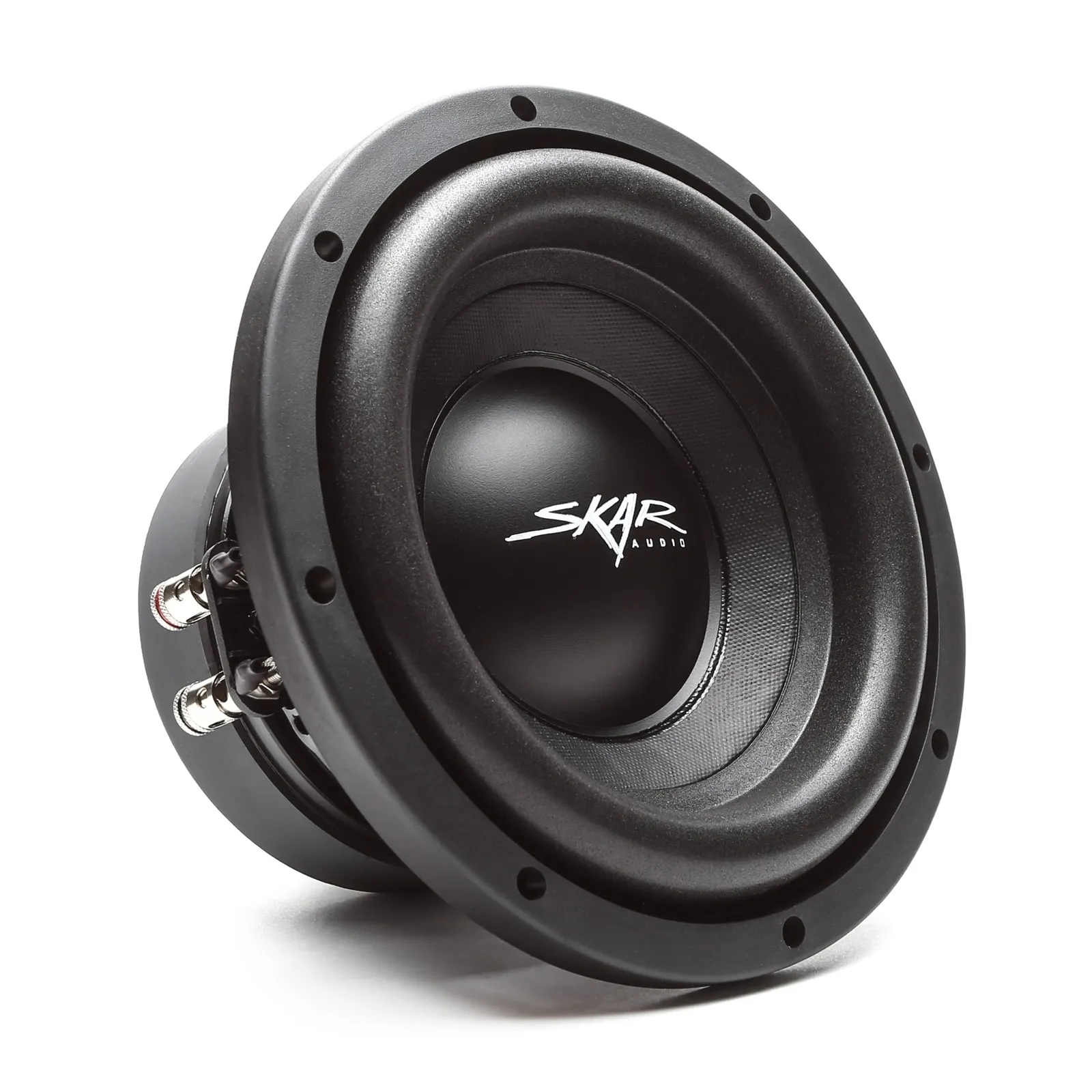

    Included Subwoofers x3 SDR-8 D2 Subwoofers (Pre-Loaded)
    Enclosure Chamber Design Shared Single Chamber

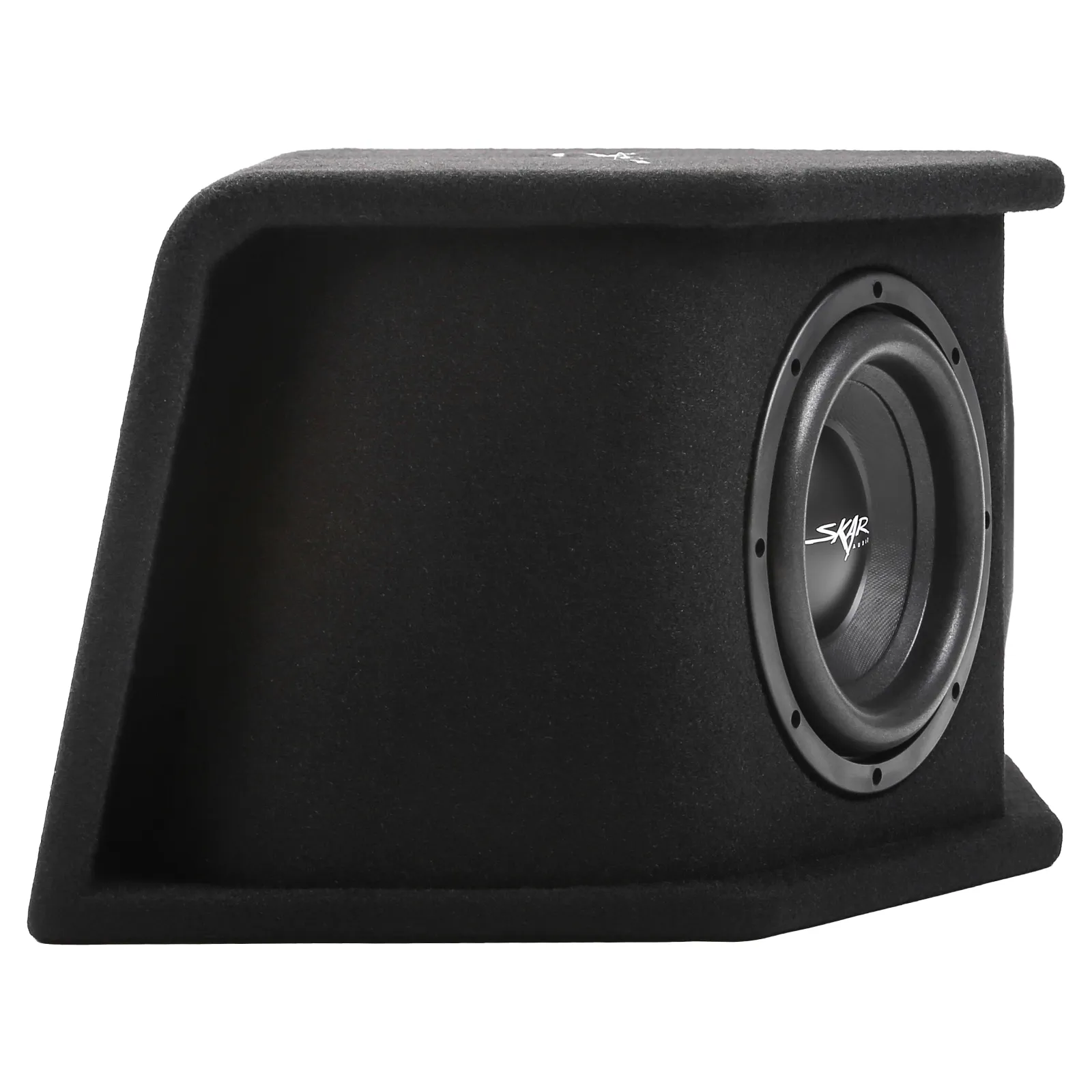

    Port Type Dual Rear Slot Ports (Left & Right Side)
    Enclosure Feature Double Baffle - Countersunk Design
    Enclosure Finish Premium Black Carpet
    Wood Thickness & Material 5/8" MDF
    Front Baffle Thickness 1.25" MDF
    Internal Air Space of Enclosure 1.50 ft3
    Tuning Frequency of Enclosure 46 Hz

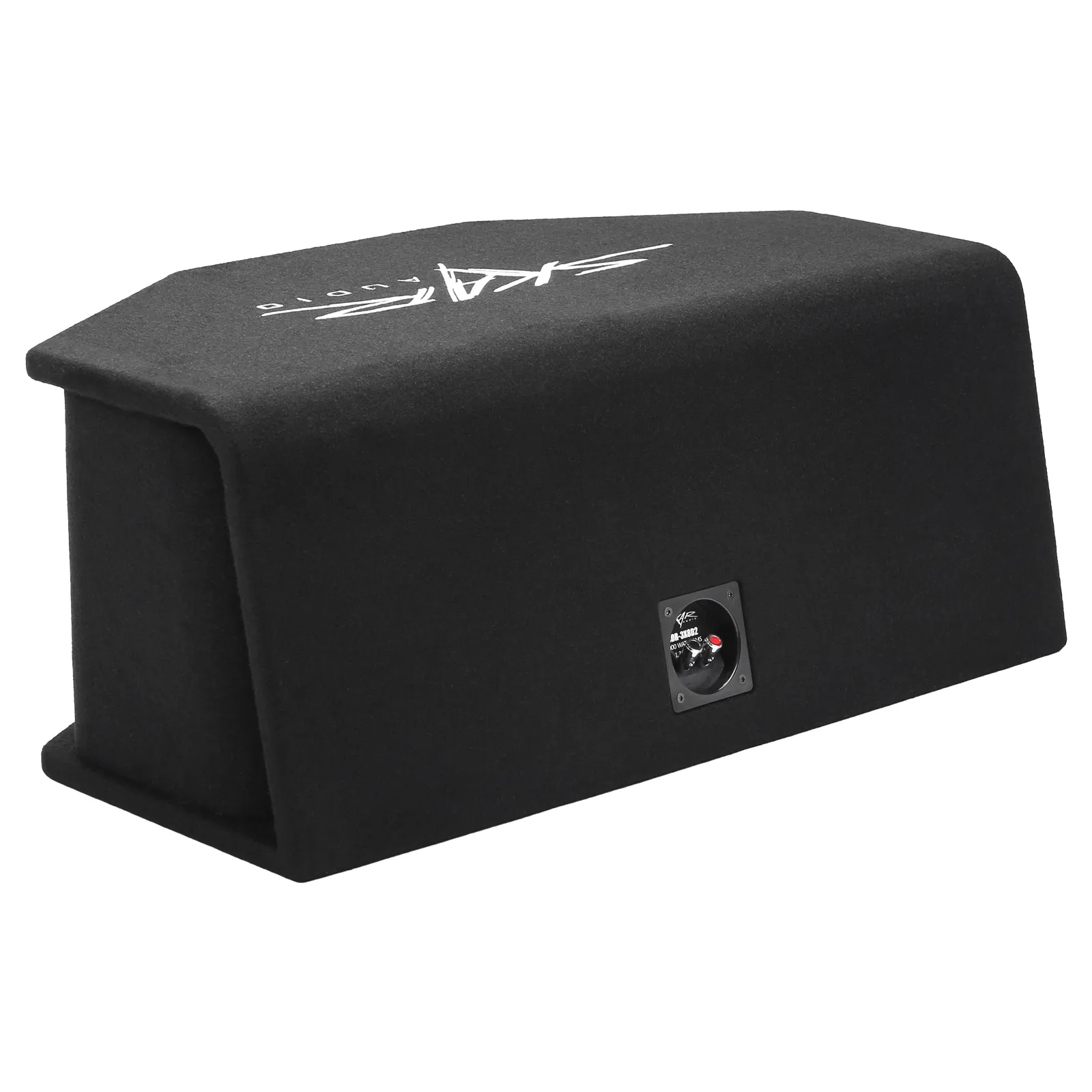

    Push Terminal Location Rear of Enclosure
    Final Impedance Load 1.33 Ω
    Performance
    RMS Power 1,050 Watts
    Peak Power 2,100 Watts
    Frequency Response 30 - 350 Hz
    Sensitivity (SPL) 83.8 dB
  • Enclosure External Dimensions
    Width 29.25"
    Depth 1 (Bottom) Front to Back 16.625"
    Depth 2 (Top) Front to Back 14.50"
    Height 11.625"


Customer Reviews

Based on 59 reviews
92%
(54)
5%
(3)
3%
(2)
0%
(0)
0%
(0)
K
K.A.
Eights slappin?

Pleasantly surprised by how deep and loud these eights are. I have them paired with a soundqubed 1200. Just got through the break in and tuned the amp up all the way... they take every bit of that 1200 rms. I listen to everything too. From underground hip hop to PANTERA, these things sound great.

H
H.W.
Triple 8 setup

Works amazing with my Skar 3500 watt amp I got with it. Super good bump and sound in my car!

J
J.D.
Love this setup!

Bought the 3 SDR 8s in the prefab box with the RP1500.1D amp wanting a little bang in my truck and IT EXCEEDED those expectations. These little things slam! I walked into the gas station the other day and left my buddy in the truck and he turned it up while I was in there and I not only heard but FELT my subs from inside. Also I should note these subs and amp came to my front door in less than 48 hours from the time I ordered them online. You killed it Skar!

M
M.
Looks good

Haven't had a chance to hear it. Can't tell anyone if it beats. Have quite a bit more work to be done surrounding my car before a proper evaluation can be submitted. But you asked me anyway...

A
A.M.C.
Wow I'm totally impressed

I have always had 2 12inch subs with 2400watt amps. But this build i wanted to go with a smaller set up. So I got this triple 8 loaded box and paired it with the SKAR RP1200.1D AMP AND IT POUNDS AS LOUD AND HARD IF NOT LOUDER AND HARDER than my 2 12 set ups. Wow am I very impressed
