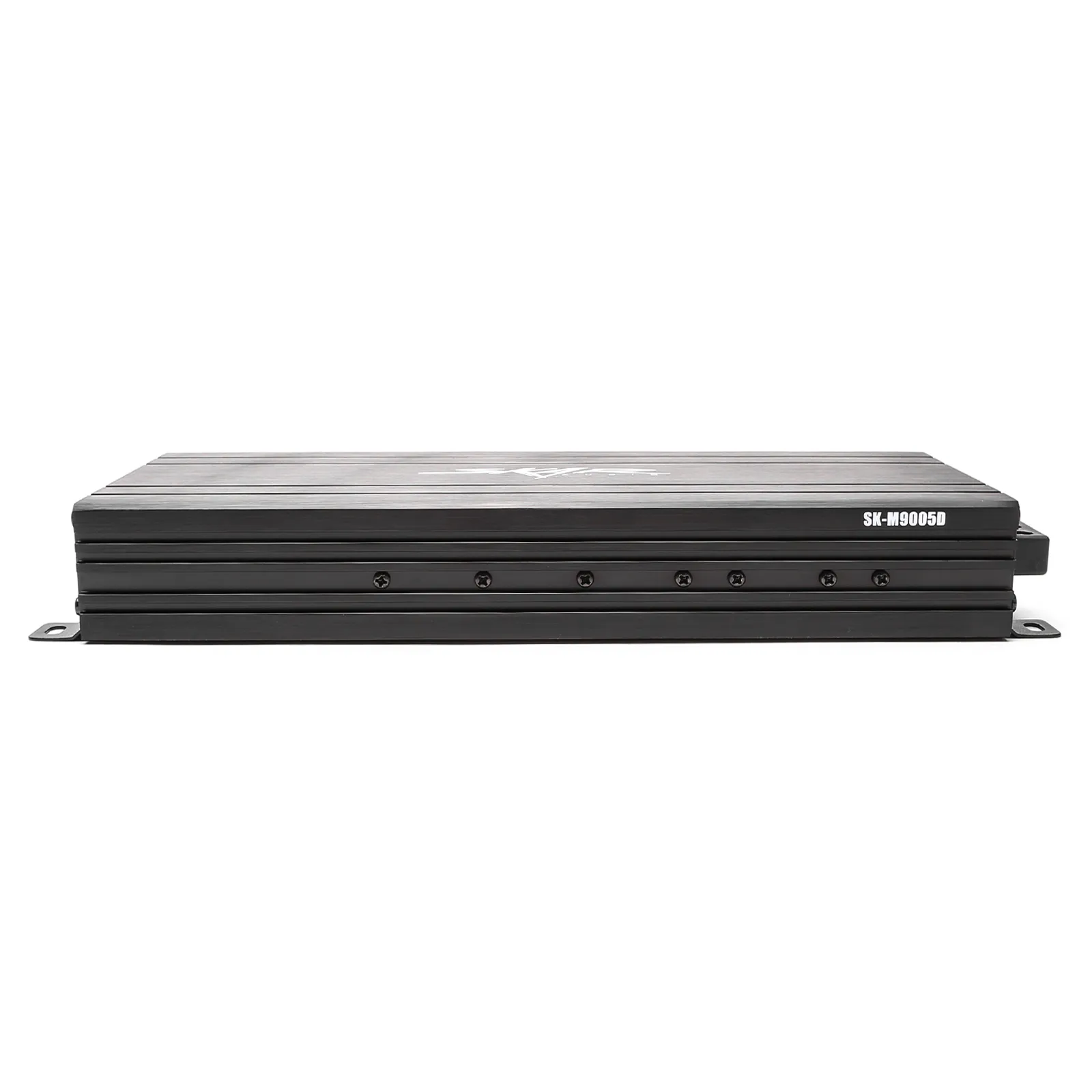

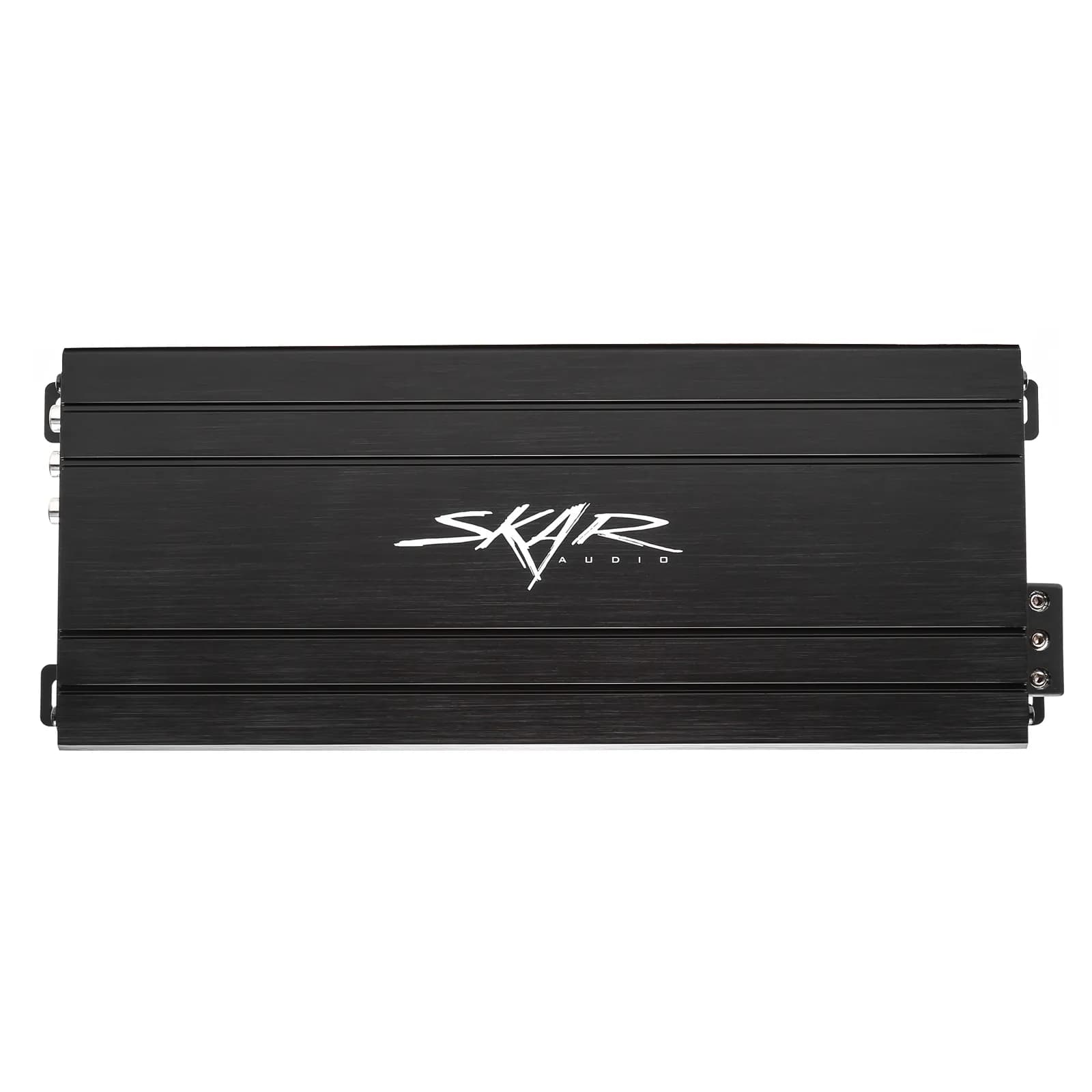

The Skar Audio SK-M9005D full-range five channel amplifier offers high performance from an ultra-compact chassis. This Class D amplifier uses less power, takes up less space, and generates less heat than traditional amp designs, making it the perfect solution when space is at a premium and sound quality is the ultimate goal. Don't let it's size fool you, the SK-M9005D boasts an impressive 900 Watts of power, providing the versatility to power multiple sets of speakers as well as a subwoofer system.
The SK-M9005D provides you with the tone controls you need to tune your system so that your speakers and sub sound their best. Utilizing the high-pass filters, you can remove the extreme low bass from your full-range speakers, so they'll play more efficiently. You can adjust the subwoofer channel's low-pass filter and bass boost to get just the right bass tone. This five channel amplifier comes with a remote bass knob and cable, providing the ability to control the bass from the dash. In addition, the SK-M9005D utilizes a Molex Connector for the speaker outputs allowing for an easier installation.
*Skar Audio always recommends professional installation for all of our products.*
*Never mount amplifiers directly on the enclosure*
Specifications
- Compact "Mini" Class D Full-Range Five Channel Car Amplifier
- The compact design of this amplifier series allows for maximum versatility
- RMS Power @ 4 Ohms: 55 Watts x 4 + 300 Watts x 1 (14.4v)
- RMS Power @ 2 Ohms: 85 Watts x 4 + 450 Watts x 1 (14.4v)
- RMS Power @ 4 Ohms (Bridged): 170 Watts x 2 Channels (14.4v)
- Frequency Response: 10Hz - 20kHz for CH 1-4 & 10Hz - 500Hz for CH 5
- Working Voltage: 8.5V-16V
- Signal-to-Noise Ratio (Sensitivity): 85dB
- Damping Factor: 100<
- Low Level Input (Gain): 8V - 0.2V

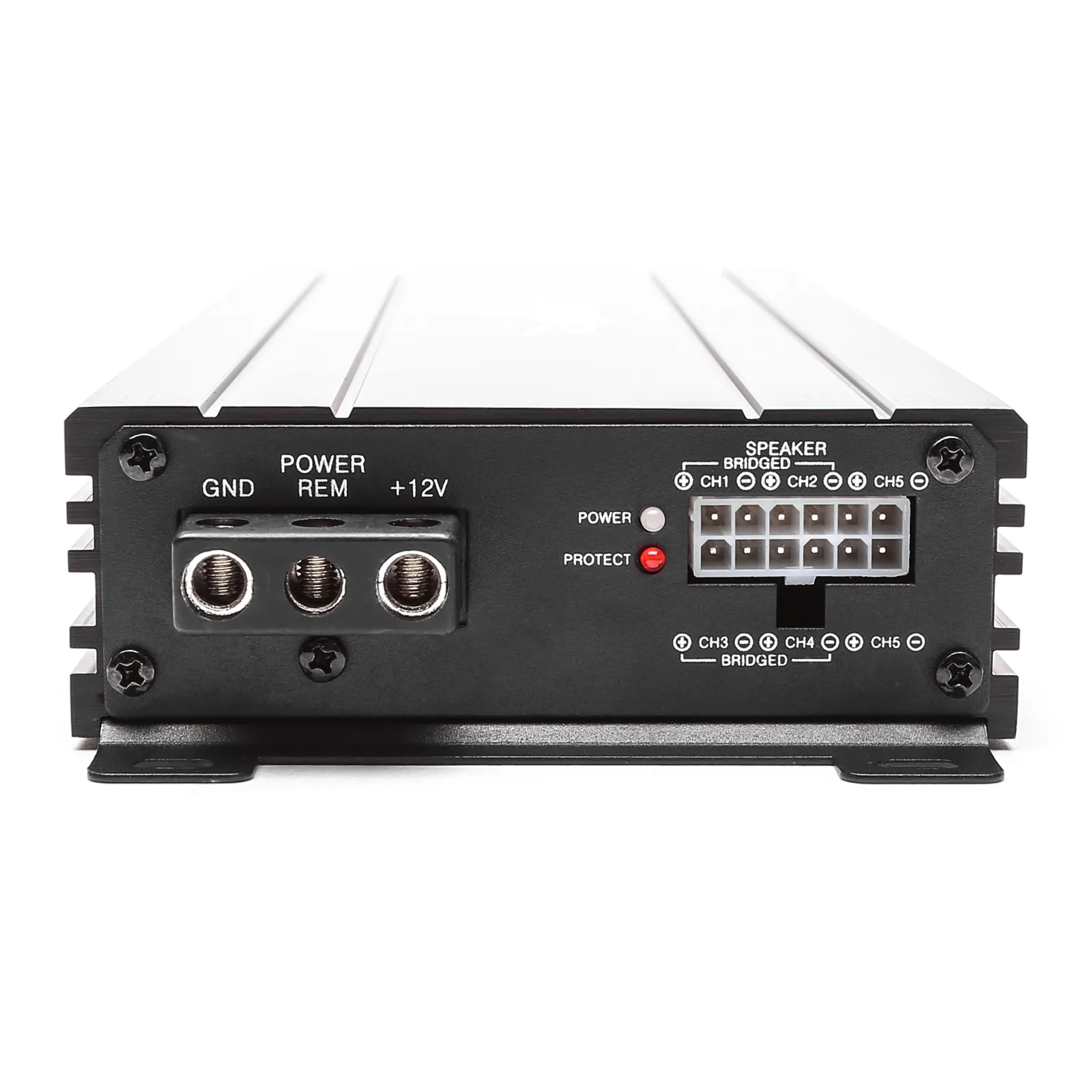

- Speaker Output Adapter Connection: Yes
- Crossover Control: HPF / Full-Range / LPF
- 4-Way Protection Circuitry Built-in (Thermal, Voltage, Speaker, DC)
- LED Power & Protection Indicators
- Fuse Rating: 80 Amps
- 8 Gauge Power and Ground Input Terminals

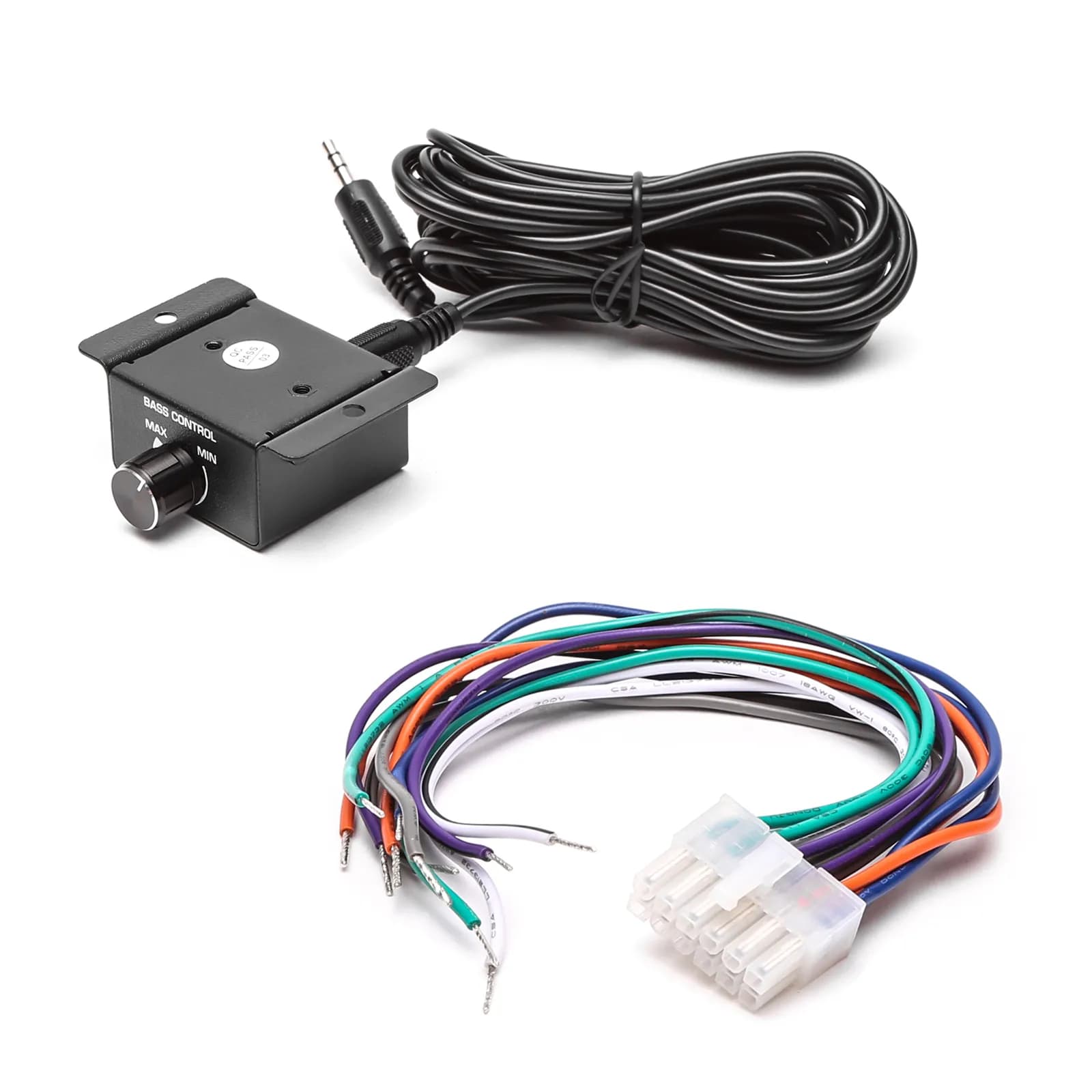

- Remote Bass Knob and Cable Included
- Dimensions: 12.4 in x 4.6 in x 1.7 in (L x W x H)

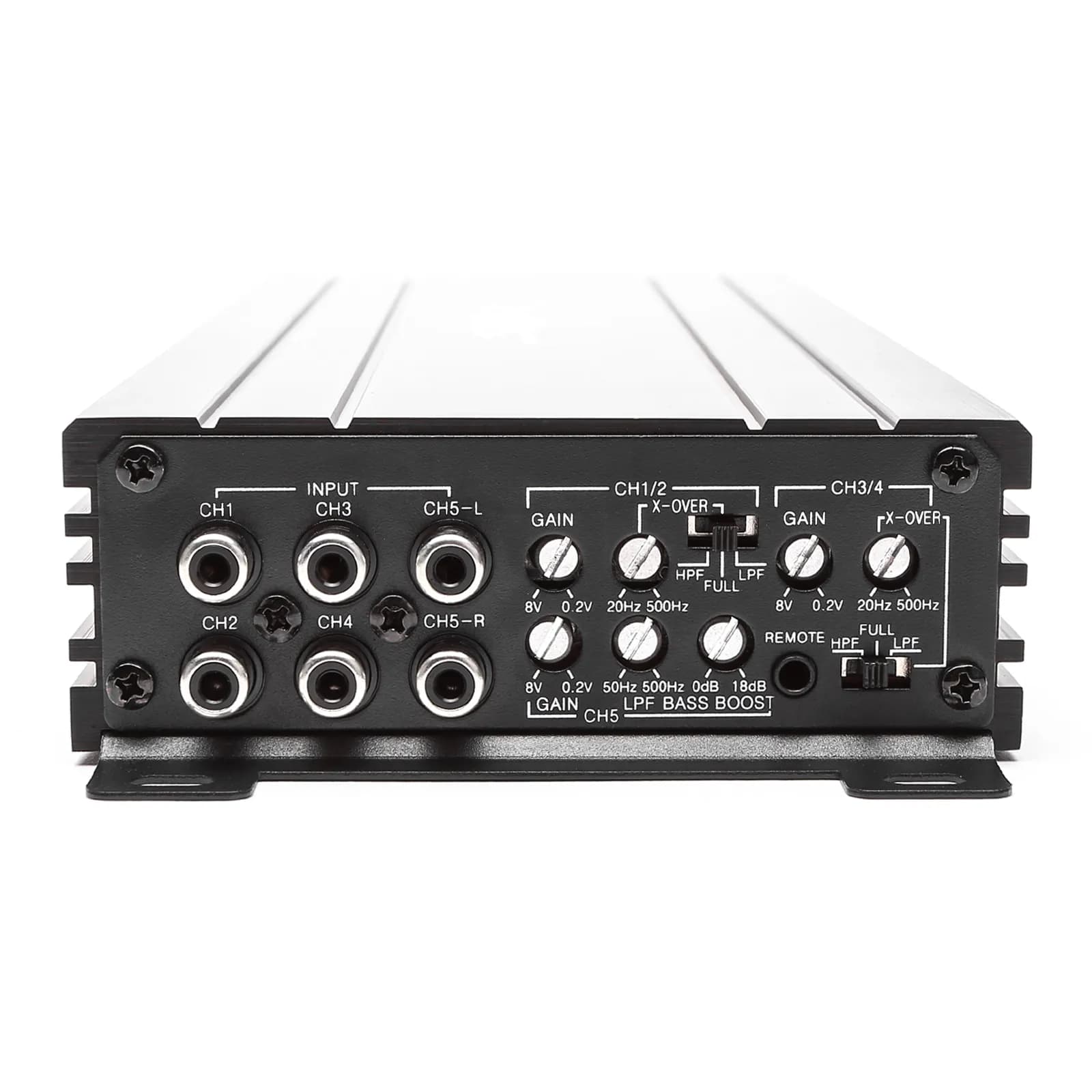

Channel 1/2 Crossover
- High-Pass Filter / Full-Range / Low-Pass Filter
- Variable Crossover Frequency Range: 20Hz - 500Hz
Channel 3/4 Crossover
- High-Pass Filter / Full-Range / Low-Pass Filter
- Variable Crossover Frequency Range: 20Hz - 500Hz
Channel 5
- Low-Pass Filter Range: 50Hz - 500Hz
- Bass Boost: 0dB - 18dB
Click Here to Download the SK-M Amplifier Manual
Started my first audio install on my vehicle, paired with:
Tx65
Tx65c
Tx-T
VD-8
I like how it's compact. Fits under the seat were the original amp was. Only complaint i have is that it gets fairly hot. Kinda scary.
I have installed in a Corolla 2016 with OEM factory stereo, two Memphis mojo 6.5 with baffle foam, and two Rockville 6x9 in the rear with baffle and small square kicker 8' sounds pretty good, just got a little hot but I think is normal
This amp has everything that I was looking for: aesthetically flawless (this is a beautiful amp), ample power for 2 pairs of door components and a powerful sub channel (perfect for my 2 pairs of Rockford Phosgate Power component sets rated at 100W nominal each corner of the vehicle), and lastly, amplification clarity from my pair of JL Audio OEM LOC's. The crossover function on Channels 1-4 is perfect for cutting out the lows, while using the bandpass for the subwoofer Channel 5. This works absolutely perfect. This was my first Skar Audio purchase, and I am honestly hooked. Everyone that sees the amplifier, and then hears the signal, immediately follows up with a "Wow." Great job guys...I am eager to try out other products. Attached is a couple of photos of the cargo area in my 2010 Kia Soul...the "schematic" look is what I enjoy, rather than hiding all the connections, so yes, this was intentional. Enjoy, and thanks again.
Great value for awesome performing 5 channel amp. I wanted something with small footprint for my install plan. The size of this amp gives a lot of install flexibility. Saw some other reviews mention overheating. I have mains and sub all at 4 ohm and have had no issues. I would buy again and I do recommend this amp/skar products.
So far so good. The 5 channel Amp and speakers I purchased are very nice and sound great. I will be purchasing from Skar Audio again in the future.
