SKv2-100.4AB | 800 Watt 4-Channel Car Amplifier

MSRP: $ 319.99 $ 259.99
  • Skar Audio SKv2-100.4AB 800 Watt Class AB 4-Channel Car Amplifier - Front View

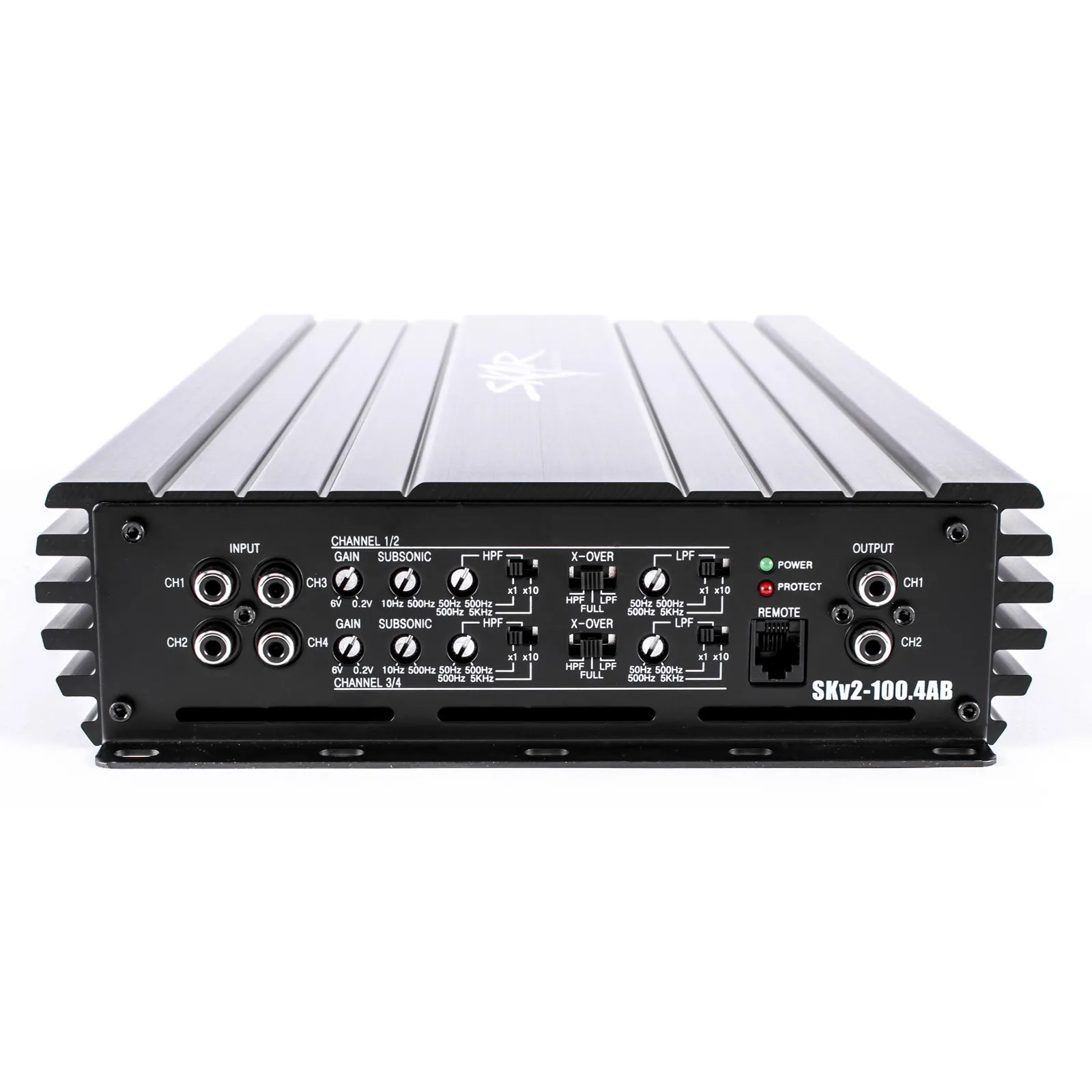

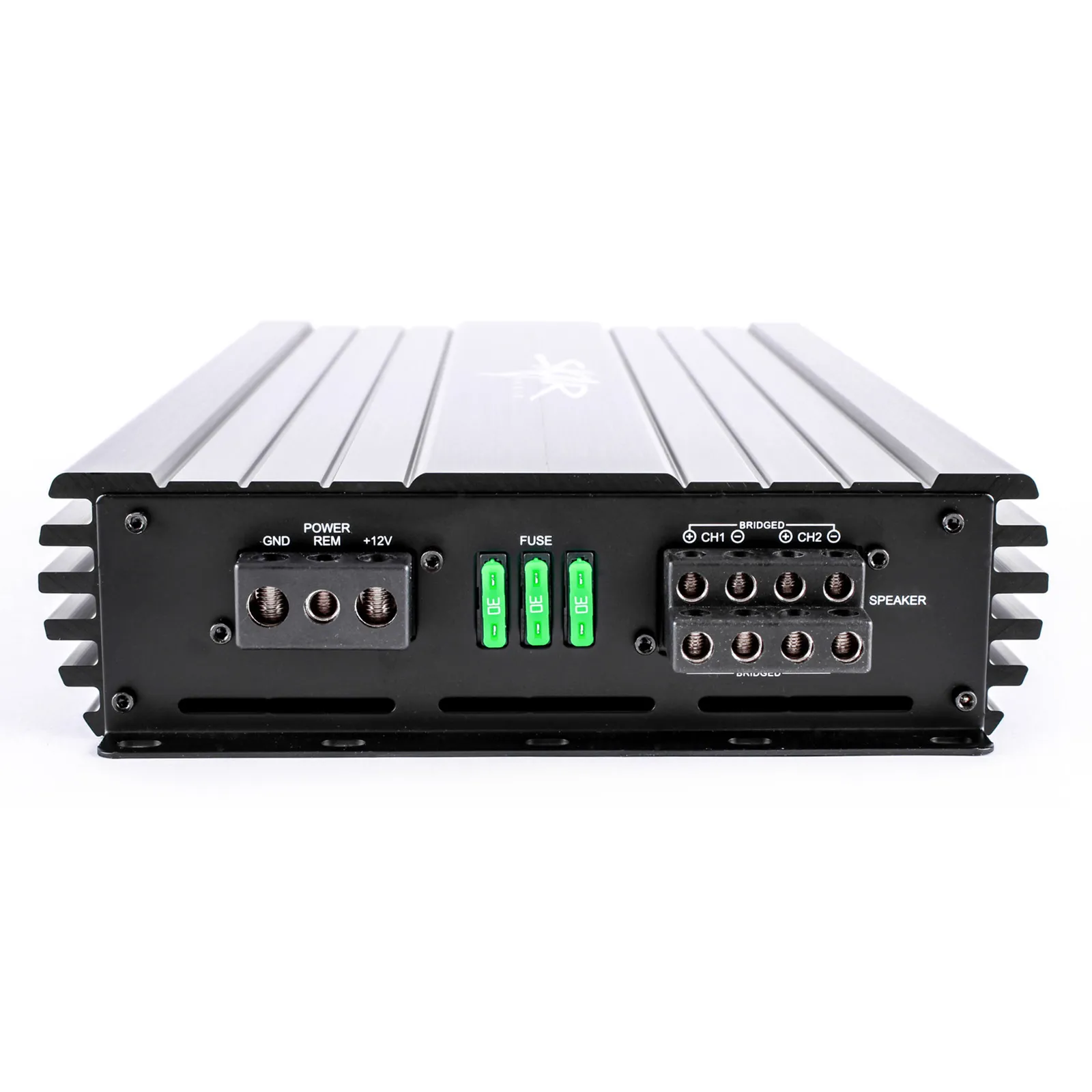

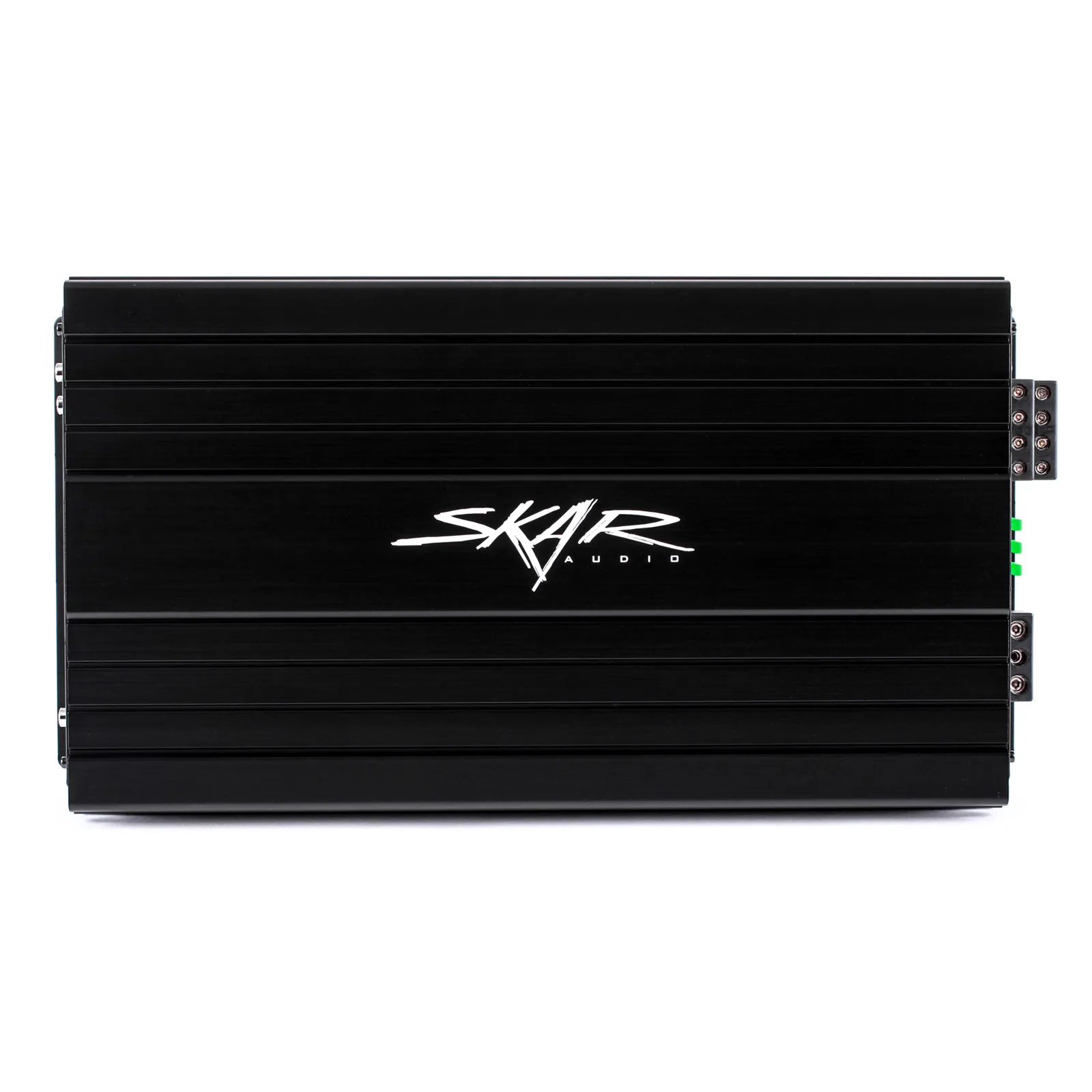

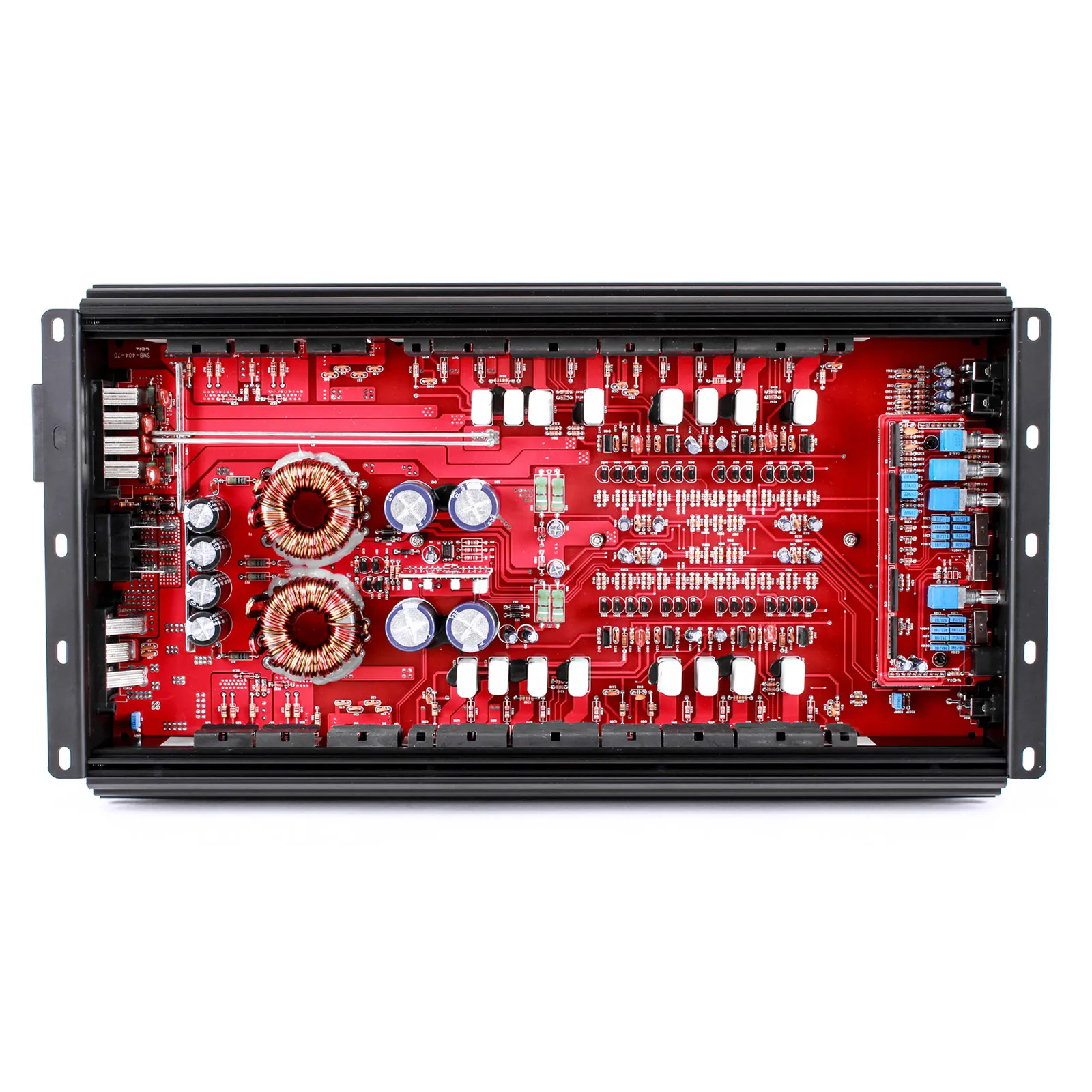

Skar Audio SKv2-100.4AB 800 Watt Class AB 4-Channel Car Amplifier - Front View Skar Audio SKv2-100.4AB 800 Watt Class AB 4-Channel Car Amplifier - Controls View Skar Audio SKv2-100.4AB 800 Watt Class AB 4-Channel Car Amplifier - Inputs View Skar Audio SKv2-100.4AB 800 Watt Class AB 4-Channel Car Amplifier - Gut Shot View Skar Audio SKv2-100.4AB 800 Watt Class AB 4-Channel Car Amplifier - Remote Level Knob and Wire View Skar Audio SKv2-100.4AB 800 Watt Class AB 4-Channel Car Amplifier

SKv2-100.4AB | 800 Watt 4-Channel Car Amplifier

MSRP: $ 319.99 $ 259.99
Change ZIP

Description

Description

The Skar Audio SKv2-100.4AB is a competition grade multi-channel class A/B speaker amplifier that was designed to deliver unequivocal performance and power output. As a part of the flagship SKv2 series of amplifiers from Skar Audio, this model utilizes only the highest quality internal components and features advanced engineering enhancements that allow it to outperform anything else on the market in its power class. The sound quality that this amplifier delivers due to its class A/B circuitry design is nothing short of audible excellence.



If you are looking for the absolute best amplifier to power your "daily driver" sound stage, look no further - this is the amplifier for you. Whether you are looking to power component speakers, pro audio speakers, or a mix of the both, this amplifier is more than capable of powering an entire vehicle's audio system. The SKv2-100.4AB is conservatively rated at 400 watts RMS power (100 watts x 4 channels), and at max power output can produce more than an astonishing 800 watts (200 watts x 4 channels). In addition to its extreme performance capabilities, this amplifier features an advanced heatsink design that allows for maximum cooling, as well as 4-way protection circuitry, enabling the amplifier to operate efficiently at peak output levels for hours on end.



Furthermore, you'll have full reign over your amplifier with the built-in user control panel, featuring variable adjustment tunings for gain level, subsonic filter, high-pass filter with x1-x10 switch, low-pass filter with x1-x10 switch, and crossover switch to select which filters you'd like to use (HPF, Full, LPF). Versatility is key, and so In addition to all the above features - the SKv2-100.4AB also has RCA outputs so that you can easily daisy chain multiple amplifiers together. This amplifier utilizes 4-gauge power and ground input terminals which allow for maximum current flow and therefore higher power output.

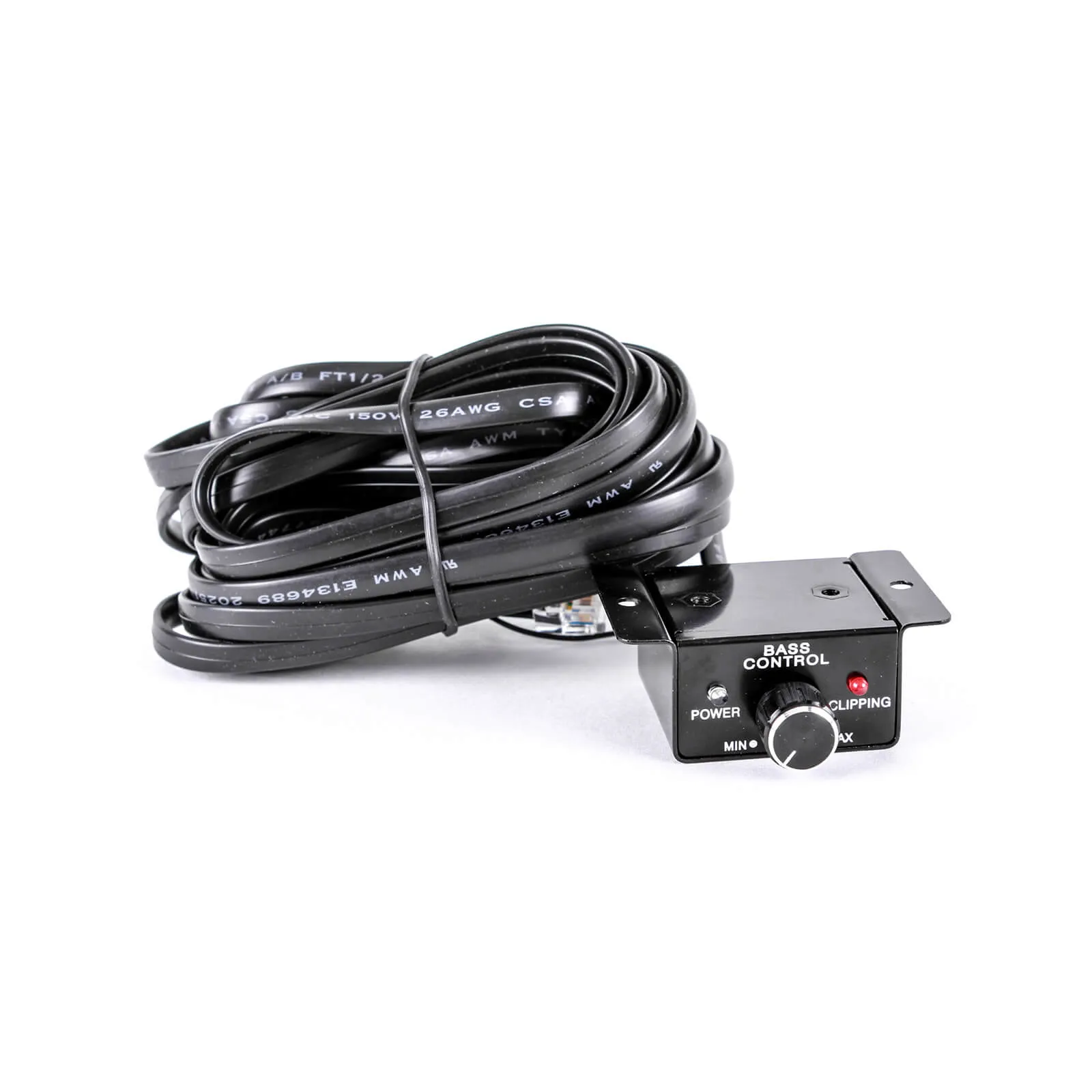

This amplifier comes with a remote level control knob and wire allowing the user to have full control over their system from the front of the vehicle.



Specifications

  • Skar Audio SKv2-100.4AB Class A/B Multi-channel Car Power Amplifier
  • Competition Grade Quality and Performance
  • Extremely Powerful and Highly Efficient Design
  • RMS Power at 2 Ohms: 150 Watts x 4 Channels (14.4v)
  • Peak Power at 2 Ohms: 210 Watts x 4 Channels (14.4v)
  • RMS Power at 4 Ohms: 100 Watts x 4 Channels (14.4v)
  • Peak Power at 4 Ohms: 135 Watts x 4 Channels (14.4v)
  • RMS Power at 2 Ohms (Bridged): 415 Watts x 2 Channels (14.4v)
  • Frequency Response: 10 Hz - 40,000 Hz
  • Signal-to-Noise Ratio (Sensitivity): 105dB
  • Damping Factor: 200<
  • Low Level Input (Gain): 6V - 0.2mV
  • RCA Line Output: Yes
  • Subsonic Filter: 10 Hz - 100 Hz
  • Crossover Selection: HPF / Full-Range / LPF
  • 4-Way Protection Circuitry Built-in (Thermal, Voltage, Speaker, DC)
  • LED Power & Protection Indicators
  • Remote Knob & Wire Included: Yes
  • 30 Amp x 3 External Fuses
  • 4 Gauge Power and Ground Input Terminals
  • Dimensions: 400mm x 232mm x 62mm (L x W x H)

Channel 1/2 Crossover

  • High Pass Filter (@ 12 dB Slope)
  • x1, and x10 Multipliers
  • Variable Crossover x1: 50 Hz - 500 Hz
  • Variable Crossover x10: 500 Hz - 5,000 Hz
  • Low Pass Filter (@ 12 dB Slope)
  • x1, and x10 Multipliers
  • Variable Crossover x1: 50 Hz - 500 Hz
  • Variable Crossover x10: 500 Hz - 5,000 Hz

Channel 3/4 Crossover

  • High Pass Filter (@ 12 dB Slope)
  • x1, and x10 Multipliers
  • Variable Crossover x1: 50 Hz - 500 Hz
  • Variable Crossover x10: 500 Hz - 5,000 Hz
  • Low Pass Filter (@ 12 dB Slope)
  • x1, and x10 Multipliers
  • Variable Crossover x1: 50 Hz - 500 Hz
  • Variable Crossover x10: 500 Hz - 5,000 Hz

Click Here to Download the SKv2 Amplifier Manual



Real World Amplifier Dyno Testing Results



Certified (RMS) Power

  • 2 Ohms: 154 Watts x 4 Channels @ 14.48v
  • 4 Ohms: 103 Watts x 4 Channels @ 14.36v

Dynamic (Peak) Power

  • 2 Ohms: 208 Watts x 4 Channels @ 14.39v
  • 4 Ohms: 137 Watts x 4 Channels @ 14.52v
