Single 10" 'SPL Series' Armor Coated Ported Subwoofer Enclosure

Category
discount

In Stock
MSRP:$269.99
Price:$169.99
CYBER MONDAY PRICE: $135.99

135.99 13599

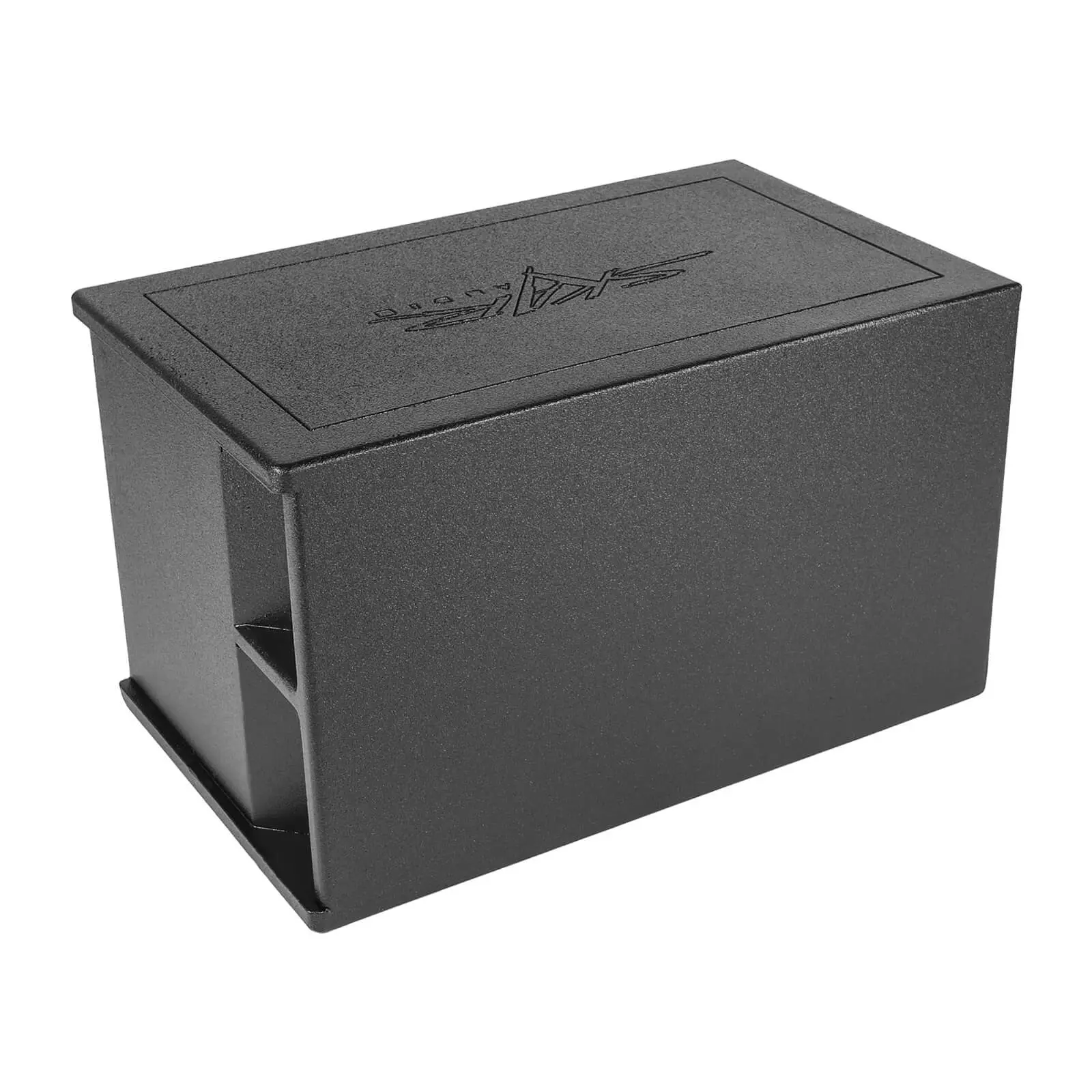

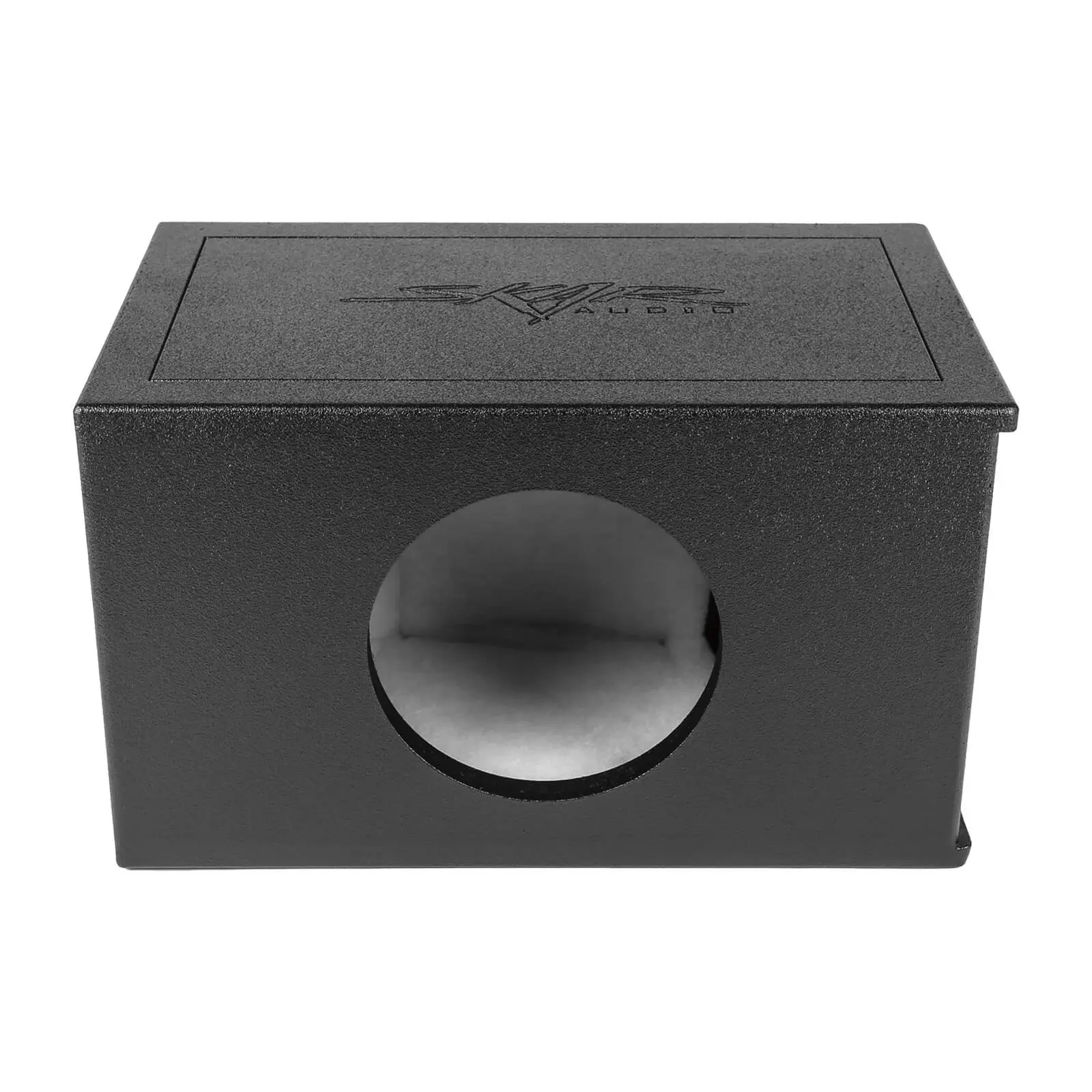

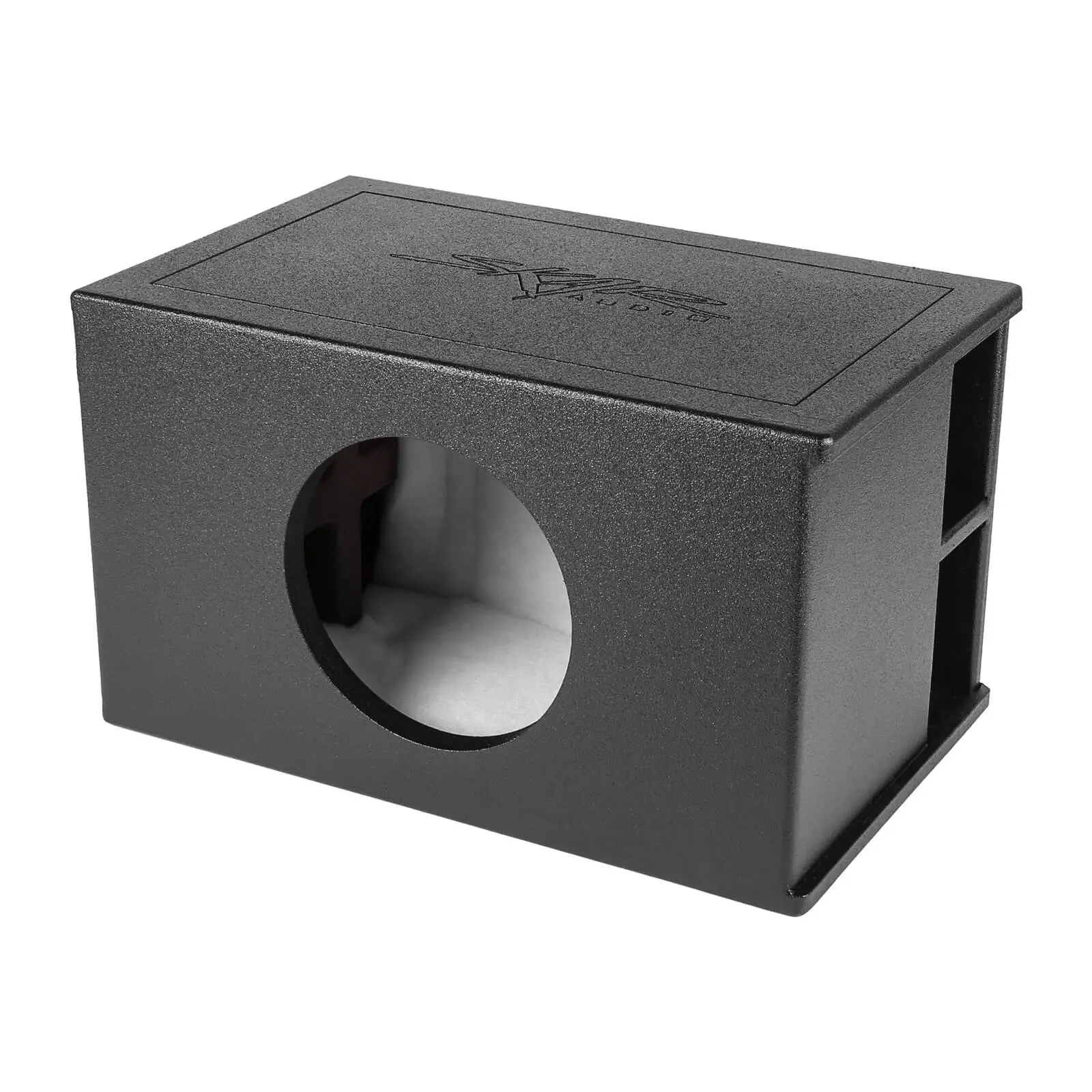

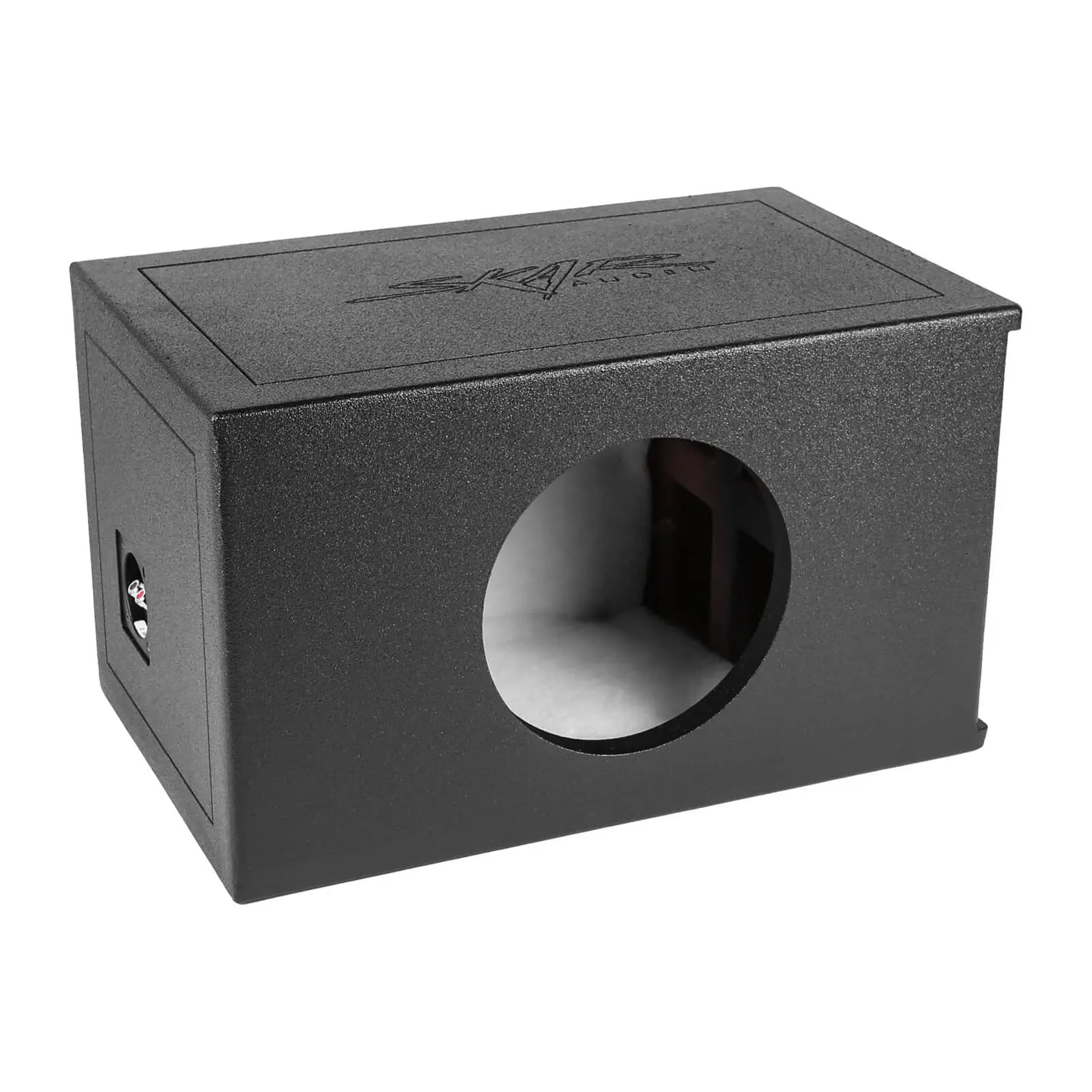

The Skar Audio AR1X10V-SPL is an armor coated, best in class, single 10", universal fit, 'SPL' grade, ported subwoofer enclosure. Our engineers developed this enclosure to offer the most demanding audiophiles a premium solution when looking to achieve maximum bass output from their sub-stage.
Quick Facts
Mounting Depth
11.1875"
Cut-Out Diameter
9.35"
Tuning Frequency
44 Hz
Total Gross Air Space (Volume)
1.50 ft3

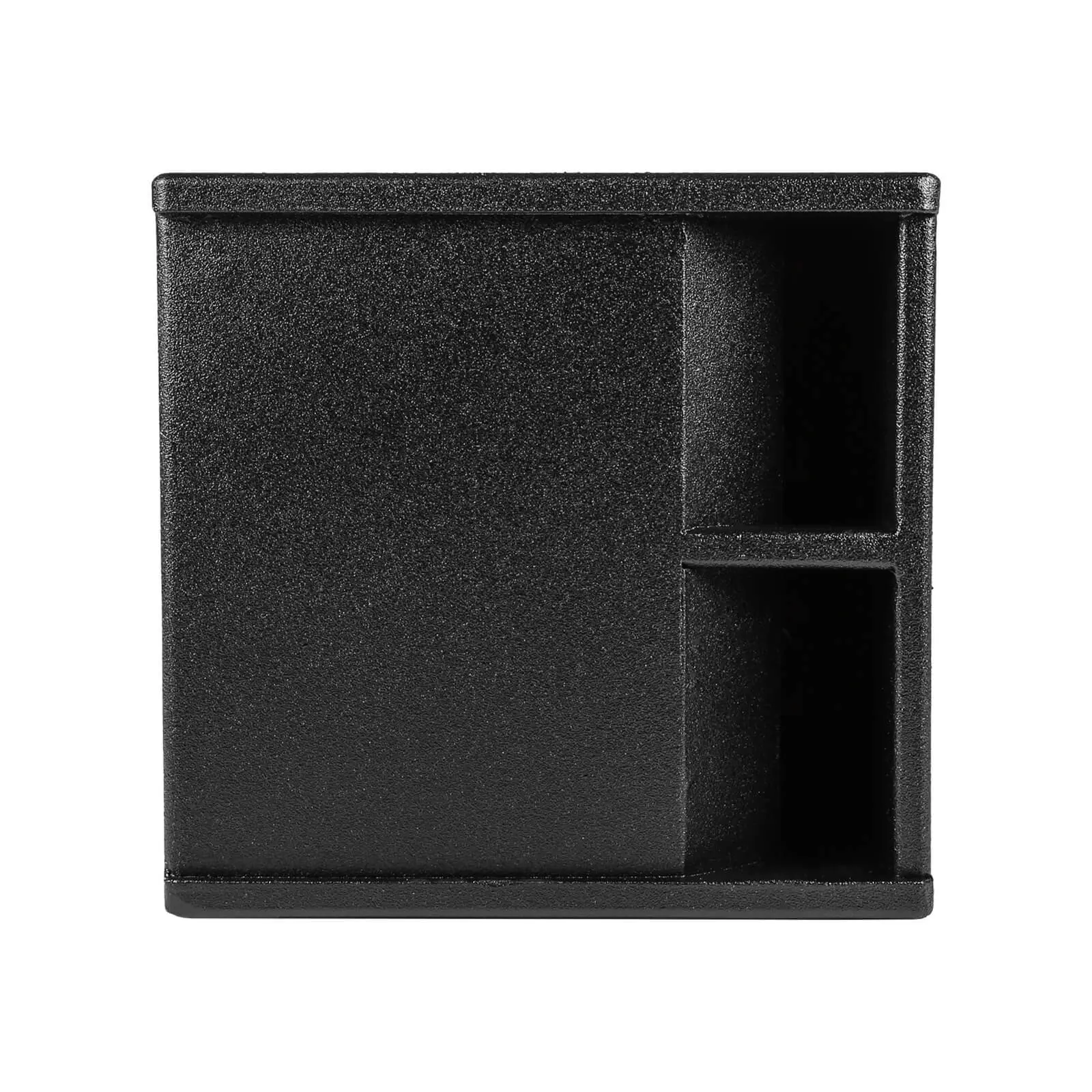

As its name suggests, this enclosure is part of our SPL series of subwoofer enclosures, which are notably more performant in the SPL category than anything else on the market. Optimally tuned at 44 Hz, this ported enclosure utilizes an all new, rear, side port design which serves to increase bass output. The port was engineered strategically to maximize SPL output by routing air internally in a manner that maximizes pressure as it travels through the enclosure.

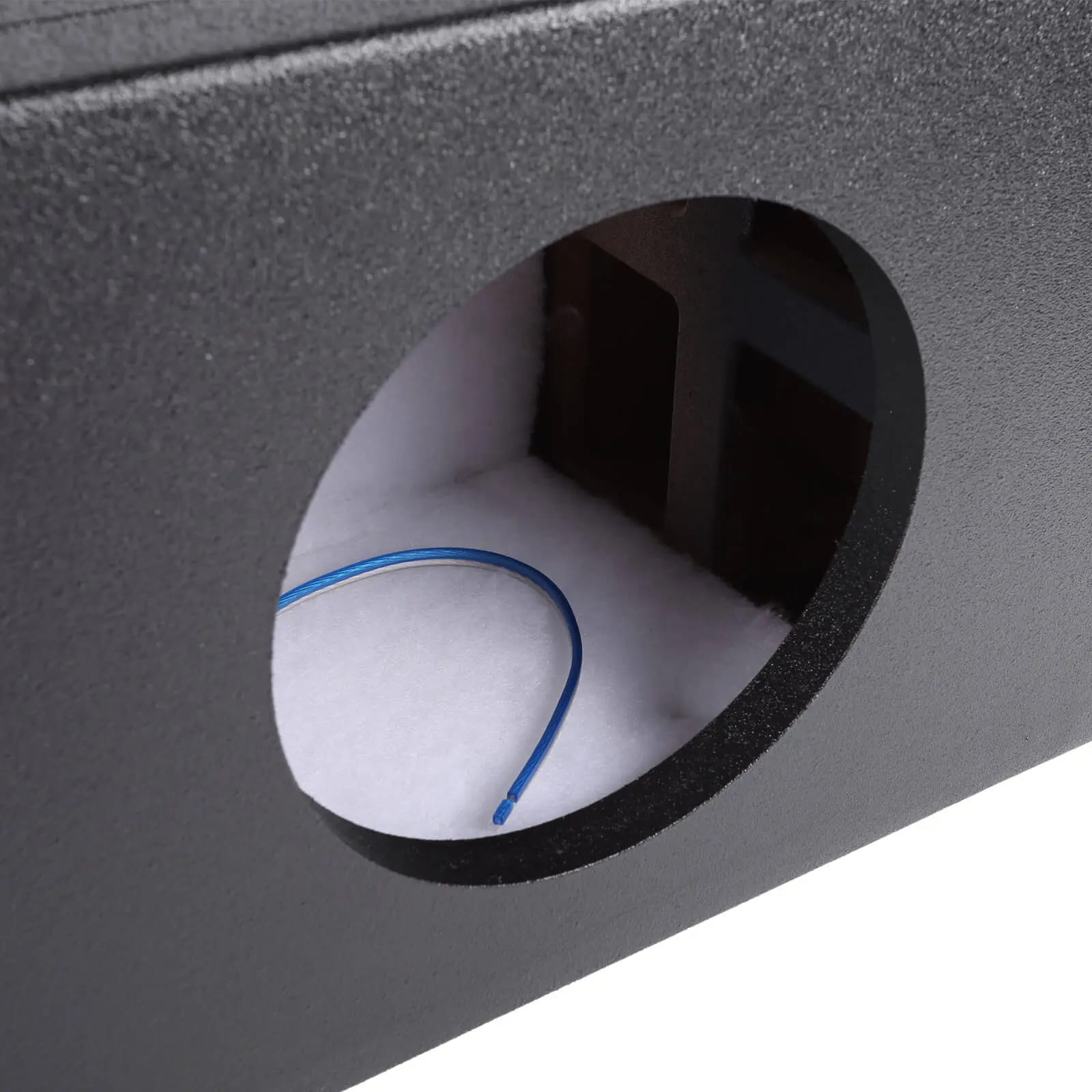

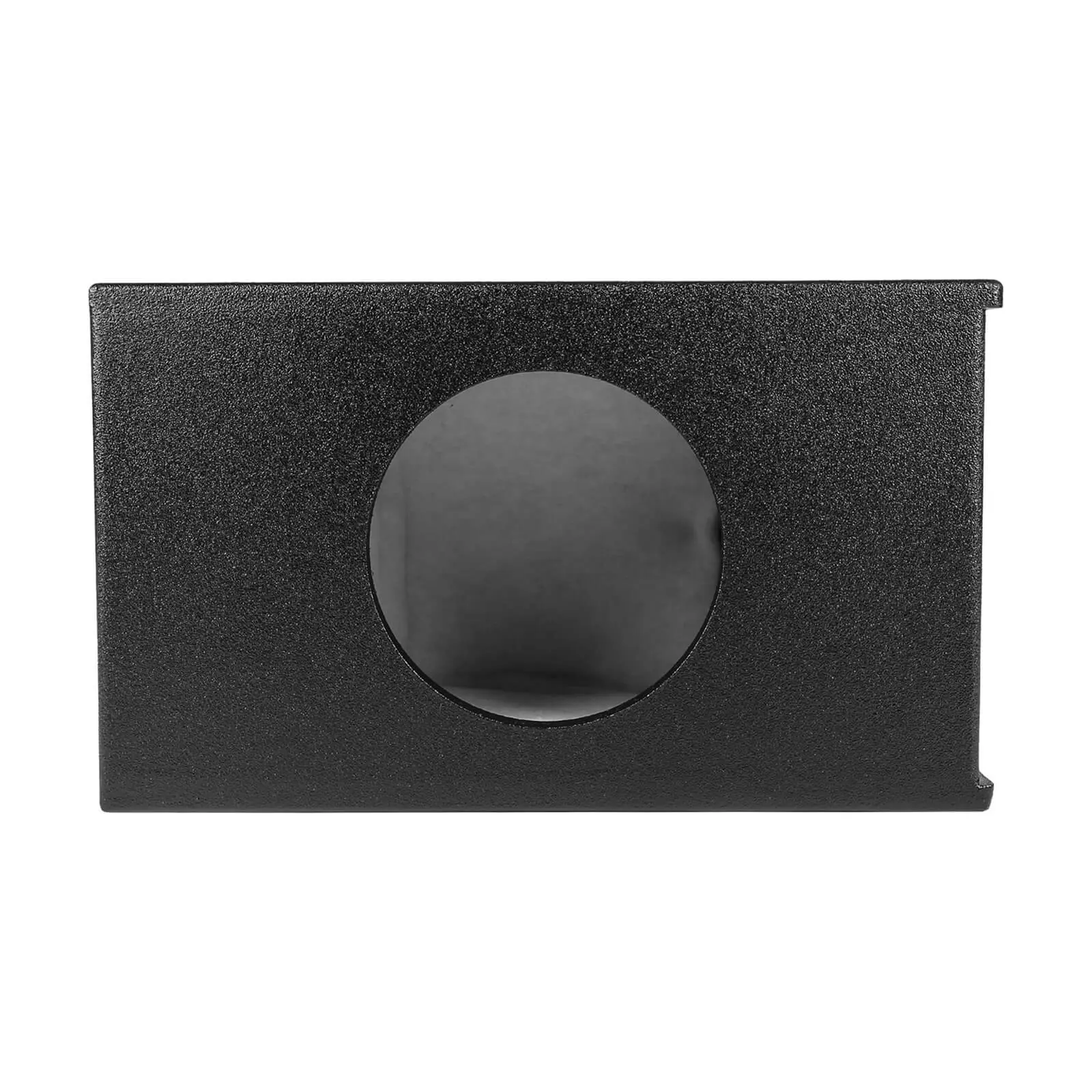

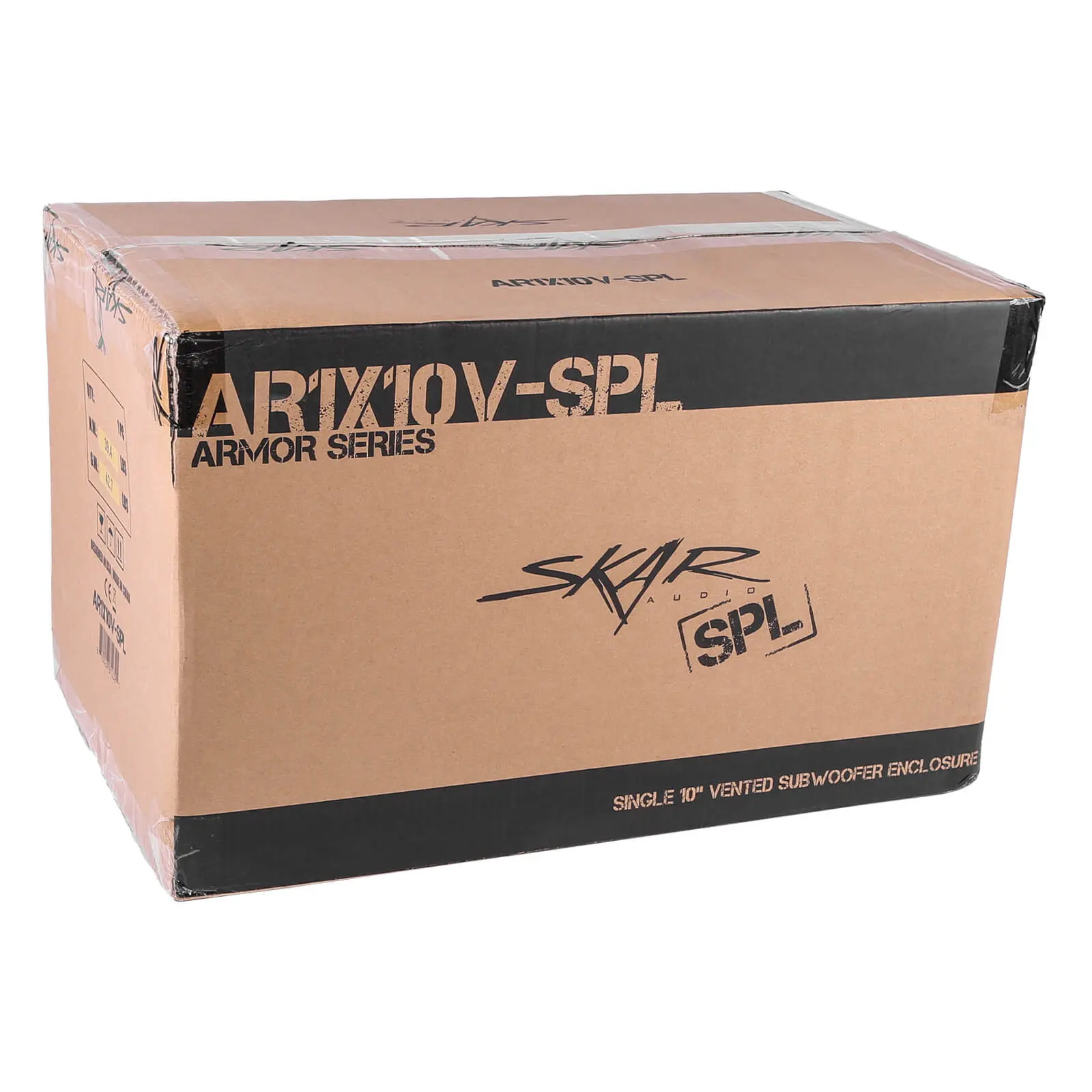

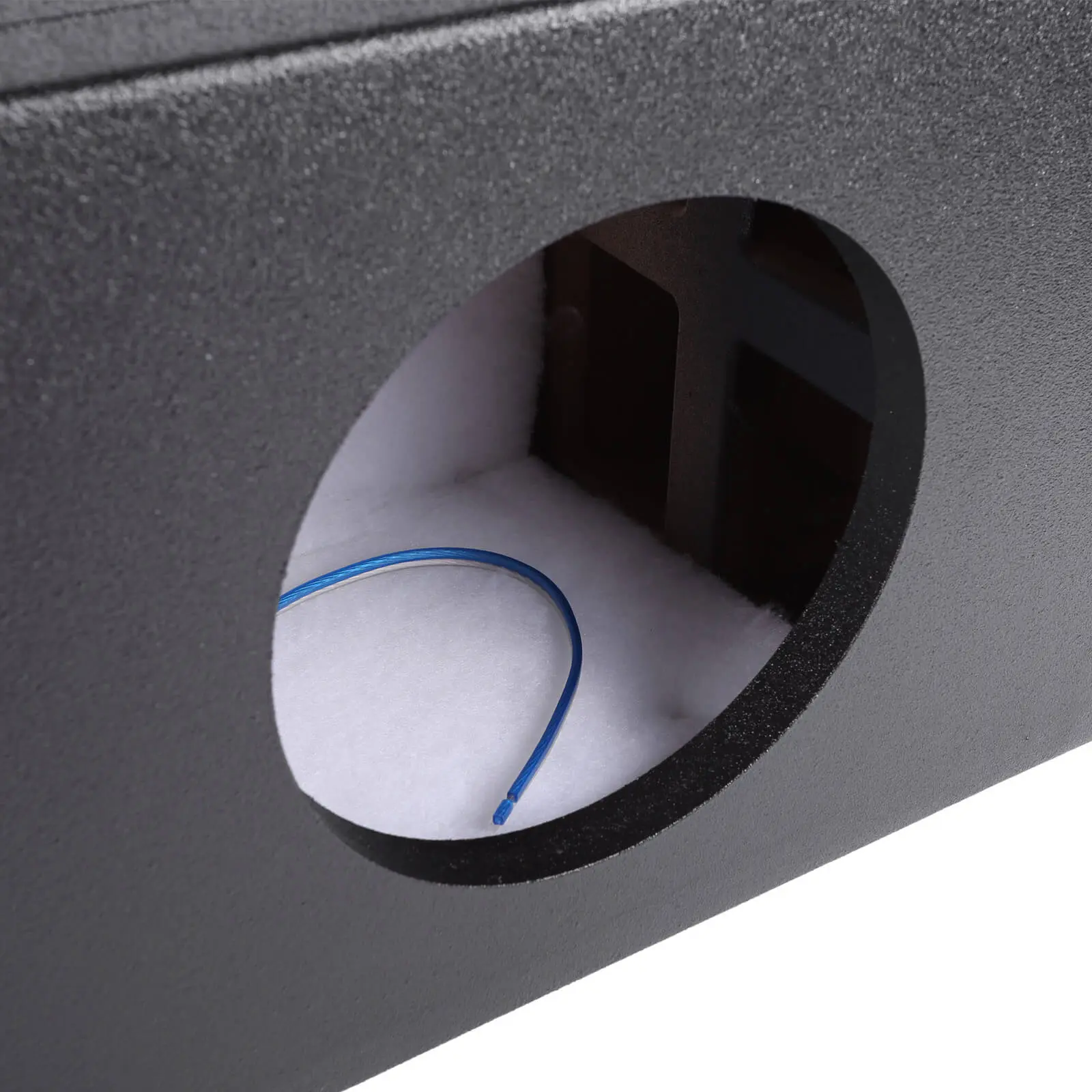

From the minute you open the packaging, it is evident how the quality of this enclosure stands in a league of its own. Unparalleled in durability, it utilizes 1" MDF for the high-strength front baffle, with the remainder of the enclosure finished in 3/4" MDF. Every seam is carefully adjoined using high quality adhesives ensuring the enclosure is air tight. Thereafter, we line the internal walls of the enclosure with poly-fill to enhance the overall depth of sound it can reproduce.

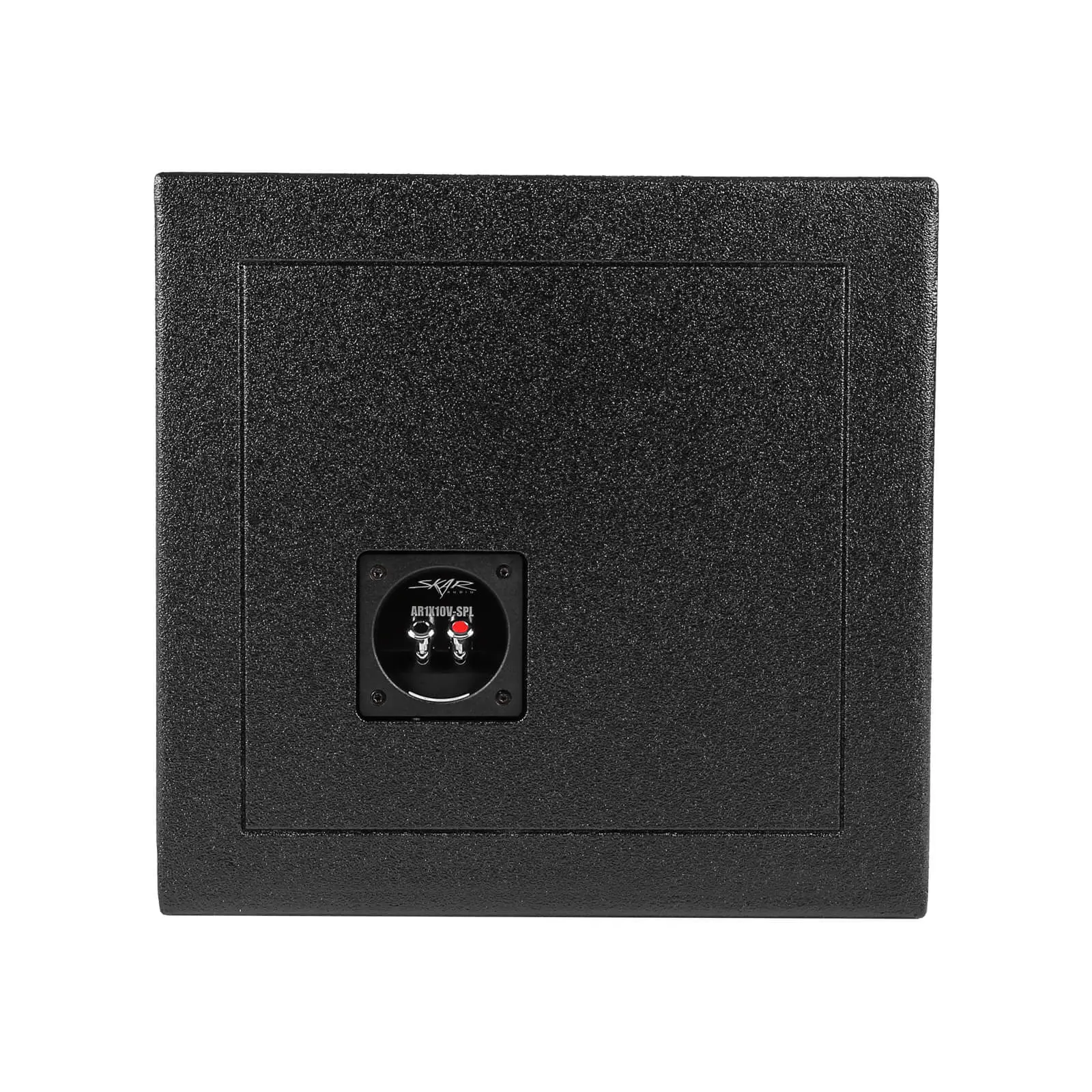

Finally, the enclosure is finished in a black, premium grade, armored coating that is visually stunning and also adds to its extreme strength. In the rear of the enclosure are the push terminal connectors which accept 8-gauge wire in, and come pre-wired internally with 12-gauge (OFC) speaker wire leads, making it easier than ever to wire up and install your subwoofer.
Product Info
MPN
AR1X10V-SPL
UPC
810028812321
General Specifications
Ultra SPL Model
Yes - (MegaBass Design/Larger Volume/Rear Side Port)
Wood Type
MDF
Fitment Type
Universal
Enclosure Type
Ported
Wood Thickness
1" Front Baffle | Remainder 3/4"
Enclosure Finish
Armor Coated
Fits How Many Subs
1
Enclosure Finish Color
Black
Subwoofer Compatibility Size
10"
Internal Speaker Wire Leads Pre-soldered
12 AWG
External Push Terminal Wire Gauge Opening
8 AWG
Technical Specifications
Port Width
2.00"
Number of Ports
1
Total Box Volume
1.50 Cubic Ft
Number of Subwoofer Chambers
1
Tuning Frequency of Enclosure
44 Hz
Number of Terminal Cup Connections
1
Enclosure External Dimensions
Depth
14.50"
Height
14.00"
Length
23.50"
Subwoofer Mounting Parameters
Subwoofer Hole Cut-out Diameter
9.35"
Subwoofer Maximum Mounting Depth
11.1875"
Compatibility Chart
IX-10 D2/D4
✔️
VD-10 D2/D4
✔️
DDX-10 D2/D4
✔️
EVL-10 D2/D4
SDR-10 D2/D4
✔️
SVR-10 D2/D4
✔️
