IX-12 | 12" 500 Watt Max Power Car Subwoofer

272 Reviews

MSRP:$99.99
Current Price:$69.99
Sale Price:
$59.49

59.49 5949

Coil Configuration

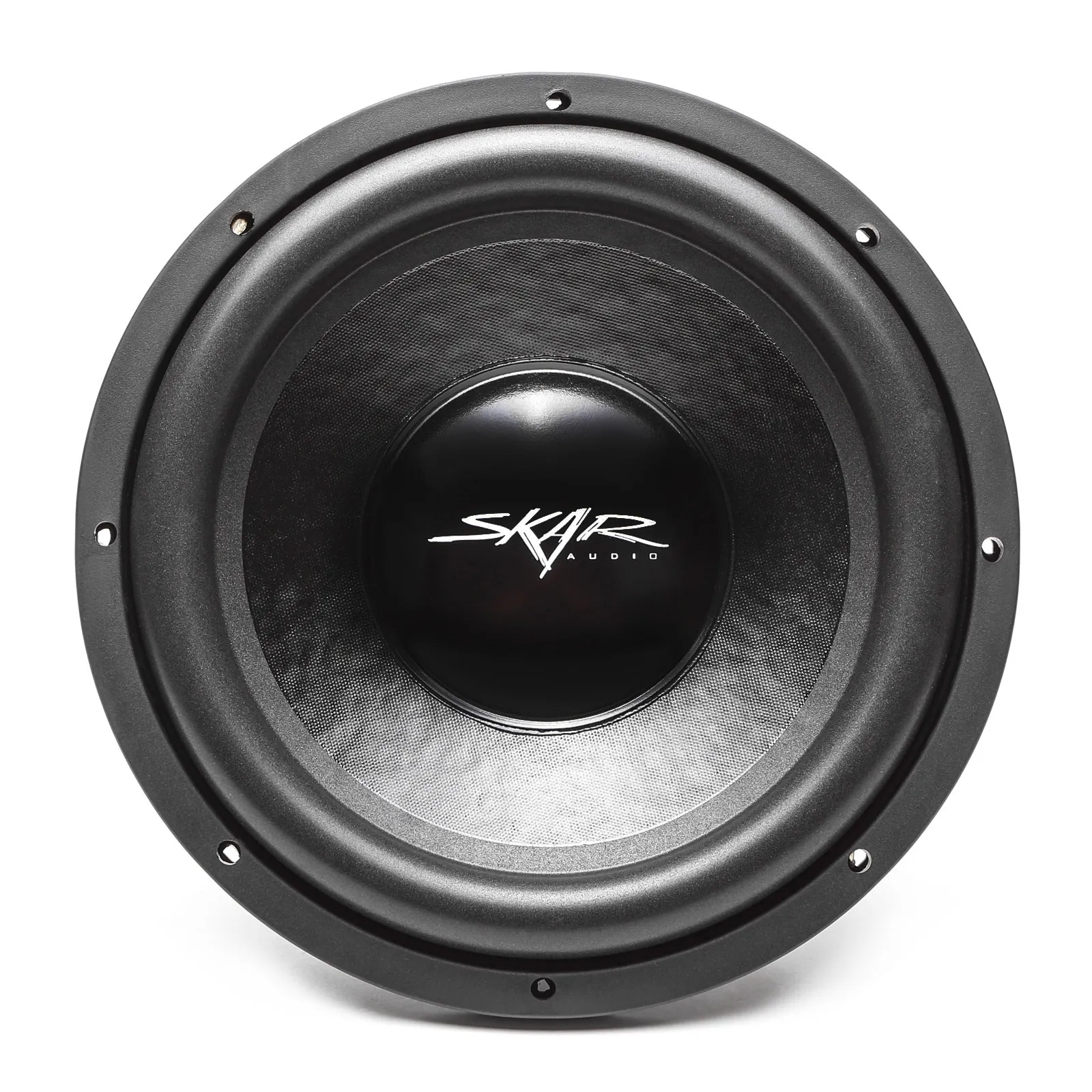

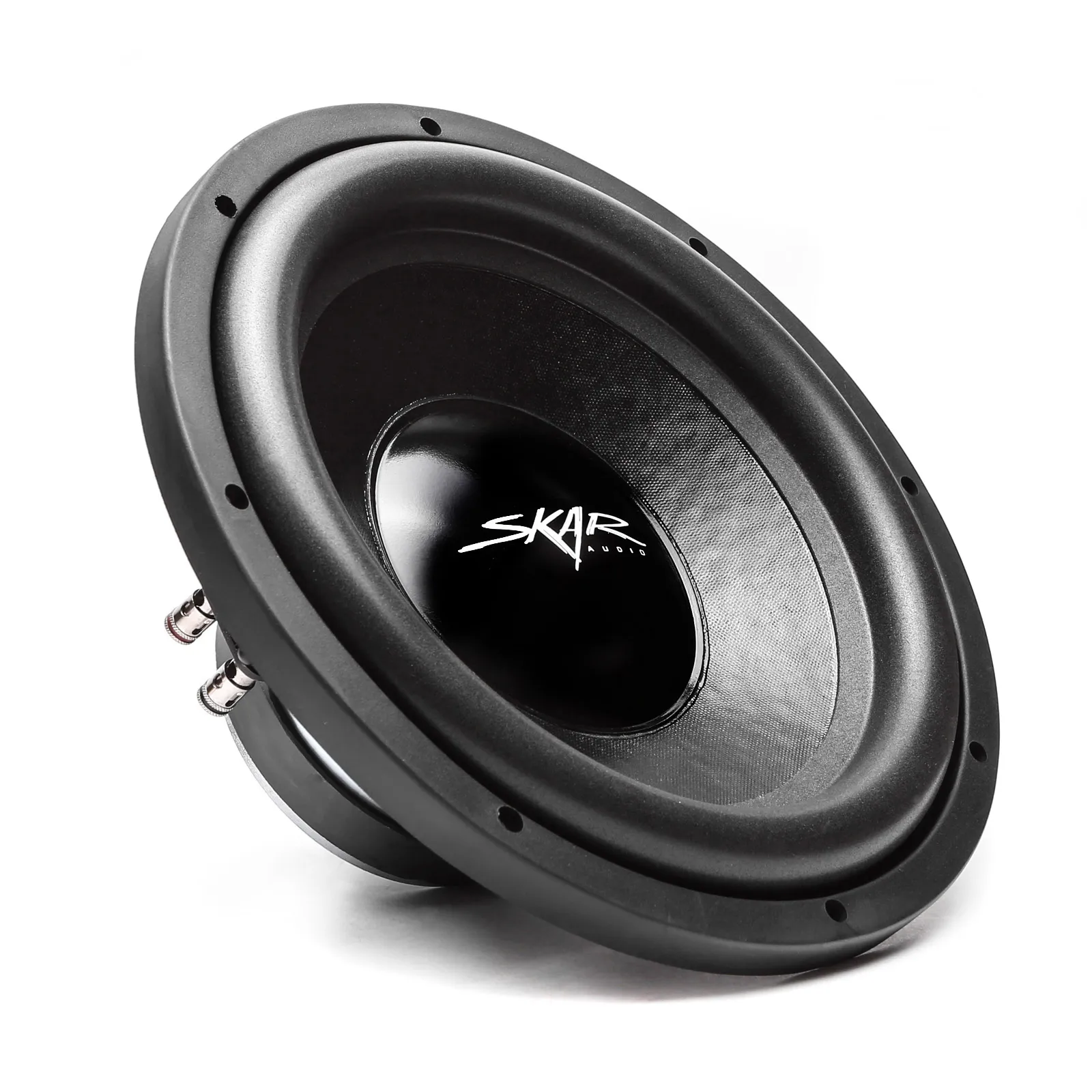

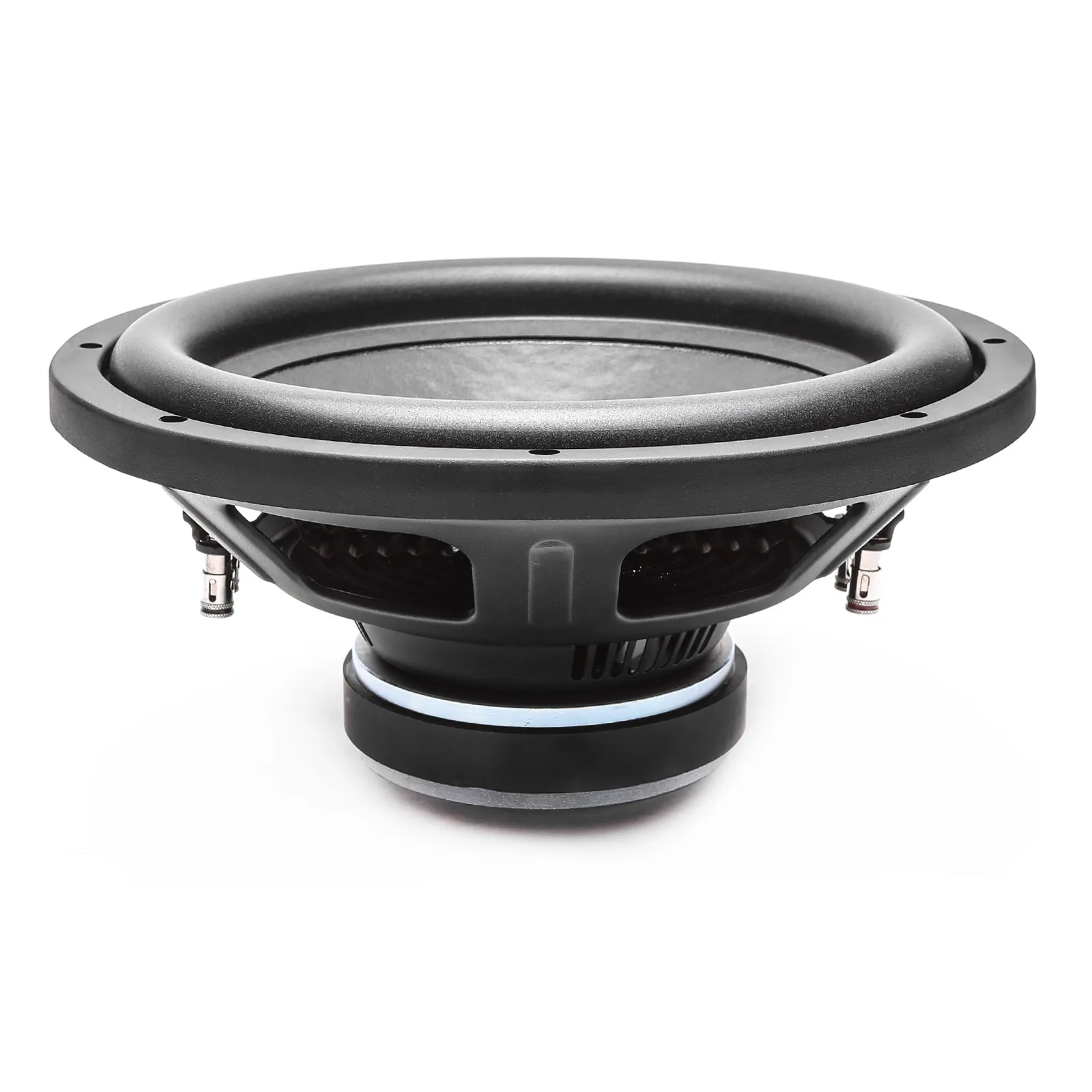

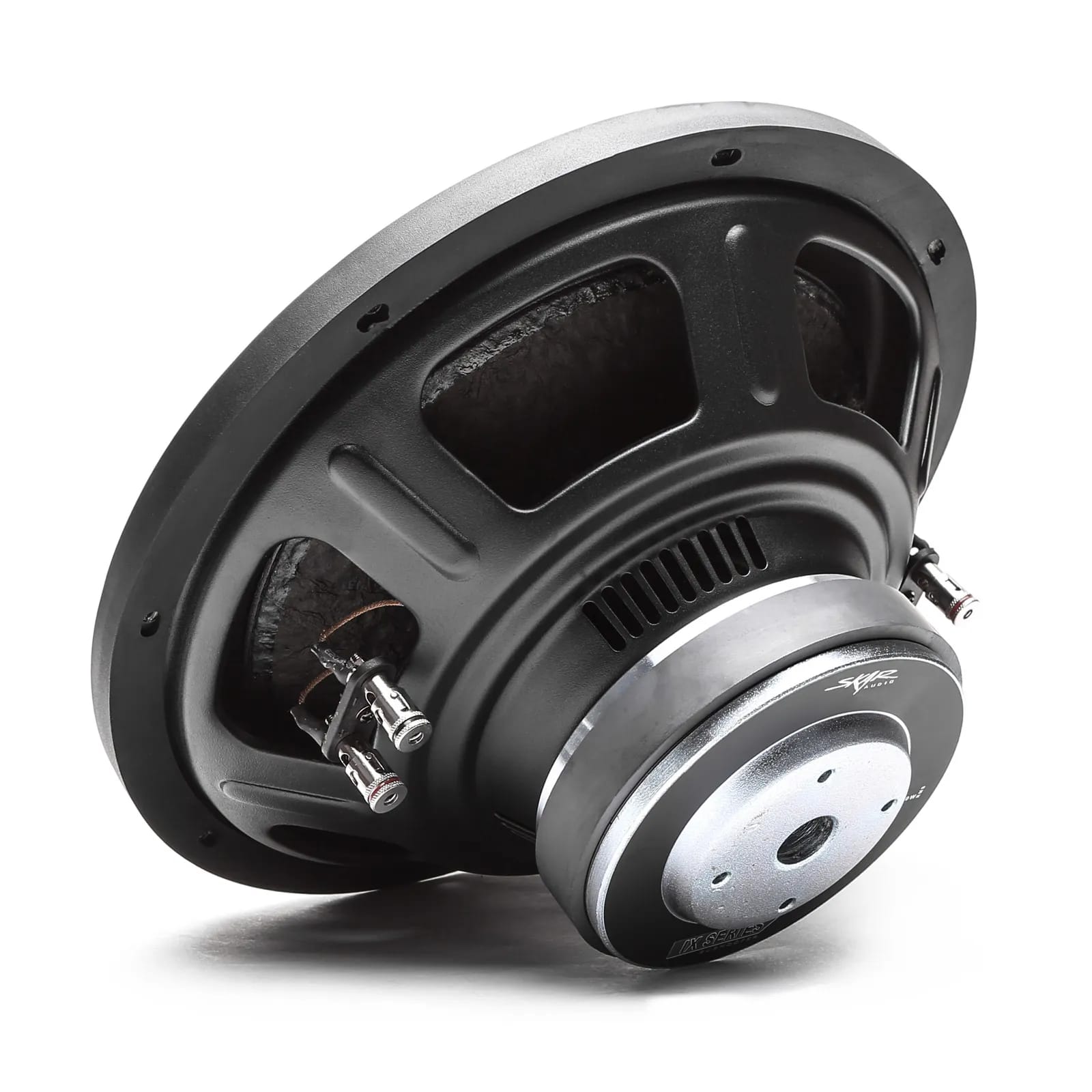

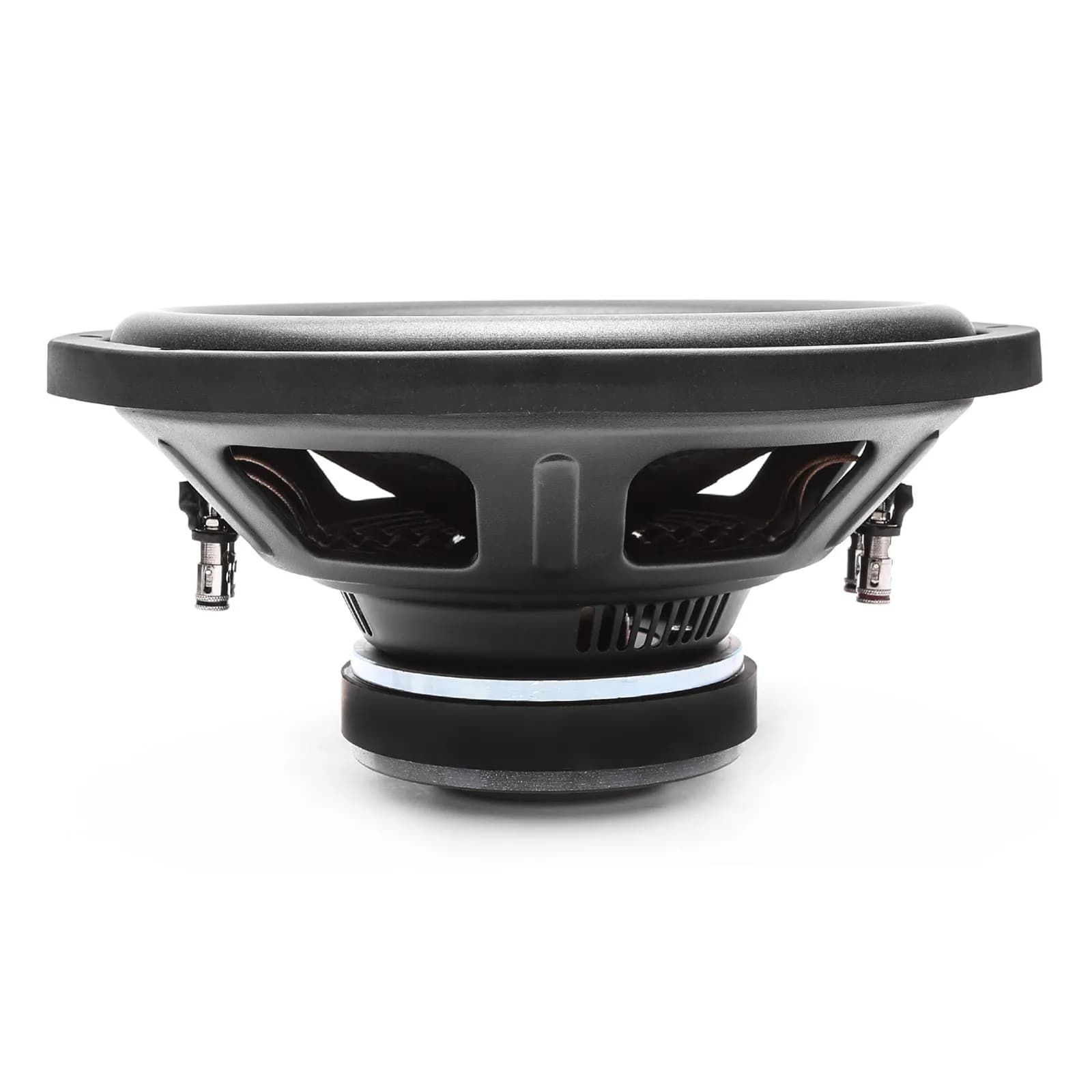

The Skar Audio IX-12 D2 is a high performance 12-inch, dual 2-ohm component car subwoofer. The IX series makes for a great daily subwoofer, and was engineered to be extremely efficient and reliable, all while sounding great and getting down. Featuring a high temperature 2-inch copper voice coil and powerful single slug, ferrite magnet motor - this subwoofer can perform at peak levels for extended periods of time safely.
Punchy, responsive, and capable of getting low, this 10-inch subwoofer will work great in a variety of applications. Furthermore, it utilizes an advanced cooling structural design which optimizes performance even further. Last but not least comes the premium strength paper cone and high roll foam surround, which allow for the versatility of this driver to get nice and low while also being responsive.
Product Info
MPN
IX-12 D2
UPC
852679805789
General Specifications
Size
12"
Type
Car Subwoofer
Cone Type
Competition Grade Pressed Paper Cone
RMS Power
250 Watts
Peak Power
500 Watts
Surround Type
High Roll Foam Surround
Voice Coil Size
2.00"
Magnet Slug Count
Single
Voice Coil Layers
4
Voice Coil Material
Copper (Pure Copper)
Voice Coil Impedance
Dual 2 Ω
T/S Parameters
Bl
11.9 n/a
Fs
35.4 Hz
Re
Dual 2 Ω
Sd
510.0 cm2
Cms
0.19 mm/N
Qes
0.67
Qms
6.14
Qts
0.61
Vas
66.9 L
Xmax
7.0 mm (one-way)
Sensitvity
88.3 dB
Recommended Enclosure Specifications
Enclosure Disclaimer
Enclosure recommendations above do not include subwoofer, bracing, and port displacement
Recommended Port Area
25.0 in²
Recommended Ported Volume
2.00 ft³
Recommended Sealed Volume
1.25 ft³
Recommended Tuning Frequency
35 Hz

Subwoofer Measurements
Total Height
6.10"
Mounting Depth
5.28"
Magnet Diameter
5.50"
Cut-out Diameter
11.19"
Outside Diameter
12.53"
