ZVX-8 D2

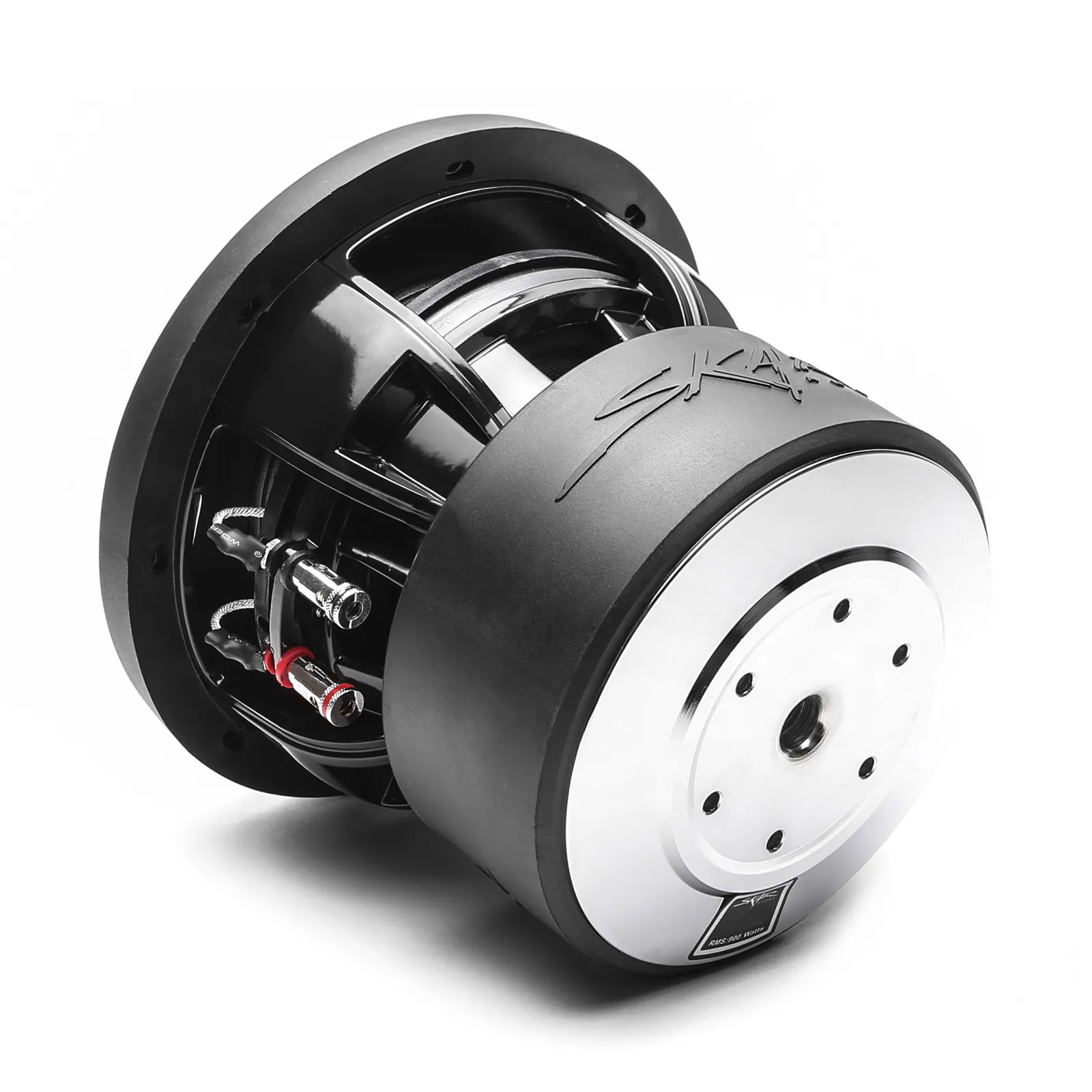

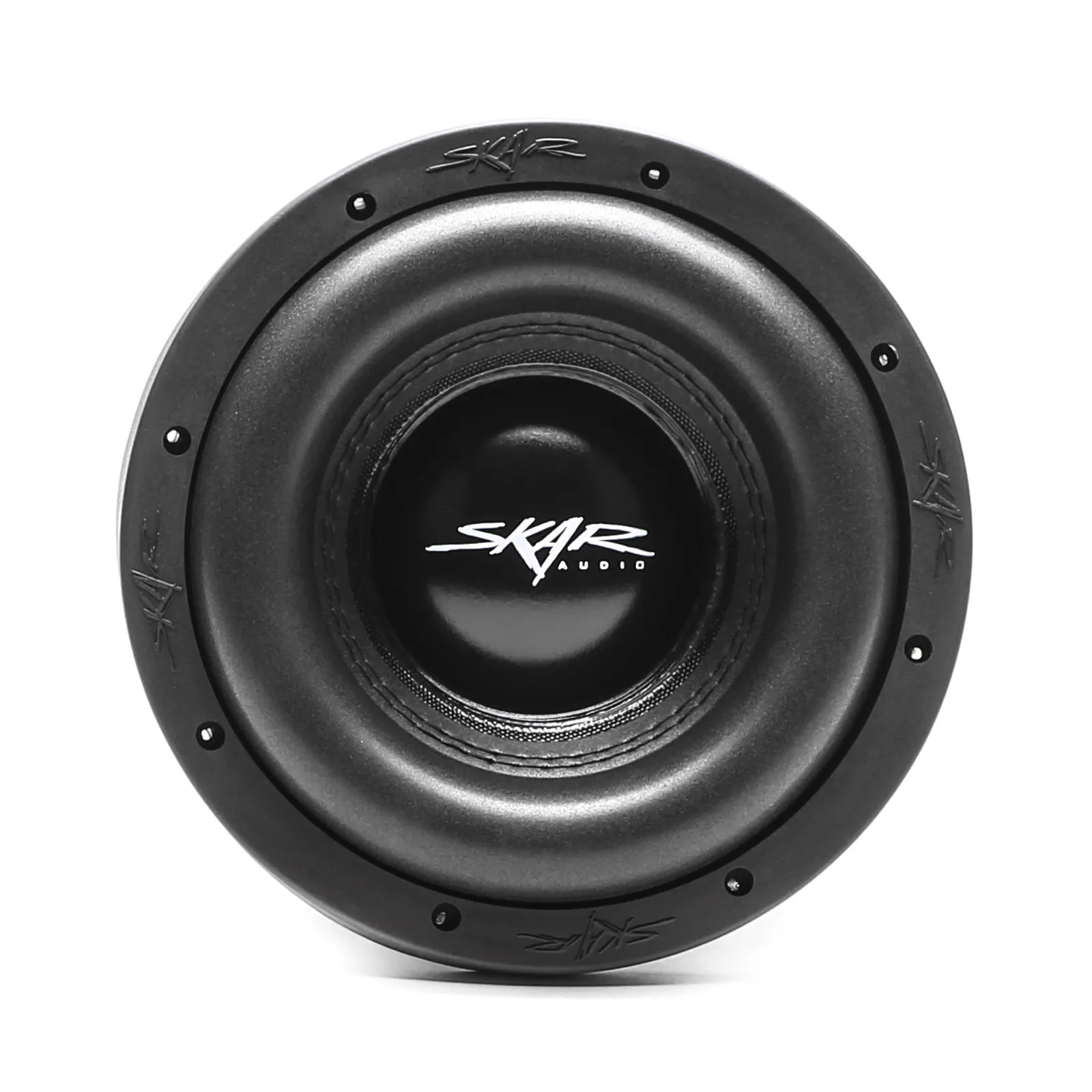

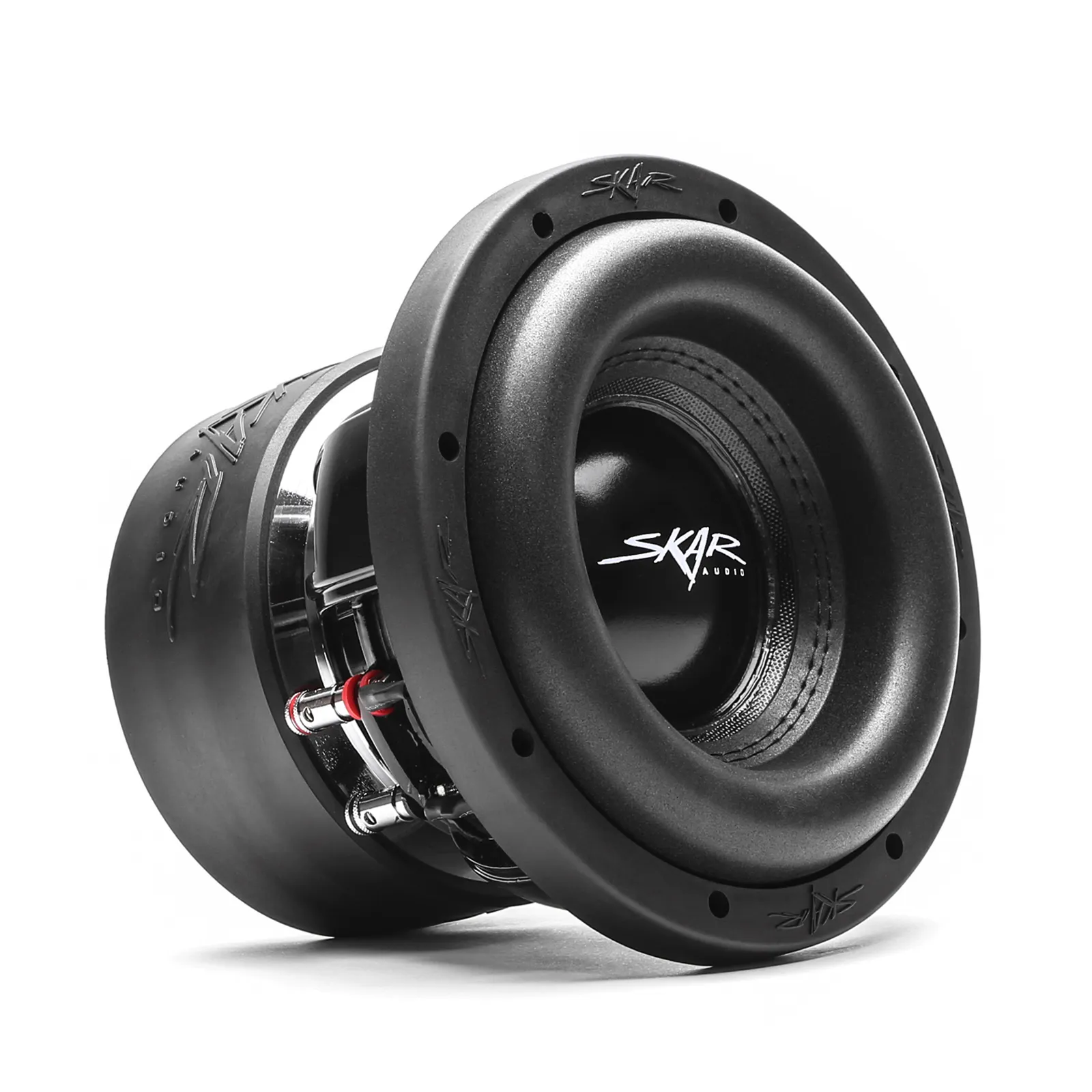

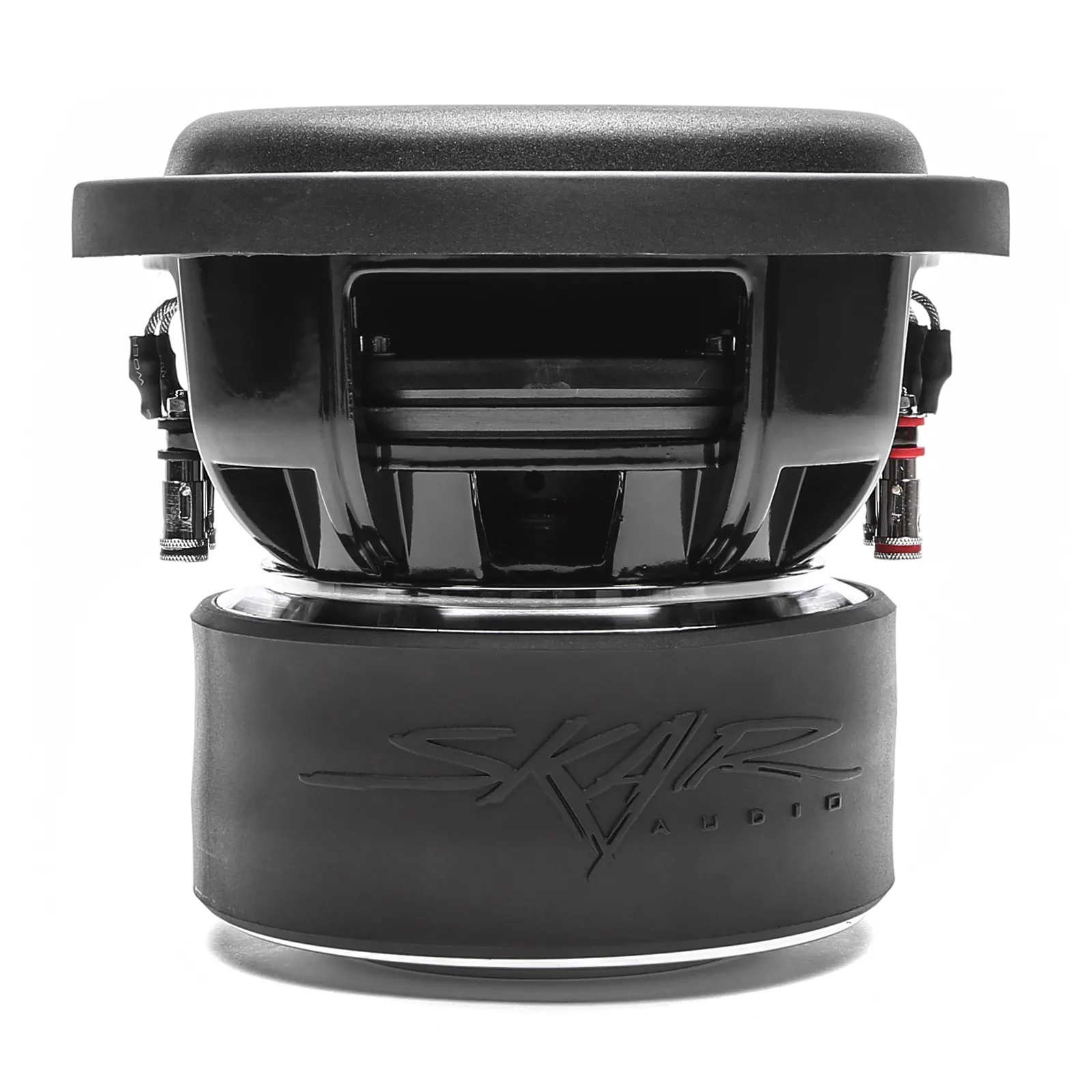

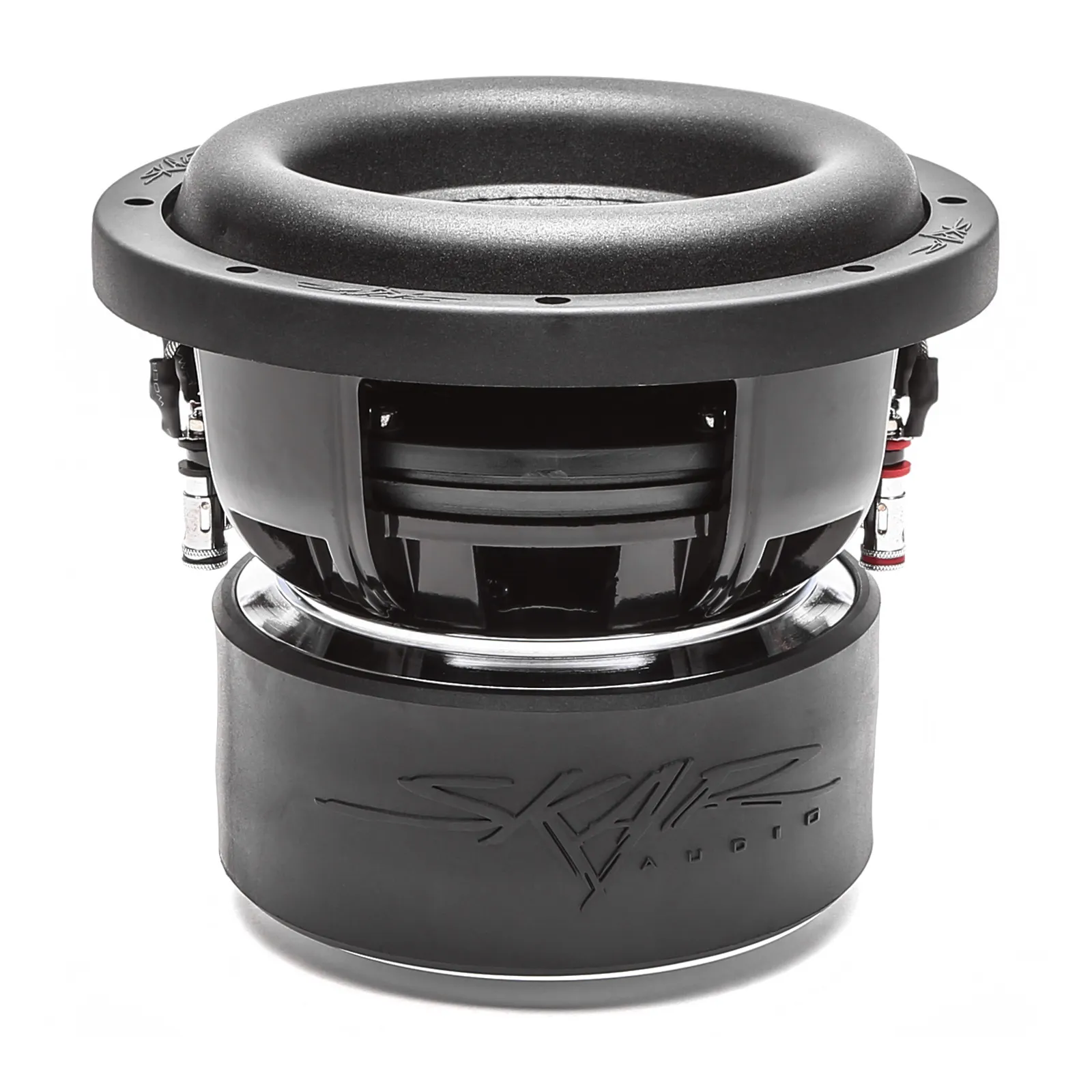

ZVX-8 | 8" 1,100 Watt Max Power Car Subwoofer

Coil Configuration
  • The Skar Audio ZVX-8 D2 is a SPL grade 8-inch car subwoofer with a Dual 2 Ohm voice coil configuration. The ZVX-8 was engineered to get loud, featuring a 2.5-inch high temperature voice coil, as well as an extremely powerful 156 oz triple stack ferrite motor. Combine those features with its competition grade paper cone and high roll foam stitched surround, and this 8-inch driver will deliver the performance and reliability expected out of a competition grade subwoofer.

    The ZVX-8 offers the perfect combination of size and power, conservatively boasting a 1,100 watt max power rating. This 8-inch SPL subwoofer was engineered to withstand brutal everyday use while performing efficiently at the highest levels of output power. Its compact design highlights the versatility of the ZVX-8, allowing it to be used in an array of applications.

    RMS Power Handling 900 Watts
    Peak Power Handling 1,100 Watts
    Voice Coil Size 2.5"
    Voice Coil Configuration Dual 2 Ω
    • 8-inch Dual 2 Ohm Voice Coil Configuration
    • Peak Power: 1,100 Watts
    • RMS Power: 900 Watts
    • Competition Grade Pressed Paper Cone
    • Stitched High Roll Foam Surround
    • Massive Triple-Stacked Magnet
    • 2.5" High Temperature Copper Voice Coil
    • Motor Weight: 156 oz
    • Frequency Response: 40 - 500 Hz
    • Sensitivity: 80.4 dB
    • Fs: 41.8 Hz
    • Re: Dual 2 Ω
    • Qms: 3.60
    • Qes: 1.25
    • Qts: 0.76
    • Mms: 132.0 gr
    • Nref: 0.07%
    • Cms: 0.02 mm/N
    • Bl: 15.5 n/a
    • Vas: 14.2 L
    • Sd: 188.0 cm²
    • Xmax: 14 mm
  • Recommended Enclosure Specifications
    • Recommended Sealed Volume: 0.65 ft³
    • Recommended Ported Volume: 1.25 ft³
    • Recommended Port Area: 14.45 in²
    • Recommended Tuning Frequency: 36 Hz
    • Enclosure recommendations above do not include subwoofer, bracing, and port displacement
    Subwoofer Measurements
    Cut-out Diameter 7.50"
    Mounting Depth 6.50"
    Total Height 7.63"
    Outside Diameter 8.65"
    Magnet Diameter 6.50"
  • The Skar Audio ZVX-8 D4 is a SPL grade 8-inch car subwoofer with a Dual 4 Ohm voice coil configuration. The ZVX-8 was engineered to get loud, featuring a 2.5-inch high temperature voice coil, as well as an extremely powerful 156 oz triple stack ferrite motor. Combine those features with its competition grade paper cone and high roll foam stitched surround, and this 8-inch driver will deliver the performance and reliability expected out of a competition grade subwoofer.

    The ZVX-8 offers the perfect combination of size and power, conservatively boasting a 1,100 watt max power rating. This 8-inch SPL subwoofer was engineered to withstand brutal everyday use while performing efficiently at the highest levels of output power. Its compact design highlights the versatility of the ZVX-8, allowing it to be used in an array of applications.

    RMS Power Handling 900 Watts
    Peak Power Handling 1,100 Watts
    Voice Coil Size 2.5"
    Voice Coil Configuration Dual 4 Ω
    • 8-inch Dual 4 Ohm Voice Coil Configuration
    • Peak Power: 1,100 Watts
    • RMS Power: 900 Watts
    • Competition Grade Pressed Paper Cone
    • Stitched High Roll Foam Surround
    • Massive Triple-Stacked Magnet
    • 2.5" High Temperature Copper Voice Coil
    • Motor Weight: 156 oz
    • Frequency Response: 40 - 500 Hz
    • Sensitivity: 80.0 dB
    • Fs: 40.0 Hz
    • Re: Dual 4 Ω
    • Qms: 7.60
    • Qes: 1.15
    • Qts: 0.72
    • Mms: 137.0 gr
    • Nref: 0.10%
    • Cms: 0.02 mm/N
    • Bl: 20.3 n/a
    • Vas: 16.5 L
    • Sd: 188.0 cm²
    • Xmax: 14 mm
  • Recommended Enclosure Specifications
    • Recommended Sealed Volume: 0.65 ft³
    • Recommended Ported Volume: 1.25 ft³
    • Recommended Port Area: 14.45 in²
    • Recommended Tuning Frequency: 36 Hz
    • Enclosure recommendations above do not include subwoofer, bracing, and port displacement
    Subwoofer Measurements
    Cut-out Diameter 7.50"
    Mounting Depth 6.50"
    Total Height 7.63"
    Outside Diameter 8.65"
    Magnet Diameter 6.50"


Customer Reviews

Based on 63 reviews
92%
(58)
8%
(5)
0%
(0)
0%
(0)
0%
(0)
J
J.B.
Great .

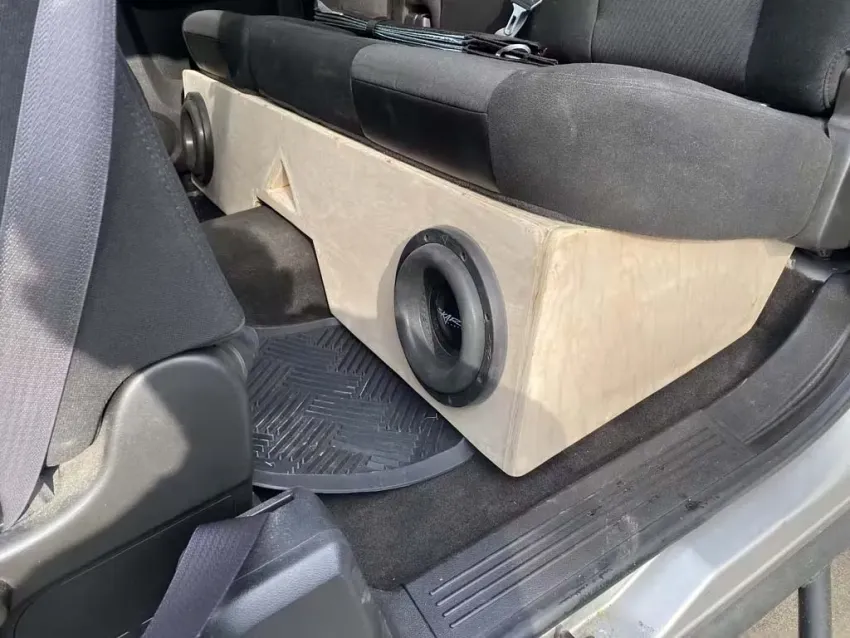

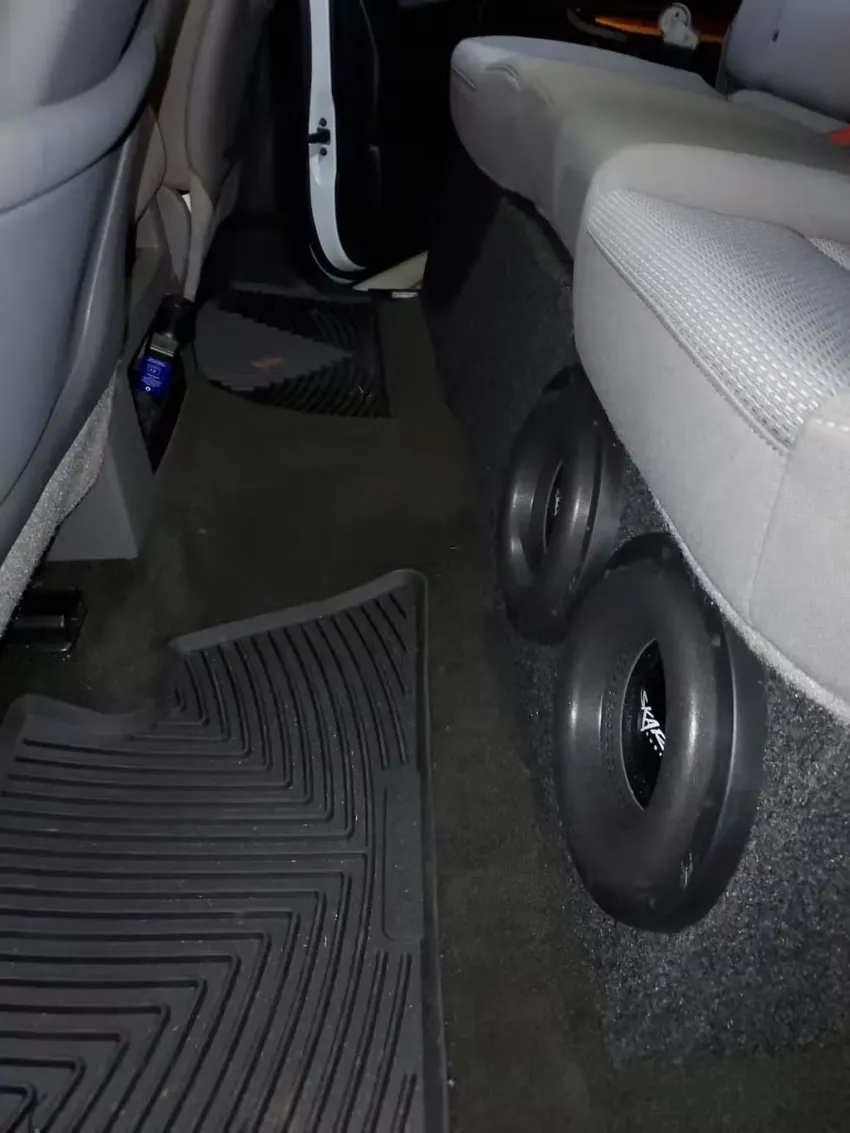

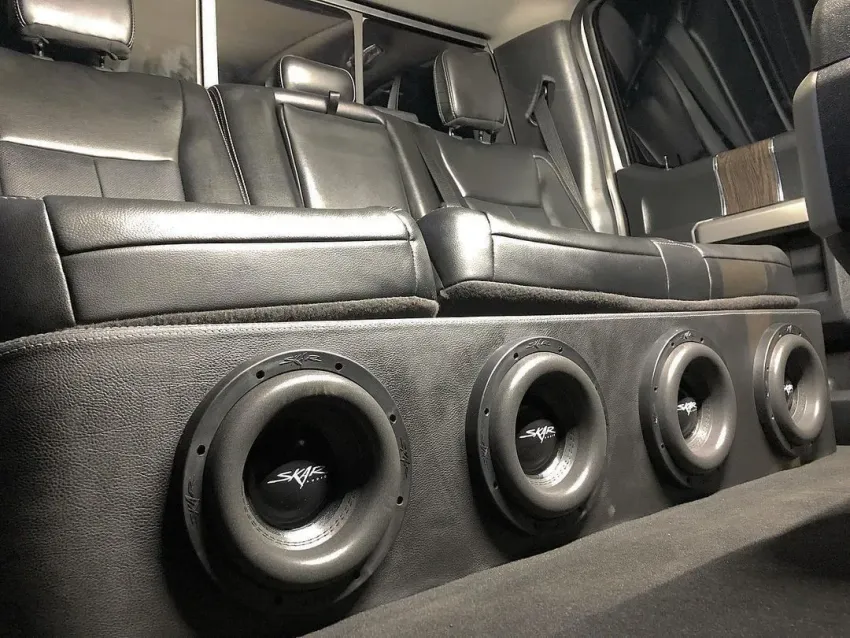

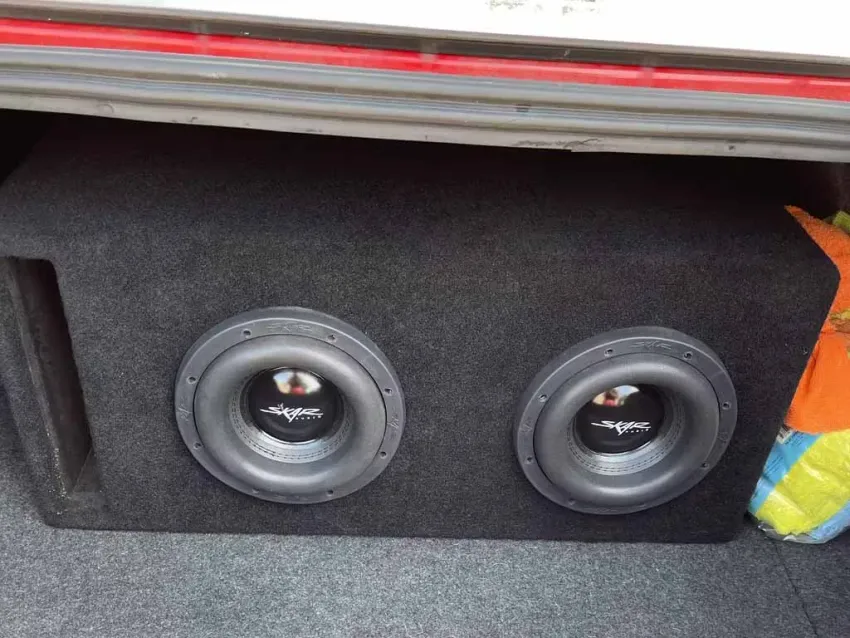

I have two of these subs in a forward firing un2.5 ft³ under seat box of a crew cab 2015 Silverado. Box is tuned to 35hz. They hit the lows really nice.

E
E.t.
Big 8 inch 👍

I got this woofer in a 4ohm at first but while wiring it up to 2ohm it got slashed so sold it for cheap and ended up with a 2ohm wired to 1ohm . This thing is a complete monster . The video is before break in the first day of install while the suspension was still stiff now this thing flexes like a champ . Def recommend . Obviously have your box build to specs if you want to smack on 15 inch subs . People ask me if I’m on a 15 how funny 😆

J
J.B.
Zvx 8

Purchased a zvx 8" the sub itself is a beast but skar box specs for it are pretty far off. Built a custom box to spec and it is definitely to big. It does not sound bad but it does sound muddy. Needs about .75 to .90 cf ported.... Not 1.25cf. excited to downsize the box and let it eat on the skv 1500.1

R
R.j.
Great subs

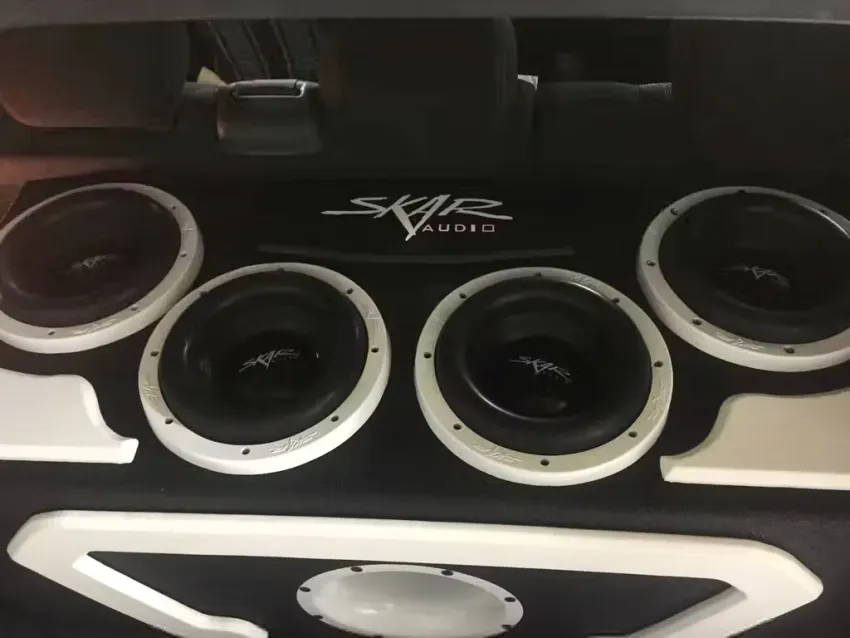

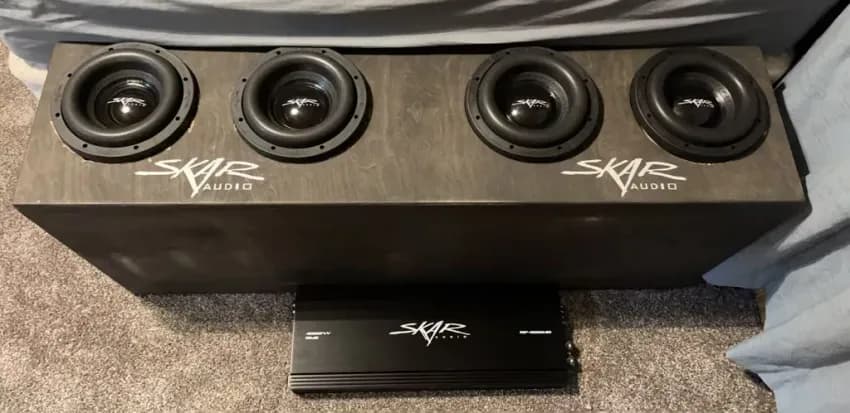

I have 4 of these little beast in a sixth order and it slams. Have not metered yet. Also running on a sk3500. These subs will take beating. Highly recommend these subs.

V
V.B.
Zvx8

I don’t have the subwoofer in a good box yet but as it is know I’m very please on how it performs(stuff I said all over the place, still working on this system)
