ZVX-12v2 | 12" 3,000 Watt Max Power Car Subwoofer

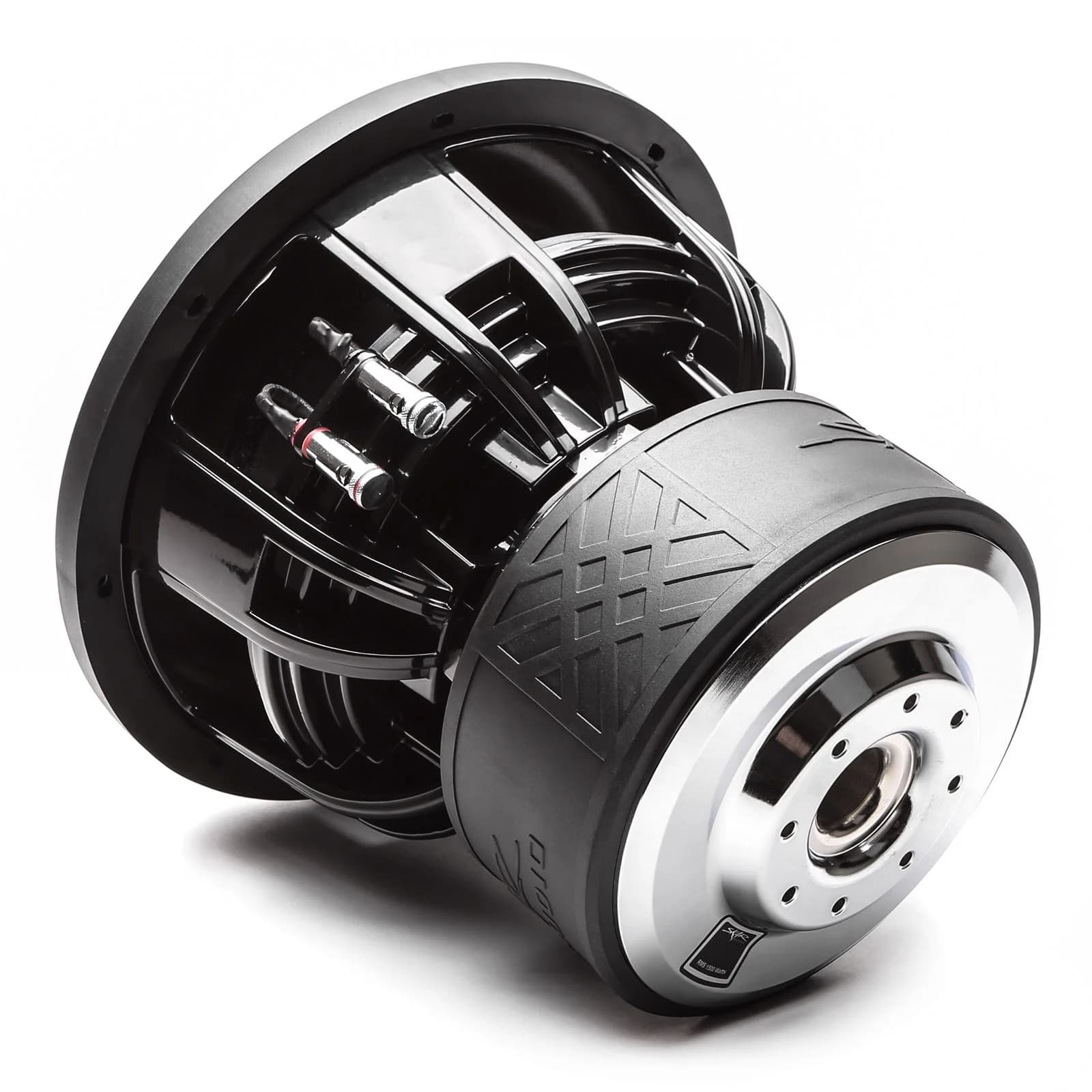

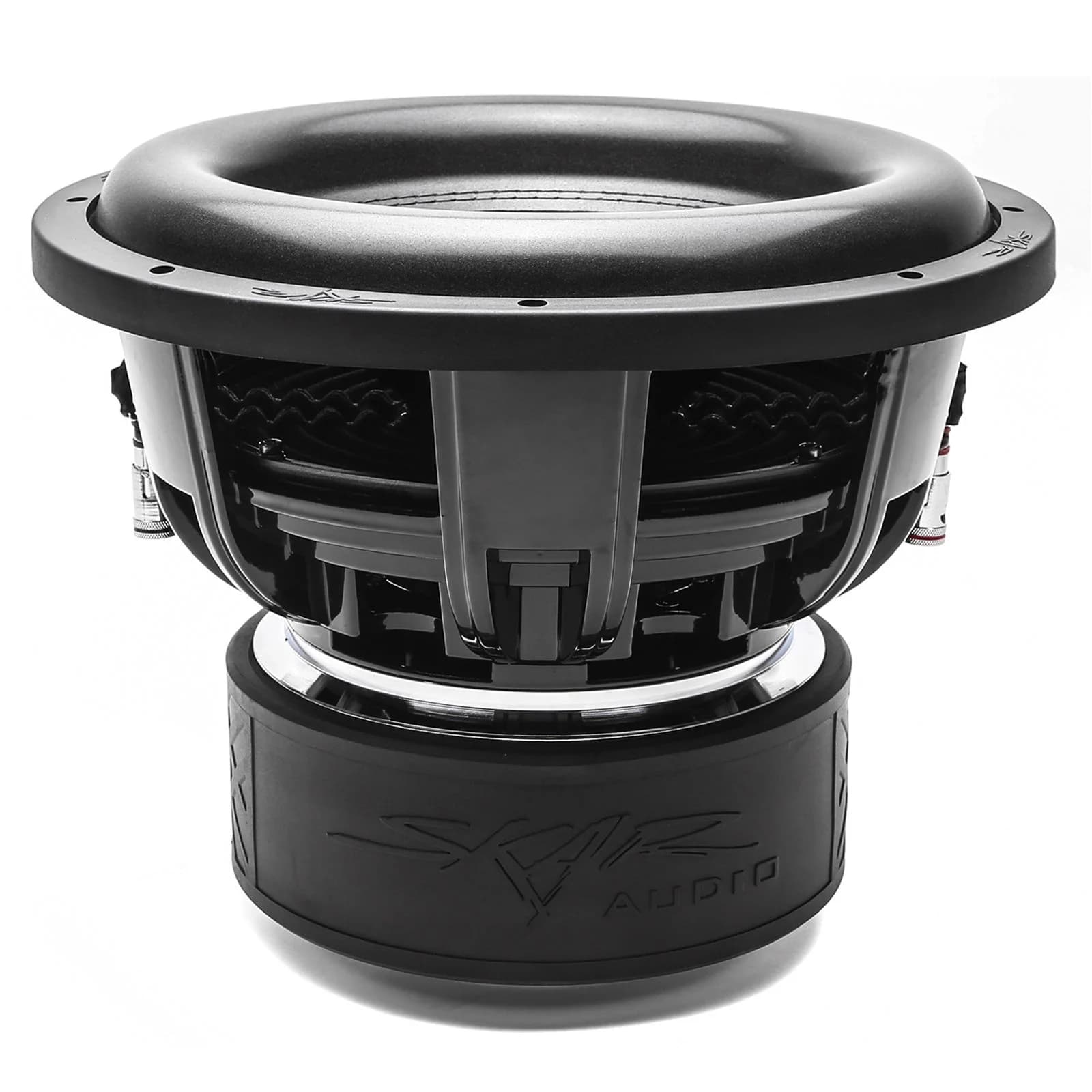

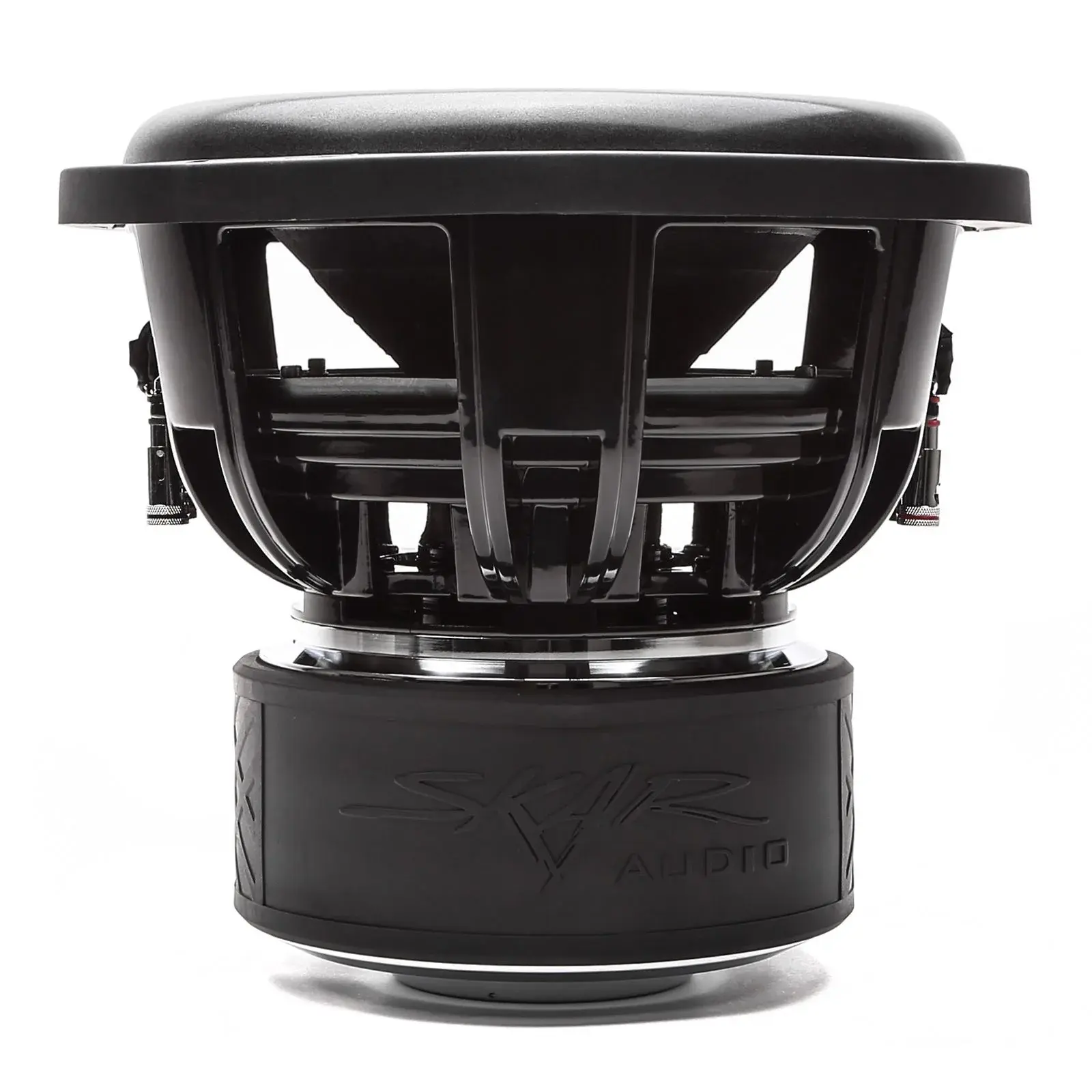

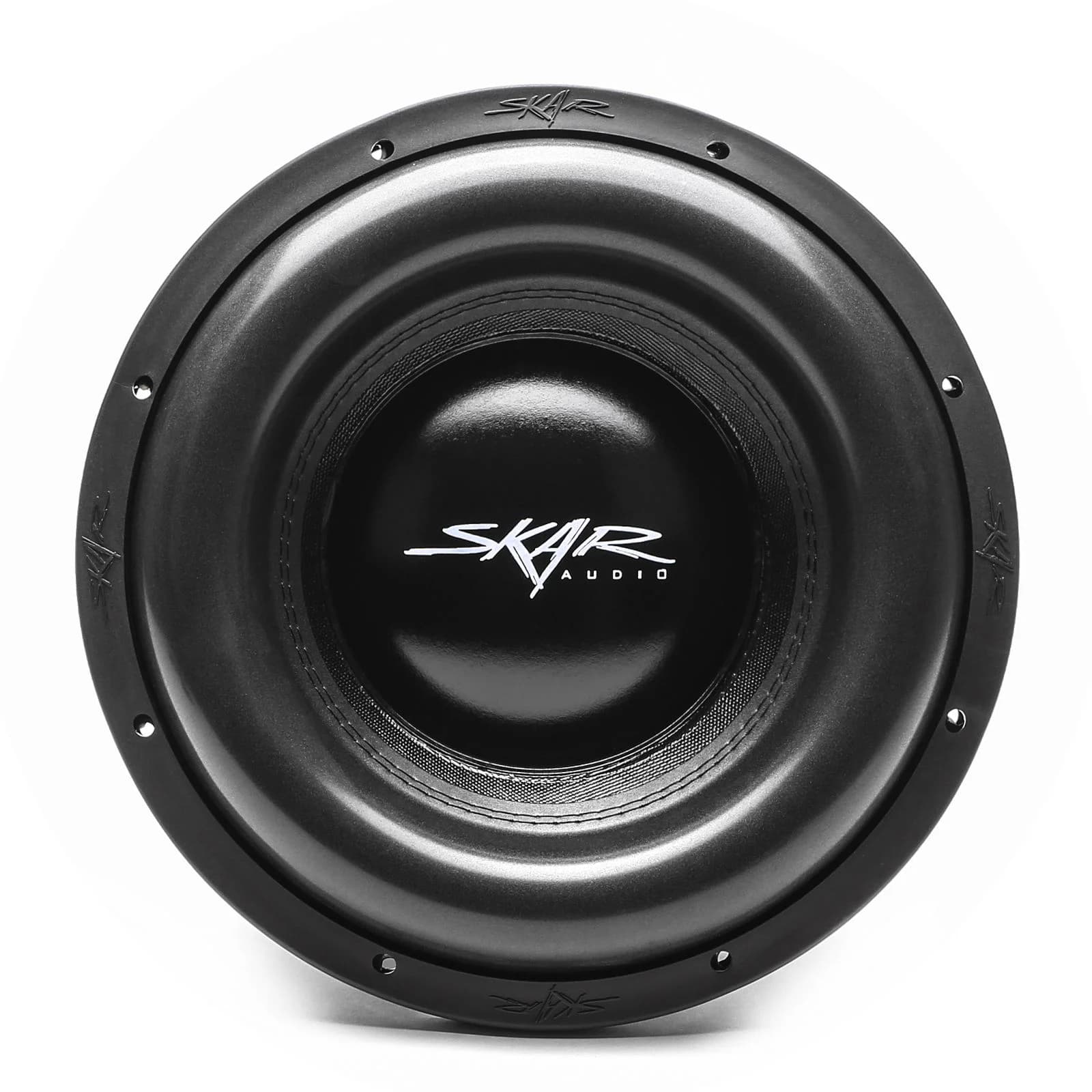

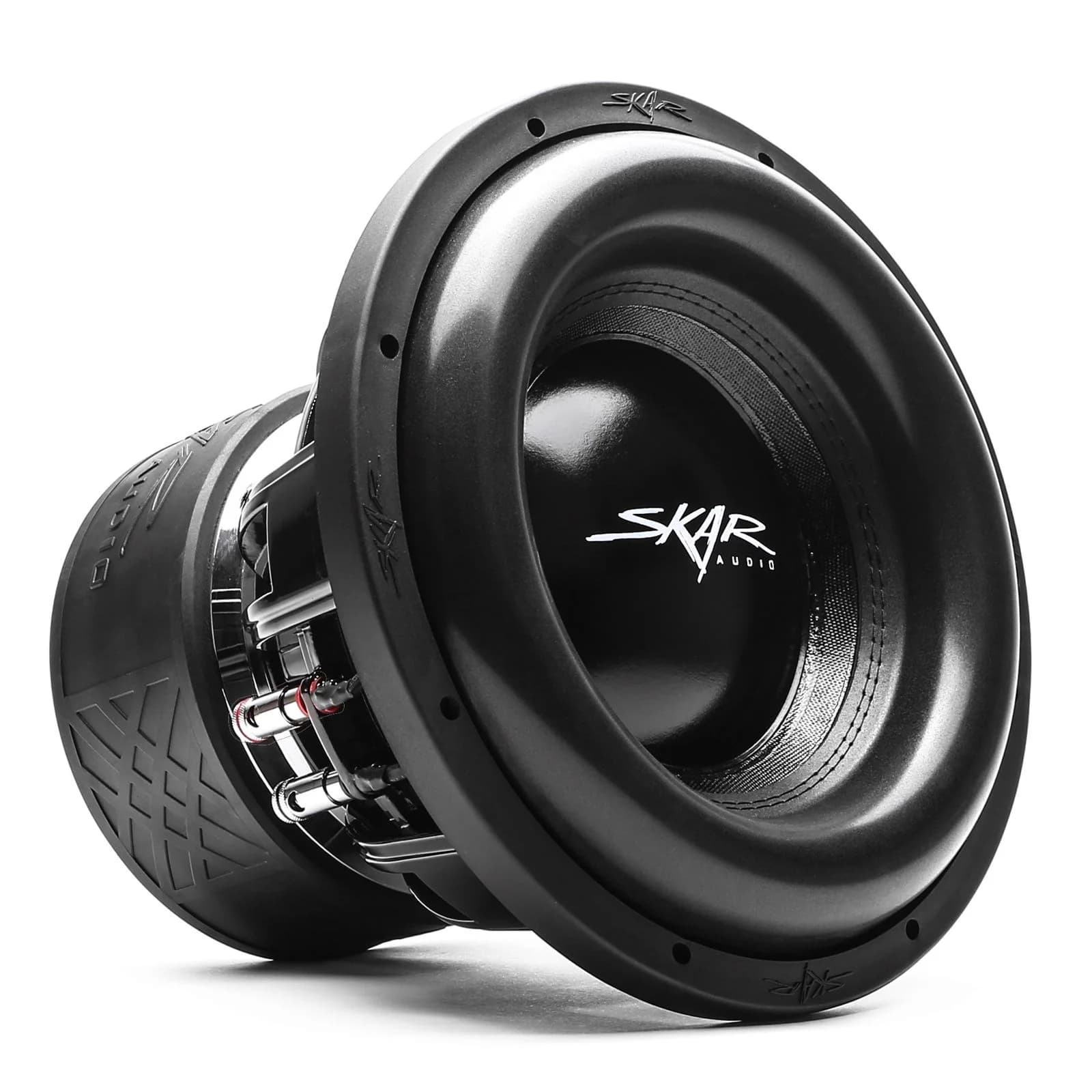

  • Skar Audio ZVX-12v2 12-inch 3,000 Watt Max Power Car Subwoofer - Angle View

ZVX-12v2 | 12" 3,000 Watt Max Power Car Subwoofer


* Financing through our Partner, Bread

Description

Description

The Skar Audio ZVX-12v2 D1 subwoofer is unrivaled in performance and reliability, and features a max power rating of 3,000 watts. This 12-inch driver was engineered to withstand brutality and perform efficiently at the highest levels of output power, making it an extremely reliable and powerful subwoofer. This subwoofer utilizes a 3-inch high temperature voice coil and a massive triple slug magnet, which combined with its high roll foam surround and competition grade paper cone allow it to perform with sheer excellence. Dual 1 Ohm voice coil configuration. Peak Power: 3,000 Watts, RMS Power: 1,500 Watts, Spl: 84.0 dB. Fs: 51 Hz.

Specifications

  • Skar Audio ZVX-12v2 D1 - 12" SPL Car Subwoofer
  • Dual 1 Ohm Voice Coil Configuration
  • Peak Power: 3000 Watts
  • RMS Power: 1500 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Massive Triple Stacked Magnet
  • 3" High Temperature Copper Voice Coil
  • Motor Weight: 306 oz
  • Frequency Response: 30 - 400 Hz
  • Sensitivity: 84.0 dB
  • Fs: 51.0 Hz
  • Re: 1.8 Ohms
  • Qms: 3.8
  • Qes: 0.44
  • Qts: 0.41
  • Nref: .15 %
  • Cms: 0.03 mm/N
  • Bl: 16.0 n/a
  • Vas: 24.4 L
  • Mms: 350 gr
  • Sd: 510 cm^2
  • Xmax: 29 mm

Enclosure Specifications

  • Ported Volume: 3.00 ft^3
  • Port Area: 38 sq. in.
  • Port Length: 23"
  • Tuning Frequency: 34 Hz
  • Mounting Depth: 9.875"
  • Cut-Out Diameter: 11.125"
  • Magnet Diameter: 8.3"
  • Subwoofer Displacement: 0.15 ft^3
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Description

The Skar Audio ZVX-12v2 D2 subwoofer is unrivaled in performance and reliability, and features a max power rating of 3,000 watts. This 12-inch driver was engineered to withstand brutality and perform efficiently at the highest levels of output power, making it an extremely reliable and powerful subwoofer. This subwoofer utilizes a 3-inch high temperature voice coil and a massive triple slug magnet, which combined with its high roll foam surround and competition grade paper cone allow it to perform with sheer excellence. Dual 2 Ohm voice coil configuration. Peak Power: 3,000 Watts, RMS Power: 1,500 Watts, Spl: 83.7 dB. Fs: 44 Hz.

Specifications

  • Skar Audio ZVX-12v2 D2 - 12" SPL Car Subwoofer
  • Dual 2 Ohm Voice Coil Configuration
  • Peak Power: 3000 Watts
  • RMS Power: 1500 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Massive Triple Stacked Magnet
  • 3" High Temperature Copper Voice Coil
  • Motor Weight: 306 oz
  • Frequency Response: 30 - 400 Hz
  • Sensitivity: 83.7 dB
  • Fs: 44.0 Hz
  • Re: 3.6 Ohms
  • Qms: 6.1
  • Qes: 0.50
  • Qts: 0.45
  • Nref: .15 %
  • Cms: 0.04 mm/N
  • Bl: 21.8 n/a
  • Vas: 25.6 L
  • Mms: 341 gr
  • Sd: 510 cm^2
  • Xmax: 29 mm

Enclosure Specifications

  • Ported Volume: 3.00 ft^3
  • Port Area: 38 sq. in.
  • Port Length: 23"
  • Tuning Frequency: 34 Hz
  • Mounting Depth: 9.875"
  • Cut-Out Diameter: 11.125"
  • Magnet Diameter: 8.3"
  • Subwoofer Displacement: 0.15 ft^3
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Customer Reviews

Based on 34 reviews
100%
(34)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
T.
ZVX-12v2

Shipping on my three zvx-12v2's shipped fast customer service was excellent soon as I ordered someone immediately contacted me too make sure that the order was not only right but too verify who I was. I haven't hooked them up yet but I'm sure that they'll sound great. Thank you too the people at skar audio.

J.H.
Amp Recommendations?

Question; What Amp would you recommend to run 4 of these ZVX-12V2 D1 subs at 1ohm?

M
M.P.

ZVX-12v2 | 12" 3,000 Watt Max Power Car Subwoofer

S
S.H.
Can't wait!

Just got my zvx 12 in with an rp-2000. I usually get my wiring kit and I'll get everything cut and crimped through out the week and I'll pick a good day to fight with the wife since she don't want me doing anything period lol. And I'll get whatever I need done during the fighting process and that dsh my friends is tomorrow! Still not sure what to run for the gauge of speaker wire yet. Any recommendations would be great. Right now I have 12 Gauge, 4 strands of 12 gauge all twisted together for each terminal. Km probably gonna burn my car up haha

T
T.
ZVX10

I wish yall made these in a 10" sub i love my 4 8's i had in my chevy truck they sounded awesome!!!
