SDR-8 | 700 Watt Max Power Car Subwoofer

  • skar-audio-sdr-8-inch-dual-voice-coil-subwoofer-700-watts-max-catrgory

SDR-8 | 700 Watt Max Power Car Subwoofer


* Financing through our Partner, Bread

Description

Description

The Skar Audio SDR-8 D2 was designed to deliver hard hitting, low spectrum sound. Featuring a high flux ferrite motor, this versatile 8-inch woofer is conservatively rated at 700 watts max power. Don't let the size fool you, the SDR-8 D2 is capable of reproducing low end frequencies with authority.



The SDR-8 D2 is the perfect solution for a 350-700 watt daily driver, featuring a 2-inch, high temperature copper voice coil that is attached to a sleek and attractive red spider system. The high roll foam surround and competition grade paper cone found on the SDR-8 D2, allows the woofer to produce riveting low end bass response, that will impress the listener every time it is playing.

Specifications

  • Skar Audio SDR-8 D2 - 8" Component Car Subwoofer
  • Dual 2 Ohm Voice Coil Configuration
  • Peak Power: 700 Watts
  • RMS Power: 350 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2" High Temperature Copper Voice Coil
  • Motor Weight: 48 oz
  • Frequency Response: 48 - 300 Hz
  • Sensitivity: 83.8 dB
  • Fs: 48 Hz
  • Re: 1.9 Ohms
  • Qms: 4.59
  • Nref: 0.15%
  • Qes: 0.5
  • Qts: 0.45
  • Cms: 0.122 mm/N
  • Bl: 14.25 n/a
  • Vas: 7.0 L
  • Mms: 89.2 gr
  • Sd: 201 cm²
  • Xmax: 8.8 mm

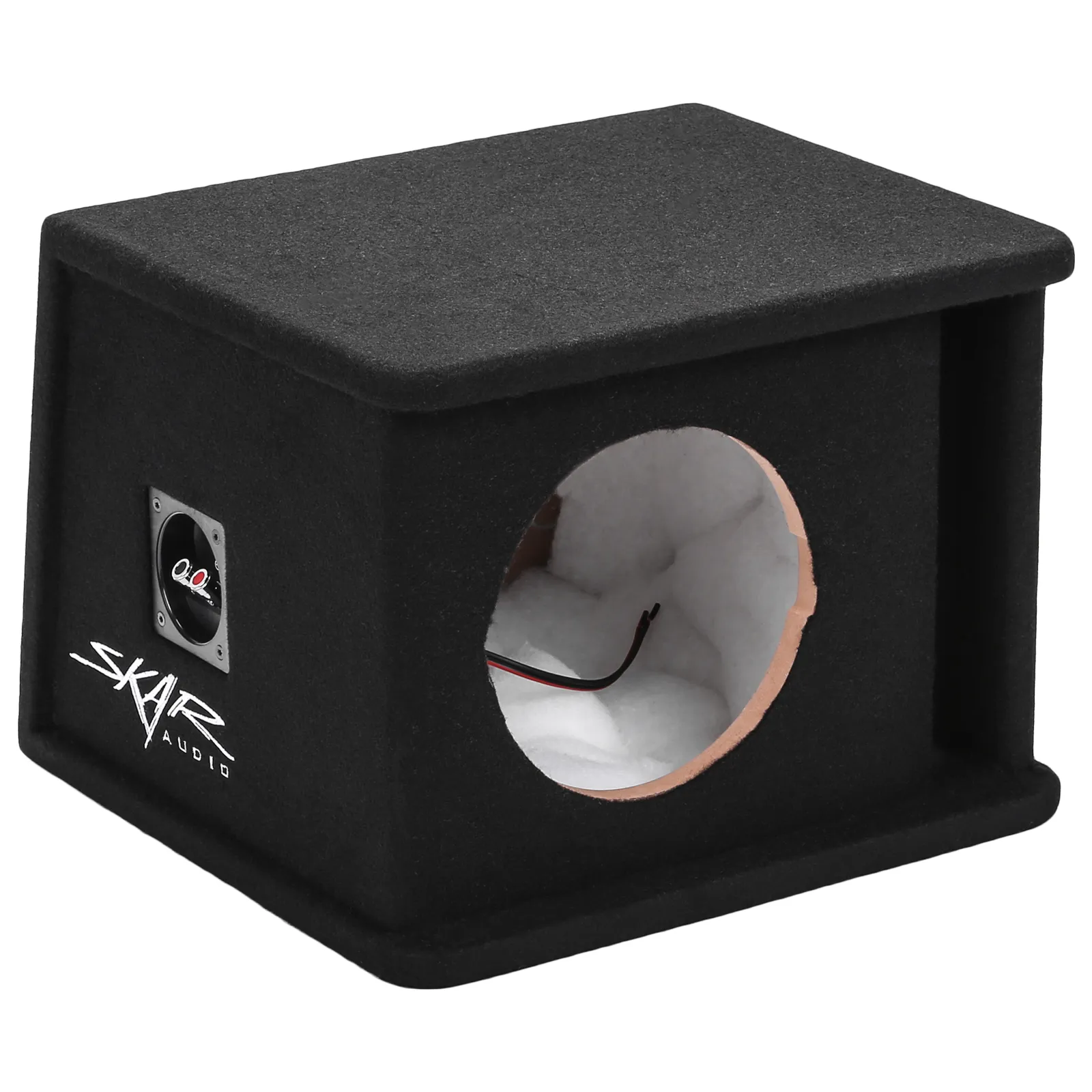

Enclosure Specifications

  • Sealed Volume: 0.56 ft³
  • Ported Volume: 0.78 ft³
  • Port Area:  10.5 in²
  • Port Length: 19.5"
  • Tuning Frequency: 39 Hz
  • Mounting Depth: 4.5625"
  • Total Height: 5.5"
  • Outside Diameter: 8.5"
  • Cut-Out Diameter: 7.1"
  • Magnet Diameter: 5.25"
  • Subwoofer Displacement: ft³
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Description

The Skar Audio SDR-8 D4 was designed to deliver hard hitting, low spectrum sound. Featuring a high flux ferrite motor, this versatile 8-inch woofer is conservatively rated at 700 watts max power. Don't let the size fool you, the SDR-8 D4 is capable of reproducing low end frequencies with authority.



The SDR-8 D4 is the perfect solution for a 350-700 watt daily driver, featuring a 2-inch, high temperature copper voice coil that is attached to a sleek and attractive red spider system. The high roll foam surround and competition grade paper cone found on the SDR-8 D4, allows the woofer to produce riveting low end bass response, that will impress the listener every time it is playing.

Specifications

  • Skar Audio SDR-8 D4 - 8" Component Car Subwoofer
  • Dual 4 Ohm Voice Coil Configuration
  • Peak Power: 700 Watts
  • RMS Power: 350 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2" High Temperature Copper Voice Coil
  • Motor Weight: 48 oz
  • Frequency Response: 48 - 300 Hz
  • Sensitivity: 83.7 dB
  • Fs: 48 Hz
  • Re: 3.2 Ohms
  • Qms: 5.1
  • Nref: 0.126%
  • Qes: 0.68
  • Qts: 0.61
  • Nref: 0.14%
  • Cms: 0.121 mm/N
  • Bl: 7.35 n/a
  • Vas: 6.98 L
  • Mms: 72.8 gr
  • Sd: 201 cm²
  • Xmax: 8.8 mm

Enclosure Specifications

  • Sealed Volume: 0.56 ft³
  • Ported Volume: 0.78 ft³
  • Port Area:  10.5 in²
  • Port Length: 19.5"
  • Tuning Frequency: 39 Hz
  • Mounting Depth: 4.5625"
  • Total Height: 5.5"
  • Outside Diameter: 8.5"
  • Cut-Out Diameter: 7.1"
  • Magnet Diameter: 5.25"
  • Subwoofer Displacement: ft³
  • Enclosure specifications do not include subwoofer, bracing, and port displacement
