Description
General

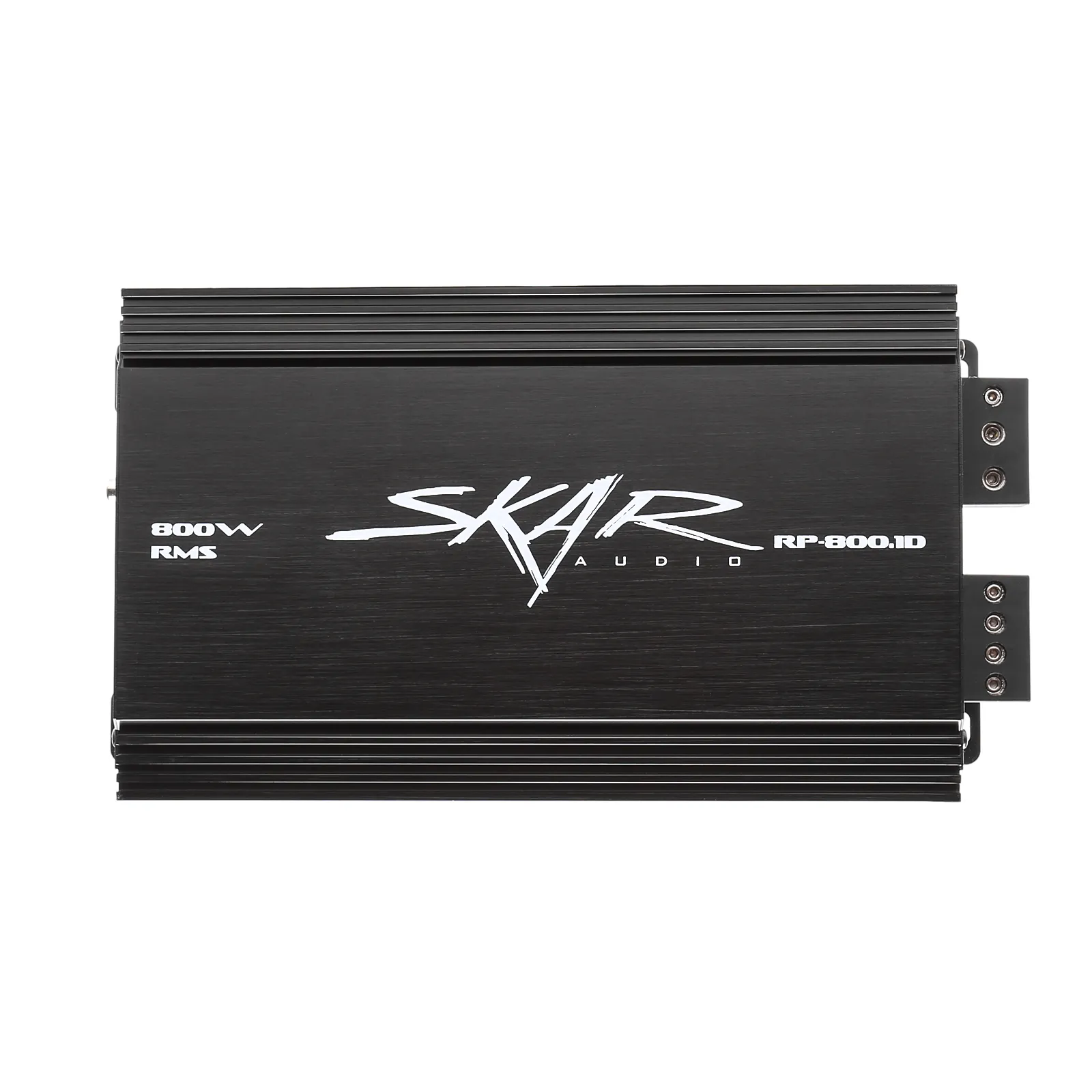

Skar Audio engineered the RP-800.1D Class D monoblock subwoofer amplifier to be dominant in both power and reliability compared to anything else on the market in its' class. Designing the most efficient, well built, high quality amplifiers is where we start here at Skar Audio, and that is exactly what is delivered in the RP-800.1D.

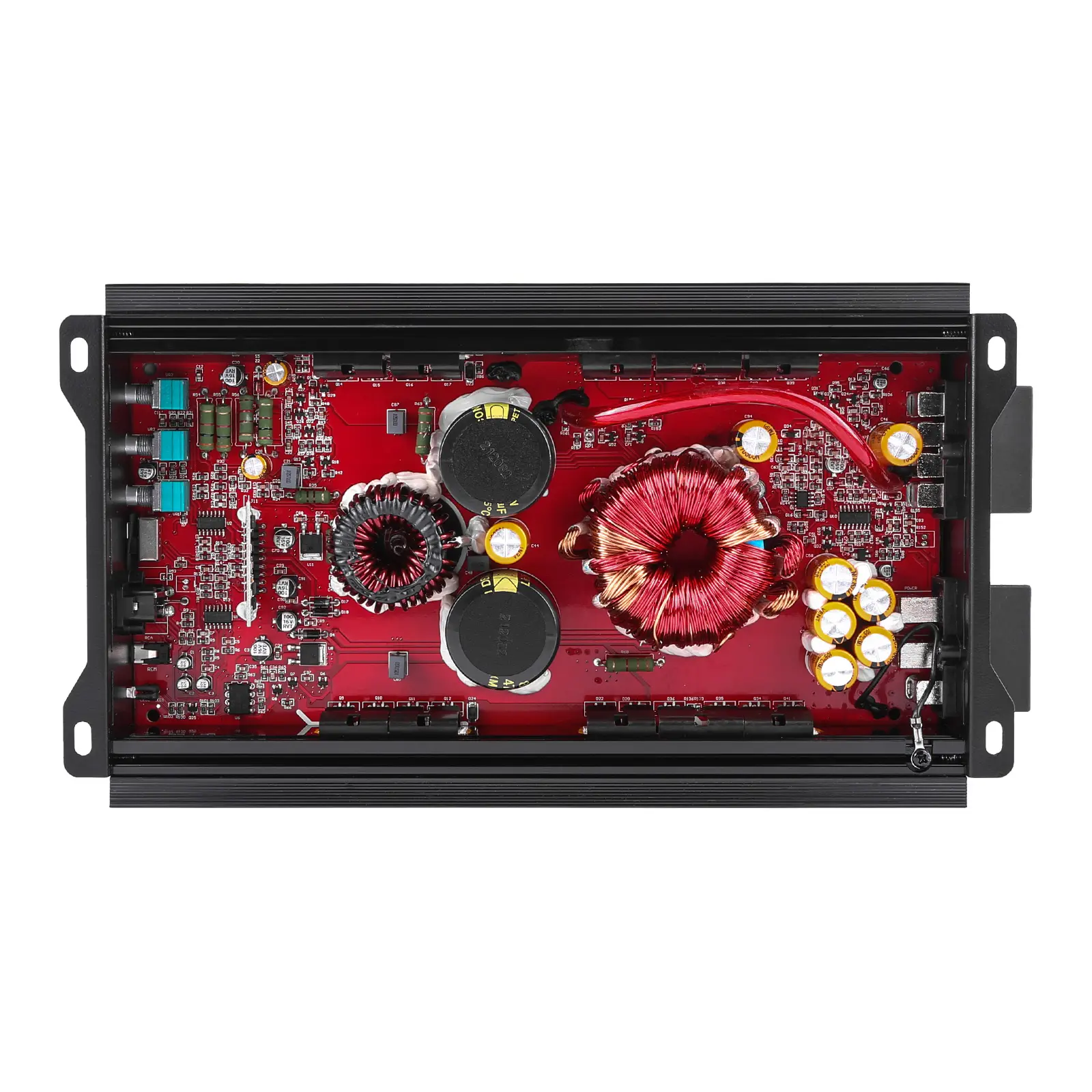

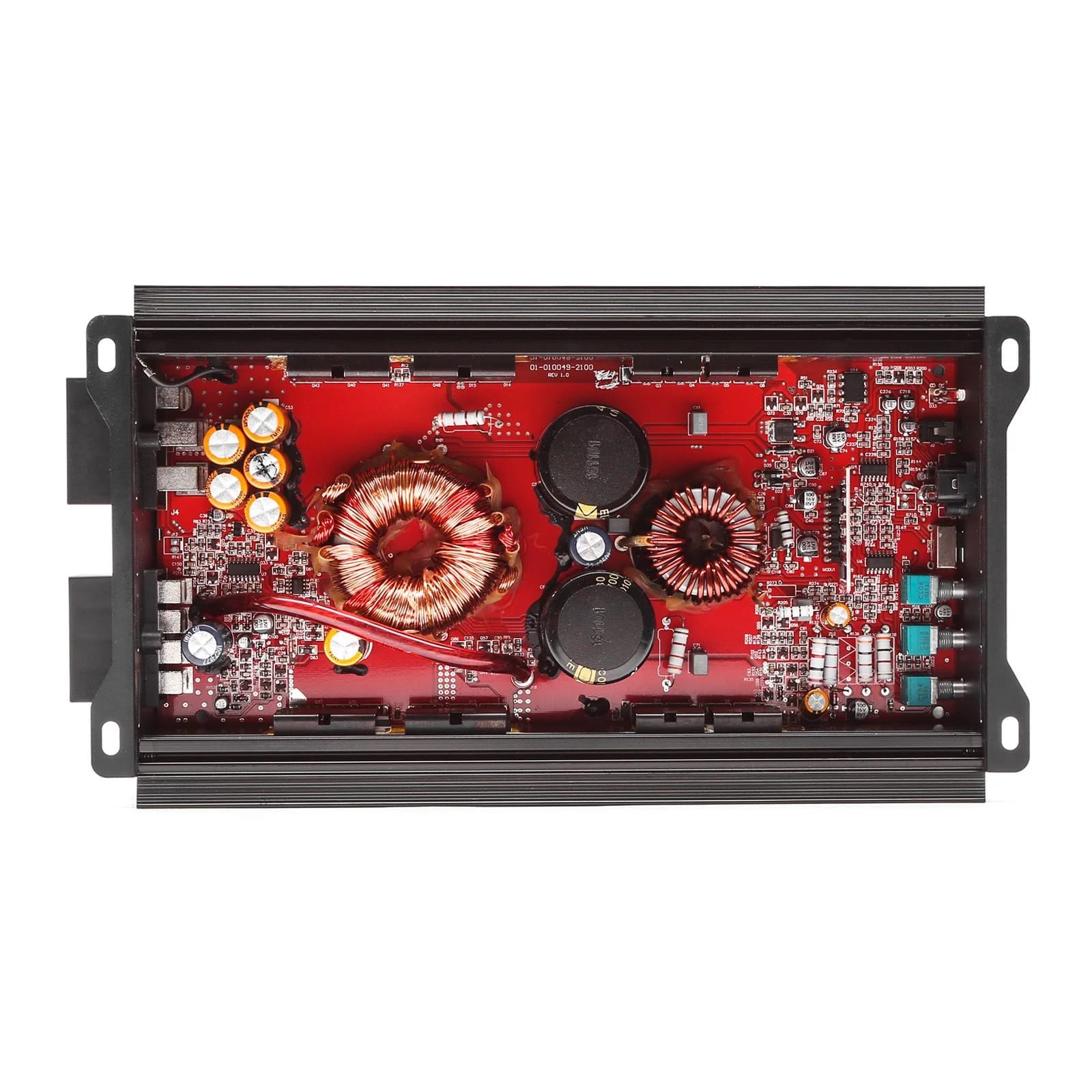

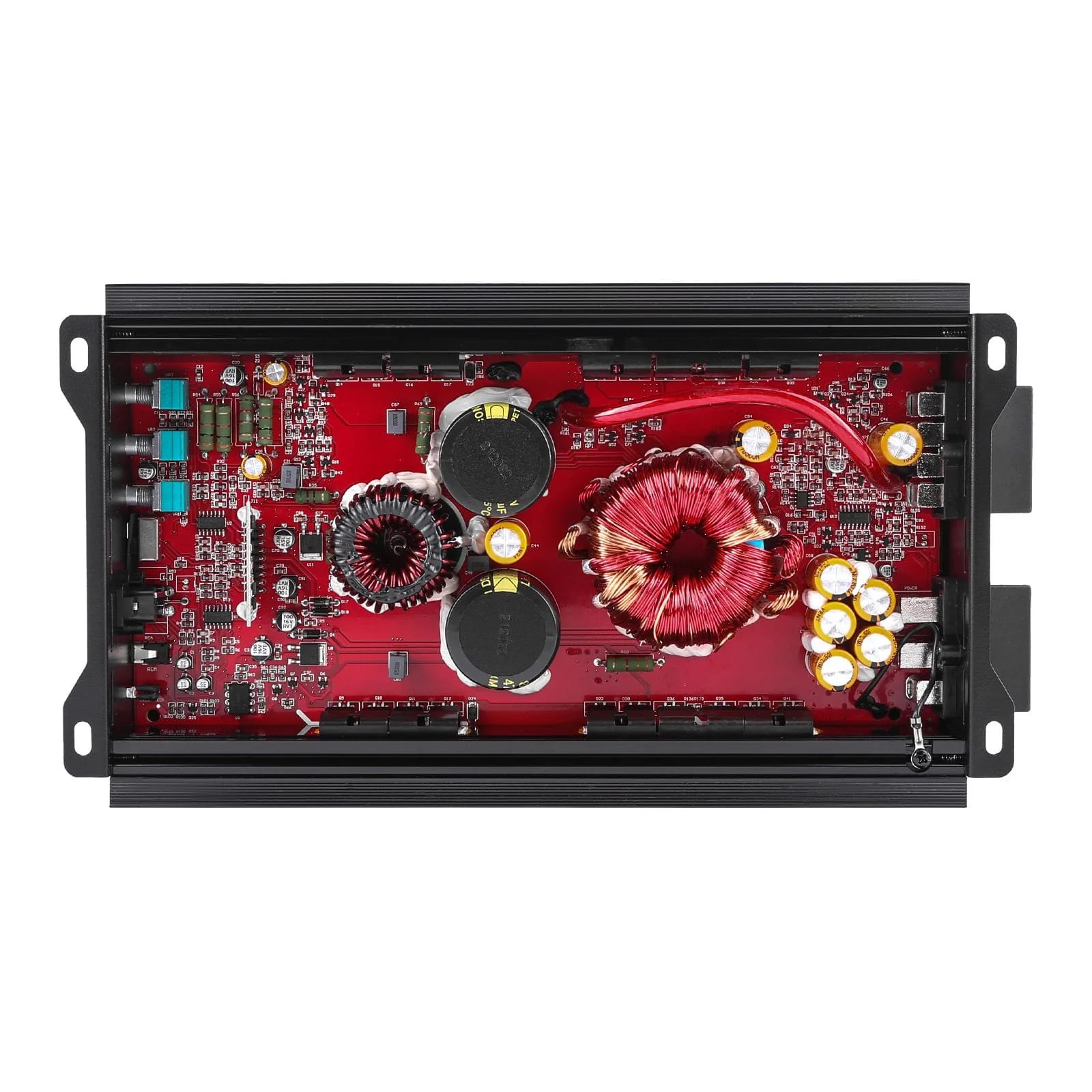

The RP-800.1D is 1-ohm stable and utilizes a wide array premium internal components that make it extremely powerful and reliable - such as its high speed MOSFET power supply and advanced PCB board layout. Conservatively rated at 800 watts RMS power at a 1-ohm load, with the capabilities of reaching beyond 1,200 watts at max power output. This amplifier is by far one of the most popular and affordable mono-blocks we have ever released, and is great for powering a "daily driver" subwoofer stage in any vehicle.

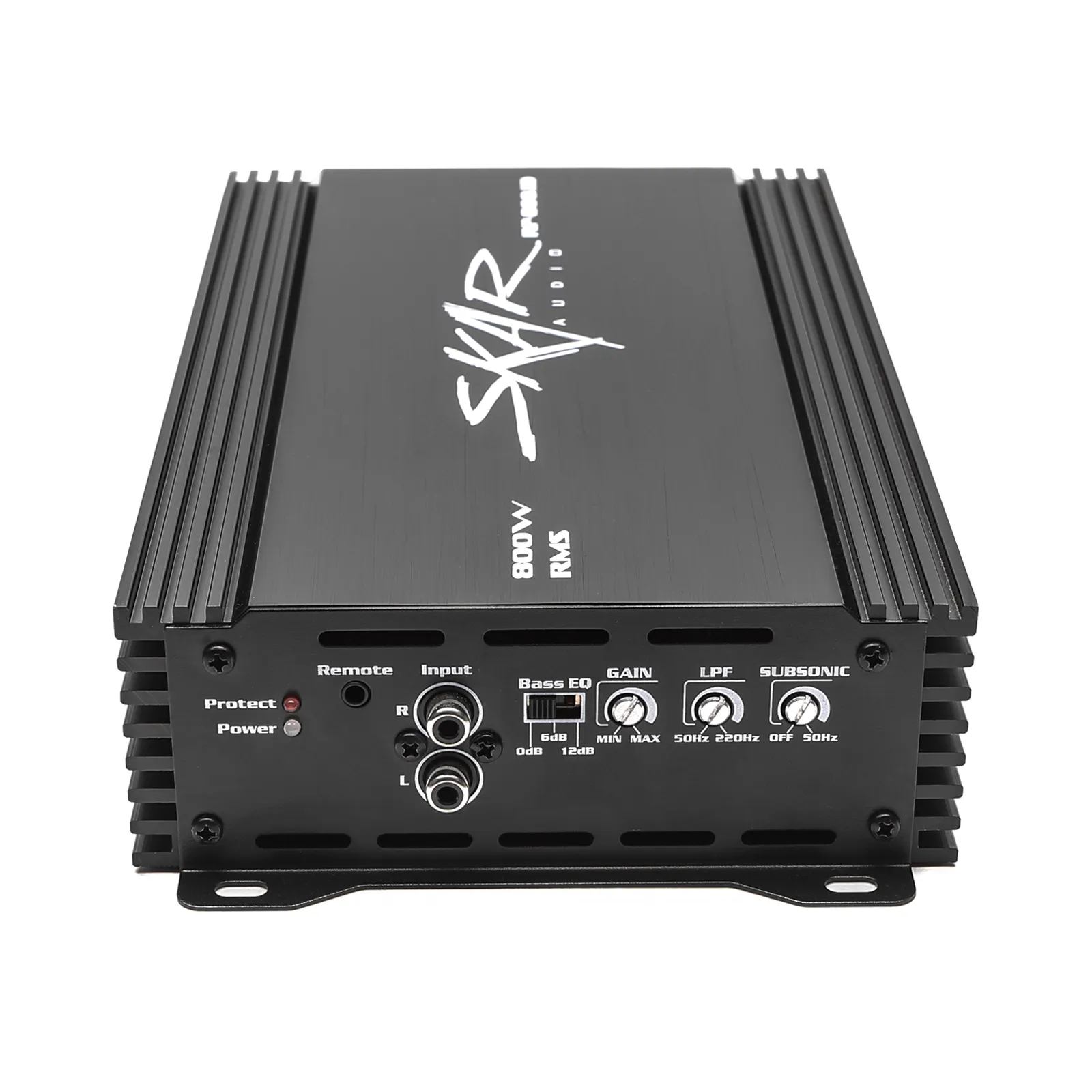

Furthermore, the oversized 4 gauge power and ground terminals found on the amplifier allow for maximum current flow and therefore higher power output and more efficient operation. You'll have full reign over your amplifier with the built-in user control panel, featuring a bass EQ switch (0, +6, +12dB), and variable adjustment tunings for gain level, low-pass filter, and subsonic filter.
In addition to all of the above features, this model also features 4-way protection circuitry, which will give the user the peace of mind knowing they are protected against damage to the amplifier for various reasons - including electrical shortage, over heating, low voltage, and more. This amplifier comes with a remote subwoofer level control (bass knob) allowing the user to have full control over their bass from the front of the vehicle.
*Skar Audio always recommends professional installation for all of our products.*
*Never mount amplifiers directly on the enclosure*
Specifications
- Skar Audio RP-800.1D Monoblock Amplifier
- Class D Mono-block Subwoofer Amplifier
- 4 Way Protection Circuitry: Thermal, Voltage, Speaker, DC
- RMS Power @ 2 Ohm: 600 Watts x 1 Channel (14.4v)
- RMS Power @ 4 Ohms: 370 Watts x 1 Channel (14.4v)
- RMS Power @ 1 Ohms: 800 Watts x 1 Channel (14.4v)
- Max Power @ 1 Ohms: 1,200 Watts x 1 Channel (14.4v)
- MOSFET Power Supply
- Soft Turn on Circuit
- Frequency Response: 20Hz~250Hz
- Signal to Noise Ratio: 85 dB
- Damping Factor: 200<
- Low Pass Filter (Variable): 50Hz~220hz
- Subsonic Filter: Off~50Hz

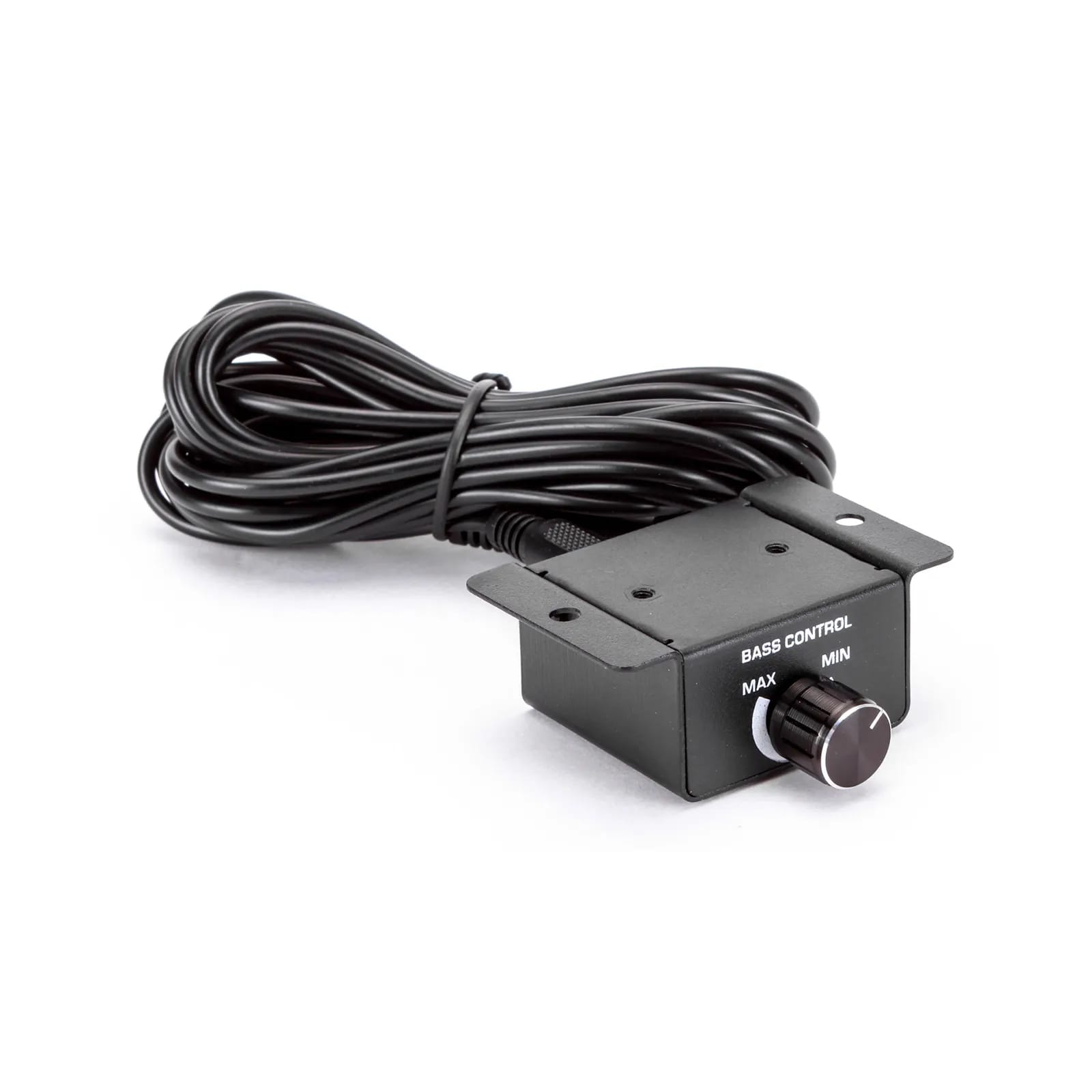

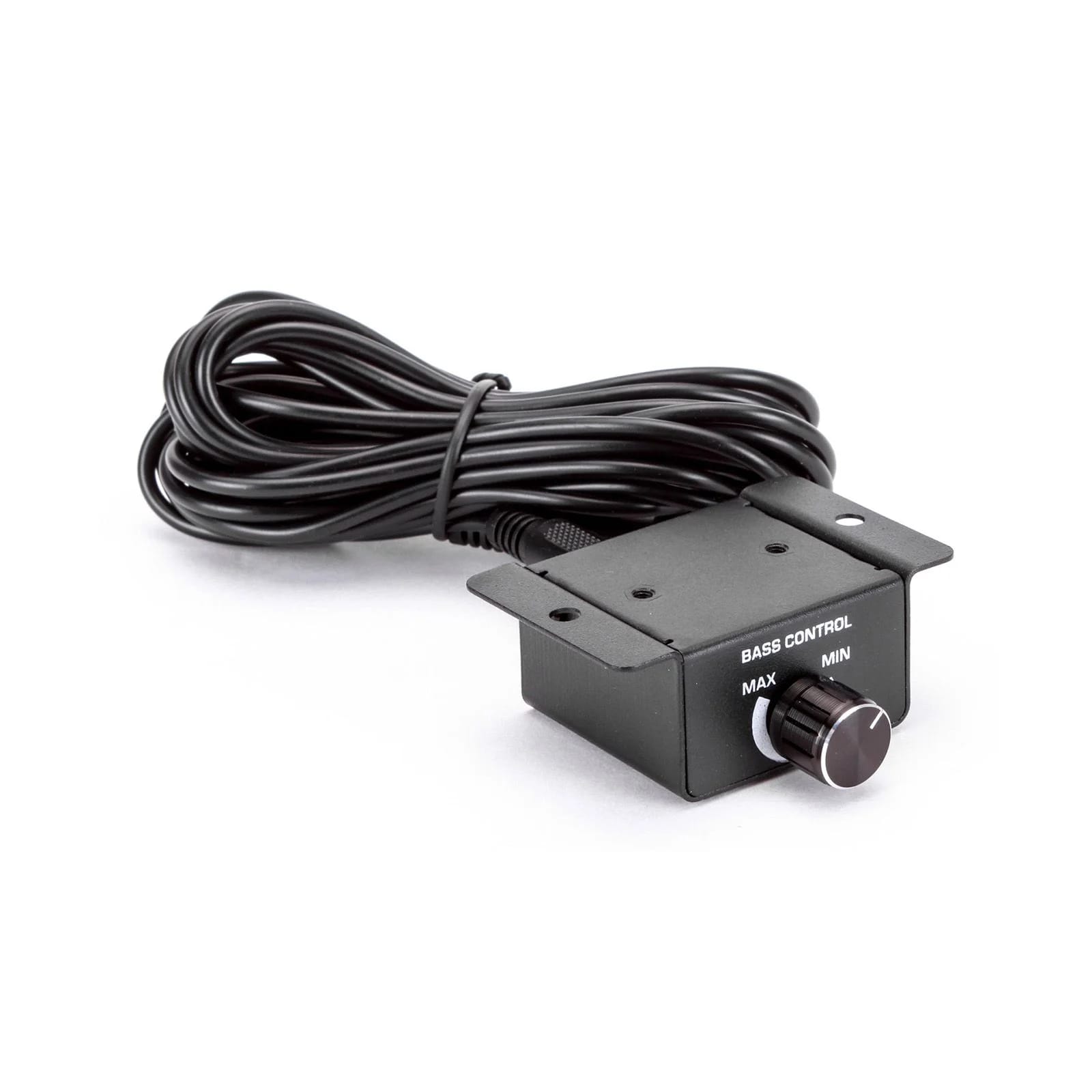

- Remote Bass Knob & Wire Included

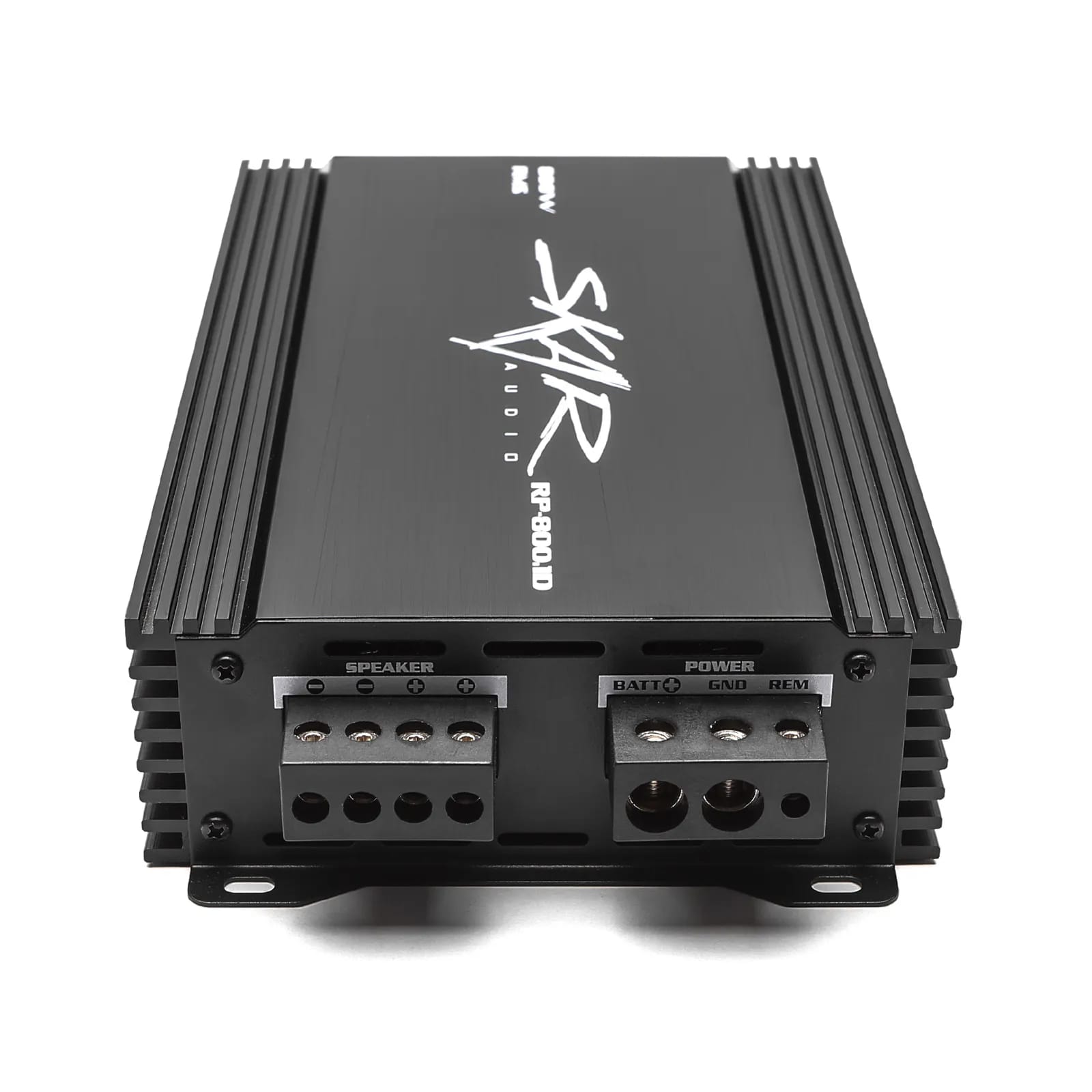

- 4 Gauge Power and Ground Terminals
- Working Voltage: 8.5V-14.4V
- Fuse Rating: 80 Amp
- Dimensions: 11.75" (Length) x 6.25" (Width) x 2.25" (Height)
High quality equipment . great amp. Excellent sound .. Highly recommended Skar Audio!!!
Solid amp. I was running just one VVX 8v3 D4. It moved that sub more then enough and actually to much if I let it. The sub was wired to 2ohms and the amp was set to 28v to make the proper gains. I’ll admit the amp did run a tad bit hot but that might be because it was in the dead of traffic and 85 degrees out with no AC. I was going to get 2 fans hooked onto it because with the windows down and air flow it could run allllllll day. Would buy again without a doubt.
Love this amp.
Everything works as should
Great amp, got it wired at 1 ohm to 2 400W ix’s and it sounds great because it tuned low, but it does go into protect mode after only an hour or so.. any ideas on keeping it cooler?
