ZVX-18v2 | 18" 3,200 Watt Max Power Car Subwoofer

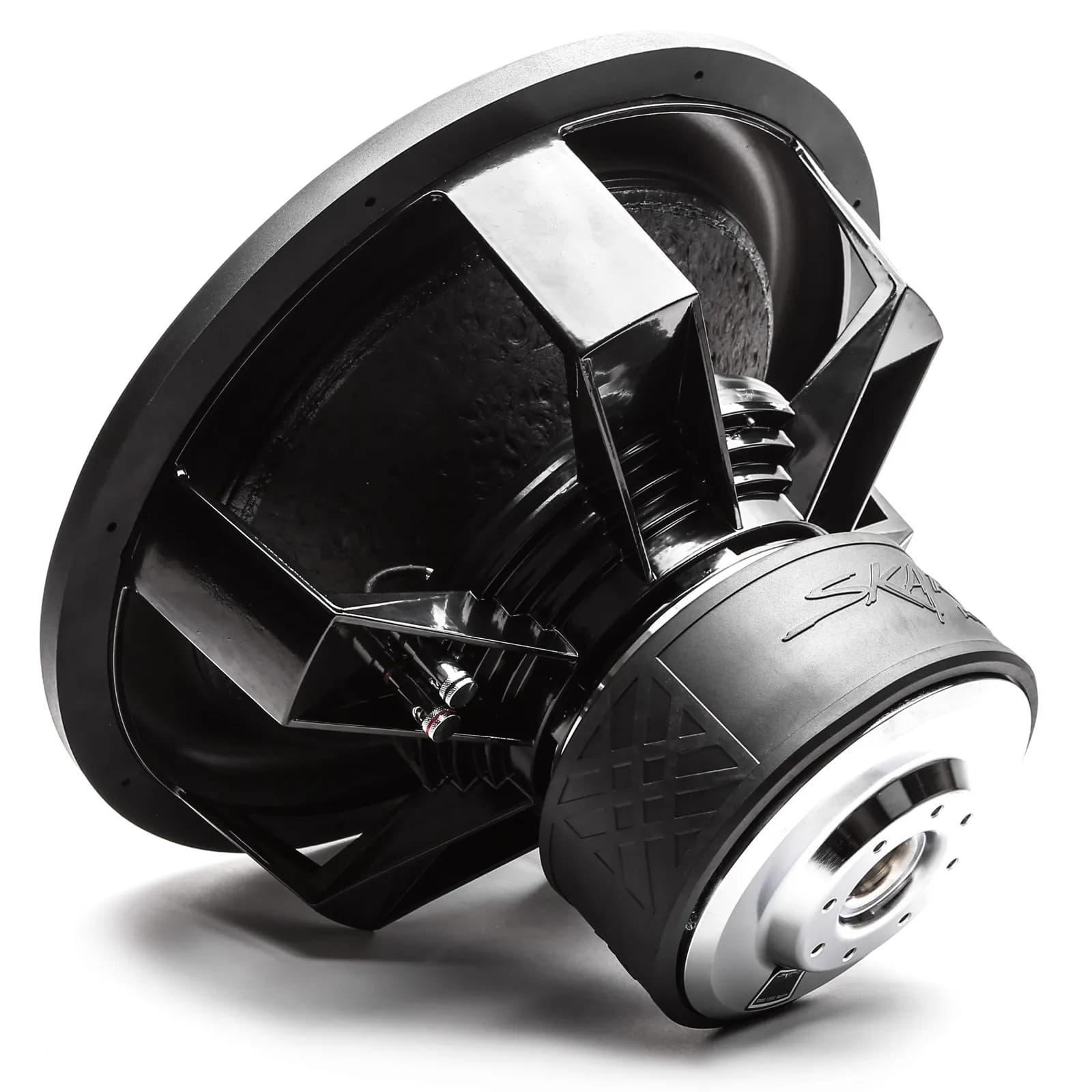

  • Skar Audio ZVX-18v2 18-inch 3,200 Watt Max Power Car Subwoofer - Angle View

ZVX-18v2 | 18" 3,200 Watt Max Power Car Subwoofer


* Financing through our Partner, Bread

Description

Description

The Skar Audio ZVX-18v2 D1 subwoofer is unrivaled in performance and reliability, and features a max power rating of 3,200 watts. This 18-inch driver was engineered to withstand brutality and perform efficiently at the highest levels of output power, making it an extremely reliable and powerful subwoofer. This subwoofer utilizes a 3-inch high temperature voice coil and a massive triple slug magnet, which combined with its high roll foam surround and competition grade paper cone allow it to perform with sheer excellence. Dual 1 Ohm voice coil configuration. Peak Power: 3,200 Watts, RMS Power: 1,600 Watts, Sensitivity: 89.4 dB. Fs: 26.1 Hz.

Specifications

  • Skar Audio ZVX-18v2 D1 - 18" SPL Car Subwoofer
  • Dual 1 Ohm Voice Coil Configuration
  • Peak Power: 3,200 Watts
  • RMS Power: 1,600 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Massive Triple Stacked Magnet
  • 3" High Temperature Copper Voice Coil
  • Motor Weight: 306 oz
  • Frequency Response: 20 - 400 Hz
  • Sensitivity: 89.4 dB
  • Fs: 26.1 Hz
  • Re: 1.8 Ohms
  • Qms: 1.8
  • Qes: 0.44
  • Qts: 0.40
  • Nref: .35 %
  • Cms: 0.08 mm/N
  • Bl: 17.1 n/a
  • Vas: 159.9 L
  • Mms: 566 gr
  • Sd: 1164 cm^2
  • Xmax: 29 mm

Enclosure Specifications

  • Ported Volume: 5.25 ft^3
  • Port Area: 78 sq. in.
  • Port Length: 30"
  • Tuning Frequency: 32 Hz
  • Mounting Depth: 10.8"
  • Cut-Out Diameter: 16.5"
  • Magnet Diameter: 8.3"
  • Subwoofer Displacement: 0.19 ft^3
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Description

The Skar Audio ZVX-18v2 D2 subwoofer is unrivaled in performance and reliability, and features a max power rating of 3,200 watts. This 18-inch driver was engineered to withstand brutality and perform efficiently at the highest levels of output power, making it an extremely reliable and powerful subwoofer. This subwoofer utilizes a 3-inch high temperature voice coil and a massive triple slug magnet, which combined with its high roll foam surround and competition grade paper cone allow it to perform with sheer excellence. Dual 2 Ohm voice coil configuration. Peak Power: 3,200 Watts, RMS Power: 1,600 Watts, Sensitivity: 88.6 dB. Fs: 27.4 Hz.

Specifications

  • Skar Audio ZVX-18v2 D2 - 18" SPL Car Subwoofer
  • Dual 2 Ohm Voice Coil Configuration
  • Peak Power: 3,200 Watts
  • RMS Power: 1,600 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Massive Triple Stacked Magnet
  • 3" High Temperature Copper Voice Coil
  • Motor Weight: 306 oz
  • Frequency Response: 20 - 400 Hz
  • Sensitivity: 88.6 dB
  • Fs: 27.4 Hz
  • Re: 3.6 Ohms
  • Qms: 3.6
  • Qes: 0.54
  • Qts: 0.49
  • Nref: .35 %
  • Cms: 0.07 mm/N
  • Bl: 20.6 n/a
  • Vas: 136.2 L
  • Mms: 489 gr
  • Sd: 1164 cm^2
  • Xmax: 29 mm

Enclosure Specifications

  • Ported Volume: 5.25 ft^3
  • Port Area: 78 sq. in.
  • Port Length: 30"
  • Tuning Frequency: 32 Hz
  • Mounting Depth: 10.8"
  • Cut-Out Diameter: 16.5"
  • Magnet Diameter: 8.3"
  • Subwoofer Displacement: 0.19 ft^3
  • Enclosure specifications do not include subwoofer, bracing, and port displacement
