Description
Description

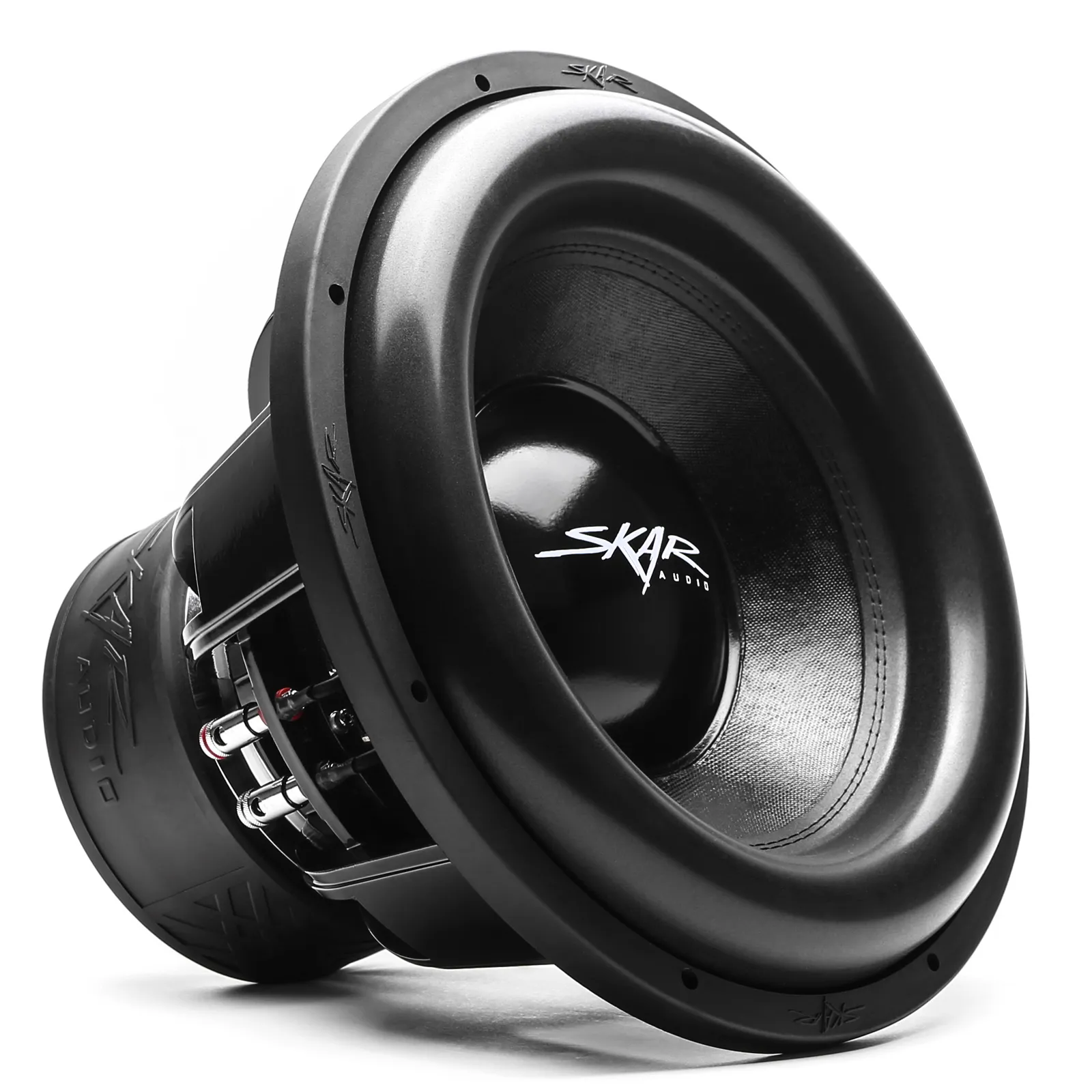

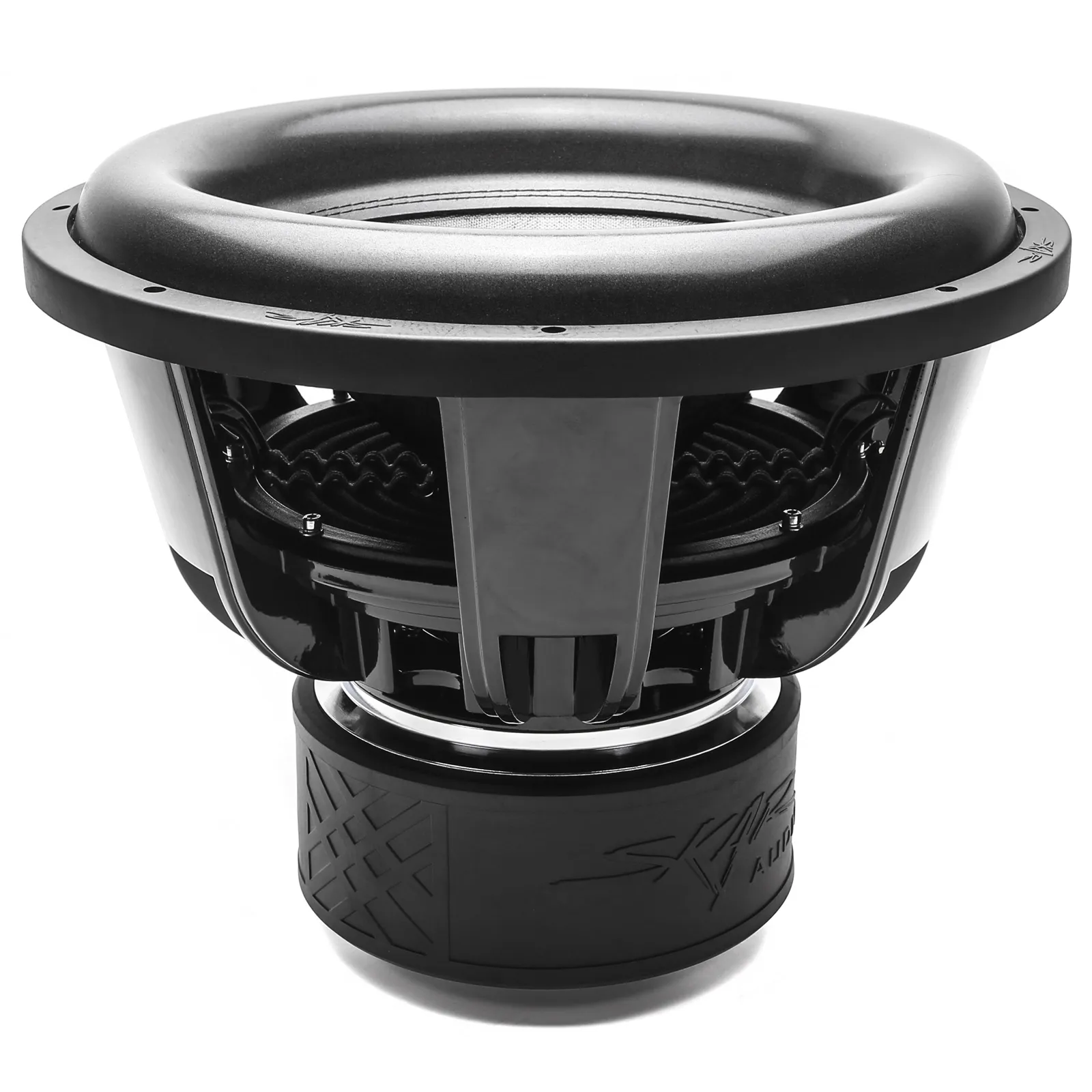

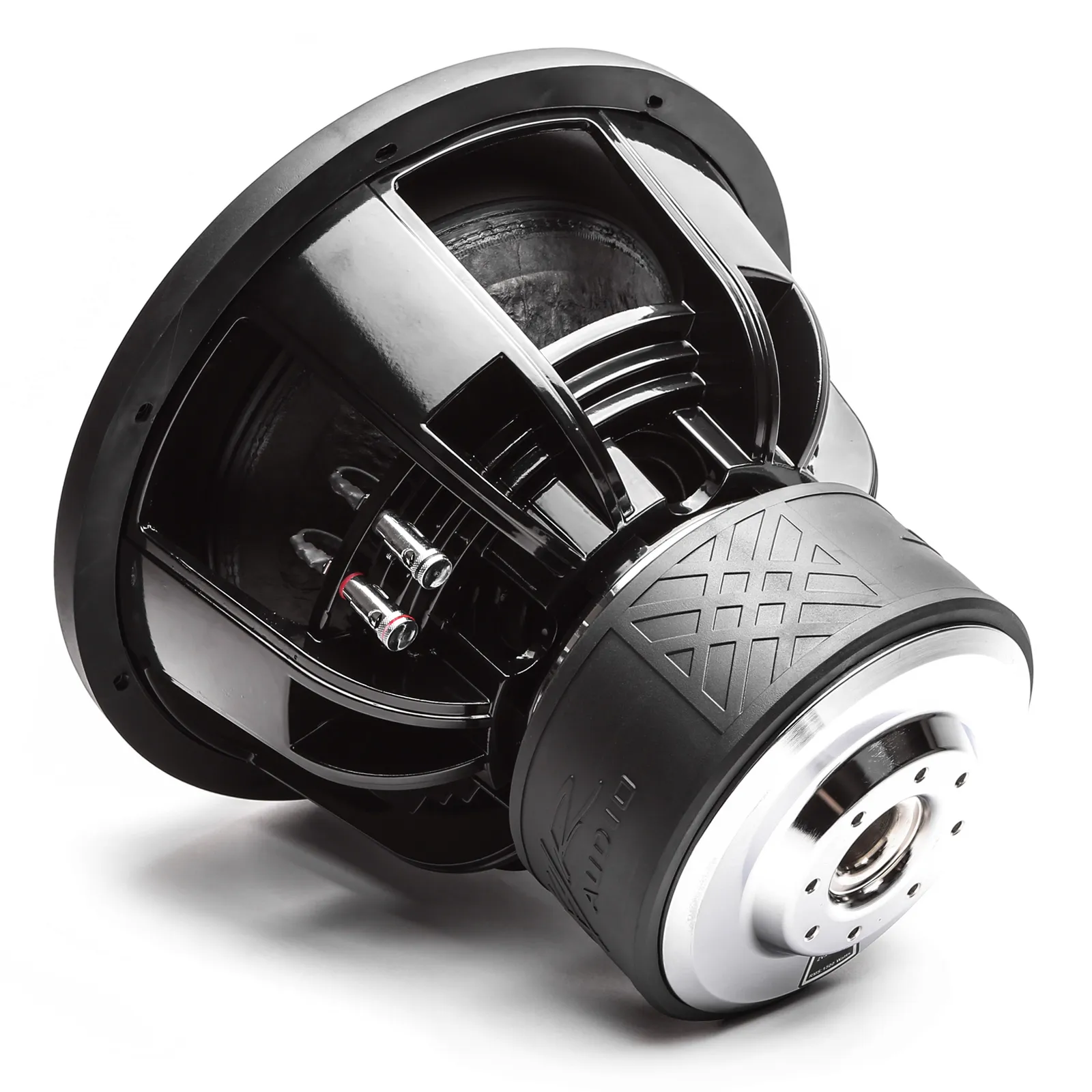

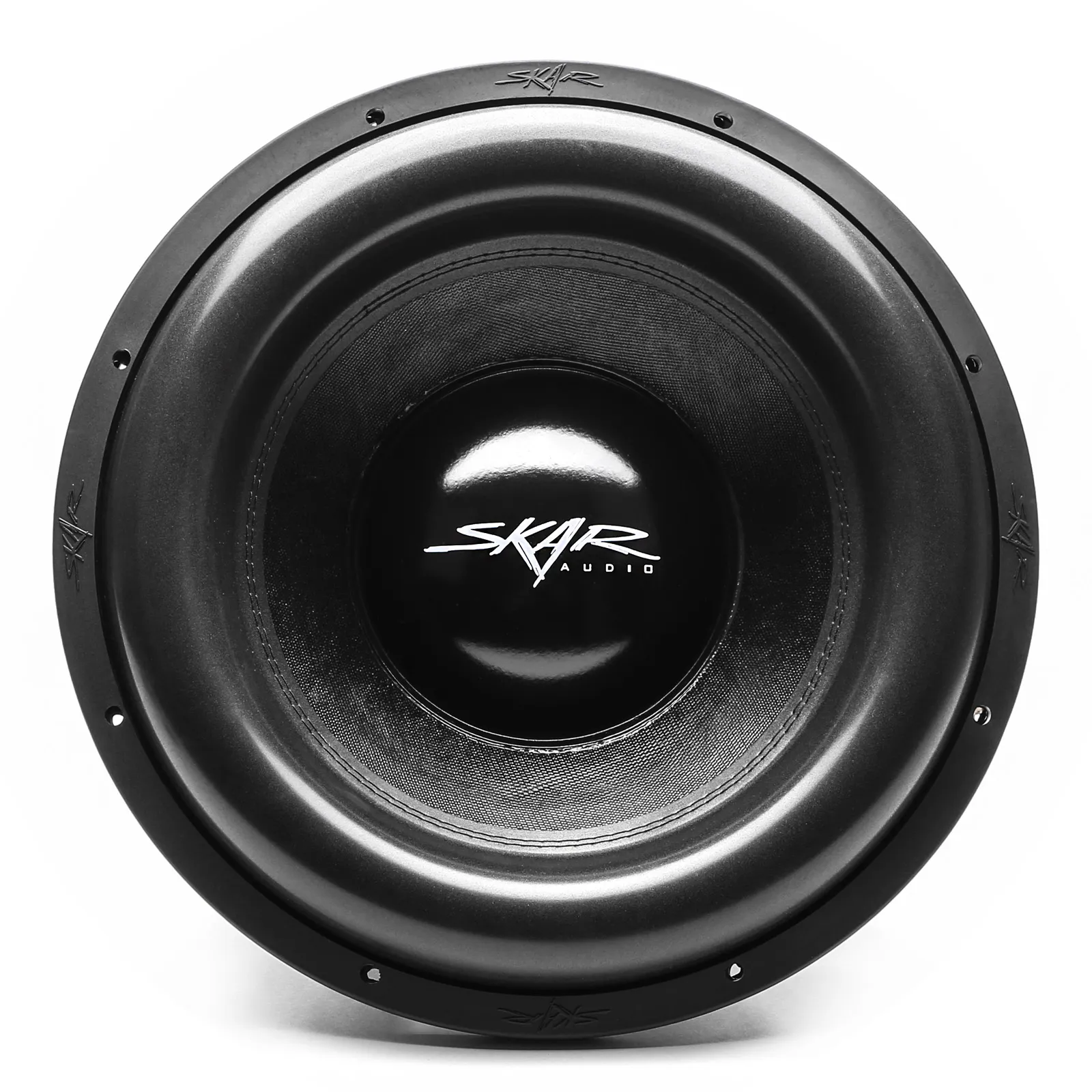

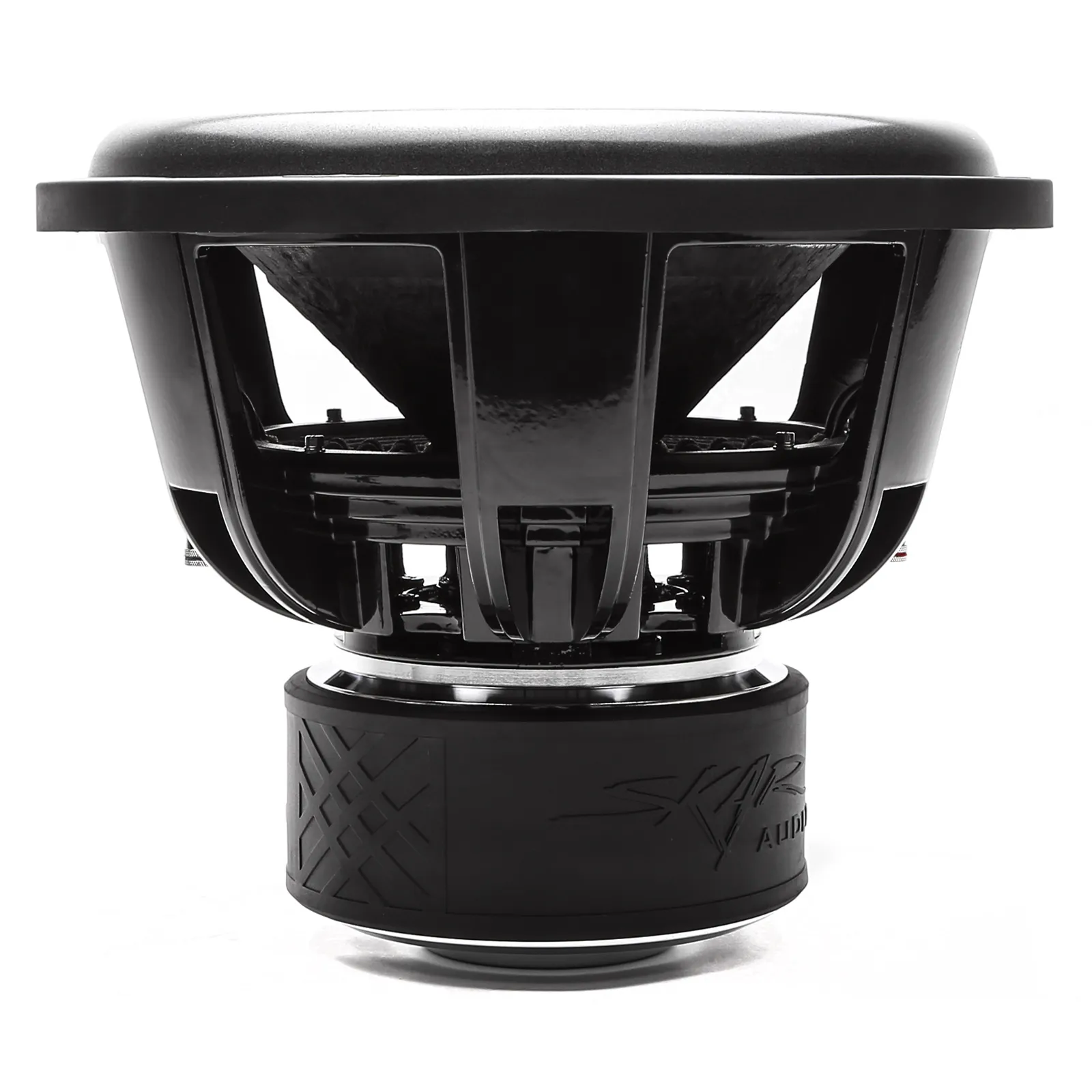

The Skar Audio ZVX-15v2 D1 subwoofer is unrivaled in performance and reliability, and features a max power rating of 3,000 watts. This 15-inch driver was engineered to withstand brutality and perform efficiently at the highest levels of output power, making it an extremely reliable and powerful subwoofer. This subwoofer utilizes a 3-inch high temperature voice coil and a massive triple slug magnet, which combined with its high roll foam surround and competition grade paper cone allow it to perform with sheer excellence. Dual 1 Ohm voice coil configuration. Peak Power: 3,000 Watts, RMS Power: 1,500 Watts, Spl: 86.3 dB. Fs: 38 Hz.
Specifications
- Skar Audio ZVX-15v2 D1 - 15" SPL Car Subwoofer
- Dual 1 Ohm Voice Coil Configuration
- Peak Power: 3,000 Watts
- RMS Power: 1,500 Watts
- Competition Grade Pressed Paper Cone
- Stitched High Roll Foam Surround
- Massive Triple Stacked Magnet
- 3" High Temperature Copper Voice Coil
- Motor Weight: 306 oz
- Frequency Response : 25 - 400 Hz
- Sensitivity: 86.3 dB
- Fs: 38.0 Hz
- Re: 1.8 Ohms
- Qms: 3.8
- Qes: 0.40
- Qts: 0.38
- Nref: .27 %
- Cms: 0.03 mm/N
- Bl: 20.17 n/a
- Vas: 58.5 L
- Mms: 514 gr
- Sd: 754 cm^2
- Xmax: 29 mm
Enclosure Specifications
- Ported Volume: 4.00 ft^3
- Port Area: 55 sq. in.
- Port Length: 27"
- Tuning Frequency: 33 Hz
- Mounting Depth: 11.3"
- Cut-Out Diameter: 14"
- Magnet Diameter: 8.3"
- Subwoofer Displacement: 0.17 ft^3
- Enclosure specifications do not include subwoofer, bracing, and port displacement
Description
The Skar Audio ZVX-15v2 D2 subwoofer is unrivaled in performance and reliability, and features a max power rating of 3,000 watts. This 15-inch driver was engineered to withstand brutality and perform efficiently at the highest levels of output power, making it an extremely reliable and powerful subwoofer. This subwoofer utilizes a 3-inch high temperature voice coil and a massive triple slug magnet, which combined with its high roll foam surround and competition grade paper cone allow it to perform with sheer excellence. Dual 2 Ohm voice coil configuration. Peak Power: 3,000 Watts, RMS Power: 1,500 Watts, Spl: 86.3 dB. Fs: 39 Hz.
Specifications
- Skar Audio ZVX-15v2 D2 - 15" SPL Car Subwoofer
- Dual 2 Ohm Voice Coil Configuration
- Peak Power: 3,000 Watts
- RMS Power: 1,500 Watts
- Competition Grade Pressed Paper Cone
- Stitched High Roll Foam Surround
- Massive Triple Stacked Magnet
- 3" High Temperature Copper Voice Coil
- Motor Weight: 306 oz
- Frequency Response: 25 - 400 Hz
- Sensitivity: 86.3 dB
- Fs: 39.0 Hz
- Re: 3.6 Ohms
- Qms: 6.1
- Qes: 0.50
- Qts: 0.46
- Nref: .25 %
- Cms: 0.03 mm/N
- Bl: 25.9 n/a
- Vas: 58.9 L
- Mms: 495 gr
- Sd: 754 cm^2
- Xmax: 29 mm
Enclosure Specifications
- Ported Volume: 4.00 ft^3
- Port Area: 55 sq. in.
- Port Length: 27"
- Tuning Frequency: 33 Hz
- Mounting Depth: 11.3"
- Cut-Out Diameter: 14"
- Magnet Diameter: 8.3"
- Subwoofer Displacement: 0.17 ft^3
- Enclosure specifications do not include subwoofer, bracing, and port displacement
