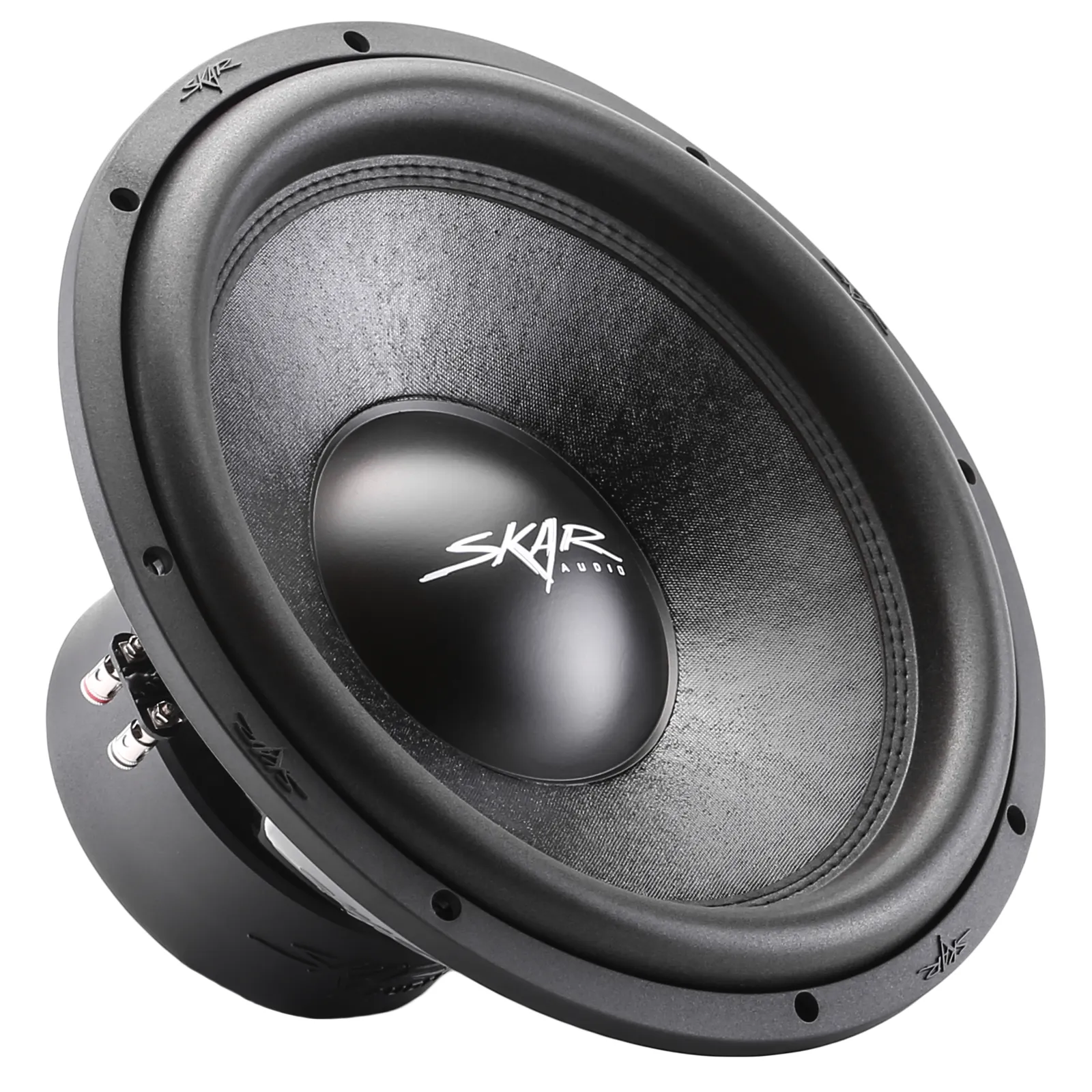

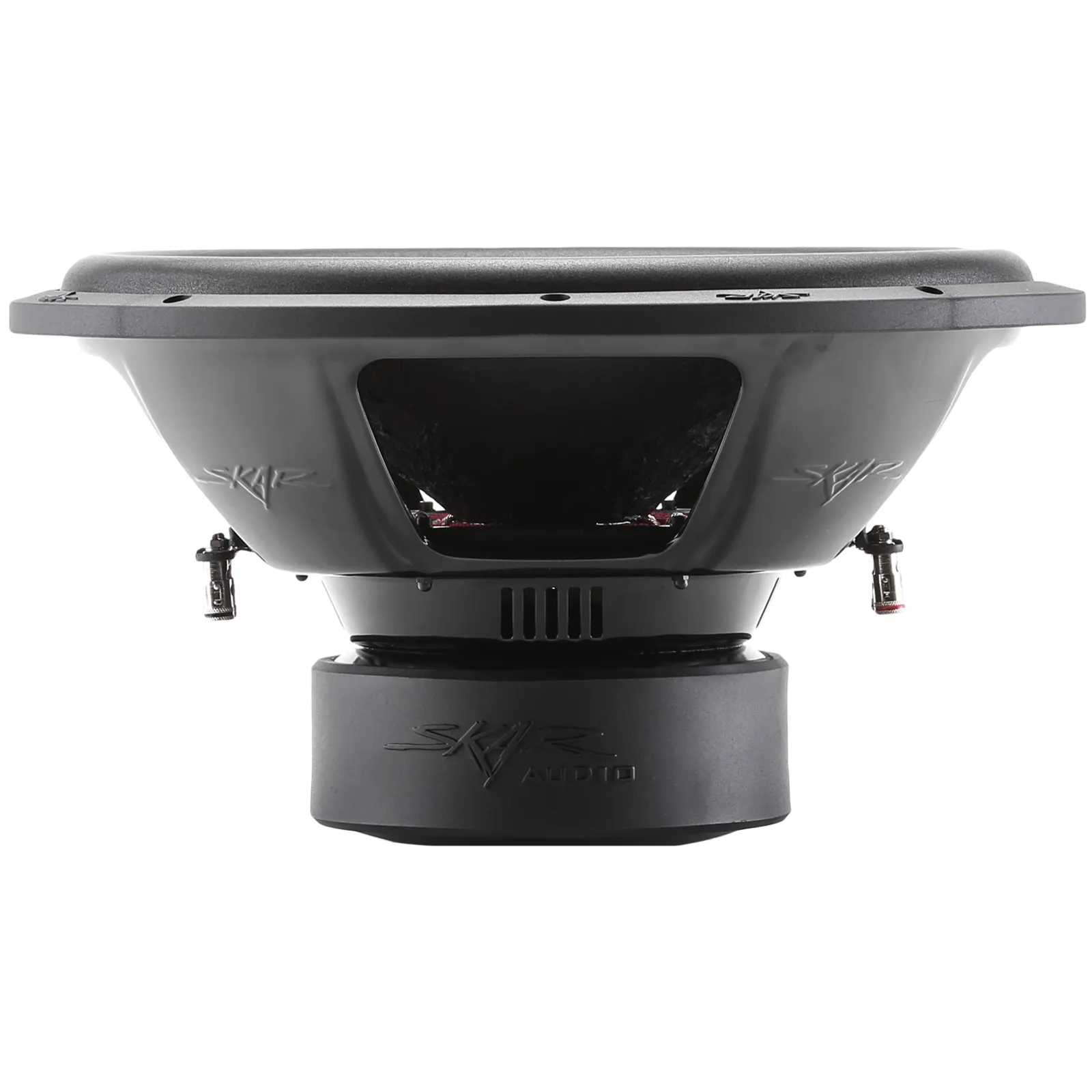

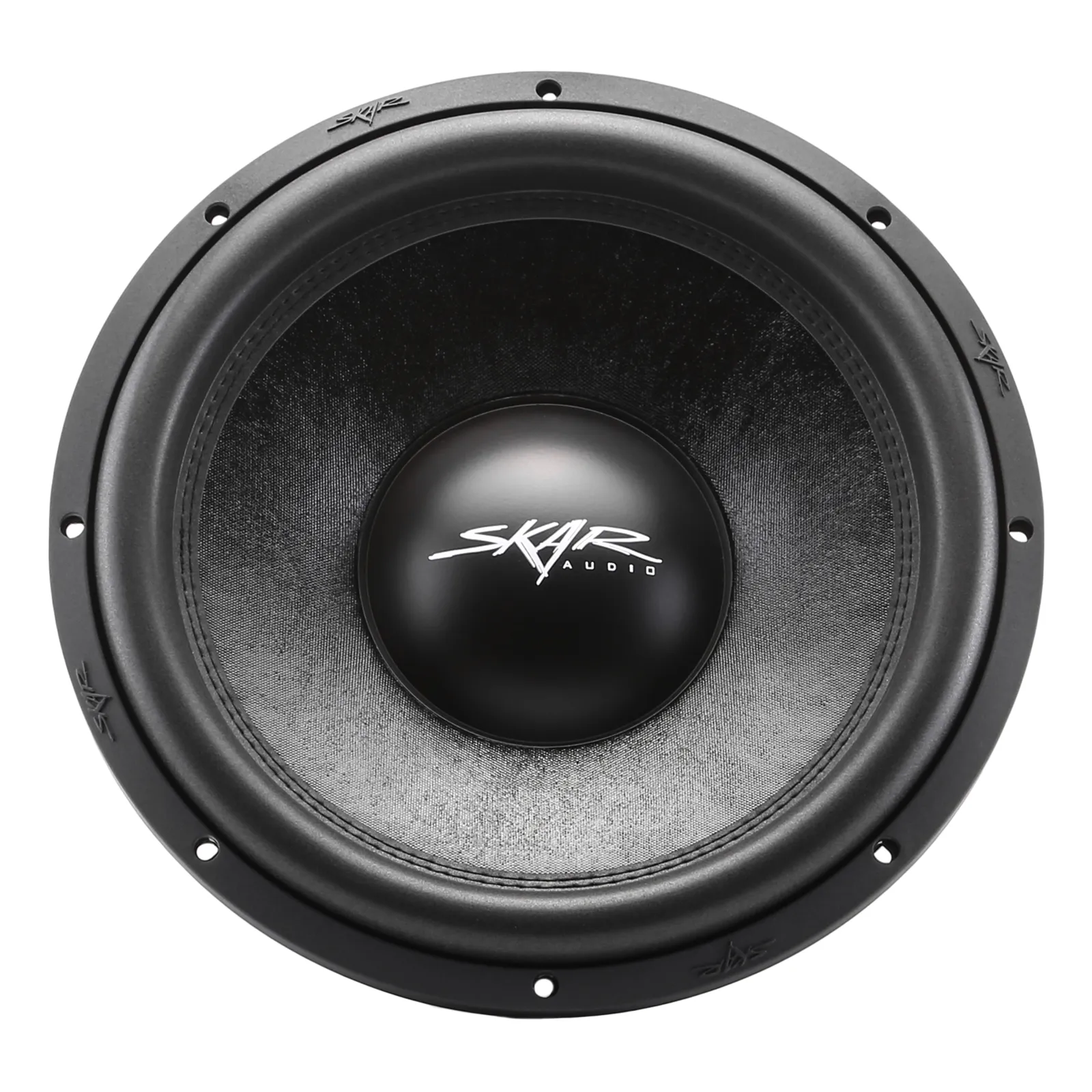

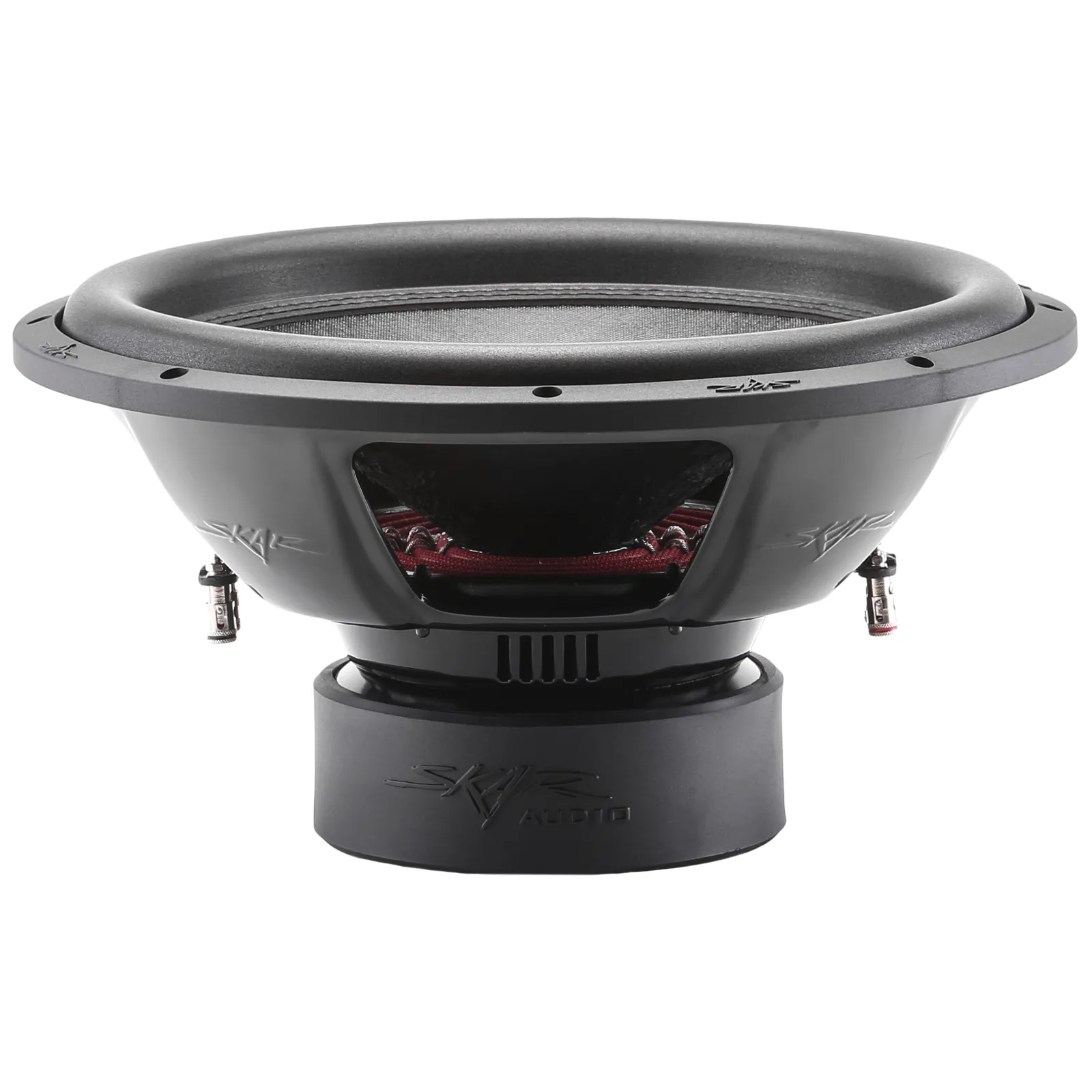

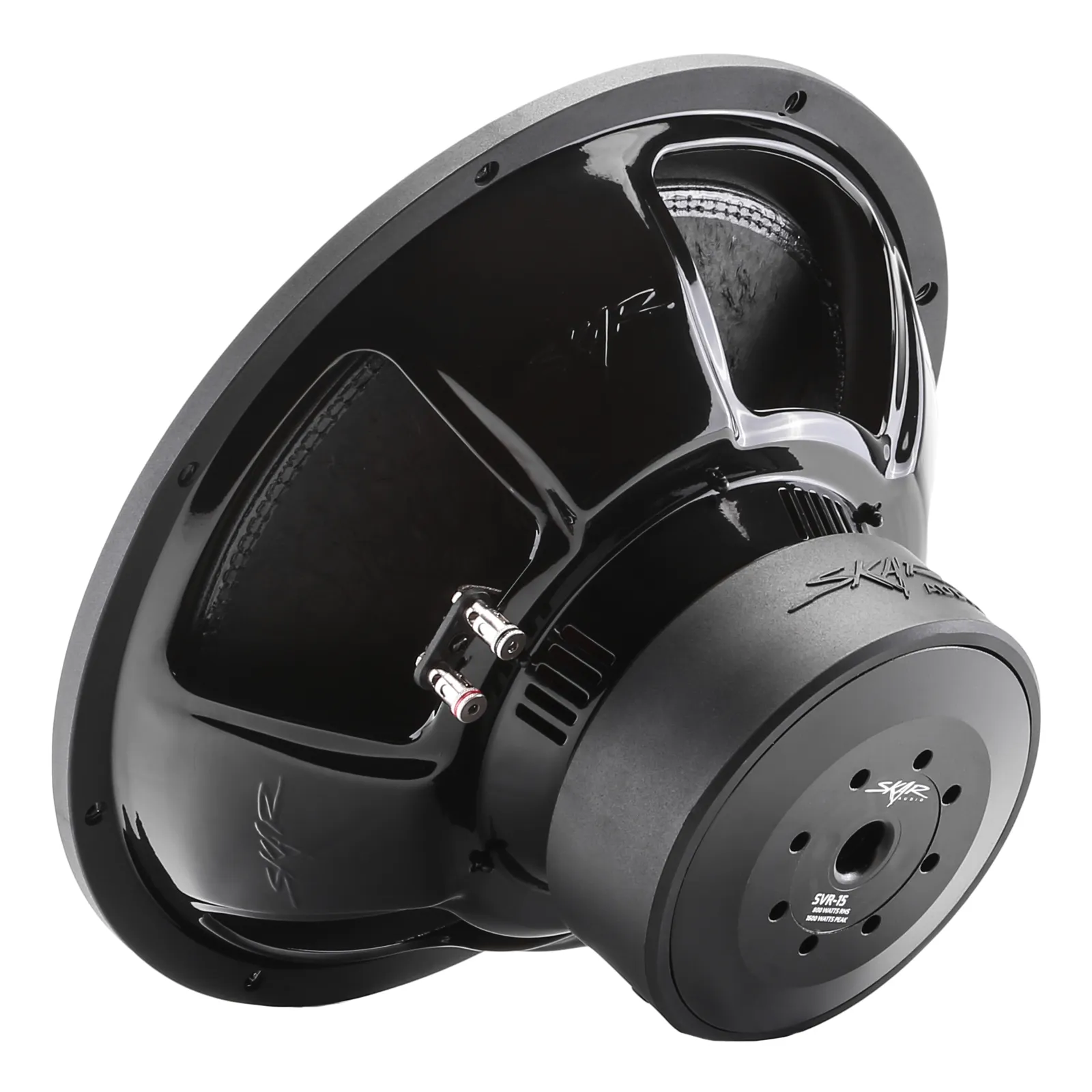

SVR-15 | 15" 1,600 Watt Max Power Car Subwoofer

123 Reviews

MSRP:$259.99
Current Price:$164.99
Sale Price:
$140.24

140.24 14024

Coil Configuration
The Skar Audio SVR-15 15-inch dual 2 ohm car subwoofer delivers hard hitting bass in a compact, powerful package. The SVR-15 was engineered and built with performance in mind. It starts with a unique 2.6" 4-layer high-temperature copper voice coil, allowing it to have a conservative peak power rating of 1,600 watts. The Skar Audio stamped steel basket featured on the SVR-15 utilizes an advanced air flow cooling system to help dissipate heat, enabling it to provide continuous reliable power.
The SVR-15 is equipped with a double-stacked 153 oz ferrite motor, which delivers the driving force behind the ultra-responsive, breathtaking lows this subwoofer produces. The suspension design of the SVR series features the Skar Audio signature red, single-layer spider, which connects to the coil former with premium stitched lead wires. Furthermore, the SVR-15 comes with a high foam surround stitched to a competition grade pressed paper cone. The advanced design features in the SVR series help to deliver powerful bass with uncompromising accuracy, that place this subwoofer in an elevated class of its own.
Product Info
MPN
SVR-15 D2
UPC
810028810679
General Specifications
Size
15"
Type
Car Subwoofer
Cone Type
Competition Grade Pressed Paper Cone
RMS Power
800 Watts
Peak Power
1600 Watts
Surround Type
Stitched High Roll Foam Surround
Voice Coil Size
2.60"
Magnet Slug Count
Double
Voice Coil Layers
4
Voice Coil Material
Copper (Pure Copper)
Voice Coil Impedance
Dual 2 Ω
T/S Parameters
Bl
19.97 n/a
Fs
33 Hz
Re
Dual 2 Ω
Sd
855.3 cm2
Cms
0.072 mm/N
Mms
316.2 gr
Qes
0.61
Qms
7.67
Qts
0.57
Vas
74.93 L
Nref
0.43%
Xmax
15 mm (one-way)
Sensitvity
88.5 dB
Recommended Enclosure Specifications
Enclosure Disclaimer
Enclosure recommendations above do not include subwoofer, bracing, and port displacement
Recommended Port Area
38.75 in²
Recommended Ported Volume
3.00 - 3.45 ft³
Recommended Sealed Volume
2.25 - 2.65 ft³
Recommended Tuning Frequency
32 Hz

Subwoofer Measurements
Total Height
8.35"
Mounting Depth
7.31"
Magnet Diameter
6.70"
