SDR-18 | 18" 1,200 Watt Max Power Car Subwoofer

MSRP: $ 189.99 $ 139.99
  • Skar Audio SDR-18 18-inch 1,200 Watt Max Power Car Subwoofer - Angle View

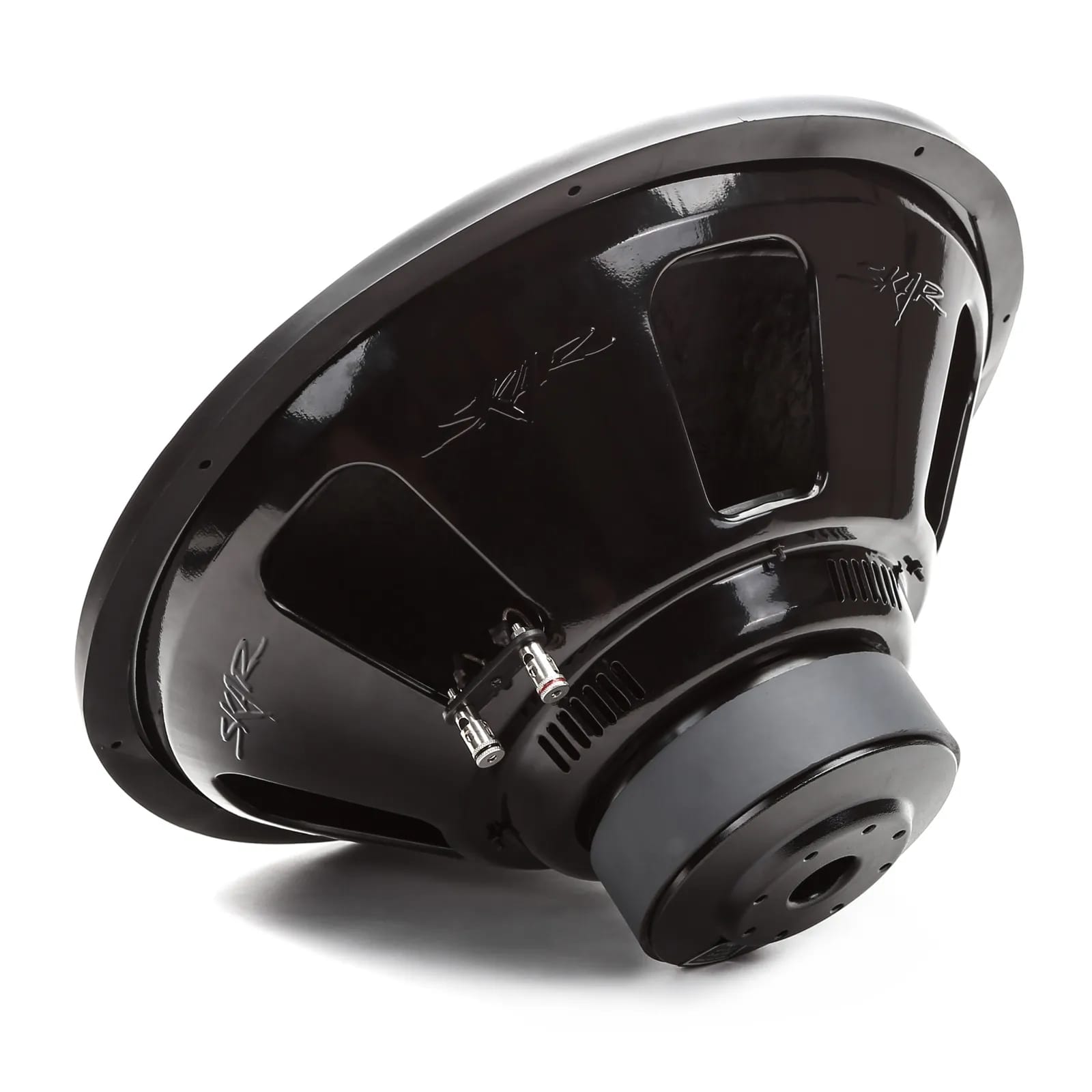

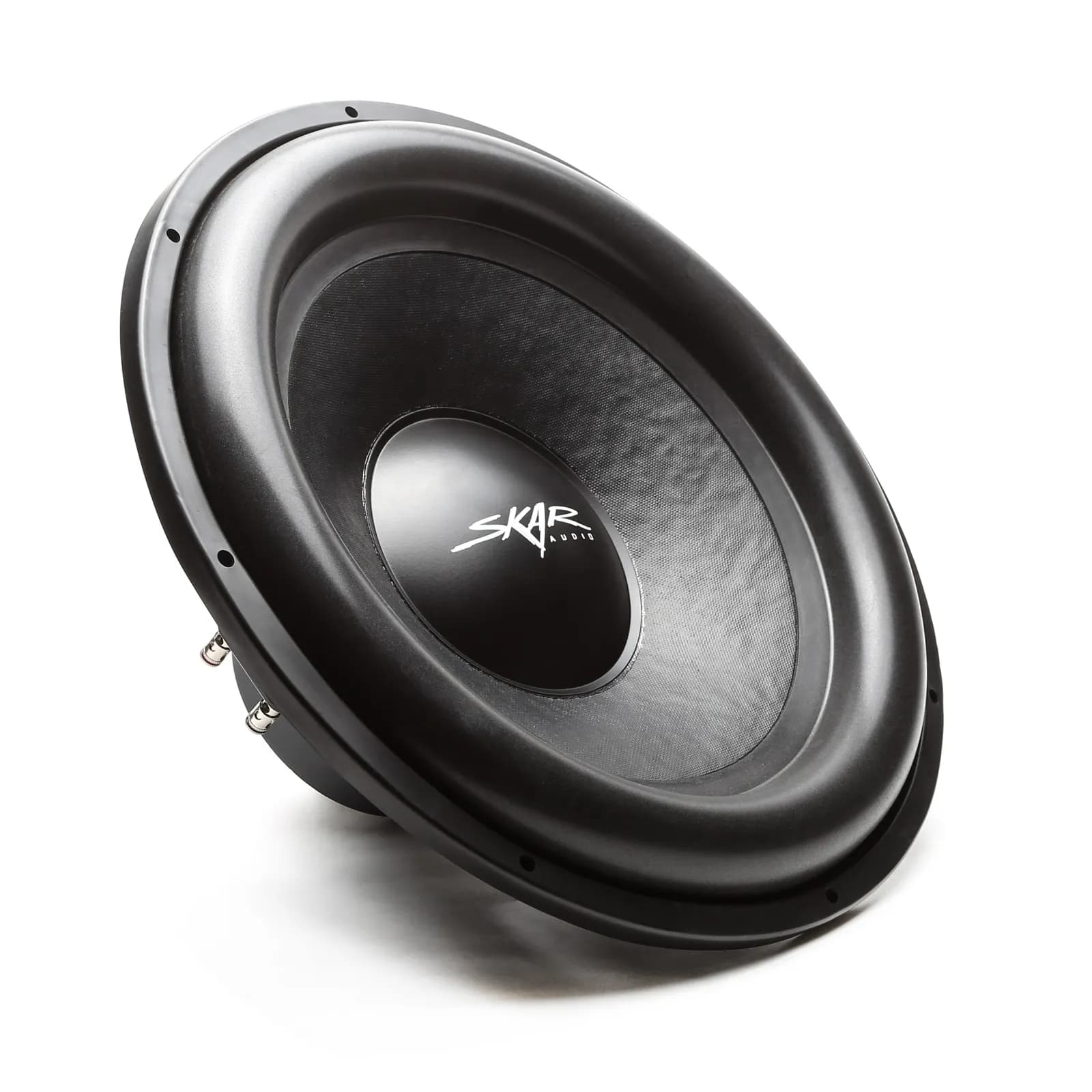

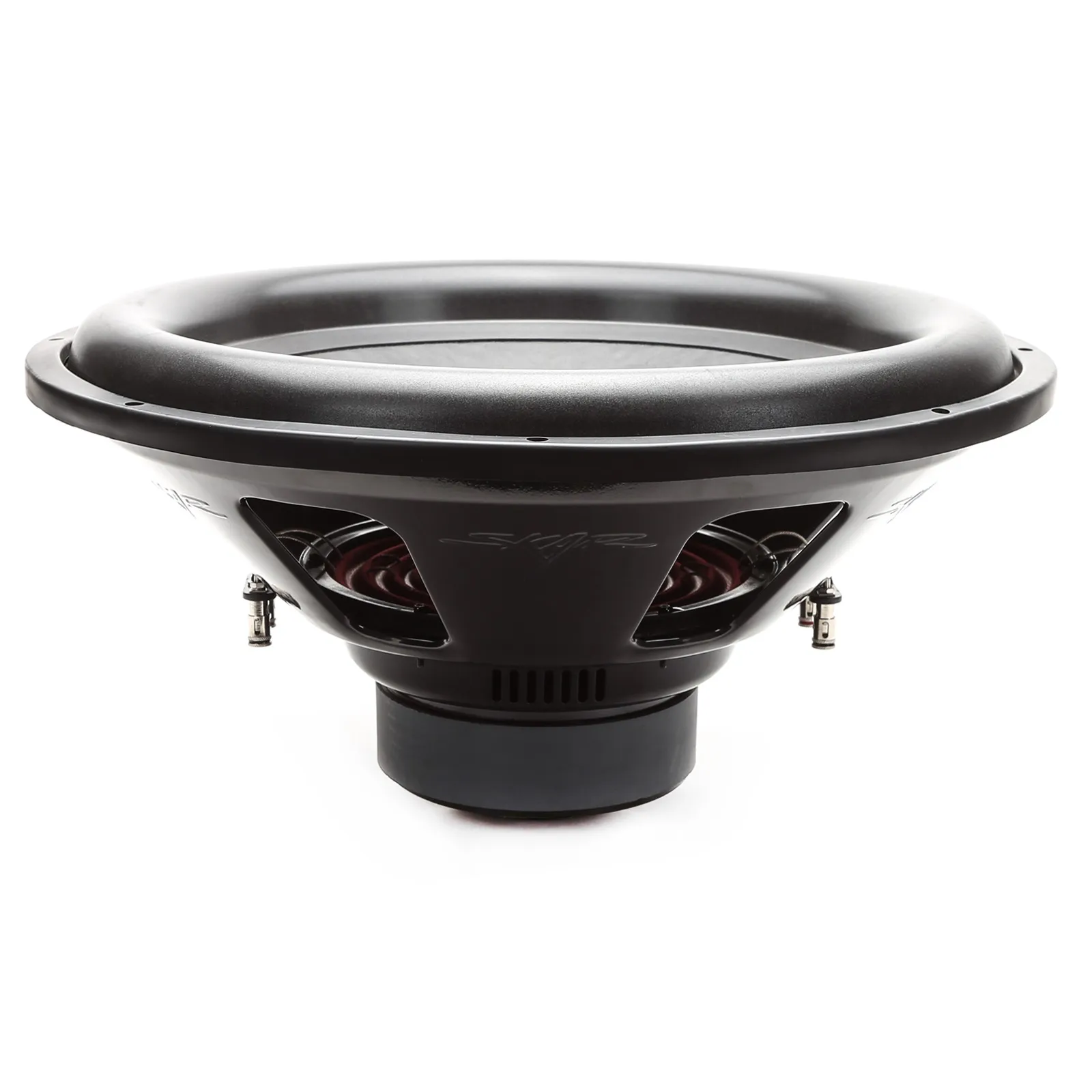

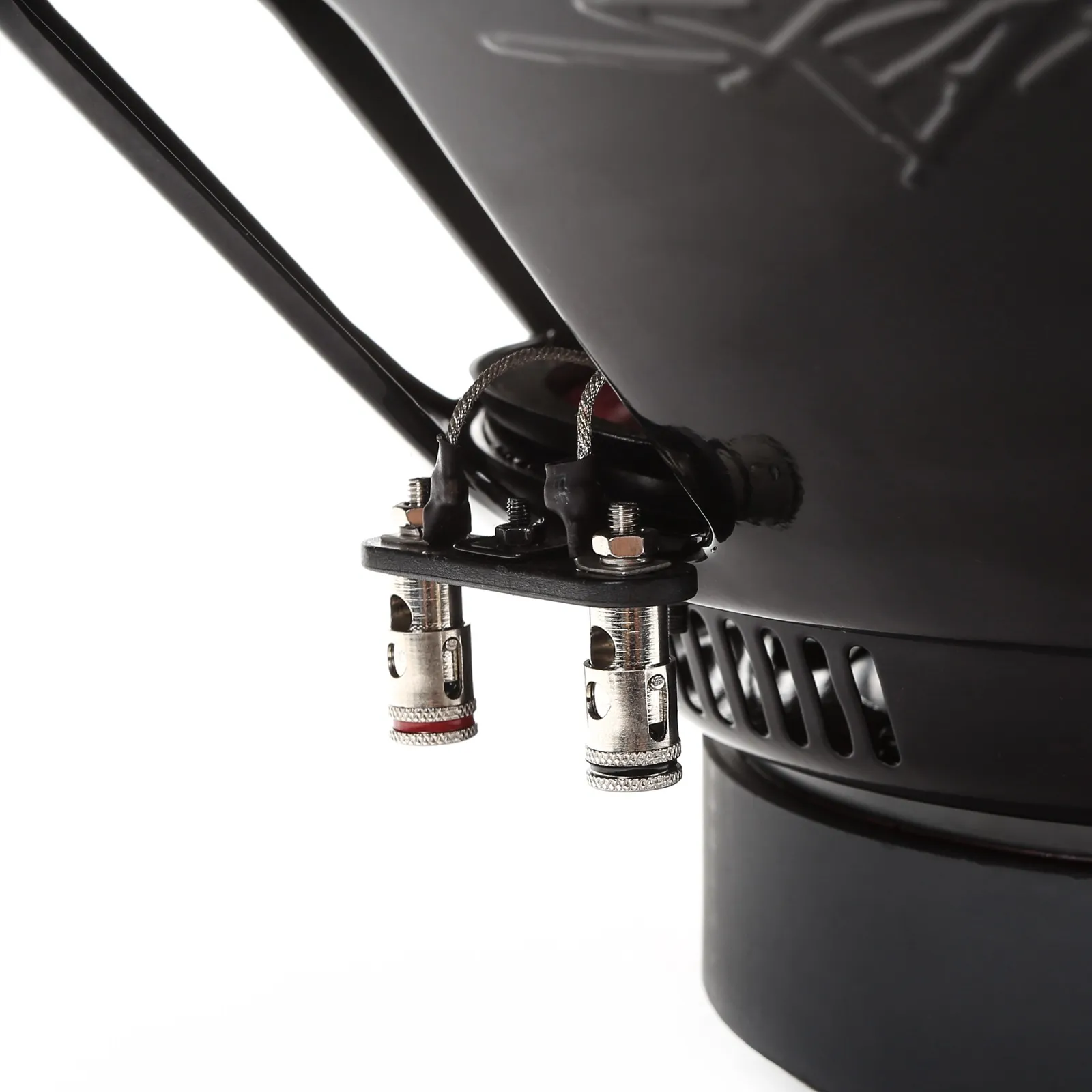

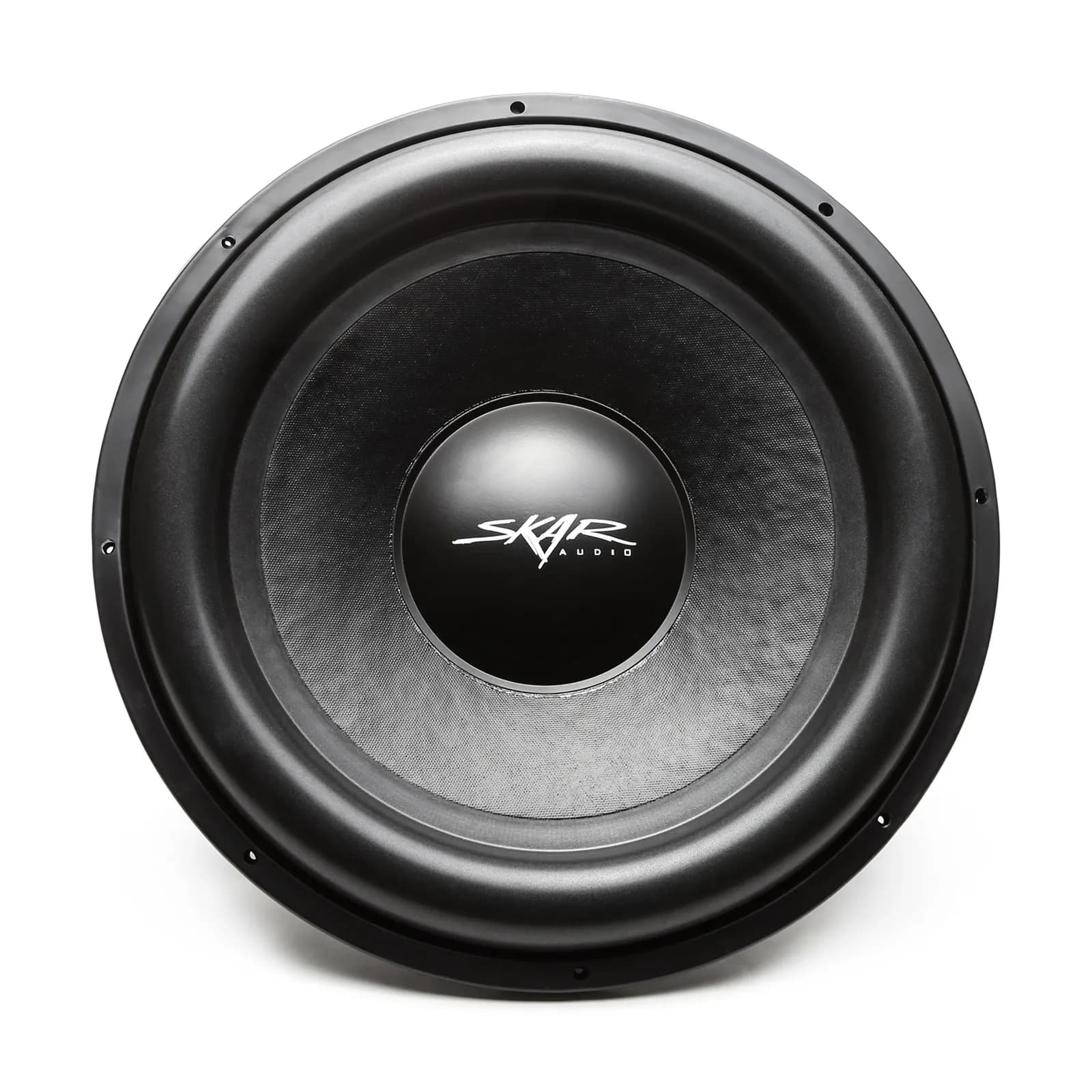

Skar Audio SDR-18 18-inch 1,200 Watt Max Power Car Subwoofer - Angle View Skar Audio SDR-18 18-inch 1,200 Watt Max Power Car Subwoofer - Front View Skar Audio SDR-18 18-inch 1,200 Watt Max Power Car Subwoofer - Side View Skar Audio SDR-18 18-inch 1,200 Watt Max Power Car Subwoofer - Terminal View Skar Audio SDR-18 18-inch 1,200 Watt Max Power Car Subwoofer - Rear View Skar Audio SDR-18 18-inch 1,200 Watt Max Power Car Subwoofer

SDR-18 | 18" 1,200 Watt Max Power Car Subwoofer

MSRP: $ 189.99 $ 139.99
Change ZIP

Description

Description

The Skar Audio SDR-18 D2 was designed to offer the ultra low end bass frequency response only capable of being produced by a larger subwoofer of this size. Featuring a conservative rating of 1,200 watts max power, this 18 inch car subwoofer does just that, thanks to it's high temperature 2.5-inch copper voice coil and high flux ferrite motor.



When looking for a subwoofer that delivers low end frequencies with authority, look no further. This is the perfect solution for a 600-1200 watt daily driver that can handle whatever is thrown at it, offering unmatched reliability and sound quality. Featuring a sleek and attractive red spider system, paired with it's competition grade paper cone and high roll foam surround, this subwoofer is going to impress the listener every time it is playing.

Specifications

  • Skar Audio SDR-18 D2 - 18" Component Car Subwoofer
  • Dual 2 Ohm Voice Coil Configuration
  • Peak Power: 1200 Watts
  • RMS Power: 600 Watts
  • Competition Grade Pressed Paper Cone
  • High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2.5" High Temperature Copper Voice Coil
  • Motor Weight: 97 oz
  • Frequency Response: 18 Hz - 250 Hz
  • Sensitivity: 87.3 dB
  • Fs: 24 Hz
  • Re: 1.9 Ohms
  • Qms: 4.68
  • Nref: 0.33%
  • Qes: 0.8
  • Qts: 0.69
  • Cms: 0.107 mm/N
  • Bl: 17.11 n/a
  • Vas: 206 L
  • Mms: 413 gr
  • Sd: 1164.1 cm²
  • Xmax: 13.5 mm one-way

Enclosure Specifications

  • Sealed Volume: 2.75 ft³
  • Ported Volume: 4.60 ft³
  • Port Area: 64.75 in²
  • Port Length: 29.75"
  • Tuning Frequency: 32 Hz
  • Mounting Depth: 8.00"
  • Total Height: 9.325"
  • Outside Diameter: 18.275"
  • Cut-Out Diameter: 16.765"
  • Magnet Diameter: 6.065"
  • Subwoofer Displacement: 0.19 ft³
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Description

The Skar Audio SDR-18 D4 was designed to offer the ultra low end bass frequency response only capable of being produced by a larger subwoofer of this size. Featuring a conservative rating of 1,200 watts max power, this 18 inch car subwoofer does just that, thanks to it's high temperature 2.5-inch copper voice coil and high flux ferrite motor.



When looking for a subwoofer that delivers low end frequencies with authority, look no further. This is the perfect solution for a 600-1200 watt daily driver that can handle whatever is thrown at it, offering unmatched reliability and sound quality. Featuring a sleek and attractive red spider system, paired with it's competition grade paper cone and high roll foam surround, this subwoofer is going to impress the listener every time it is playing.

Specifications

  • Skar Audio SDR-18 D4 - 18" Component Car Subwoofer
  • Dual 4 Ohm Voice Coil Configuration
  • Peak Power: 1200 Watts
  • RMS Power: 600 Watts
  • Competition Grade Pressed Paper Cone
  • High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2.5" High Temperature Copper Voice Coil
  • Motor Weight: 97 oz
  • Frequency Response: 18 Hz - 250 Hz
  • Sensitivity: 86.7 dB
  • Fs: 24 Hz
  • Re: 3.2 Ohms
  • Qms: 4.99
  • Nref: 0.29%
  • Qes: 0.59
  • Qts: 0.76
  • Cms: 0.104 mm/N
  • Bl: 10.69 n/a
  • Vas: 200 L
  • Mms: 428.8 gr
  • Sd: 1164.1 cm²
  • Xmax: 13.5 mm one-way

Enclosure Specifications

  • Sealed Volume: 2.75 ft³
  • Ported Volume: 4.50 ft ft³
  • Port Area: 64.75 in²
  • Port Length: 29.75"
  • Tuning Frequency: 32 Hz
  • Mounting Depth: 8.00"
  • Total Height: 9.325"
  • Outside Diameter: 18.275"
  • Cut-Out Diameter: 16.765"
  • Magnet Diameter: 6.065"
  • Subwoofer Displacement: 0.19 ft³
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Customer Reviews

Based on 28 reviews
100%
(28)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
J.
Pounds

I have this sdr-18 in the back of my 95 300zx, custom sealed box, it pounds, I love it

J
J.
My first build and love skar audio

So this is my first build ever. I did all the work myself. Took me about 2 months. Did a custom install with the skar rp1500 with a led fan in the side compartment of my tahoe. Built a 10 cf box with baltic birch,triple baffle,my own design box interior with birch and poplar.ebony stain. Cut out a skar logo out of plywood,sanded and painted.clear coated.i did all this with a jig saw and sawzall. installed 2 18" sdr 4ohm subs. Wired to 1 ohm.Installed a 300amp altenator along with the big 3 0 gauge upgrade. My set up hits so hard it makes my chest hurt. My friends can hear me coming a few blocks away.Im definitely impressed and will be a skar customer for life.

J
J.R.
Amazing Sub!!

I have had this installed in my 04 Grand Cherokee for about 2 weeks and I am very impressed! Could not ask for a better deal for this price!

L
L.
Infinite Baffle

I put two of these in my car in infinite baffle and they hit hard! I can play them down to 19 hrz as well on 550rms total. 120db+ all across and people can hear you across a large intersection if that's your thing. What I really love is when they barely play and appear not to move but sound good tonality wise.
They responded respectable on fast kick drums to, could be a bit faster but 18's but don't get me wrong as most people won't notice.
Love skar, price to performance is off the charts. I just need to replace my 6x9s with 8" mids and I'll be very happy with Skar products all the way around!

R
R.
Misleading on website, subs look great.

Part of my reason for choosing Skar SDR's over CT Sounds Tropo's was on Soars website it says under voice coil "copper" but on the retail box they came shipped in it states "CCAW" copper clad aluminum wire. That is NOT copper ! The other part for choosing Skar was the 2yr vs 90 day warranty. Hopefully the CCAW will hold up without toasting. The subs do look amazing and we'll built for the money. I gave 3 stars as a neutral review until I get the box done and fired up.
