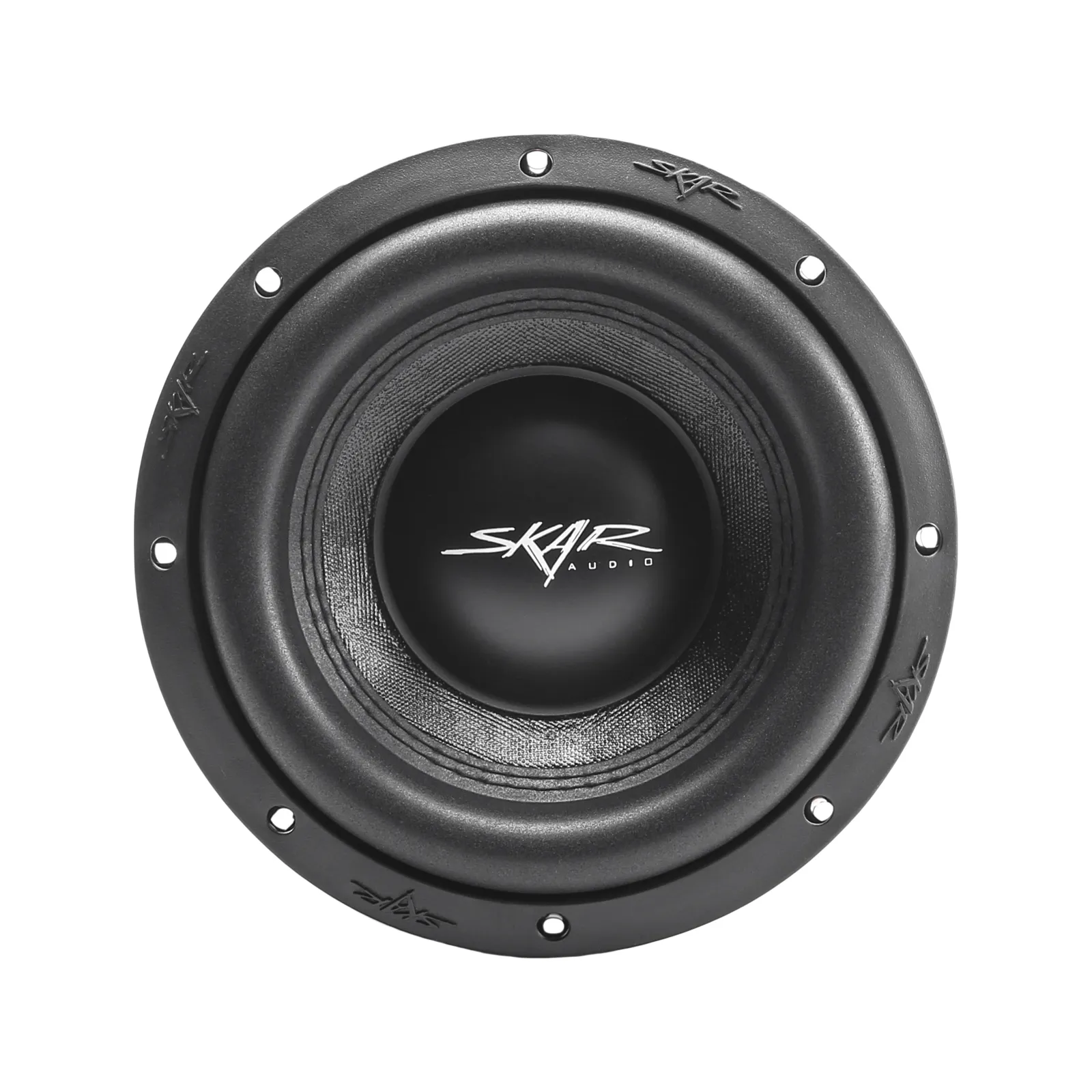

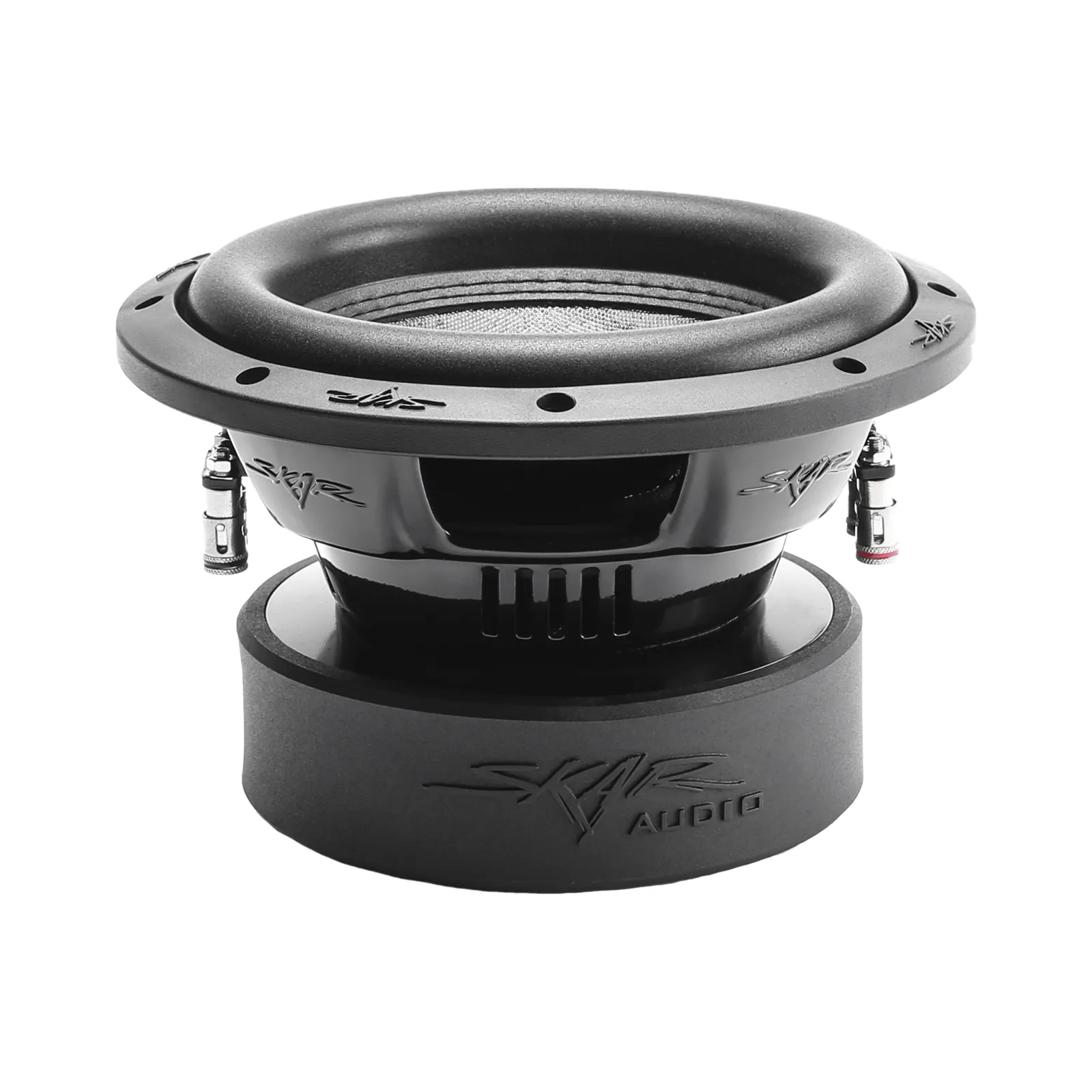

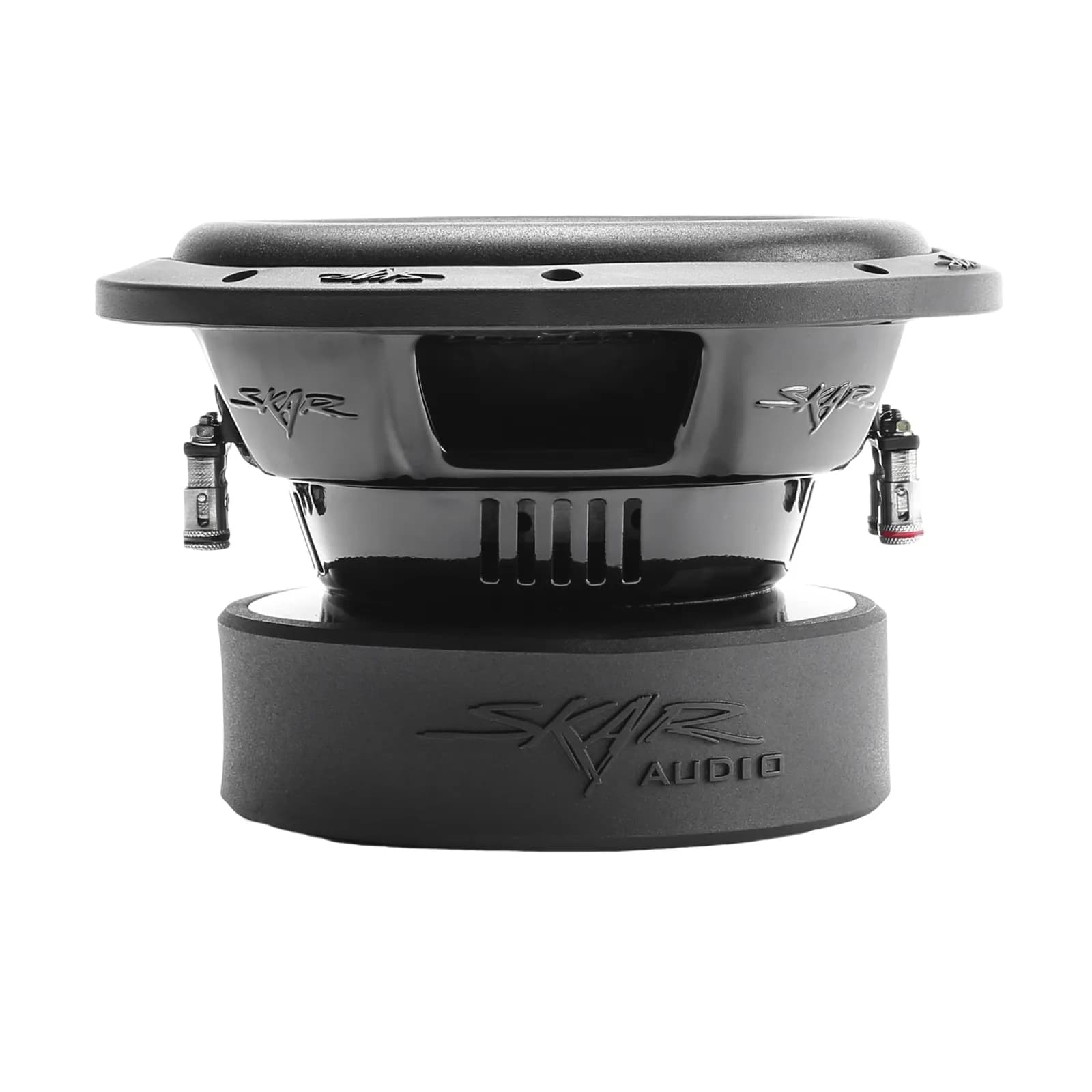

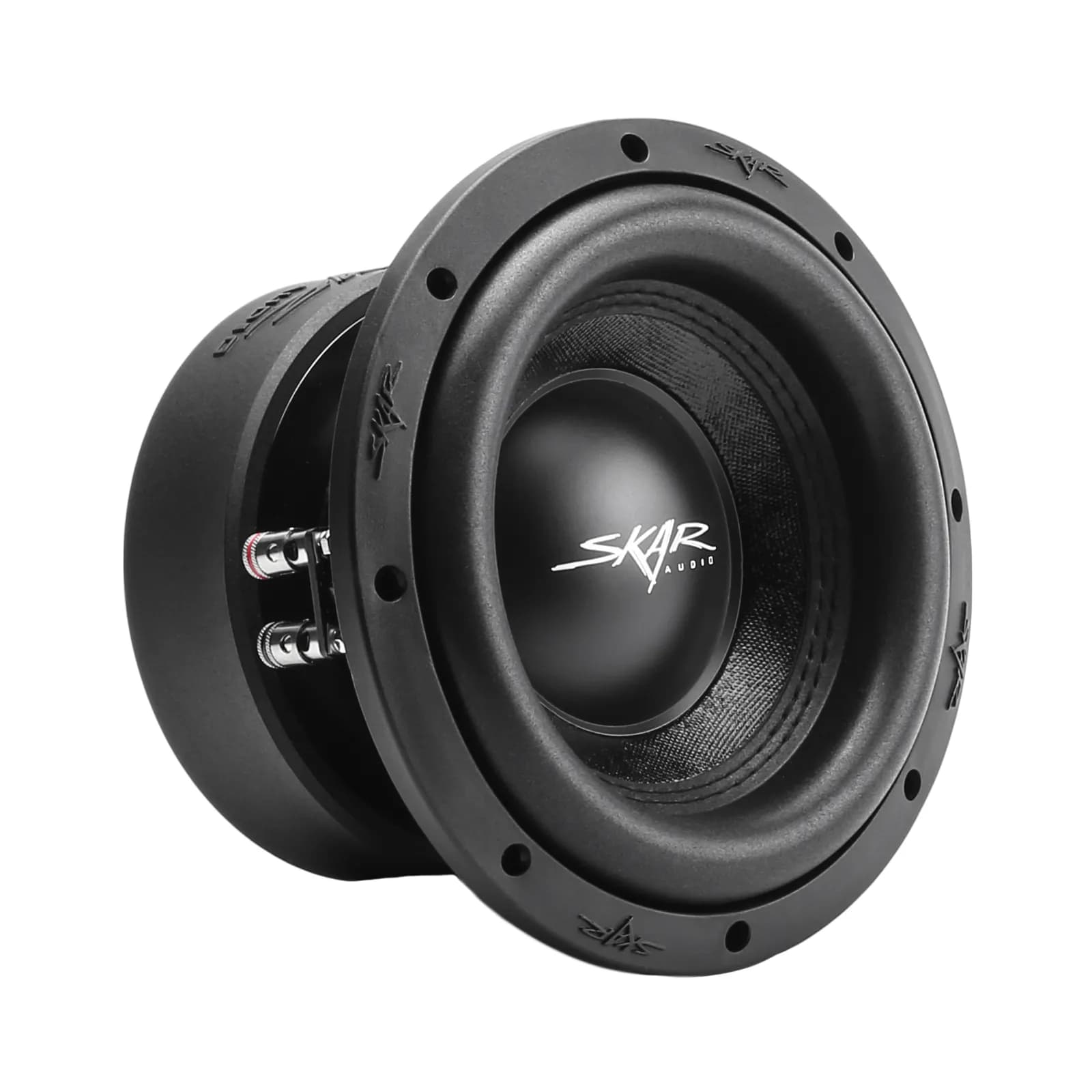

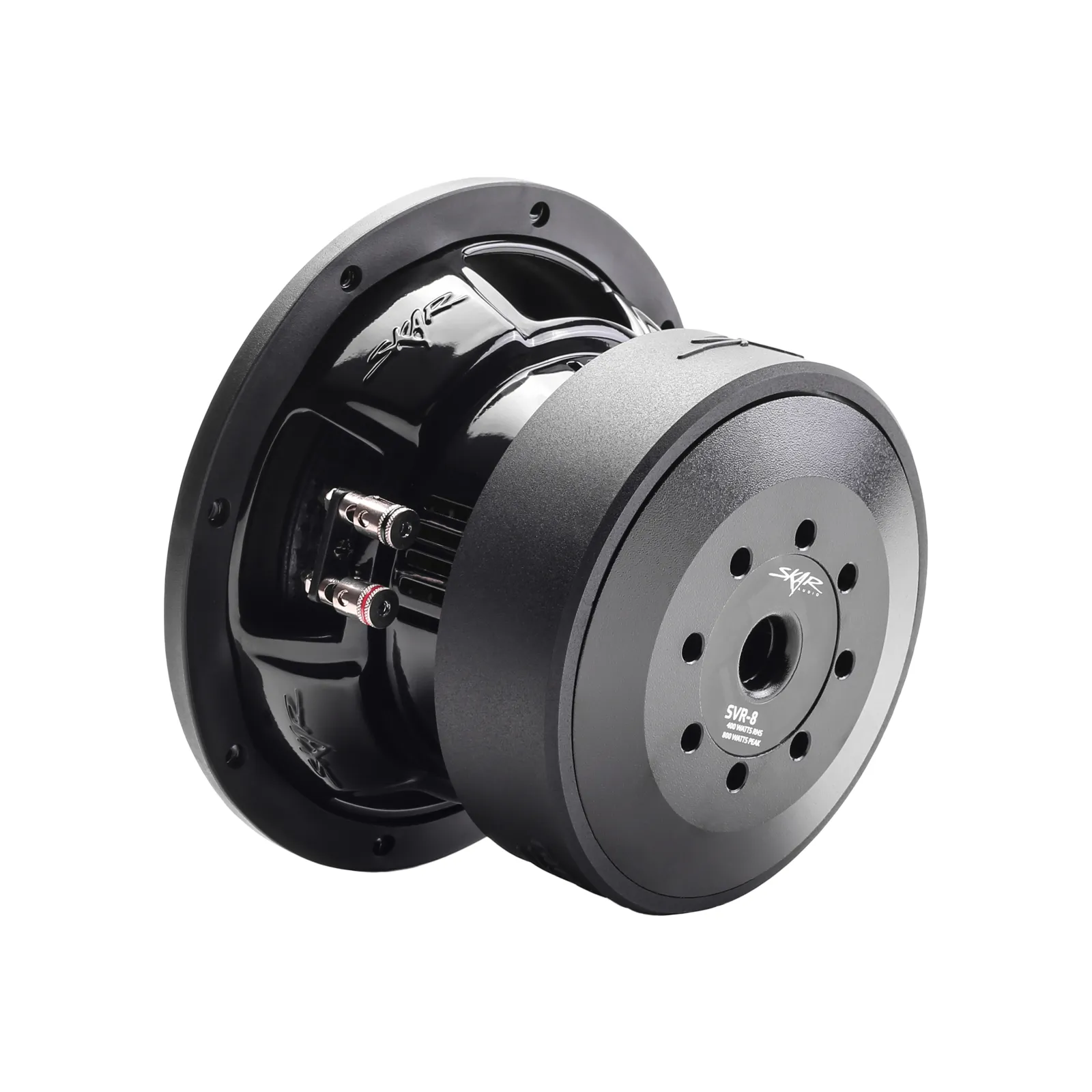

SVR-8 | 8" 800 Watt Max Power Car Subwoofer

Voice Coil
  • The Skar Audio SVR-8 8-inch dual 2 ohm car subwoofer delivers hard hitting bass in a compact, powerful package. The SVR-8 was engineered and built with performance in mind. It starts with a unique 2.6" 4-layer high-temperature copper voice coil, allowing it to have a conservative peak power rating of 800 watts. The Skar Audio stamped steel basket featured on the SVR-8 utilizes an advanced air flow cooling system to help dissipate heat, enabling it to provide continuous reliable power.

    The SVR-8 is equipped with a double-stacked 98 oz ferrite motor, which delivers the driving force behind the ultra-responsive, breathtaking lows this subwoofer produces. The suspension design of the SVR series features the Skar Audio signature red, single-layer spider, which connects to the coil former with premium stitched lead wires. Furthermore, the SVR-8 comes with a high foam surround stitched to a competition grade pressed paper cone. The advanced design features in the SVR series help to deliver powerful bass with uncompromising accuracy, that place this subwoofer in an elevated class of its own.

    RMS Power Handling 400 Watts
    Peak Power Handling 800 Watts
    Voice Coil Size 2.6"
    Voice Coil Configuration Dual 2 Ω
    • 8-inch Dual 2 Ohm Voice Coil Configuration
    • Peak Power: 800 Watts
    • RMS Power: 400 Watts
    • Competition Grade Pressed Paper Cone
    • High Roll Foam Surround
    • Advanced Air Flow Cooling System
    • 2.6" High Temperature Copper Voice Coil
    • Motor Weight: 98 oz
    • Frequency Response: 30 - 350 Hz
    • Sensitivity: 82.0 dB
    • Fs: 47 Hz
    • Re: Dual 2 Ω
    • Qms: 4.30
    • Qes: 0.61
    • Qts: 0.54
    • Mms: 121.8 gr
    • Nref: 0.089%
    • Cms: 0.092 mm/N
    • Bl: 14.9 n/a
    • Vas: 5.2 L
    • Sd: 201.06 cm²
    • Xmax: 13.5 mm
  • Recommended Enclosure Specifications
    • Recommended Sealed Volume: 0.41 ~ 0.52 ft³
    • Recommended Ported Volume: 0.65 ~ 0.71 ft³
    • Recommended Port Area: 12.75 in²
    • Recommended Tuning Frequency: 53 Hz
    • Enclosure recommendations above do not include subwoofer, bracing, and port displacement
    Subwoofer Measurements
    Cut-out Diameter 7.29"
    Mounting Depth 4.80"
    Total Height 5.75"
    Outside Diameter 8.50"
    Magnet Diameter 6.39"
  • Product media coming soon..

  • The Skar Audio SVR-8 8-inch dual 4 ohm car subwoofer delivers hard hitting bass in a compact, powerful package. The SVR-8 was engineered and built with performance in mind. It starts with a unique 2.6" 4-layer high-temperature copper voice coil, allowing it to have a conservative peak power rating of 800 watts. The Skar Audio stamped steel basket featured on the SVR-8 utilizes an advanced air flow cooling system to help dissipate heat, enabling it to provide continuous reliable power.

    The SVR-8 is equipped with a double-stacked 98 oz ferrite motor, which delivers the driving force behind the ultra-responsive, breathtaking lows this subwoofer produces. The suspension design of the SVR series features the Skar Audio signature red, single-layer spider, which connects to the coil former with premium stitched lead wires. Furthermore, the SVR-8 comes with a high foam surround stitched to a competition grade pressed paper cone. The advanced design features in the SVR series help to deliver powerful bass with uncompromising accuracy, that place this subwoofer in an elevated class of its own.

    RMS Power Handling 400 Watts
    Peak Power Handling 800 Watts
    Voice Coil Size 2.6"
    Voice Coil Configuration Dual 4 Ω
    • 8-inch Dual 4 Ohm Voice Coil Configuration
    • Peak Power: 800 Watts
    • RMS Power: 400 Watts
    • Competition Grade Pressed Paper Cone
    • High Roll Foam Surround
    • Advanced Air Flow Cooling System
    • 2.6" High Temperature Copper Voice Coil
    • Motor Weight: 98 oz
    • Frequency Response: 30 - 350 Hz
    • Sensitivity: 81.8 dB
    • Fs: 48 Hz
    • Re: Dual 4 Ω
    • Qms: 4.40
    • Qes: 0.64
    • Qts: 0.57
    • Mms: 113.0 gr
    • Nref: 0.122%
    • Cms: 0.093 mm/N
    • Bl: 7.4 n/a
    • Vas: 5.3 L
    • Sd: 201.06 cm²
    • Xmax: 13.5 mm
  • Recommended Enclosure Specifications
    • Recommended Sealed Volume: 0.41 ~ 0.52 ft³
    • Recommended Ported Volume: 0.65 ~ 0.71 ft³
    • Recommended Port Area: 12.75 in²
    • Recommended Tuning Frequency: 53 Hz
    • Enclosure recommendations above do not include subwoofer, bracing, and port displacement
    Subwoofer Measurements
    Cut-out Diameter 7.29"
    Mounting Depth 4.80"
    Total Height 5.75"
    Outside Diameter 8.50"
    Magnet Diameter 6.39"
  • Product media coming soon..
