DDX-12 | 12" 1,500 Watt Max Power Car Subwoofer

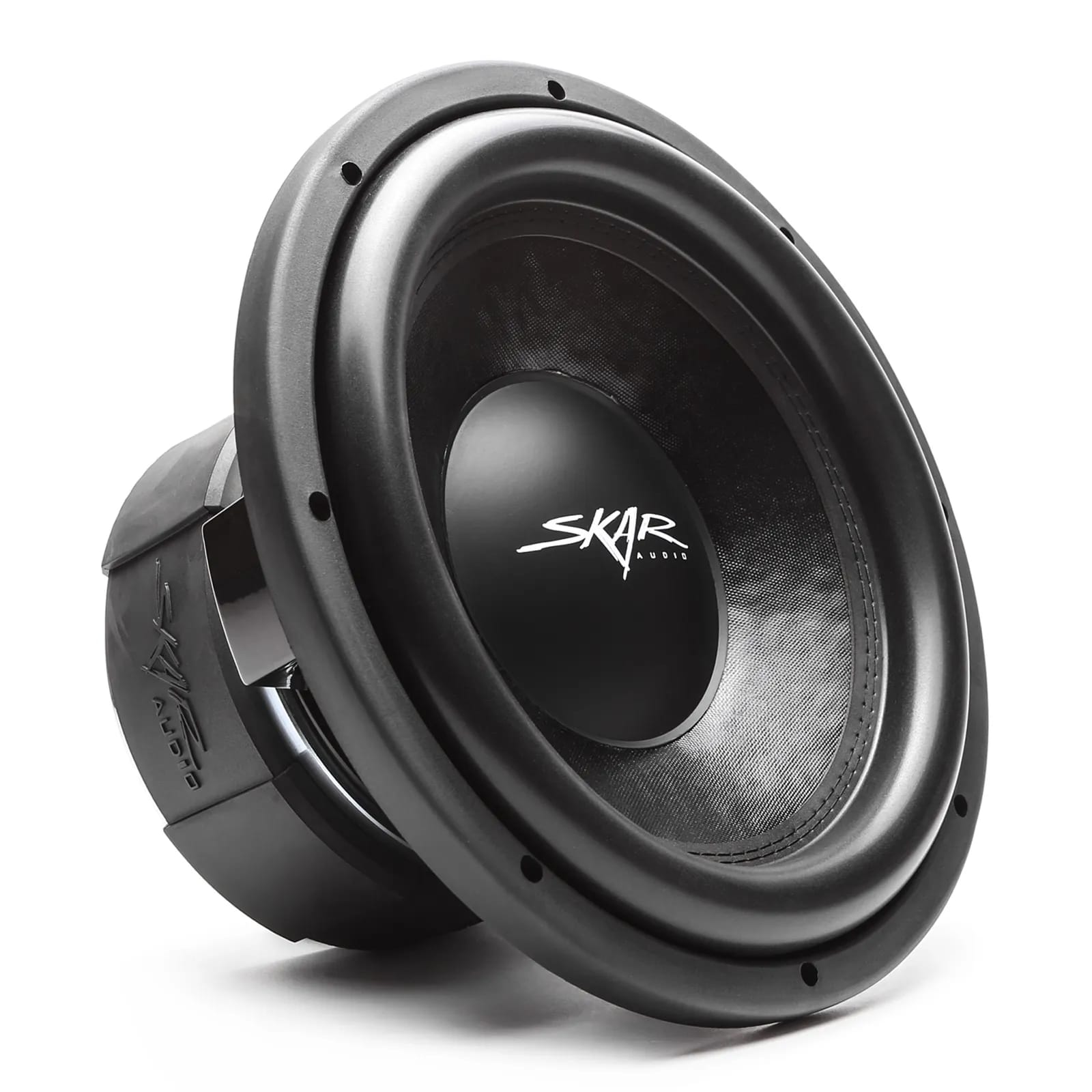

  • Skar Audio DDX-12 12-inch 1,500 Watt Max Power Car Subwoofer - Angle View

DDX-12 | 12" 1,500 Watt Max Power Car Subwoofer

Description

Description

The Skar Audio DDX-12 D2 is a competition grade, 12-inch, Dual 2-ohm, car subwoofer. The DDX lineup was engineered by Skar Audio to be an SPL grade woofer that could also be utilized in daily system applications, allowing non-competitors to use the same subwoofers as those competing in the lanes. Every component used in the design of these woofers is of the highest quality for reliability and increased performance. Featuring a massive double stack motor, 2.5 inch pure copper high temperature voice coil, and a competition grade pressed paper cone stitched to the high roll foam surround, the woofer comes equipped ready to handle serious amounts power. Dual 2-ohm voice coil. Max Power: 1500 Watts, RMS Power: 1000 Watts. Spl: 88.0 dB, Fs: 39 Hz, Bl: 25.5, Xmax: 15mm one-way. Qts: 0.34.

Specifications

  • Skar Audio DDX-12 D2 - 12" Component Car Subwoofer
  • Dual 2 Ohm Voice Coil Configuration
  • Peak Power: 1500 Watts
  • RMS Power: 1000 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2.5" High Temperature Copper Voice Coil
  • Motor Weight: 202 oz
  • Frequency Response: 35 - 500 Hz
  • Sensitivity: 88.0 dB
  • Fs: 39.0 Hz
  • Re: 3.9 Ohms
  • Qms: 4.1
  • Qes: 0.37
  • Qts: 0.34
  • Nref: .40 %
  • Cms: 0.07 mm/N
  • Bl: 25.5 n/a
  • Vas: 24.8 L
  • Mms: 243 gr
  • Sd: 510 cm^2
  • Xmax: 15 mm

Enclosure Specifications

  • Sealed Volume: 1.75 ft^3
  • Ported Volume: 2.50 ft^3
  • Port Area: 32 sq.in.
  • Port Length: 19"
  • Tuning Frequency: 38 Hz
  • Mounting Depth: 6.6"
  • Cut-Out Diameter: 11.25"
  • Magnet Diameter: 7.72"
  • Subwoofer Displacement: 0.15 ft^3
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Description

The Skar Audio DDX-12 D4 is a competition grade, 12-inch, Dual 4-ohm, car subwoofer. The DDX lineup was engineered by Skar Audio to be an SPL grade woofer that could also be utilized in daily system applications, allowing non-competitors to use the same subwoofers as those competing in the lanes. Every component used in the design of these woofers is of the highest quality for reliability and increased performance. Featuring a massive double stack motor, 2.5 inch pure copper high temperature voice coil, and a competition grade pressed paper cone stitched to the high roll foam surround, the woofer comes equipped ready to handle serious amounts power. Dual 4-ohm voice coil. Max Power: 1500 Watts, RMS Power: 1000 Watts. Spl: 87.7 dB, Fs: 39 Hz, Bl: 31.8, Xmax: 15mm one-way. Qts: 0.37.

Specifications

  • Skar Audio DDX-12 D4 - 12" Component Car Subwoofer
  • Dual 4 Ohm Voice Coil Configuration
  • Peak Power: 1500 Watts
  • RMS Power: 1000 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2.5" High Temperature Copper Voice Coil
  • Motor Weight: 202 oz
  • Frequency Response: 35 - 500 Hz
  • Sensitivity: 87.7 dB
  • Fs: 39.0 Hz
  • Re: 6.8 Ohms
  • Qms: 3.9
  • Qes: 0.41
  • Qts: 0.37
  • Nref: .36 %
  • Cms: 0.07 mm/N
  • Bl: 31.8 n/a
  • Vas: 25.86 L
  • Mms: 235 gr
  • Sd: 510 cm^2
  • Xmax: 15 mm

Enclosure Specifications

  • Sealed Volume: 1.75 ft^3
  • Ported Volume: 2.50 ft^3
  • Port Area: 32 sq.in.
  • Port Length: 19"
  • Tuning Frequency: 38 Hz
  • Mounting Depth: 6.6"
  • Cut-Out Diameter: 11.25"
  • Magnet Diameter: 7.72"
  • Subwoofer Displacement: 0.15 ft^3
  • Enclosure specifications do not include subwoofer, bracing, and port displacement
