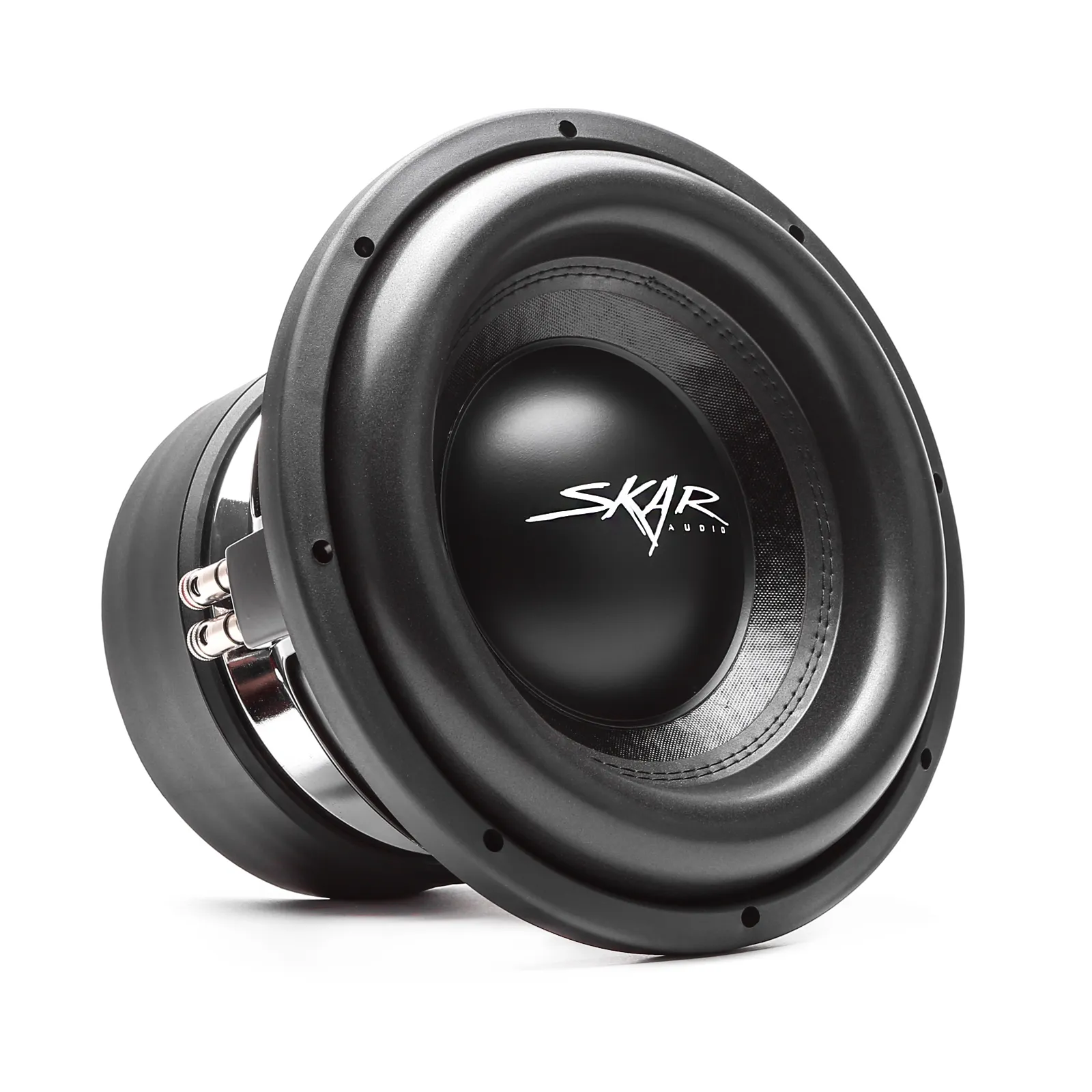

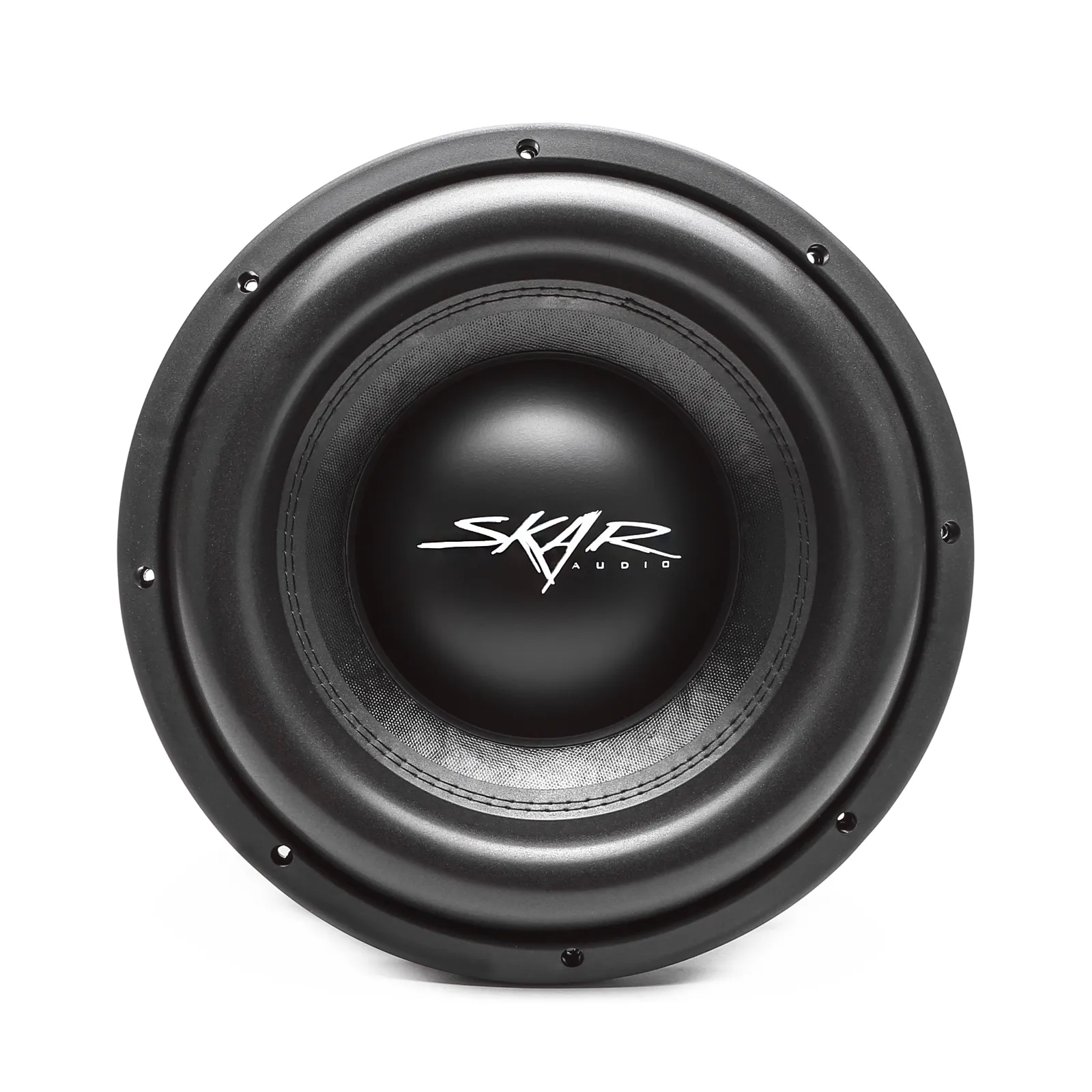

VXF-12 | 12" 3,000 Watt Max Power Car Subwoofer

Coil Configuration
  • The Skar Audio VXF series was engineered to deliver the perfect combination of SQ/SPL found in a competition grade car subwoofer of its power class. The VXF-12 D2 is conservatively rated at 3,000 watts peak power, and 1,500 watts RMS, and is unrivaled when it comes to power handling and overall performance. Designed around achieving a super low "Fs" parameter, the VXF series delivers low end response with absolute authority, all while being versatile enough to sound great across a wide range of music.

    The VXF-12 utilizes a high temperature 3-inch copper voice coil, which combined with its massive 300 oz ferrite motor, allows this subwoofer to deliver head turning bass at the highest SPL levels. Furthermore, we integrated a stitched, high roll foam surround, with a competition grade paper cone, ensuring that this subwoofer is setting a new precedent in terms of sound quality and strength. Whether you are looking to be the loudest vehicle at a car show, or just wanting to enjoy the bass in your daily driver at unprecedented sound levels, the VXF series is the perfect choice.

    RMS Power Handling 1,500 Watts
    Peak Power Handling 3,000 Watts
    Voice Coil Size 3.0"
    Voice Coil Configuration Dual 2 Ω
    • 12-inch Dual 2 Ohm Voice Coil Configuration
    • Peak Power: 3,000 Watts
    • RMS Power: 1,500 Watts
    • Competition Grade Pressed Paper Cone
    • Stitched High Roll Foam Surround
    • Advanced Air Flow Cooling System
    • 3" High Temperature Copper Voice Coil
    • Motor Weight: 300 oz
    • Frequency Response: 22 - 250 Hz
    • Sensitivity: 87.1 dB
    • Fs: 32.1 Hz
    • Re: Dual 2 Ω
    • Qms: 4.85
    • Qes: 0.35
    • Qts: 0.32
    • Mms: 233.8 gr
    • Nref: 0.33%
    • Cms: 0.11 mm/N
    • Bl: 23.3 n/a
    • Vas: 35.4 L
    • Sd: 471.4 cm²
    • Xmax: 25 mm
  • Recommended Enclosure Specifications
    • Recommended Sealed Volume: 1.25 ~ 1.50 ft³
    • Recommended Ported Volume: 1.80 ~ 2.00 ft³
    • Recommended Port Area: 29.75 in²
    • Recommended Tuning Frequency: 33 Hz
    • Enclosure recommendations above do not include subwoofer, bracing, and port displacement
    Subwoofer Measurements
    Cut-out Diameter 11.13"
    Mounting Depth 8.50"
    Total Height 9.33"
    Outside Diameter 12.49"
    Magnet Diameter 8.63"
  • The Skar Audio VXF series was engineered to deliver the perfect combination of SQ/SPL found in a competition grade car subwoofer of its power class. The VXF-12 D4 is conservatively rated at 3,000 watts peak power, and 1,500 watts RMS, and is unrivaled when it comes to power handling and overall performance. Designed around achieving a super low "Fs" parameter, the VXF series delivers low end response with absolute authority, all while being versatile enough to sound great across a wide range of music.

    The VXF-12 utilizes a high temperature 3-inch copper voice coil, which combined with its massive 300 oz ferrite motor, allows this subwoofer to deliver head turning bass at the highest SPL levels. Furthermore, we integrated a stitched, high roll foam surround, with a competition grade paper cone, ensuring that this subwoofer is setting a new precedent in terms of sound quality and strength. Whether you are looking to be the loudest vehicle at a car show, or just wanting to enjoy the bass in your daily driver at unprecedented sound levels, the VXF series is the perfect choice.

    RMS Power Handling 1,500 Watts
    Peak Power Handling 3,000 Watts
    Voice Coil Size 3.0"
    Voice Coil Configuration Dual 4 Ω
    • 12-inch Dual 4 Ohm Voice Coil Configuration
    • Peak Power: 3,000 Watts
    • RMS Power: 1,500 Watts
    • Competition Grade Pressed Paper Cone
    • Stitched High Roll Foam Surround
    • Advanced Air Flow Cooling System
    • 3" High Temperature Copper Voice Coil
    • Motor Weight: 300 oz
    • Frequency Response: 22 - 250 Hz
    • Sensitivity: 83.6 dB
    • Fs: 34.4 Hz
    • Re: Dual 4 Ω
    • Qms: 4.46
    • Qes: 0.47
    • Qts: 0.43
    • Mms: 319.9 gr
    • Nref: 0.19%
    • Cms: 0.07 mm/N
    • Bl: 33.8 n/a
    • Vas: 22.7 L
    • Sd: 471.4 cm²
    • Xmax: 25 mm
  • Recommended Enclosure Specifications
    • Recommended Sealed Volume: 1.25 ~ 1.50 ft³
    • Recommended Ported Volume: 1.80 ~ 2.00 ft³
    • Recommended Port Area: 29.75 in²
    • Recommended Tuning Frequency: 33 Hz
    • Enclosure recommendations above do not include subwoofer, bracing, and port displacement
    Subwoofer Measurements
    Cut-out Diameter 11.13"
    Mounting Depth 8.50"
    Total Height 9.33"
    Outside Diameter 12.49"
    Magnet Diameter 8.63"
