SDR-12 | 12" 1,200 Watt Max Power Car Subwoofer

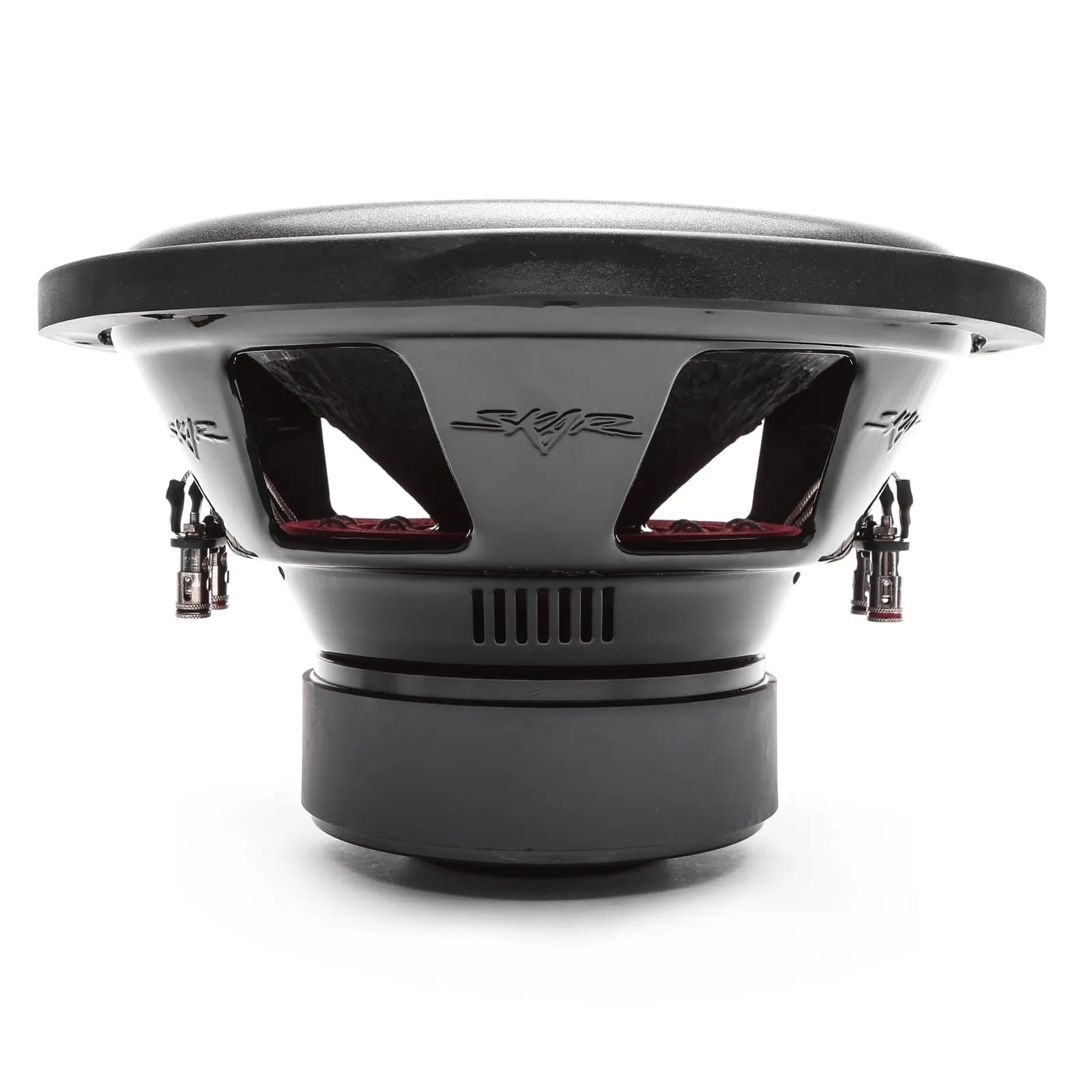

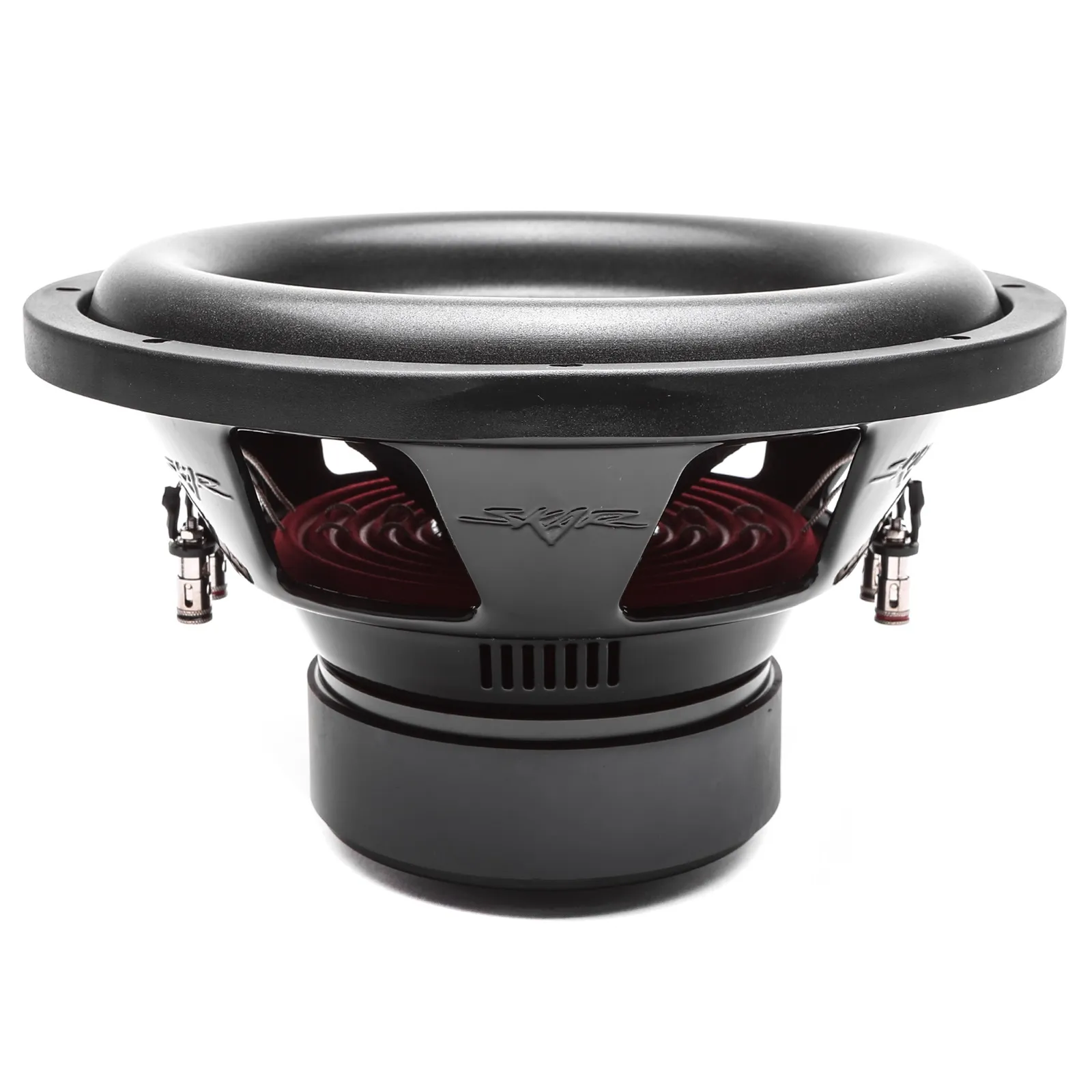

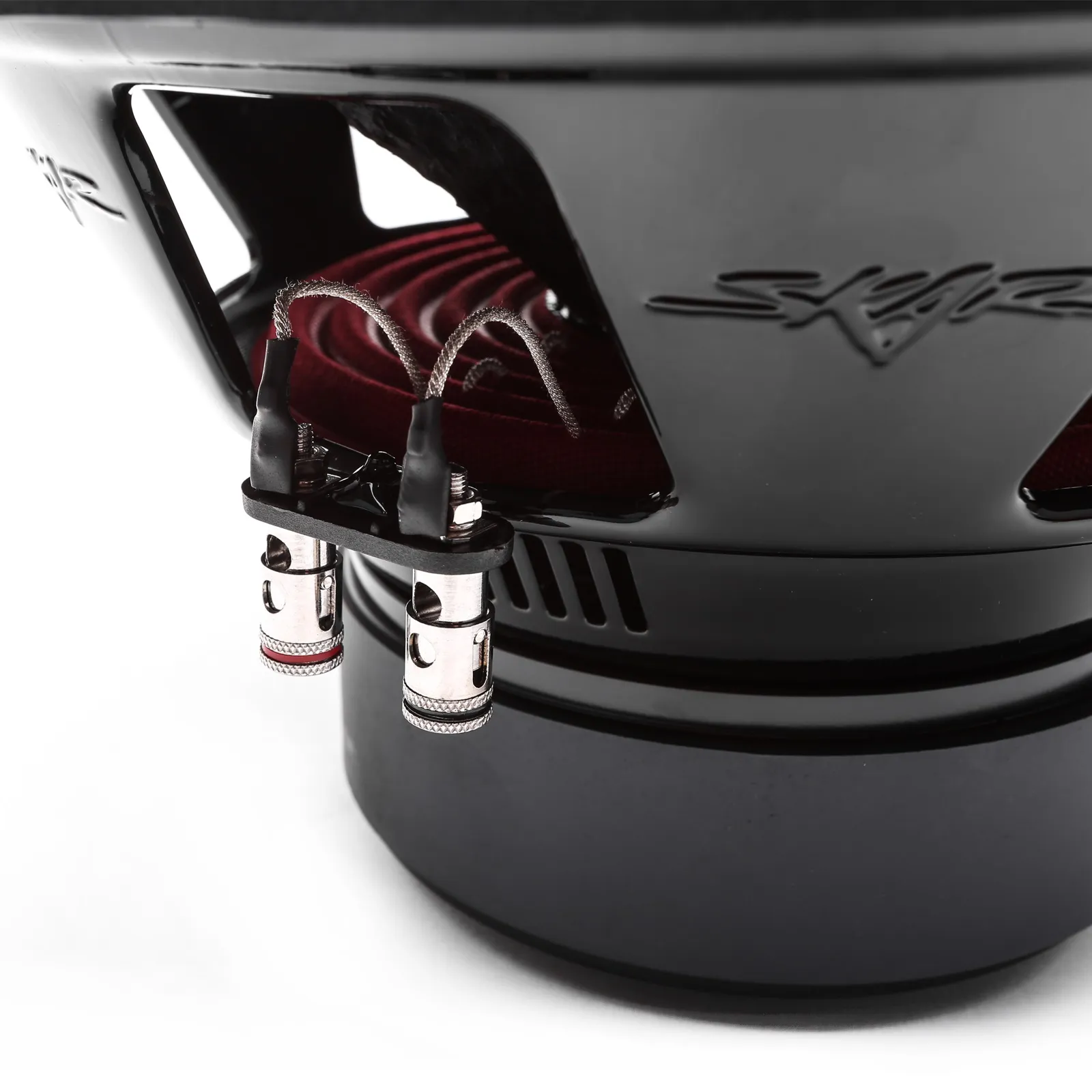

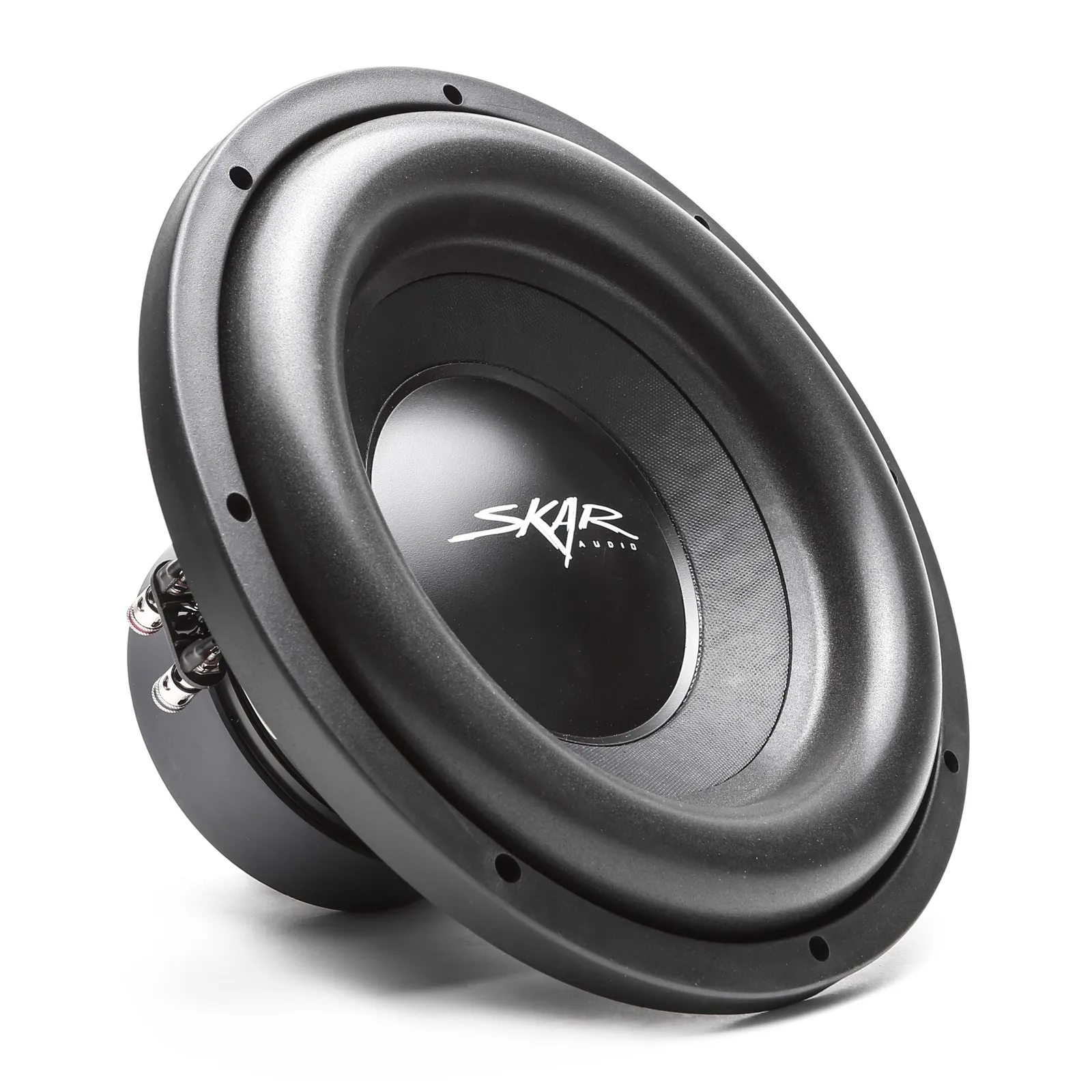

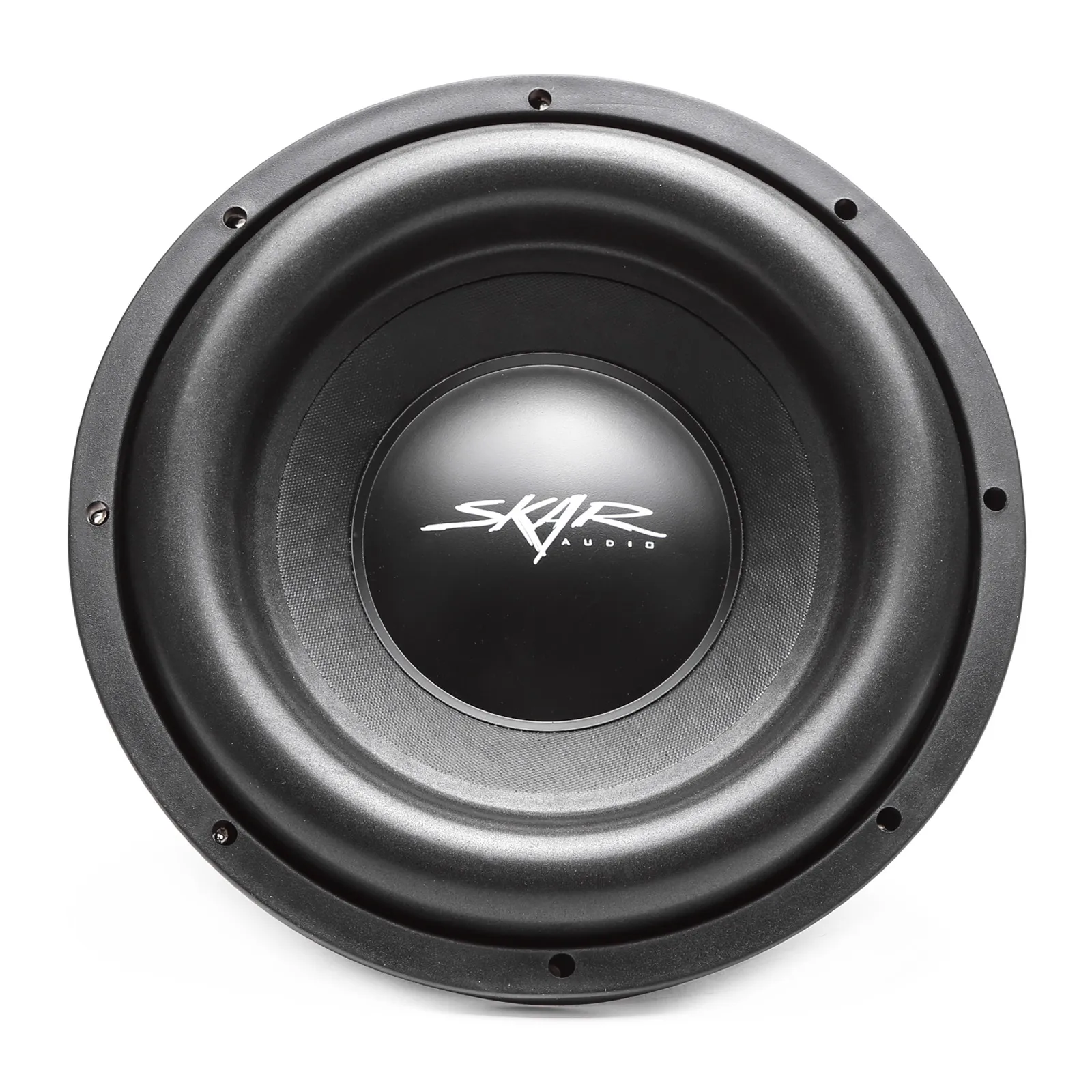

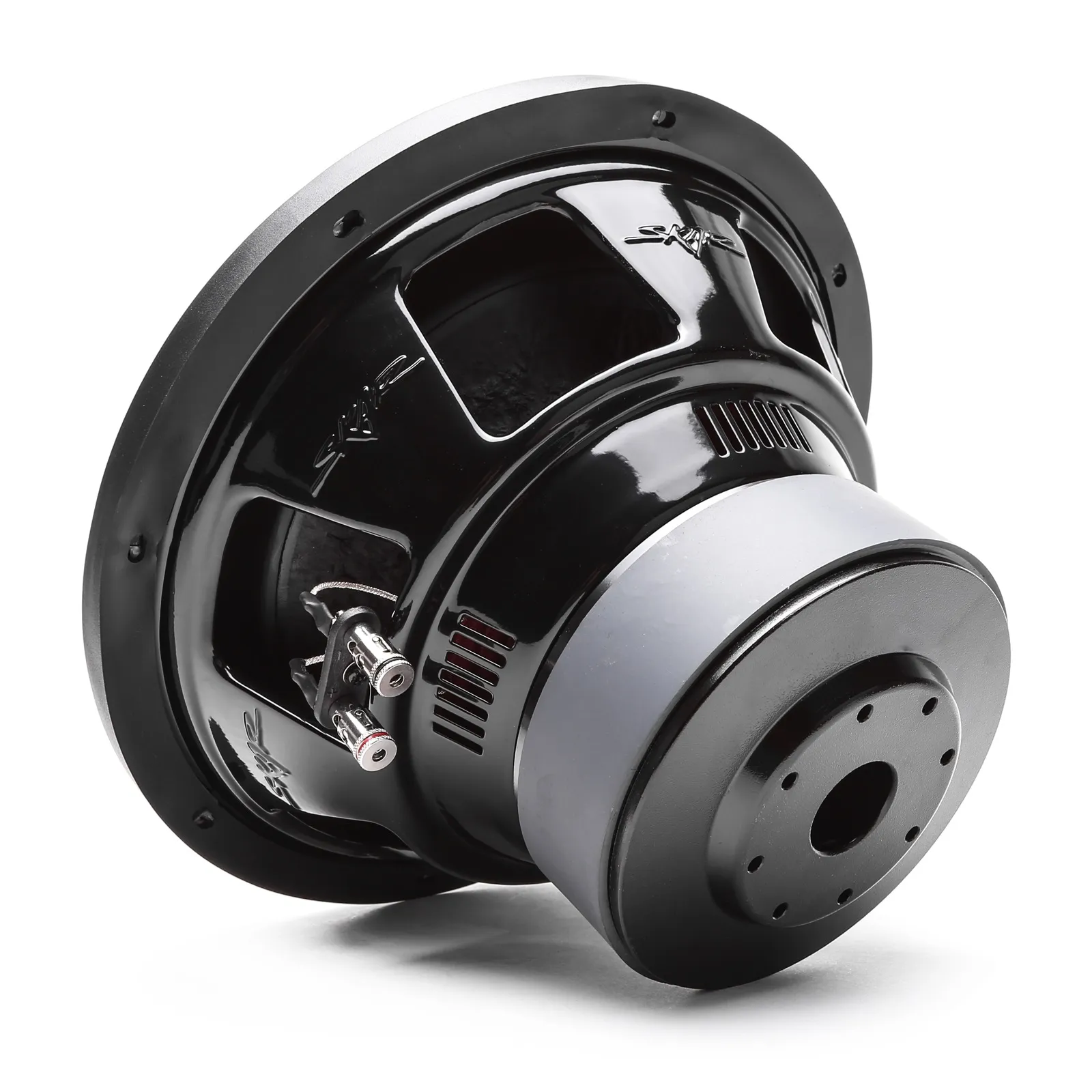

  • Skar Audio SDR-12 12-inch 1,200 Watt Max Power Car Subwoofer - Angle View

SDR-12 | 12" 1,200 Watt Max Power Car Subwoofer


* Financing through our Partner, Bread

Description

Description

The Skar Audio SDR series was engineered to dish out reliable, hard hitting, and low spectrum sound. Featuring a high flux ferrite motor, this woofer will provide extreme power handling for extended periods of time. The SDR series will quickly become a customer favorite, as it's perfect for people just entering the world of car audio all the way up to seasoned pros.



The SDR series features a 2.5” high temperature 4-layer high temperature copper voice coil that is attached to our Skar Audio signature red spider. The surround on the SDR series is a high roll foam surround which allows the woofer to produce riveting low end bass response. The SDR series has a max power rating of 1,200 watts and a RMS power rating of 600 watts.

Specifications

  • Skar Audio SDR-12 D2 - 12" Component Car Subwoofer
  • Dual 2 Ohm Voice Coil Configuration
  • Peak Power: 1200 Watts
  • RMS Power: 600 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2.5" High Temperature Copper Voice Coil
  • Motor Weight: 97 oz
  • Frequency Response: 32 - 300 Hz
  • Sensitivity: 84.7 dB
  • Fs: 32 Hz
  • Re: 1.9 Ohms
  • Qms: 6.76
  • Qes: 0.58
  • Qts: 0.53
  • Nref: 0.185%
  • Cms: 0.11 mm/N
  • Bl: 16.67 n/a
  • Vas: 36.2 L
  • Mms: 249.4 gr
  • Sd: 471.4 cm²
  • Xmax: 13.5 mm

Enclosure Specifications

  • Sealed Volume: 1.19 ft³
  • Ported Volume: 2.0 ft³
  • Port Area: 25 sq in
  • Port Length: 21"
  • Tuning Frequency: 35Hz
  • Mounting Depth: 6.47"
  • Total Height:"
  • Outside Diameter: 12.35"
  • Cut-Out Diameter: 11.2"
  • Magnet Diameter: 6.00"
  • Subwoofer Displacement: .041 ft³
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Description

The Skar Audio SDR series was engineered to dish out reliable, hard hitting, and low spectrum sound. Featuring a high flux ferrite motor, this woofer will provide extreme power handling for extended periods of time. The SDR series will quickly become a customer favorite, as it's perfect for people just entering the world of car audio all the way up to seasoned pros.



The SDR series features a 2.5” high temperature 4-layer high temperature copper voice coil that is attached to our Skar Audio signature red spider. The surround on the SDR series is a high roll foam surround which allows the woofer to produce riveting low end bass response. The SDR series has a max power rating of 1,200 watts and a RMS power rating of 600 watts.

Specifications

  • Skar Audio SDR-12 D4 - 12" Component Car Subwoofer
  • Dual 4 Ohm Voice Coil Configuration
  • Peak Power: 1200 Watts
  • RMS Power: 600 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2.5" High Temperature Copper Voice Coil
  • Motor Weight: 97 oz
  • Frequency Response: 32 - 300 Hz
  • Sensitivity: 84.7 dB
  • Fs: 32 Hz
  • Re: 3.2 Ohms
  • Qms: 4.21
  • Qes: 0.57
  • Qts: 0.5
  • Nref: 0.195%
  • Cms: 0.13 mm/N
  • Bl: 10.45 n/a
  • Vas: 43.4 L
  • Mms: 213.2 gr
  • Sd: 471.4 cm²
  • Xmax: 13.5 mm

Enclosure Specifications

  • Sealed Volume: 1.19 ft³
  • Ported Volume: 2.0 ft³
  • Port Area: 25 sq in
  • Port Length: 21"
  • Tuning Frequency: 35Hz
  • Mounting Depth: 6.47"
  • Total Height:"
  • Outside Diameter: 12.35"
  • Cut-Out Diameter: 11.2"
  • Magnet Diameter: 6.00"
  • Subwoofer Displacement: .041 ft³
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Customer Reviews

Based on 15 reviews
100%
(15)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
I
I.C.
Clean and Clear

Everyday I came to this site just lusting over the 12in EVL's. Saying when I upgrade from my Alpine S. They'll be it. Due to a tire shine (a gallon) spill in my trunk from the vibration of said Alpines. I had to replace a sub. Well. I couldn't buy another Alpine knowing these SDR's were the same price, better built, and more powerful. So I got two for my ported box. I kept the same amp JLAudio JX1000/1D and it hits hard. Can't imagine what it'll do when it gets the full power they deserve. One sub sounded scratchy at first but after a few minutes of flexing it shook it off. I'm very happy with this product and will be purchasing all my audio from Skar.

S
S.B.
SDR-12 Dual 4 1200 max

Got nice birtch box built to specs. Running on Zeus 2400w. Soon RP 2000. but holy F@&$ These subs hit nice, sick lows, clear crisp bass. Built strong. Definitely getting higher handling 12s. SKAR ALL DAY. Will be sponsoring..
Price is Worth the spend on any of theproducts. #skaraudio.

S
S.
1 sdr 12in in single cab wired to 1 ohm on 700rms

This sub is mean it reall blew me away it cheap good quality and realible its a good bang for the buck. When i ride im glad to say my ears ring.

S
S.K.
More than expected

I've been in car audio and competitions since the 90s these Subs are great on price point and Power I can tell you this for sure if you build a box with the proper air space and proper Port tuning and you give it the recommended power you will not be sorry these Subs sound very good and will put out mounds of Bass with the proper box I can't stress that enough don't cheap out with a prefab you won't be sorry I build a box to spec and I'm running them on a Rockford T 1500 BD and all I can say is these things pound there isn't anything in my car that doesn't move they play everything from Ludacris to rock music they punish the the Lows and hit the high punchy notes as well, if you're looking for a lot of bass without spending a lot of money this is what you want.

M
M.
Great Product

Love the quality and performance of it. Hits pretty hard running off a Pioneer 2400w.
