VXF-15 | 15" 3,000 Watt Max Power Car Subwoofer

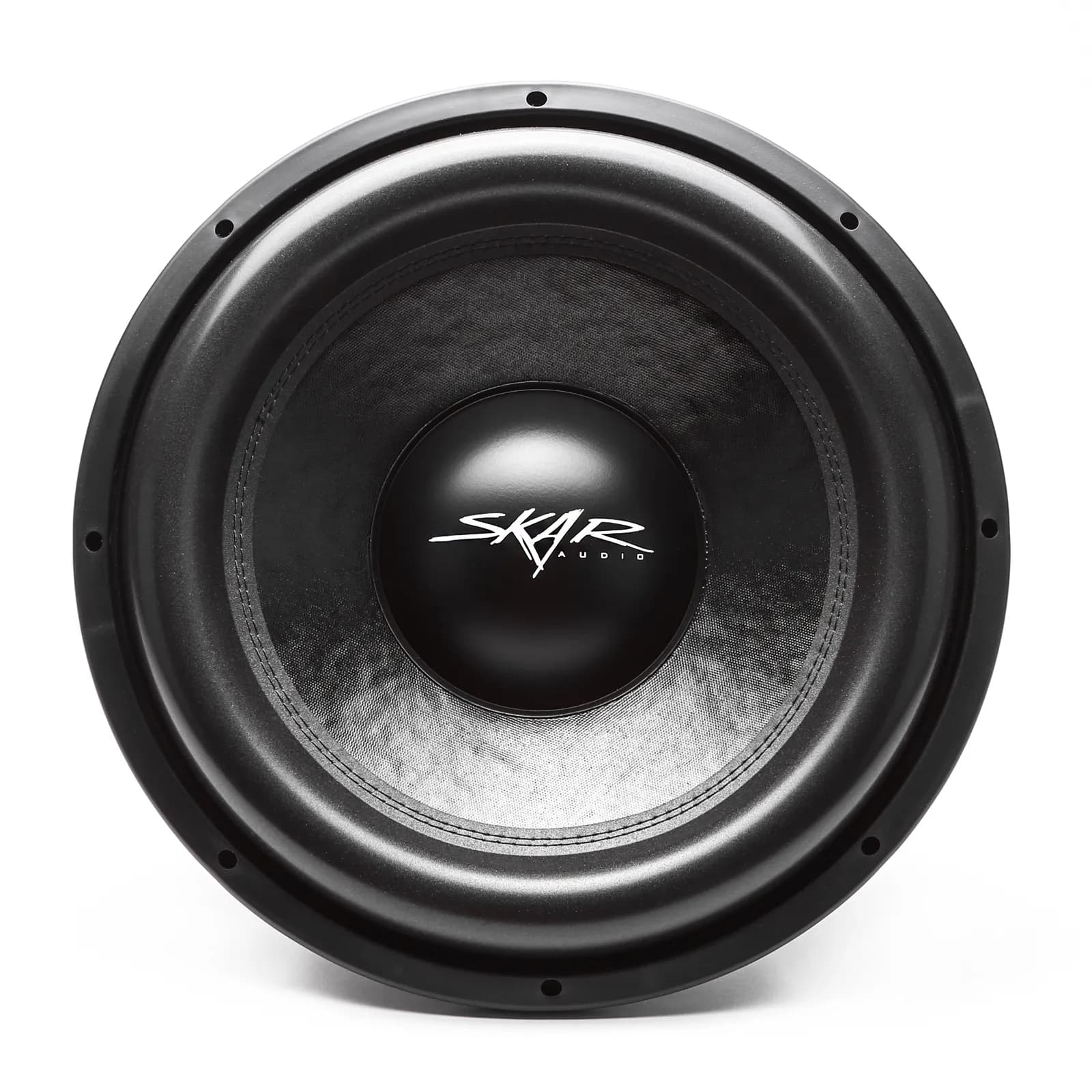

  • Skar Audio VXF-15 15-inch 3,000 Watt Max Power Car Subwoofer - Angle View

VXF-15 | 15" 3,000 Watt Max Power Car Subwoofer


* Financing through our Partner, Bread

Description

Description

The Skar Audio VXF series was designed to be the ultimate SQ/SPL subwoofer. It was engineered specifically to feature a super low FS to hit the low notes that SPL requires, while still showing range in being able to hit the high notes. The extra focus on increasing the coil ventilation across this line, is just one of the differentiation's that put this woofer in a class of it's own.



The VXF series features a round, 3" high temperature copper voice coil. Under the stitched high roll foam surround, you will find a 4-layer spider with stitched leads. A massive 300 oz ferrite motor allows for extreme power handling for extended periods of time. This woofer boasts a max power rating of 3,000 watts, and a conservative RMS rating of 1,500 watts.

Specifications

  • Skar Audio VXF-15 D2 - 15" Component Car Subwoofer
  • Dual 2 Ohm Voice Coil Configuration
  • Peak Power: 3000 Watts
  • RMS Power: 1500 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 3" High Temperature Copper Voice Coil
  • Frequency Response: 30 - 500 Hz
  • Sensitivity: 89.7 dB
  • Fs: 31.4 Hz
  • Re: 4.0 Ohms
  • Qms: 4.74
  • Qes: 0.38
  • Qts: 0.36
  • Nref: 0.59 %
  • Cms: 0.08 mm/N
  • Bl: 24.9 n/a
  • Vas: 76.8 L
  • Mms: 303.3 gr
  • Sd: 779.3 cm²
  • Xmax: 30 mm

Enclosure Specifications

  • Sealed Volume: 2.75 ft³
  • Ported Volume: 3.25 ft³
  • Port Area: 47.25 in²
  • Port Length: 27.25"
  • Tuning Frequency: 32 Hz
  • Mounting Depth: 9.88"
  • Total Height: 11.26"
  • Outside Diameter: 15.60"
  • Cut-Out Diameter: 14.18"
  • Magnet Diameter: 8.625"
  • Subwoofer Displacement: 0.16 ft³
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Description

The Skar Audio VXF series was designed to be the ultimate SQ/SPL subwoofer. It was engineered specifically to feature a super low FS to hit the low notes that SPL requires, while still showing range in being able to hit the high notes. The extra focus on increasing the coil ventilation across this line, is just one of the differentiation's that put this woofer in a class of it's own.



The VXF series features a round, 3" high temperature copper voice coil. Under the stitched high roll foam surround, you will find a 4-layer spider with stitched leads. A massive 300 oz ferrite motor allows for extreme power handling for extended periods of time. This woofer boasts a max power rating of 3,000 watts, and a conservative RMS rating of 1,500 watts.

Specifications

  • Skar Audio VXF-15 D4 - 15" Component Car Subwoofer
  • Dual 4 Ohm Voice Coil Configuration
  • Peak Power: 3000 Watts
  • RMS Power: 1500 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 3" High Temperature Copper Voice Coil
  • Frequency Response : 30 - 500 Hz
  • Sensitivity: 88.7 dB
  • Fs: 35.4 Hz
  • Re: 7.8 Ohms
  • Qms: 4.78
  • Qes: 0.43
  • Qts: 0.40
  • Nref: 0.47 %
  • Cms: 0.05 mm/N
  • Bl: 39.1 n/a
  • Vas: 47.7 L
  • Mms: 384.3 gr
  • Sd: 779.3 cm²
  • Xmax: 30 mm

Enclosure Specifications

  • Sealed Volume: 2.75 ft³
  • Ported Volume: 3.25 ft³
  • Port Area: 47.25 in²
  • Port Length: 27.25"
  • Tuning Frequency: 32 Hz
  • Mounting Depth: 9.88"
  • Total Height: 11.26"
  • Outside Diameter: 15.60"
  • Cut-Out Diameter: 14.18"
  • Magnet Diameter: 8.625"
  • Subwoofer Displacement: 0.16 ft³
  • Enclosure specifications do not include subwoofer, bracing, and port displacement
