VD-10 | 10" 800 Watt Max Power Car Subwoofer (Shallow Mount)

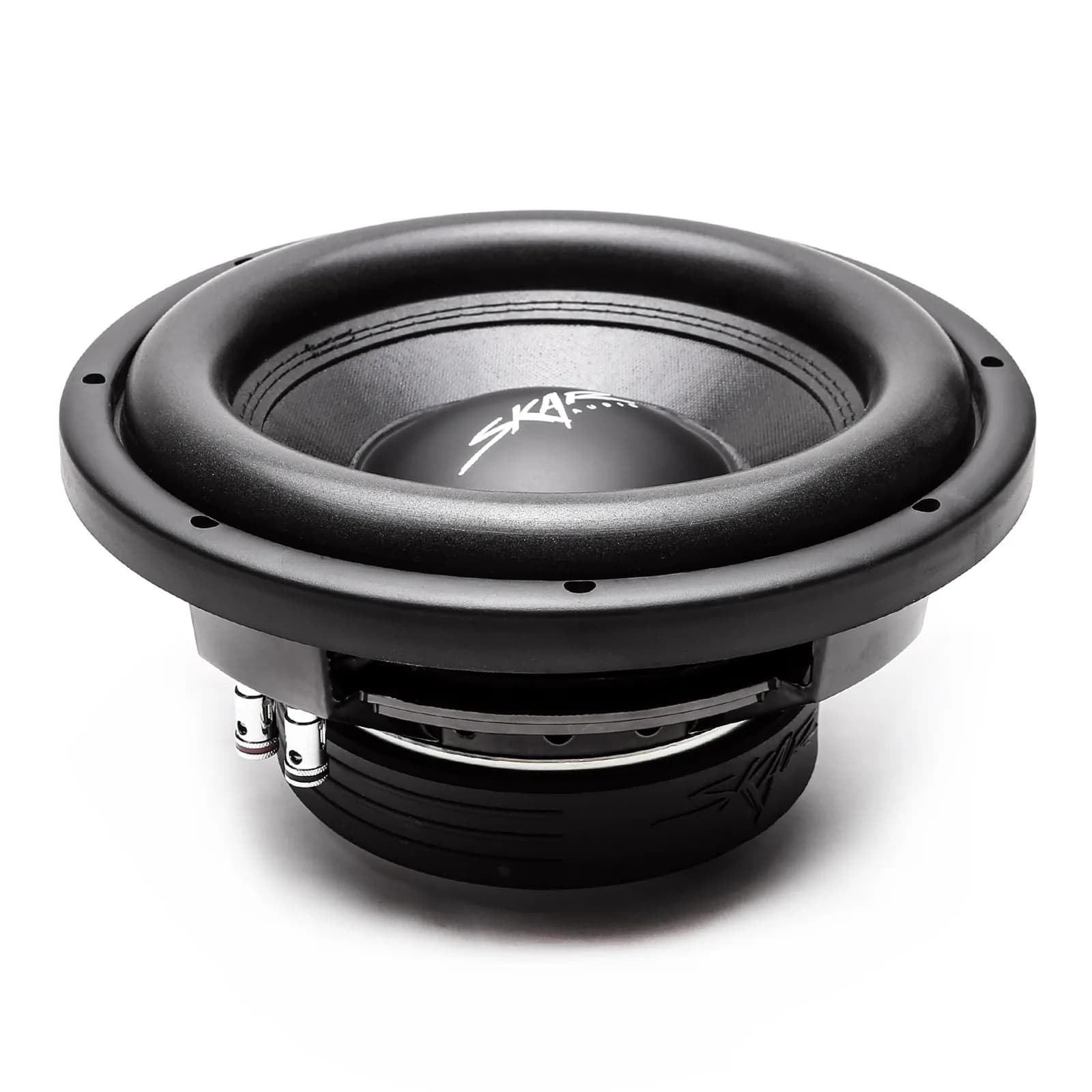

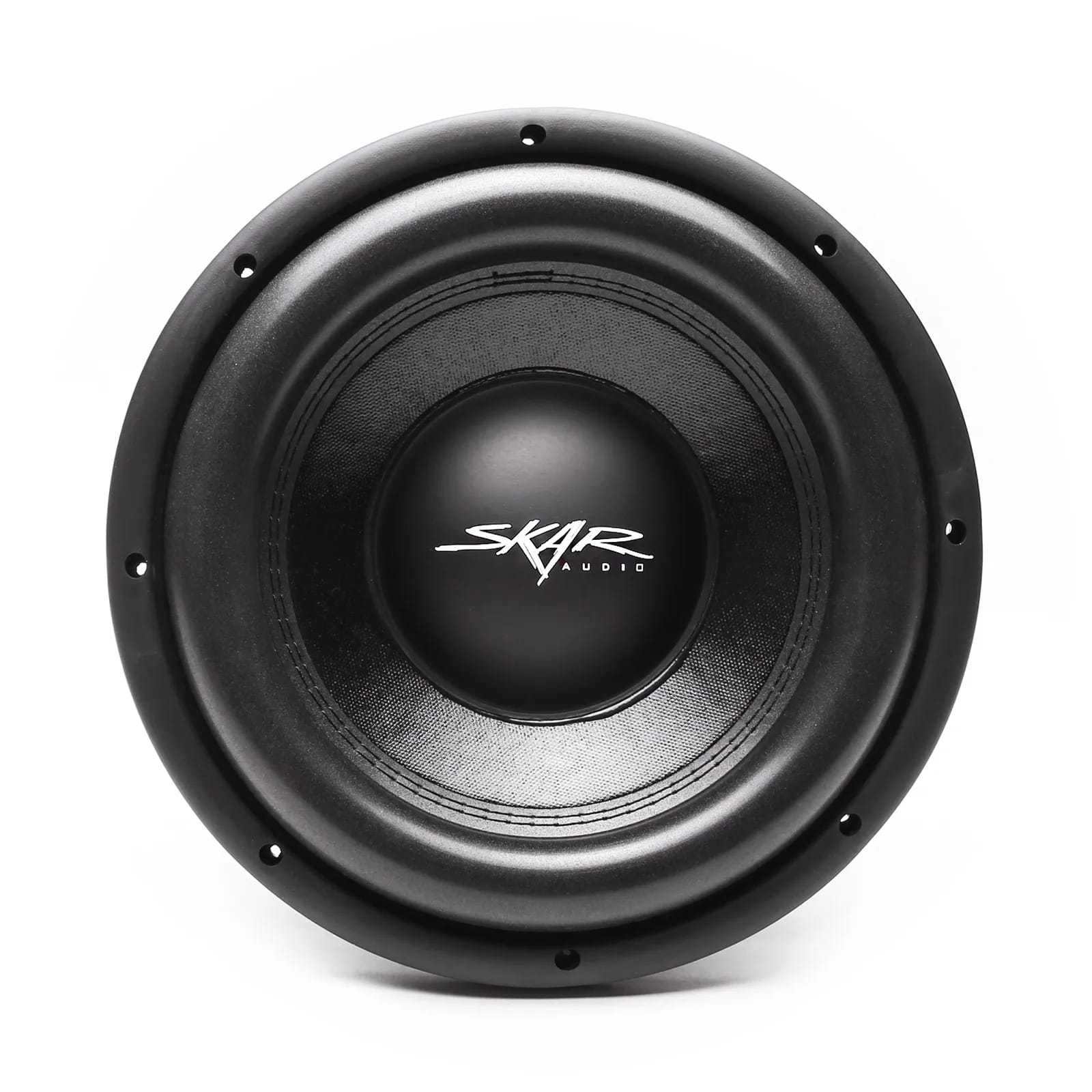

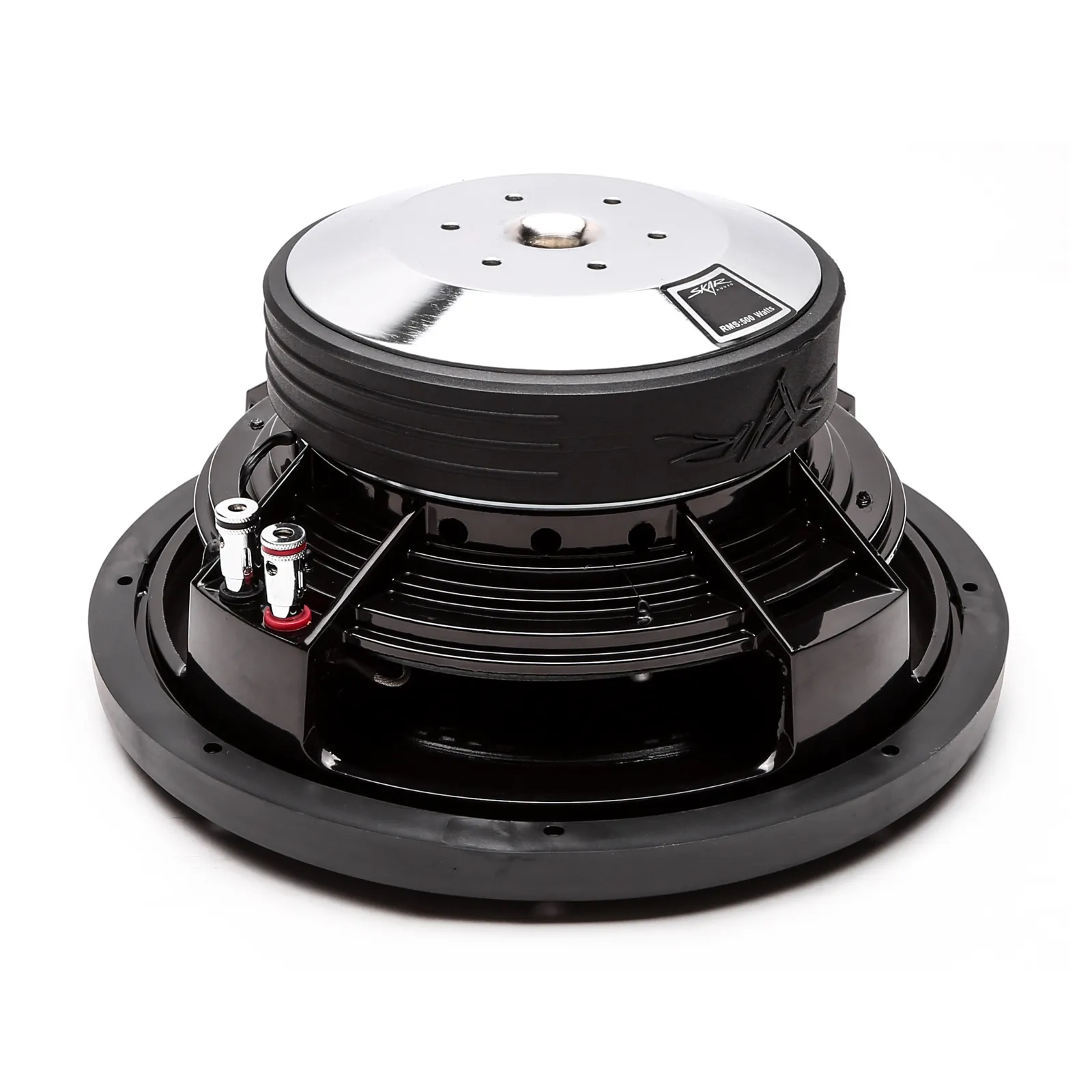

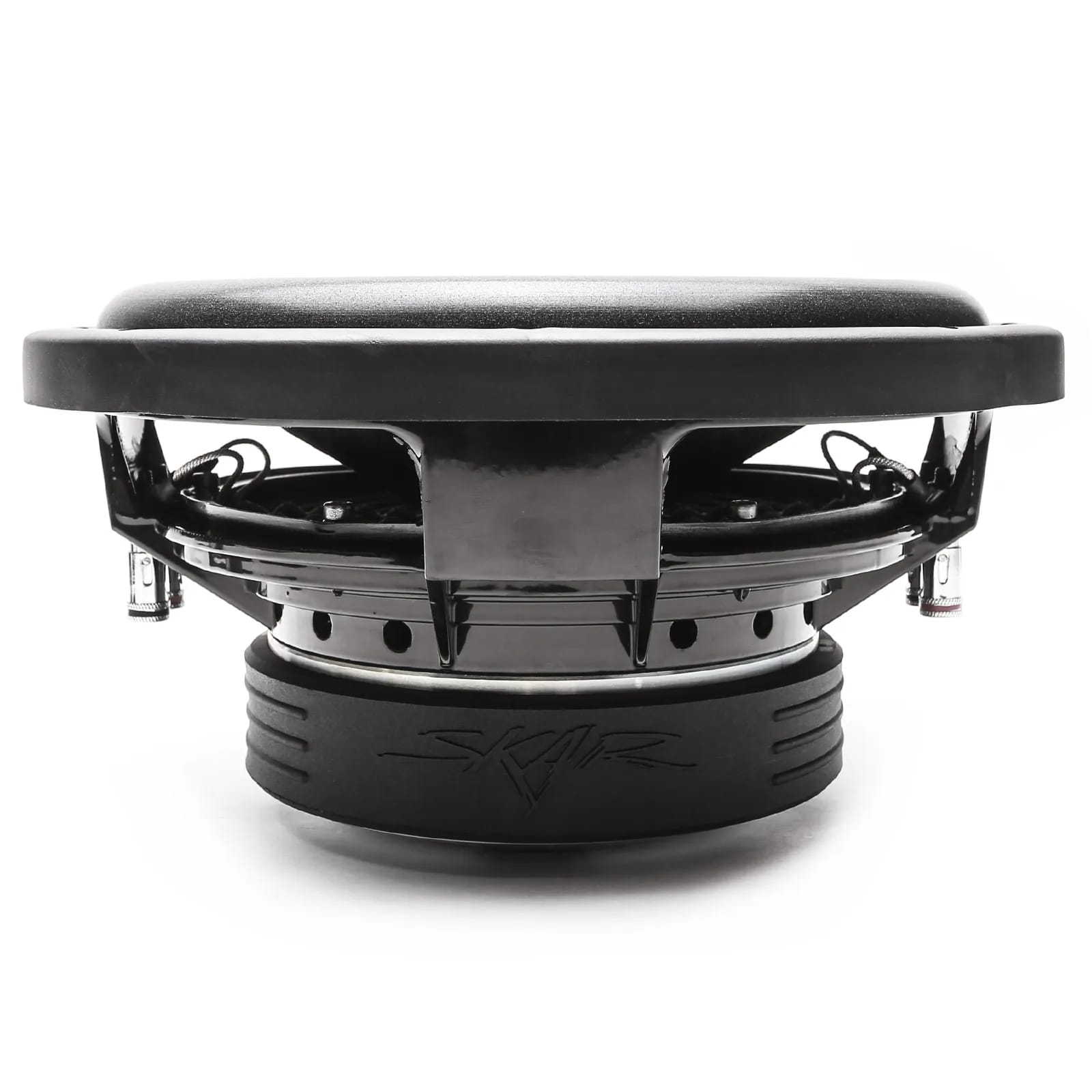

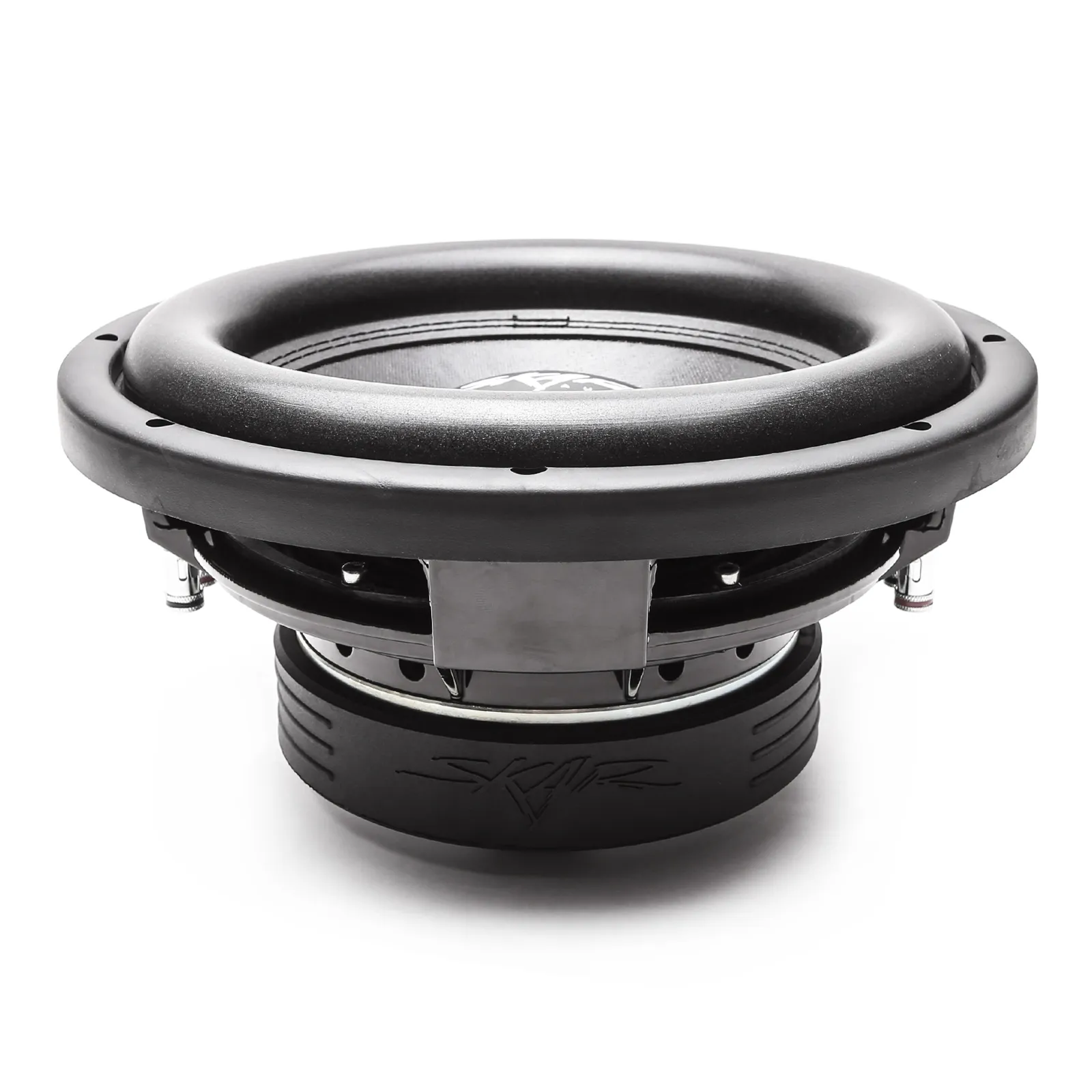

  • Skar Audio VD-10 10-inch Dual Voice Coil 800 Watt Max Power Shallow Mount Subwoofer - Front View

VD-10 | 10" 800 Watt Max Power Car Subwoofer (Shallow Mount)


* Financing through our Partner, Bread

Description

Description

The Skar Audio VD Series 10-inch Dual 2 ohm shallow mount subwoofer by Skar Audio was designed to be a very versatile and powerful driver. When space or mounting depth is an issue, look no further. The VD-10 D2 subwoofer is extremely powerful, rated at a conservative 500 Watts RMS power and featuring a high quality 2" high temperature copper voice coil.



Furthermore, the VD Series is built utilizing only the highest quality parts, such as a competition grade cone, high strength foam surround and a 2 layer conex spider for high power handling. These components in conjunction with the advanced cooling design of this woofer allow it to fit in much shallower enclosures, yet allow it to perform with attitude. Rms Power: 500 Watts, Max Power: 800 Watts, Sensitivity: 85.2 db, Mounting Depth: 4.41".

Specifications

  • Skar Audio VD-10 D2 - 10" Shallow Mount Car Subwoofer
  • Dual 2 Ohm Voice Coil Configuration
  • Peak Power: 800 Watts
  • RMS Power: 500 Watts
  • Pressed Paper Cone
  • High Roll Foam Surround
  • 2" High Temperature Copper Voice Coil
  • Motor Weight: 66 oz
  • Frequency Response: 45 - 500 Hz
  • Sensitivity: 85.2 dB
  • Fs: 42.0 Hz
  • Re: 3.9 Ohms
  • Qms: 4.55
  • Qes: 0.53
  • Qts: 0.47
  • Nref: 0.21 %
  • Cms: 0.10 mm/N
  • Bl: 15.8 n/a
  • Vas: 15.1 L
  • Xmax: 11.5 mm

Enclosure Specifications

  • Sealed Volume: 0.65 ft^3
  • Ported Volume: 1.25 ft^3
  • Port Area: 17 sq.in.
  • Port Length: 22"
  • Tuning Frequency: 39 Hz
  • Mounting Depth: 4.41"
  • Cut-Out Diameter: 9.3"
  • Magnet Diameter: 6.3"
  • Subwoofer Displacement: 0.08 ft^3
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Description

The Skar Audio VD Series 10-inch Dual 4 ohm shallow mount subwoofer by Skar Audio was designed to be a very versatile and powerful driver. When space or mounting depth is an issue, look no further. The VD-10 D4 subwoofer is extremely powerful, rated at a conservative 500 Watts RMS power and featuring a high quality 2" high temperature copper voice coil.



Furthermore, the VD Series is built utilizing only the highest quality parts, such as a competition grade cone, high strength foam surround and a 2 layer conex spider for high power handling. These components in conjunction with the advanced cooling design of this woofer allow it to fit in much shallower enclosures, yet allow it to perform with attitude. Rms Power: 500 Watts, Max Power: 800 Watts, Sensitivity: 85.1 db, Mounting Depth: 4.41".

Specifications

  • Skar Audio VD-10 D4 - 10" Shallow Mount Car Subwoofer
  • Dual 4 Ohm Voice Coil Configuration
  • Peak Power: 800 Watts
  • RMS Power: 500 Watts
  • Pressed Paper Cone
  • High Roll Foam Surround
  • 2" High Temperature Copper Voice Coil
  • Motor Weight: 66 oz
  • Frequency Response: 45 - 500 Hz
  • Sensitivity: 85.1 dB
  • Fs: 41.9 Hz
  • Re: 7.1 Ohms
  • Qms: 4.20
  • Qes: 0.42
  • Qts: 0.42
  • Nref: 0.20 %
  • Cms: 0.10 mm/N
  • Bl: 17.2 n/a
  • Vas: 17.2 L
  • Xmax: 11.5 mm

Enclosure Specifications

  • Sealed Volume: 0.65 ft^3
  • Ported Volume: 1.25 ft^3
  • Port Area: 17 sq.in.
  • Port Length: 22"
  • Tuning Frequency: 39 Hz
  • Mounting Depth: 4.41"
  • Cut-Out Diameter: 9.3"
  • Magnet Diameter: 6.3"
  • Subwoofer Displacement: 0.08 ft^3
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Customer Reviews

Based on 28 reviews
93%
(26)
7%
(2)
0%
(0)
0%
(0)
0%
(0)
j
j.b.

Good deal Very Happy!

X
X.
I love this speaker! this is my second!

I bought one and put it in an old kicker comp box added a jbl gtx 500 wired her up @ 2 ohms and it rocks!
I bought another and put it in a kicker box as well the 2 of them wired at 4 ohms total on one jbl gtx 500 and the bass is incredible! I am guessing that makes em 200rms or so right now and they hit good!
nice deep and low with lots of feel as well.
I hope to get another gtx 500 and make em twins
they are great sharing the amp but really bang when they got a full 500 watts rms each
I will consider the time I wait for $$ for the other amp and wiring as a break in period for the new one :) also allows time for the WAF (wife aggression factor) to subside a bit
thanks again SKAR AUDIO for the incredible speaker at a really nice price

J
J.G.

VD-10 | 10" 800 Watt Max Power Car Subwoofer (Shallow Mount)

T
T.H.
Impressed

I was skeptical about getting 10's but I figured something was better than nothing so I got 2 shallow mount to go under the rear seat of my truck..and I must say they don't sound or hit like 10's. I'm very impressed by them!

J
J.
Deep and clear!

Give them the space and power they want and these will blow you away. I have to of these under the back seat of my quad cab and it sounds better than the 2 12's I had in the back of my Cherokee about 10 years ago! I have mine in a sealed box pushed by an LP 1000.1d beautiful!
