PD1-X | 1" 200 Watt High-Efficiency Compression Horn Driver

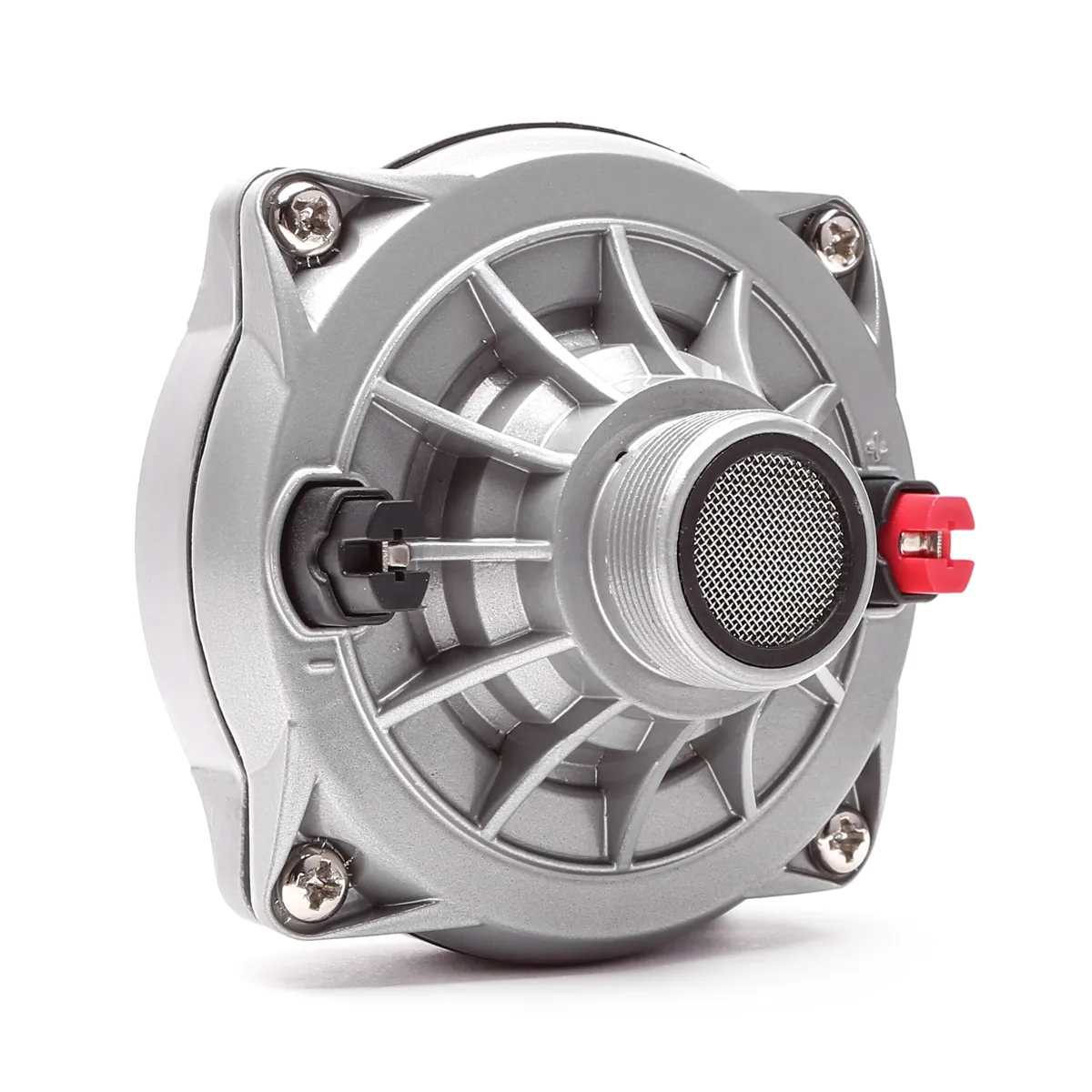

  • Skar Audio PD1-X 1-inch 200 Watt Max Power Horn Driver - Angle View

PD1-X | 1" 200 Watt High-Efficiency Compression Horn Driver

Description

Description

Engineered and designed in the USA by Skar Audio engineers, the PD1-X 200 Watt 1-inch high-efficiency compression horn driver is unmatched in performance and sound reproduction. Sold individually, this driver is designed for medium band reproduction and is recommended for midrange applications in SPL car audio systems or in small PA systems. The PD1-X features a universal 1-⅜" screw-on connection, allowing a horn to easily be added. The smooth response and the accuracy of the high frequencies reproduced by this driver are unparalleled, making it the top choice among audio enthusiasts.

Technical Specifications

  • Skar Audio PD1-X 1" High-Efficiency Compression Horn Driver
  • Sold Each (Individually)
  • Max Power Rating: 200 Watts
  • RMS Power Rating: 100 Watts
  • 2" High Temperature Kapton Voice Coil
  • Impedance: 8 Ohms
  • Magnet Material: High Flux Ferrite
  • Frequency Response: 550 Hz - 6,000 Hz
  • Sensitivity: 110 dB

Mounting Specifications

  • Outer Diameter: 4.40"
  • Cutout Diameter: 1.37" (Without Horn)
  • Mounting Depth: 2.37"
  • Total Speaker Depth: 3.03"
