DDX-10 | 10" 1,500 Watt Max Power Car Subwoofer

  • Skar Audio DDX-10 10-inch 1,500 Watt Max Power Car Subwoofer - Angle View

DDX-10 | 10" 1,500 Watt Max Power Car Subwoofer

Description

Description

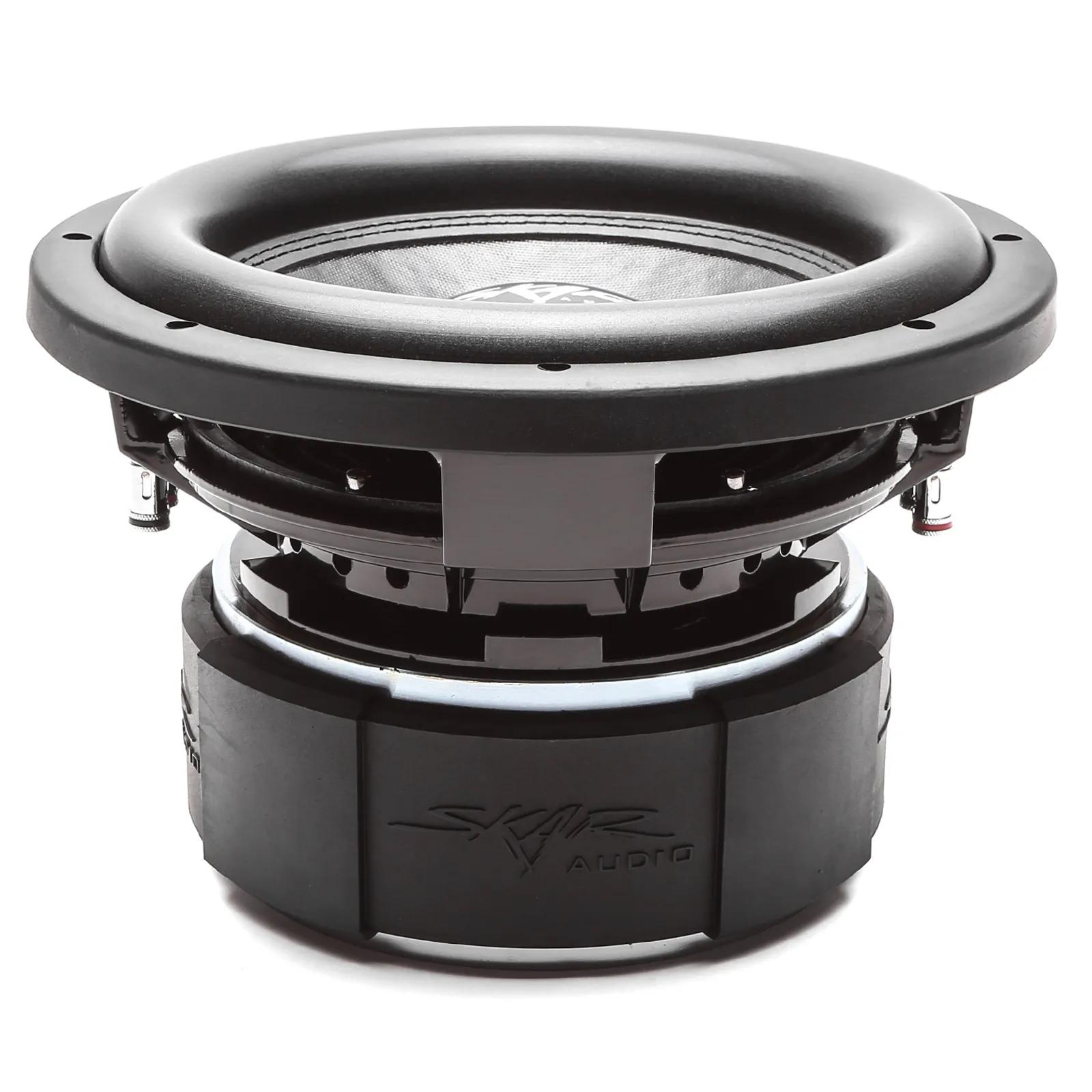

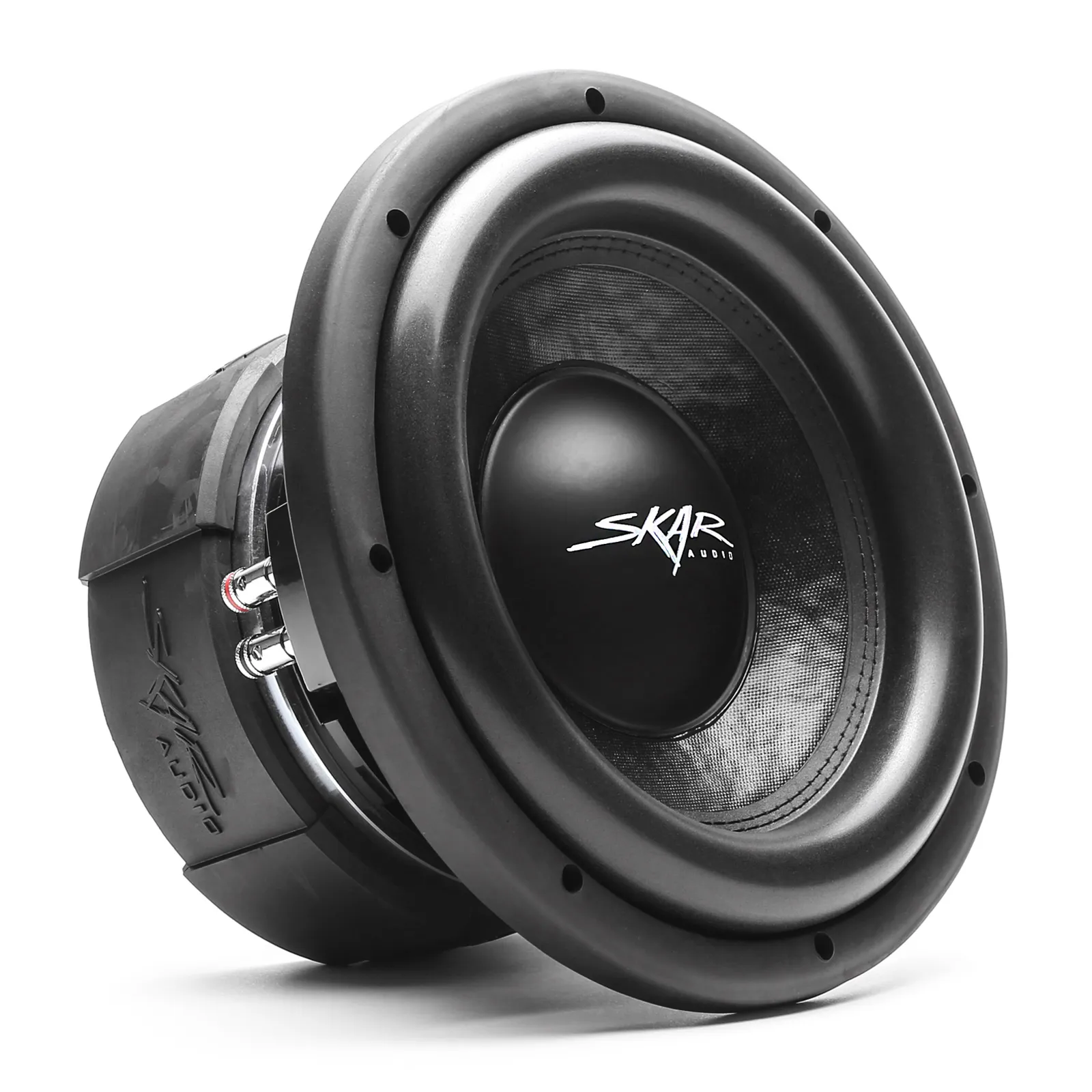

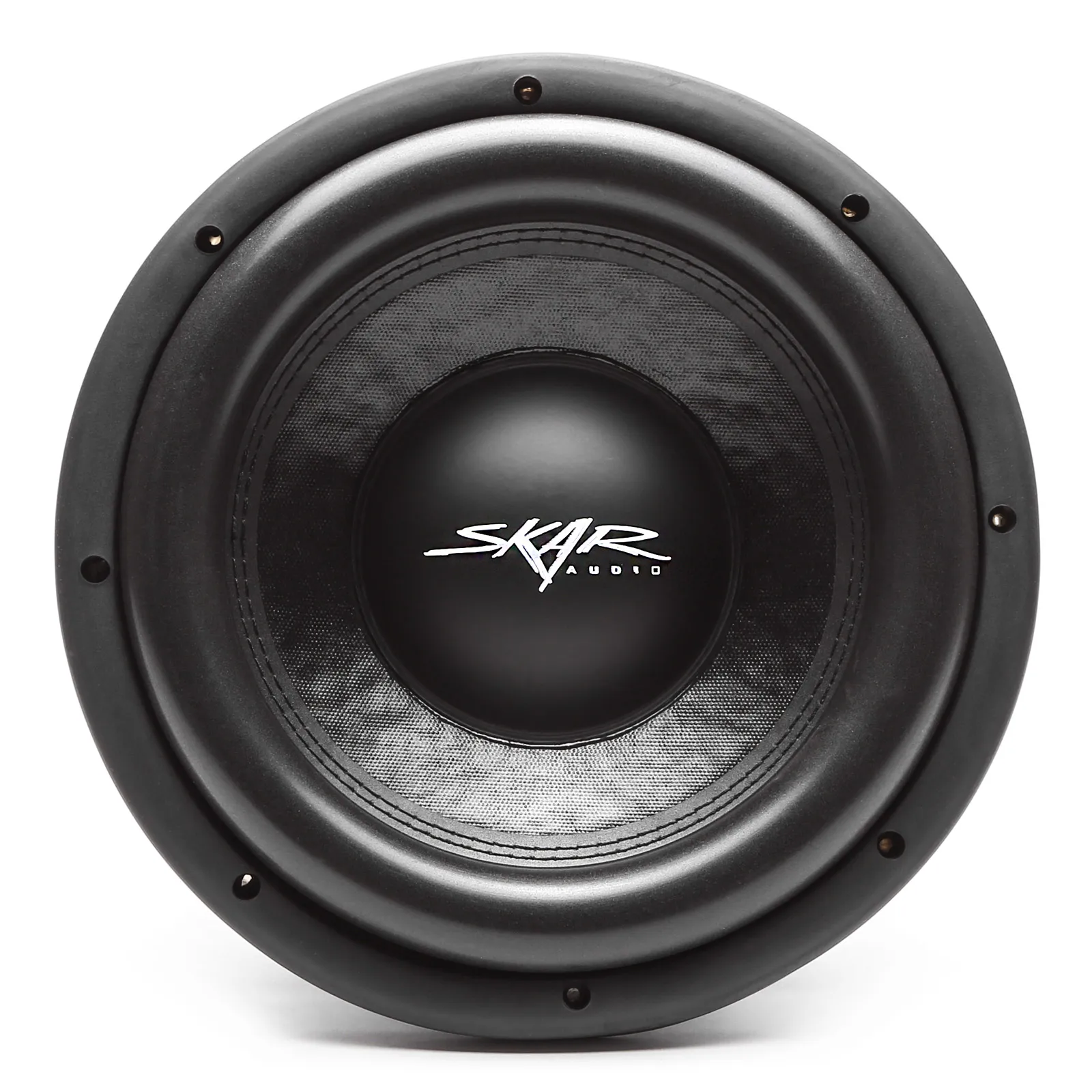

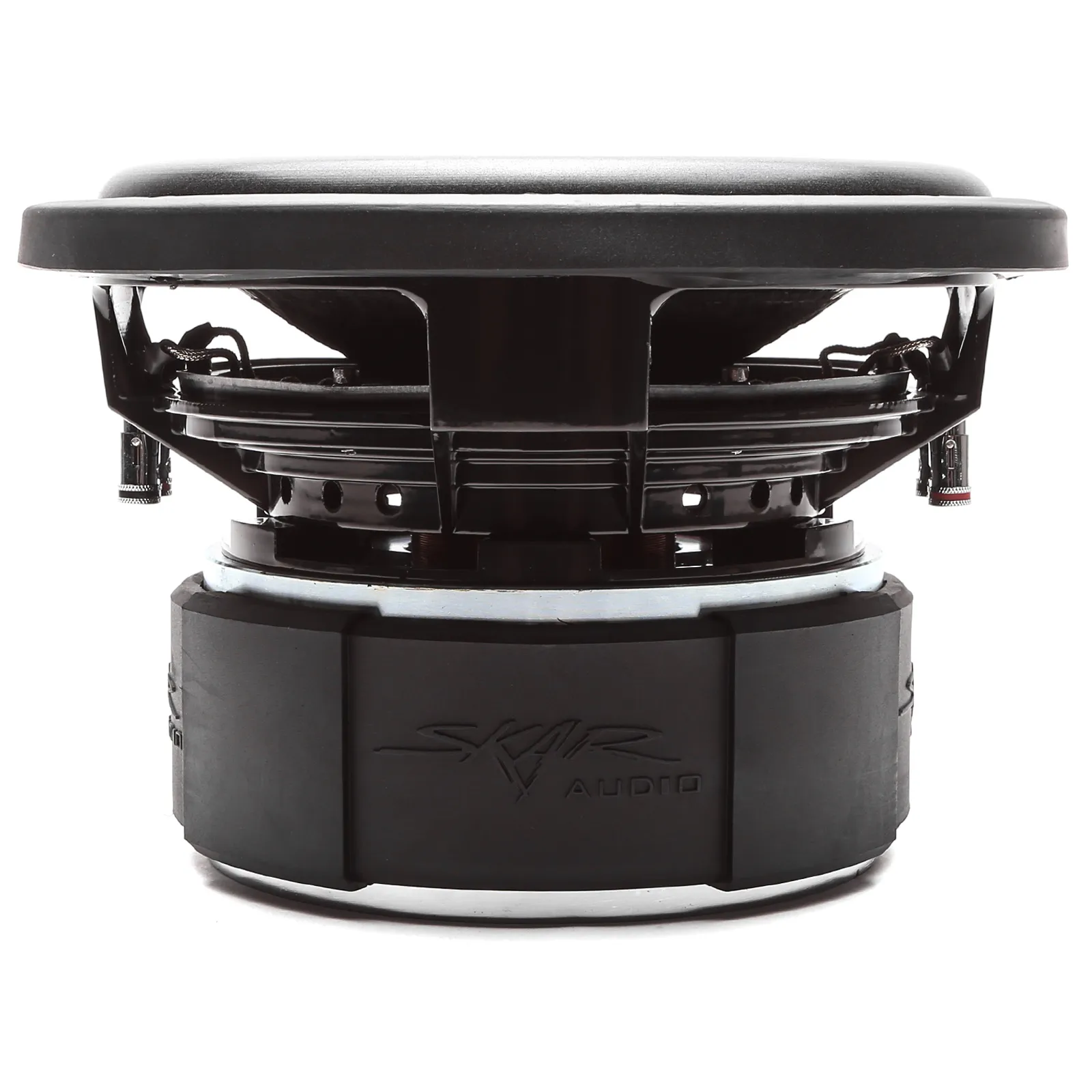

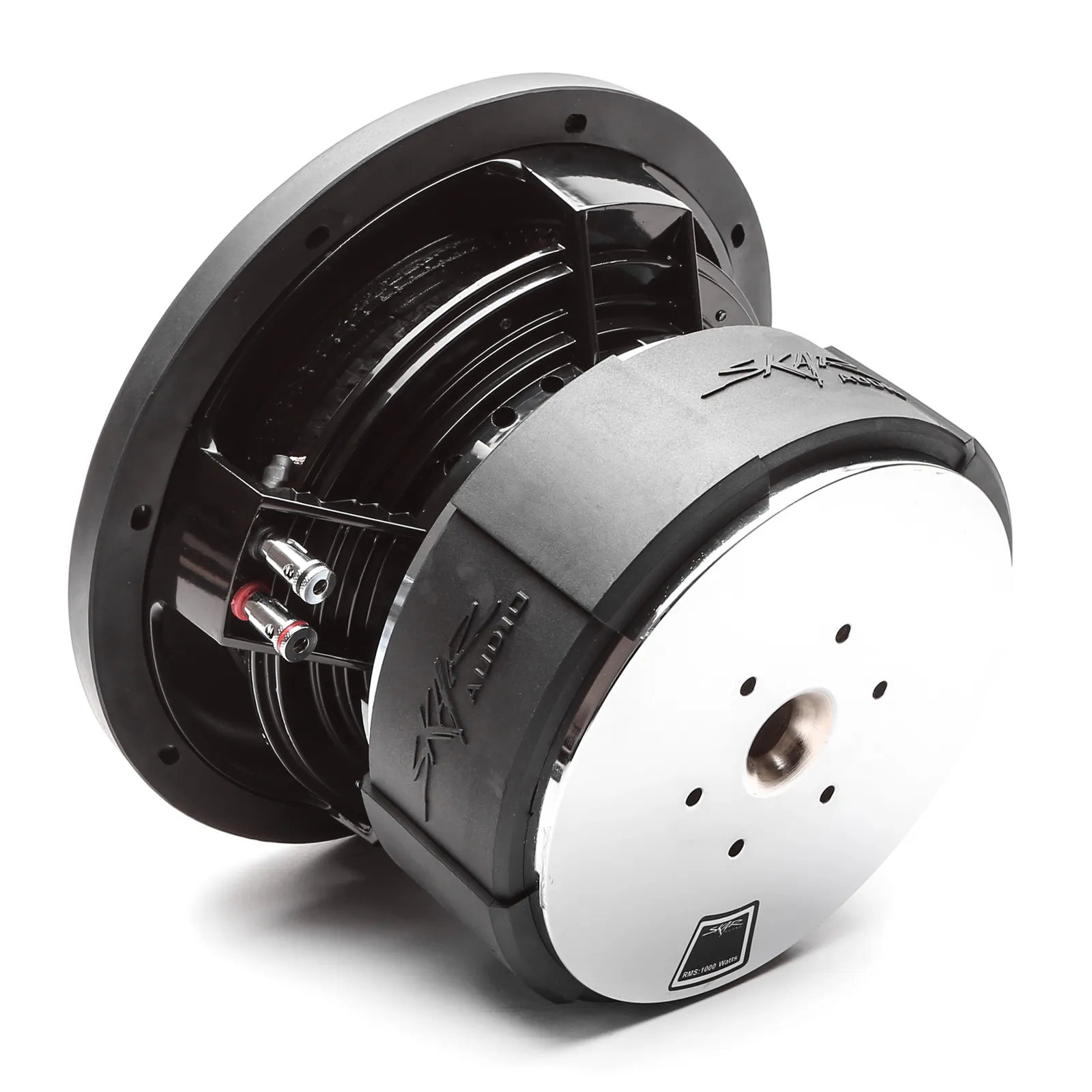

The Skar Audio DDX-10 D2 is a competition grade, 10-inch, Dual 2-ohm, car subwoofer. The DDX lineup was engineered by Skar Audio to be an SPL grade woofer that could also be utilized in daily system applications, allowing non-competitors to use the same subwoofers as those competing in the lanes. Every component used in the design of these woofers is of the highest quality for reliability and increased performance. Featuring a massive double stack motor, 2.5 inch pure copper high temperature voice coil, and a competition grade pressed paper cone stitched to the high roll foam surround, the woofer comes equipped ready to handle serious amounts power. Dual 2-ohm voice coil. Max Power: 1500 Watts, RMS Power: 1000 Watts. Spl: 85.2 dB, Fs: 46 Hz, Bl: 24.8, Xmax: 15mm one-way. Qts: 0.45.

Specifications

  • Skar Audio DDX-10 D2 - 10" Component Car Subwoofer
  • Dual 2 Ohm Voice Coil Configuration
  • Peak Power: 1500 Watts
  • RMS Power: 1000 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2.5" High Temperature Copper Voice Coil
  • Motor Weight: 202 oz
  • Frequency Response: 40 - 500 Hz
  • Sensitivity: 85.2 dB
  • Fs: 46.0 Hz
  • Re: 3.9 Ohms
  • Qms: 4.8
  • Qes: 0.41
  • Qts: 0.38
  • Nref: .20 %
  • Cms: 0.05 mm/N
  • Bl: 24.8 n/a
  • Vas: 8.7 L
  • Mms: 220 gr
  • Sd: 339.8 cm^2
  • Xmax: 15 mm

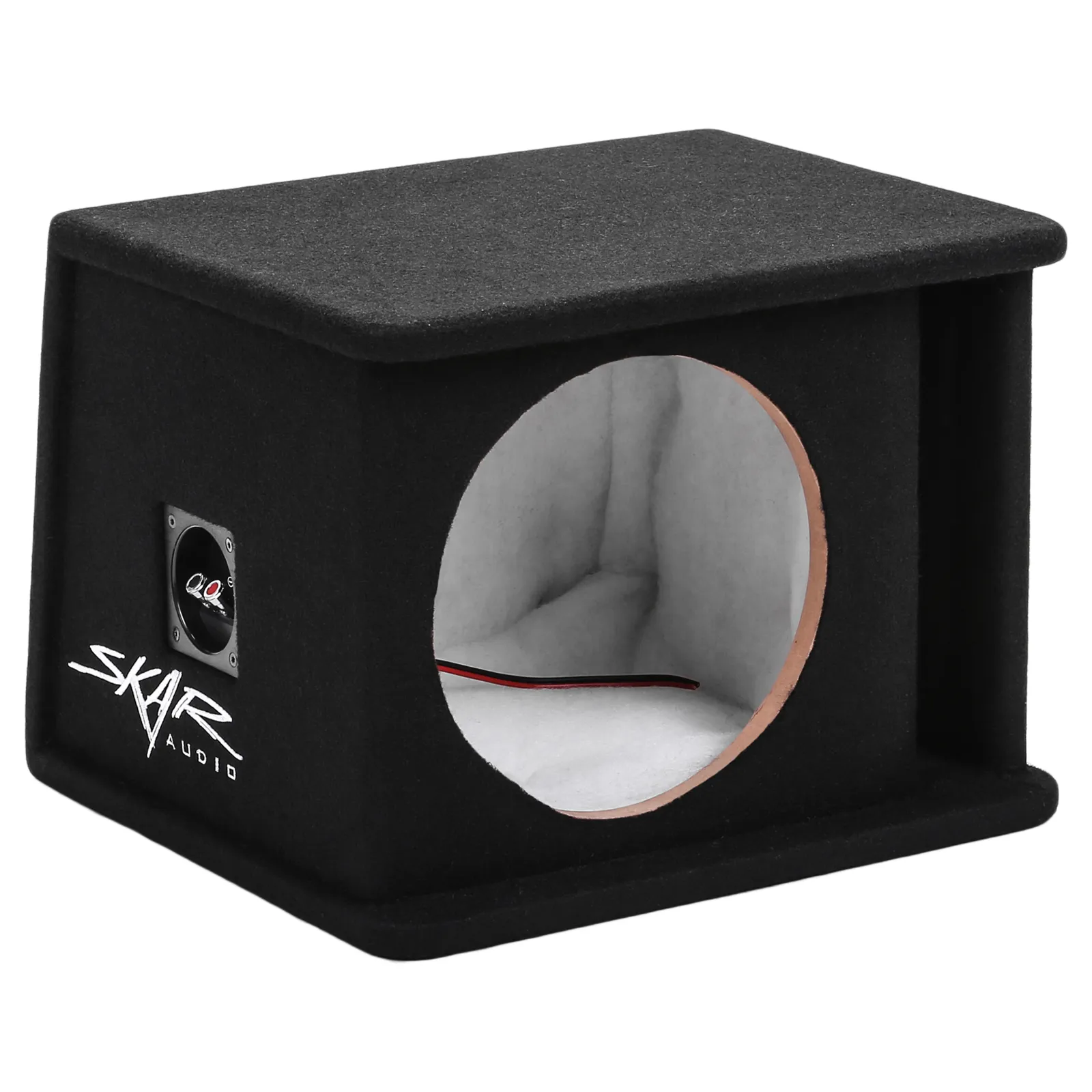

Enclosure Specifications

  • Sealed Volume: 1.15 ft^3
  • Ported Volume: 1.65 ft^3
  • Port Area: 22 sq.in.
  • Port Length: 22"
  • Tuning Frequency: 37 Hz
  • Mounting Depth: 6.1"
  • Cut-Out Diameter: 9.25"
  • Magnet Diameter: 7.72"
  • Subwoofer Displacement: 0.14 ft^3
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Description

The Skar Audio DDX-10 D4 is a competition grade, 10-inch, Dual 4-ohm, car subwoofer. The DDX lineup was engineered by Skar Audio to be an SPL grade woofer that could also be utilized in daily system applications, allowing non-competitors to use the same subwoofers as those competing in the lanes. Every component used in the design of these woofers is of the highest quality for reliability and increased performance. Featuring a massive double stack motor, 2.5 inch pure copper high temperature voice coil, and a competition grade pressed paper cone stitched to the high roll foam surround, the woofer comes equipped ready to handle serious amounts power. Dual 4-ohm voice coil. Max Power: 1500 Watts, RMS Power: 1000 Watts. Spl: 83.6 dB, Fs: 48 Hz, Bl: 27.1, Xmax: 15mm one-way. Qts: 0.45.

Specifications

  • Skar Audio DDX-10 D4 - 10" Component Car Subwoofer
  • Dual 4 Ohm Voice Coil Configuration
  • Peak Power: 1500 Watts
  • RMS Power: 1000 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2.5" High Temperature Copper Voice Coil
  • Motor Weight: 202 oz
  • Frequency Response: 40 - 500 Hz
  • Sensitivity: 83.6 dB
  • Fs: 48.0 Hz
  • Re: 6.8 Ohms
  • Qms: 4.6
  • Qes: 0.59
  • Qts: 0.53
  • Nref: .15 %
  • Cms: 0.05 mm/N
  • Bl: 27.1 n/a
  • Vas: 8.7 L
  • Mms: 210 gr
  • Sd: 339.8 cm^2
  • Xmax: 15 mm

Enclosure Specifications

  • Sealed Volume: 1.50 ft^3
  • Ported Volume: 1.65 ft^3
  • Port Area: 30 sq.in.
  • Port Length: 19"
  • Tuning Frequency: 40 Hz
  • Mounting Depth: 6.1"
  • Cut-Out Diameter: 9.25"
  • Magnet Diameter: 7.72"
  • Subwoofer Displacement: 0.14 ft^3
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Customer Reviews

Based on 15 reviews
100%
(15)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
V
V.L.
Im so very very Happy with SKAR AUDIO. Long Awaited Greatness.

Will always consider Skar audio to be nmbr one .

J
J.I.
i love them

they sound amazing. the mount holes didnt line up tho

A
A.R.
DDX-10

Great speakers hit harder then some 12s

M
M.
Best 10 hands for the money

I've been running this woofer in the car with an oversized box. So many people are amazed at the big sound I'm getting from a single woofer setup.... No issues so far. Year 2 running on a Brutus 1800.

F
F.G.
Freaking awesome - 10 stars

I bought 2 of the DDX 10 dual 4 ohms for my birthday 7/24 YEA! 2 of some of the best subwoofers I ever bought, this is my first time buying skar audio, I mean for the price I feel like I got a steal, I paired them with the RP 1500.1D and it was like a match made in heaven, wired down to 1ohm, the box that I installed them is from fox acoustics for a 08 dodge under rear seat, it was like the box amp and subs were all meant for each other, so I would give a 10 star if I could but he is my 5 star rating for skar audio, now I am working on skar highs and mids,
