SK3X12V | Triple 12" Ported Universal Fit Subwoofer Box

  • Skar Audio introduces its SK series of line-up of high-performance subwoofer enclosures to bridge the gap between competition-grade quality and universal fit pre-fabricated enclosures.

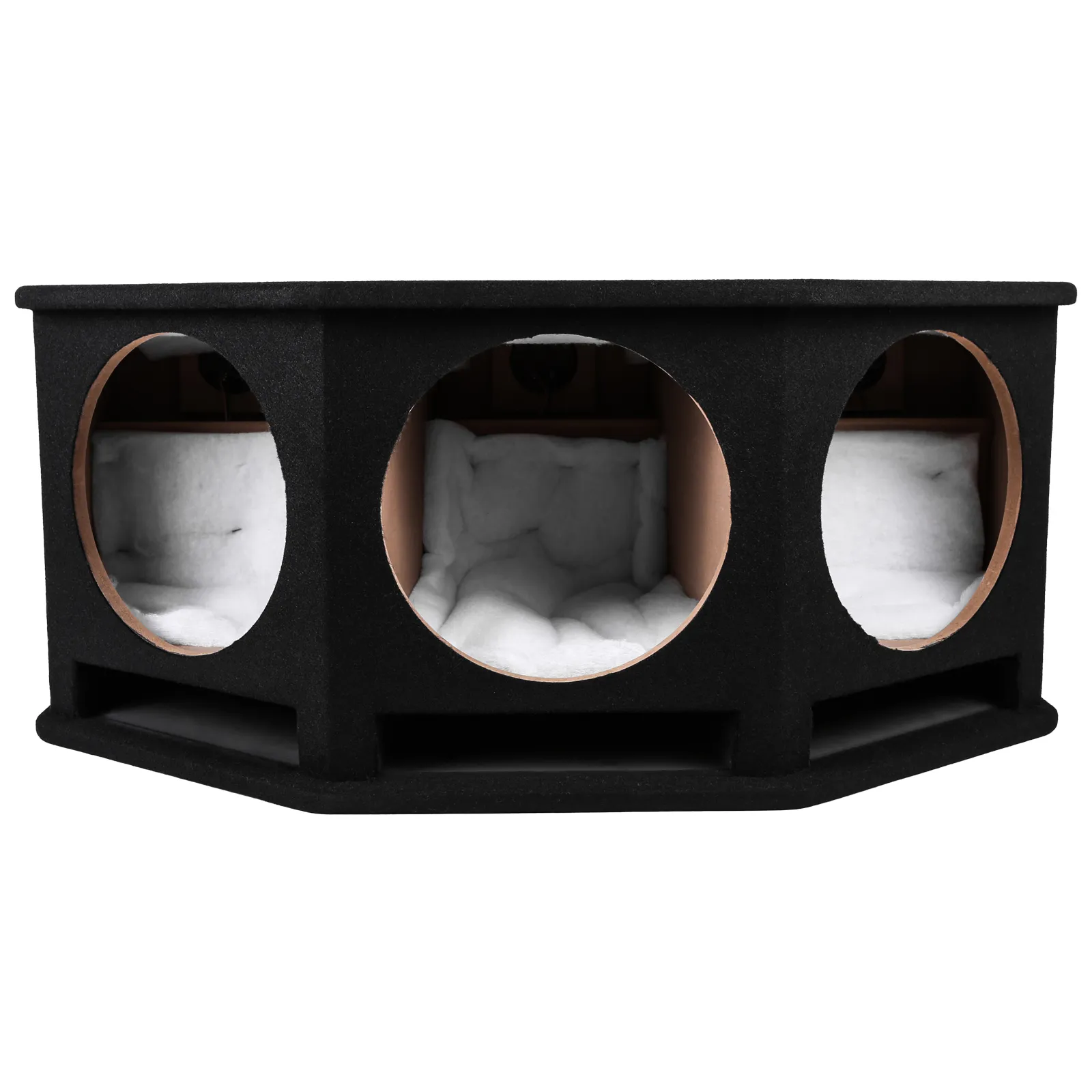

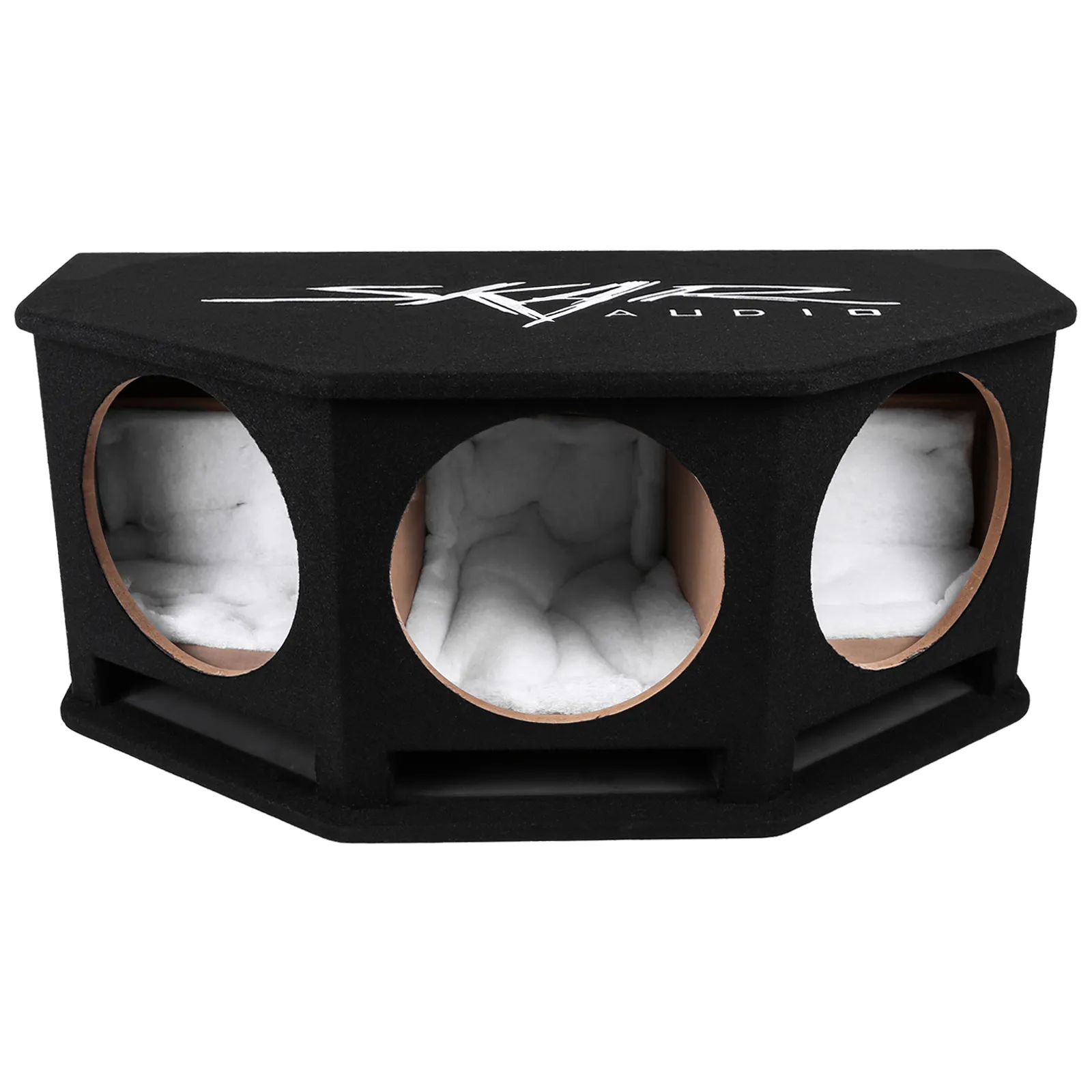

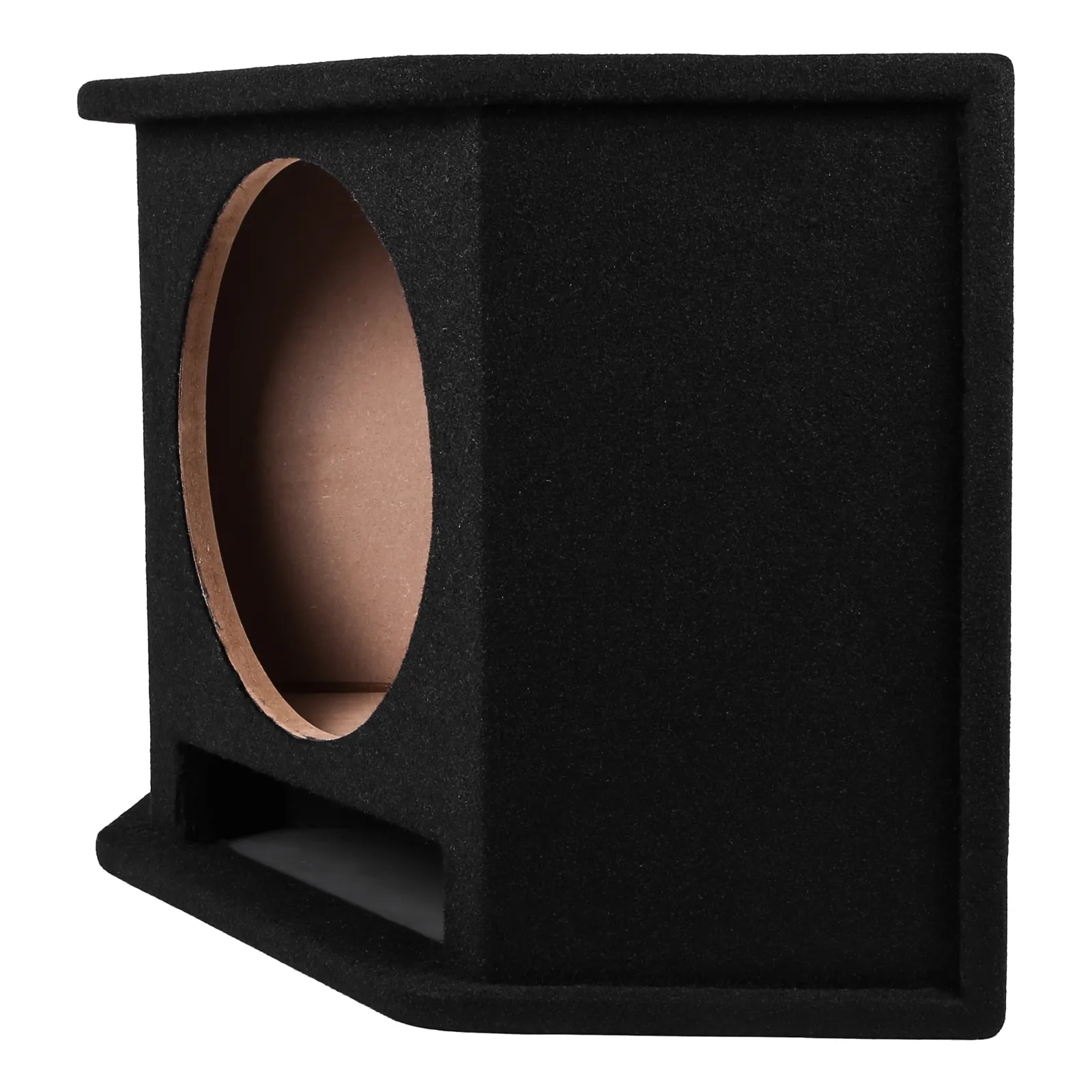

    The SK3X12V is a triple 12-inch, universal fit, ported subwoofer enclosure. Featuring three independent subwoofer chambers, we engineered this enclosure to produce incredibly accurate and responsive low-end frequency response. In addition, each chamber features its own slot port alongside the bottom of the enclosure, which is tuned for the optimal compatibility and performance of most 12" drivers.

    Quick Facts
    Total Gross Air Space (Volume) 5.50 ft3
    Tuning Frequency 36 Hz
    Cut-Out Diameter 11.125"
    Mounting Depth 7.50"

    When setting out to offer a line-up of premium, universal fit, subwoofer boxes, the end goal was to deliver a final product that was unlike anything else available on the market; setting new standards for quality and performance. That being said, all of our enclosures are hand built using only the finest materials. On top of its outstanding craftsmanship, this enclosure is also braced for extreme strength, and can handle even the most brutally powerful subwoofers.

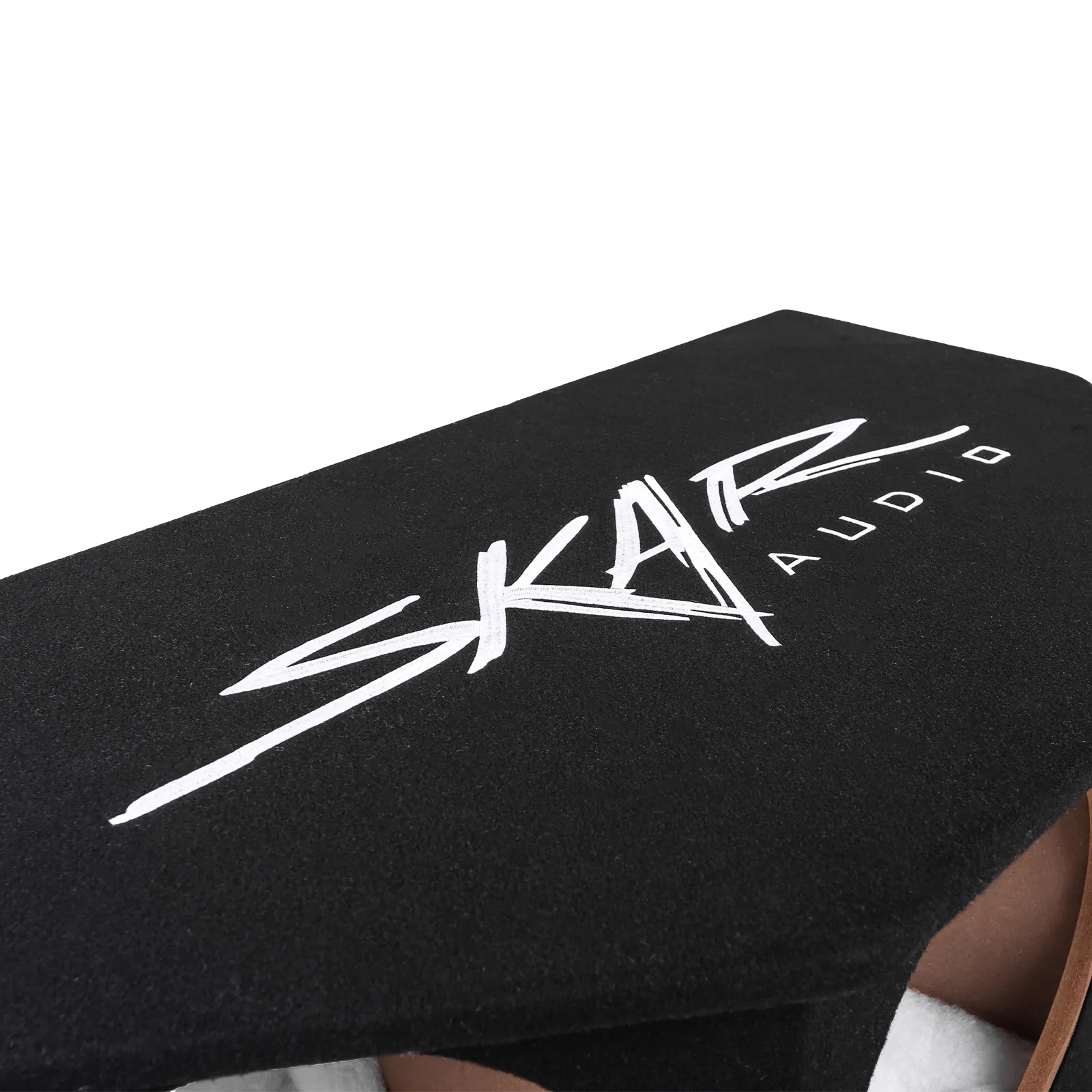

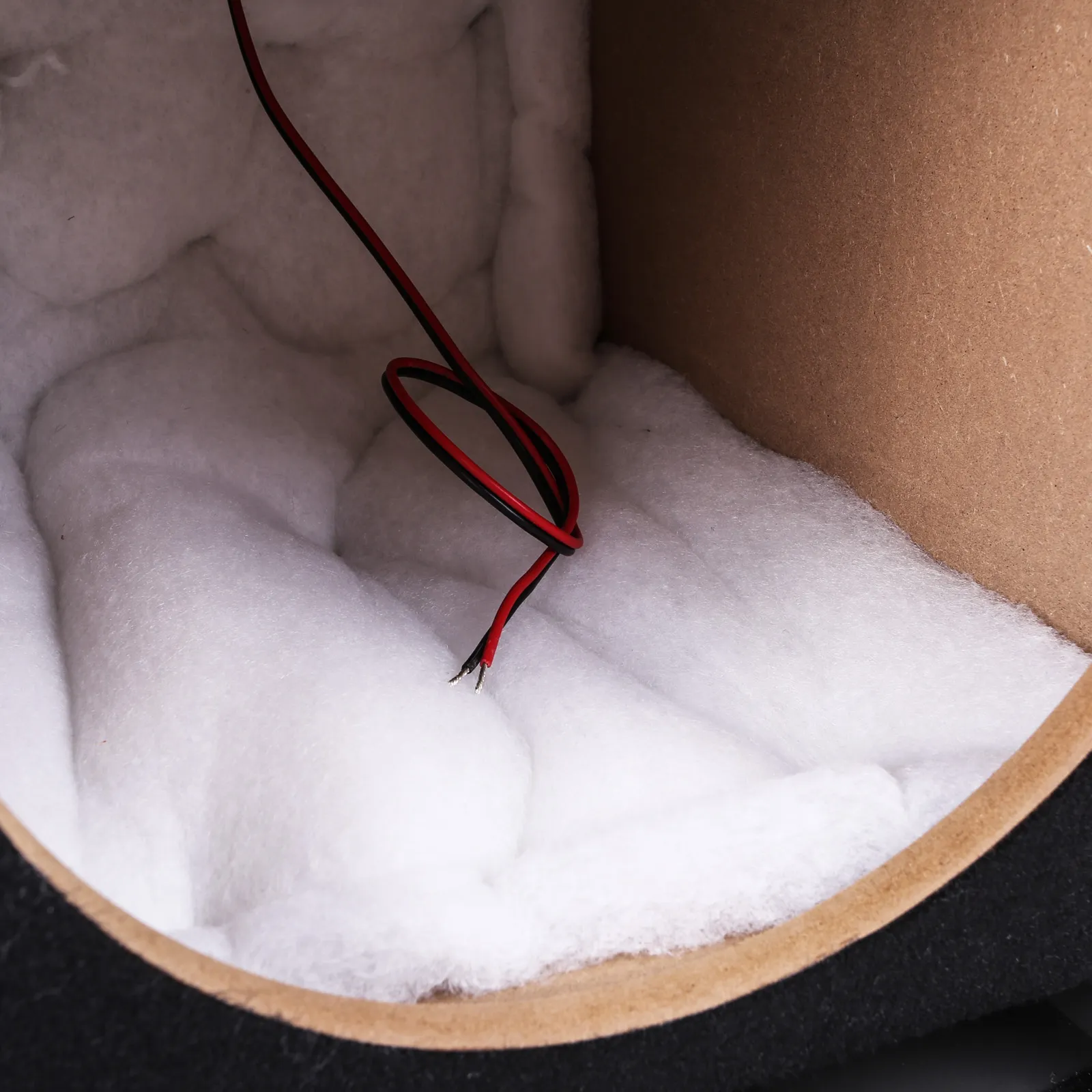

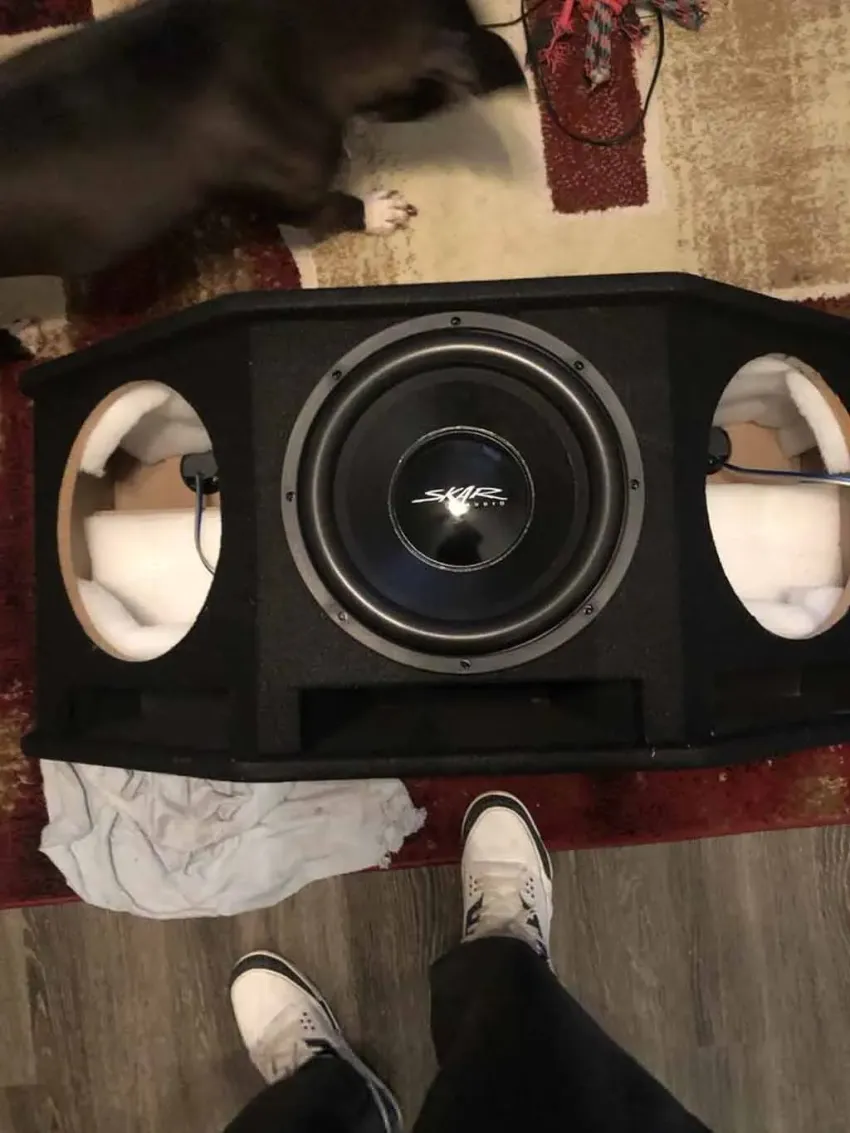

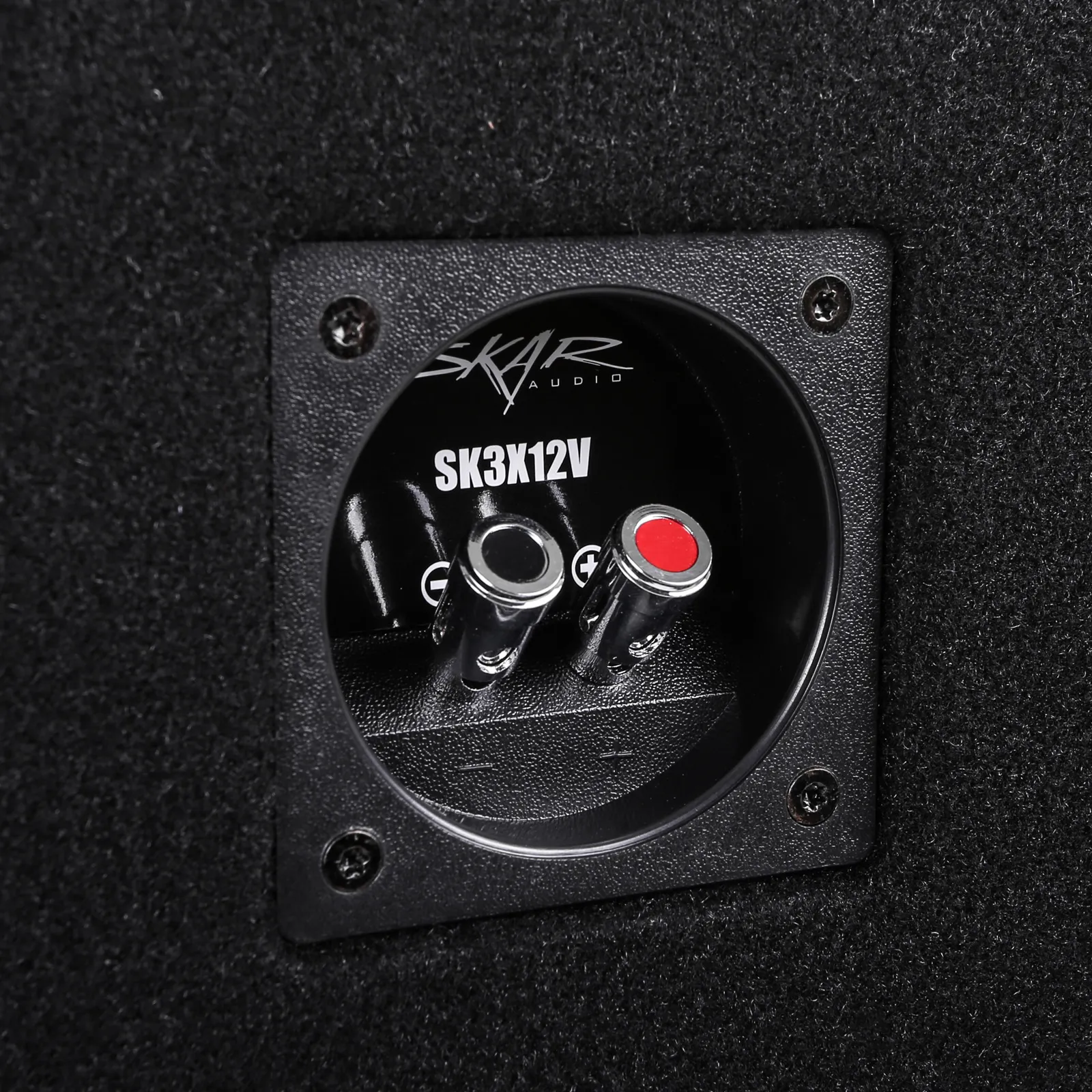

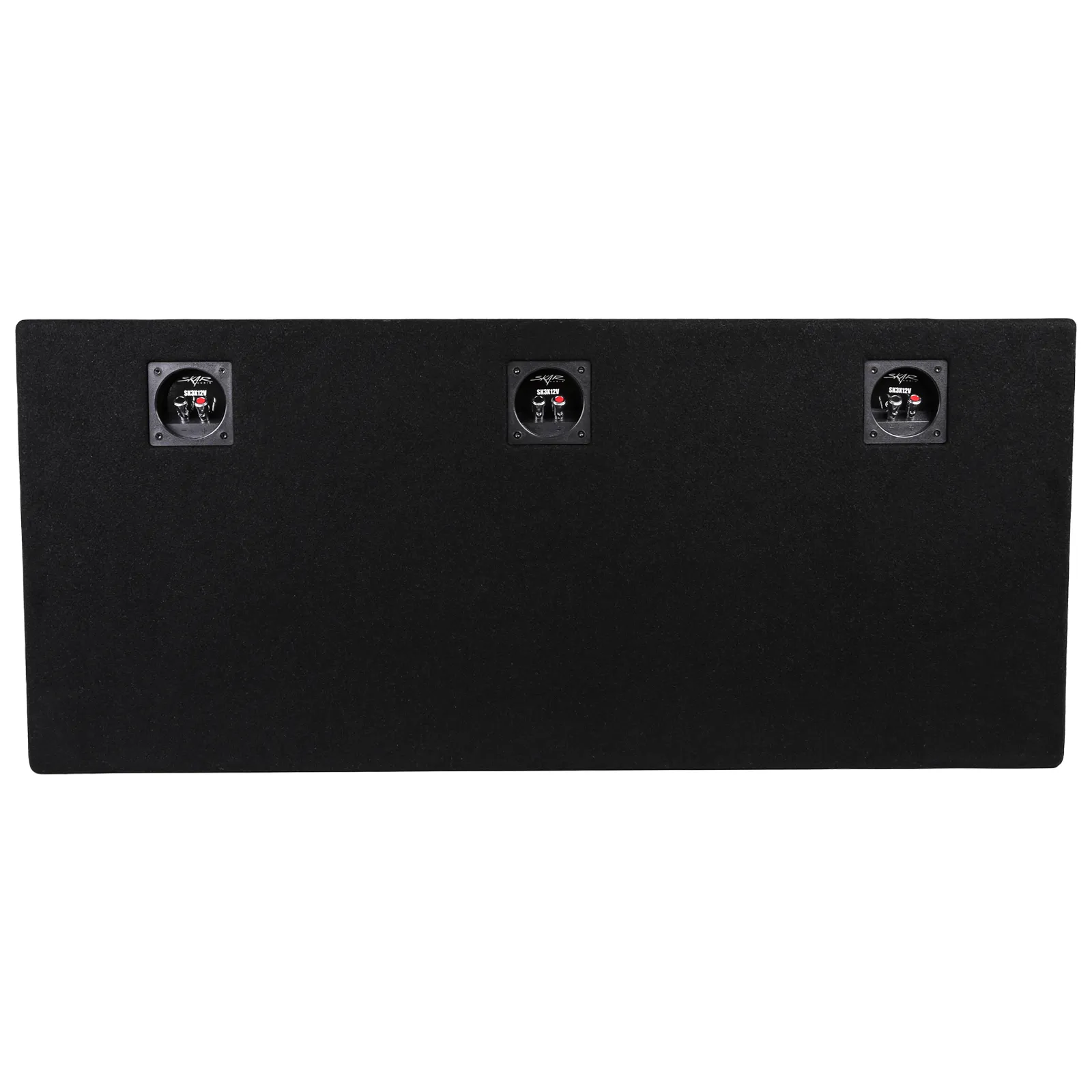

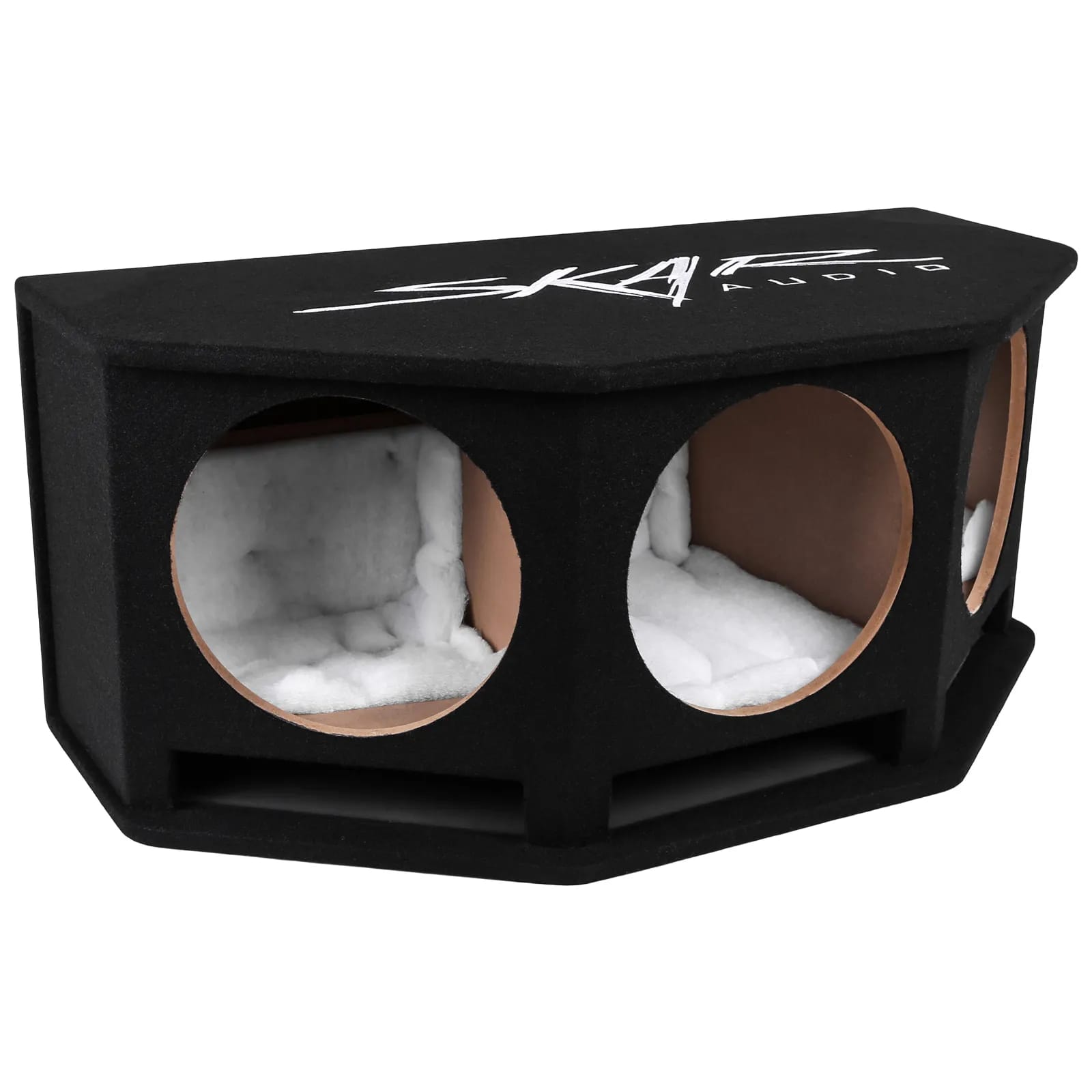

    Internally, we line several walls of the enclosure with poly-fill to enhance the overall versatility and depth of sound that this enclosure reproduces with any given subwoofer. Each subwoofer chamber also features independent terminal cups, which come pre-soldered and wired internally with 16 gauge speaker leads that allow for an easy subwoofer installation. Finally, the enclosure is finished in a premium black trunk liner carpet and features an embroidered Skar Audio logo on the top surface.

  • General Specifications
    Subwoofer Size 12"
    Subwoofer Chambers 3
    Enclosure Type Vented (Ported)
    Port Type Slot Ports (Bottom)
    Fit Type Universal / Rear-firing Angled Design
    Wood Type 5/8" MDF
    Enclosure Finish Premium Black Trunk Liner Carpet
    UPC 810028810594
    MPN SK3X12V
    Technical Specifications
    Total Gross Box Volume 5.25 ft3
    Volume per Subwoofer Chamber 1.75 ft3
    Tuning Frequency of Enclosure 36 Hz
    External Push Terminal Wire Gauge Opening 8 Gauge
    Internal Speaker Wire Leads Pre-soldered | 16 Gauge
    Enclosure External Dimensions
    Width 38.50"
    Depth 19.00"
    Height 16.50"
    Subwoofer Mounting Paramters
    Subwoofer Hole Cut-out Diameter 11.125"
    Subwoofer Maximum Mounting Depth 7.50"
  • Subwoofer Model
    Fits
    IX-12 D2/D4
    VD-12 D2/D4
    SDR-12 D2/D4
    SVR-12 D2/D4
    DDX-12 D2/D4
    EVL-12 D2/D4
    VXF-12 D2/D4
    ZVX-12v2 D1/D2
