Description

The TX525C are part of the Elite speaker series from Skar Audio, and represent the pinnacle of sound reproduction in vehicle applications, These 5.25-inch 2-way component speakers are extremely powerful and efficient, delivering unrivaled sound at the highest power levels with accuracy. With features such as it's 1.25 inch high temperature copper voice coil, as well as a premium ferrite magnet, the driving force of these speakers is unparalleled. The glass fiber cone coupled with the TPE surround of the mid-range woofer allow these speakers to be extremely responsive across a wide range of frequencies. These components feature 1-inch high fidelity silk dome tweeter separates that allow for the ultimate in high end frequency clarity and accuracy. Sold as a pair. 4 Ohm impedance. Frequency Response: 80 Hz - 10 kHz, Sensitivity: 88 dB. Peak Power: 320 Watts (Pair), RMS Power: 80 Watts (Pair).

Specifications

Skar Audio TX525C
5.25" Elite Series 2-Way Component Speaker System
Sold as a Pair
RMS Power : 80 Watts (Pair)
Max Power : 320 Watts (Pair)
1" (25.4mm) High Grade Silk Dome Tweeter
Frequency Response : 80 Hz - 10,000Hz
Sensitivity : 88 dB
1.25" KSV Copper Voice Coil
Glass Fiber Cone and TPE Surround
4 Ohm Impedance
Ferrite Magnet
Steel Basket
Suspension PC Blends
Voice Coil Copper
Former Kapton

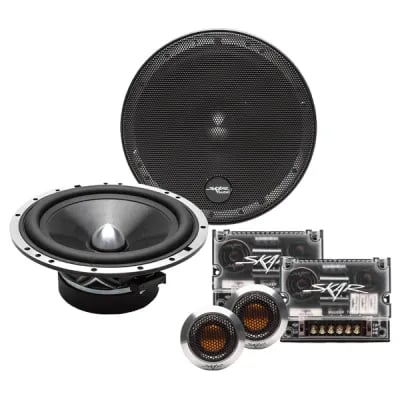

This is a component speaker system and includes 2 midrange speakers, 2 tweeters, and 2 crossover networks, as well as mounting accessories and hardware.
User Manual

Mounting Specifications

Midrange Mounting Depth: 2.17"
Cutout Diameter: 4.5"
