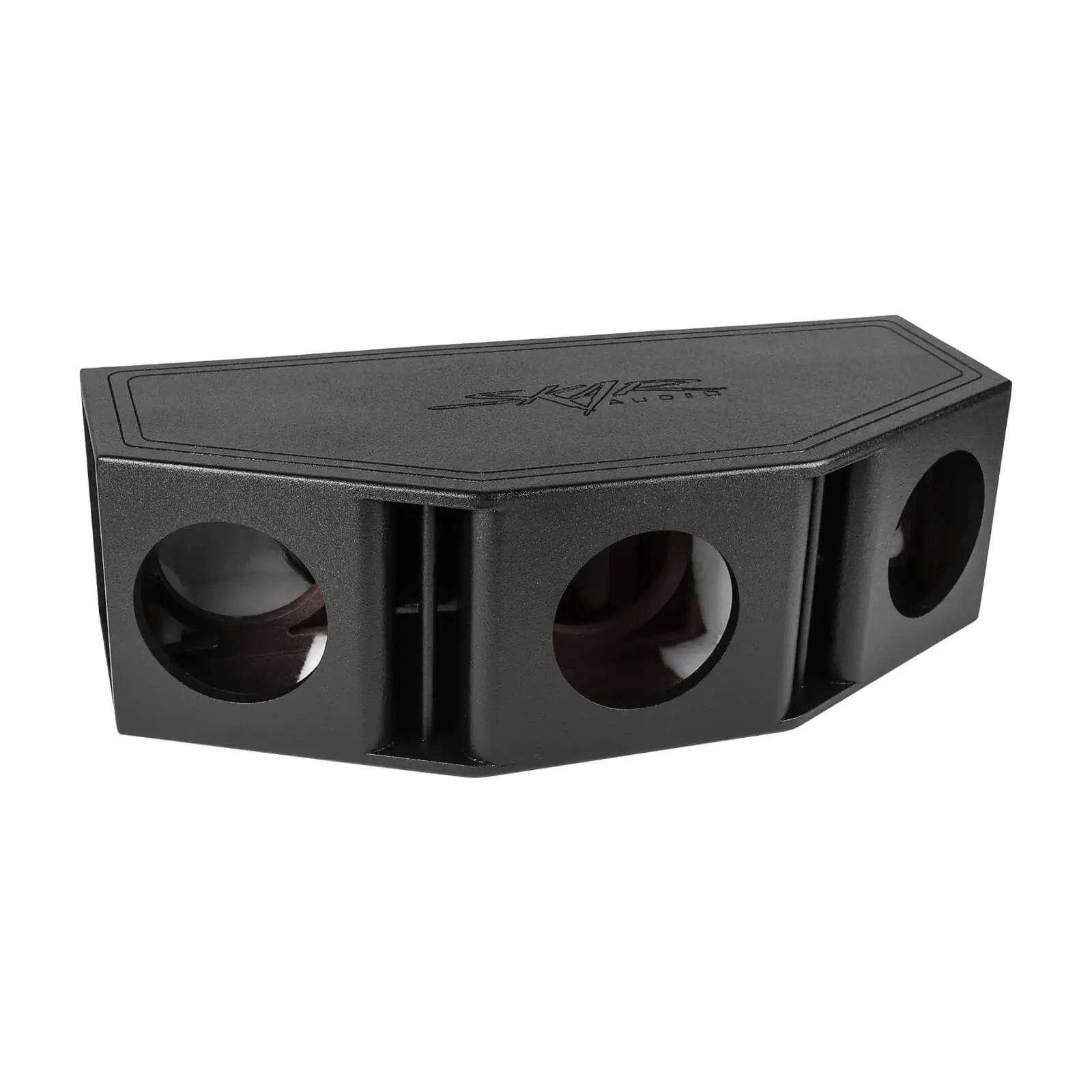

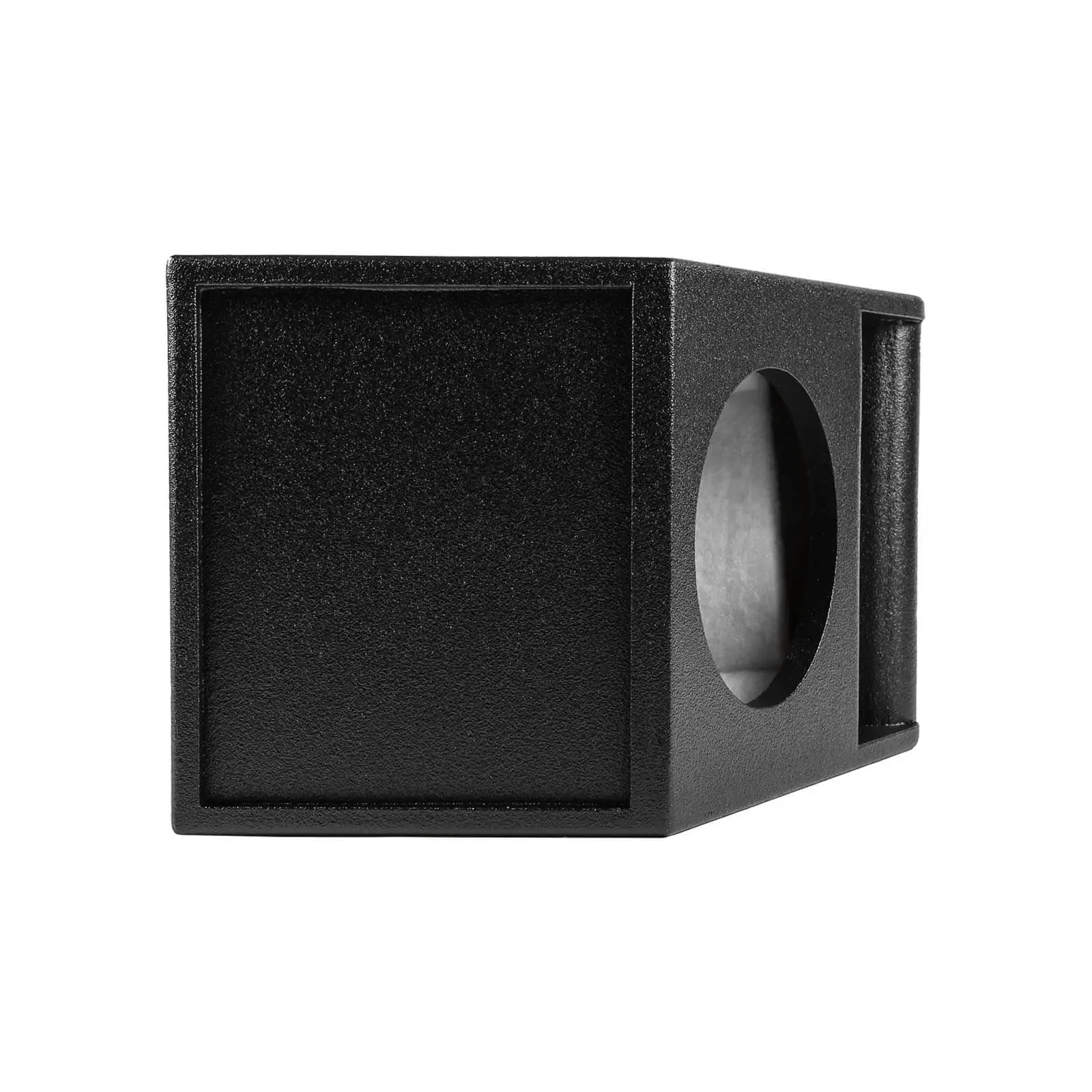

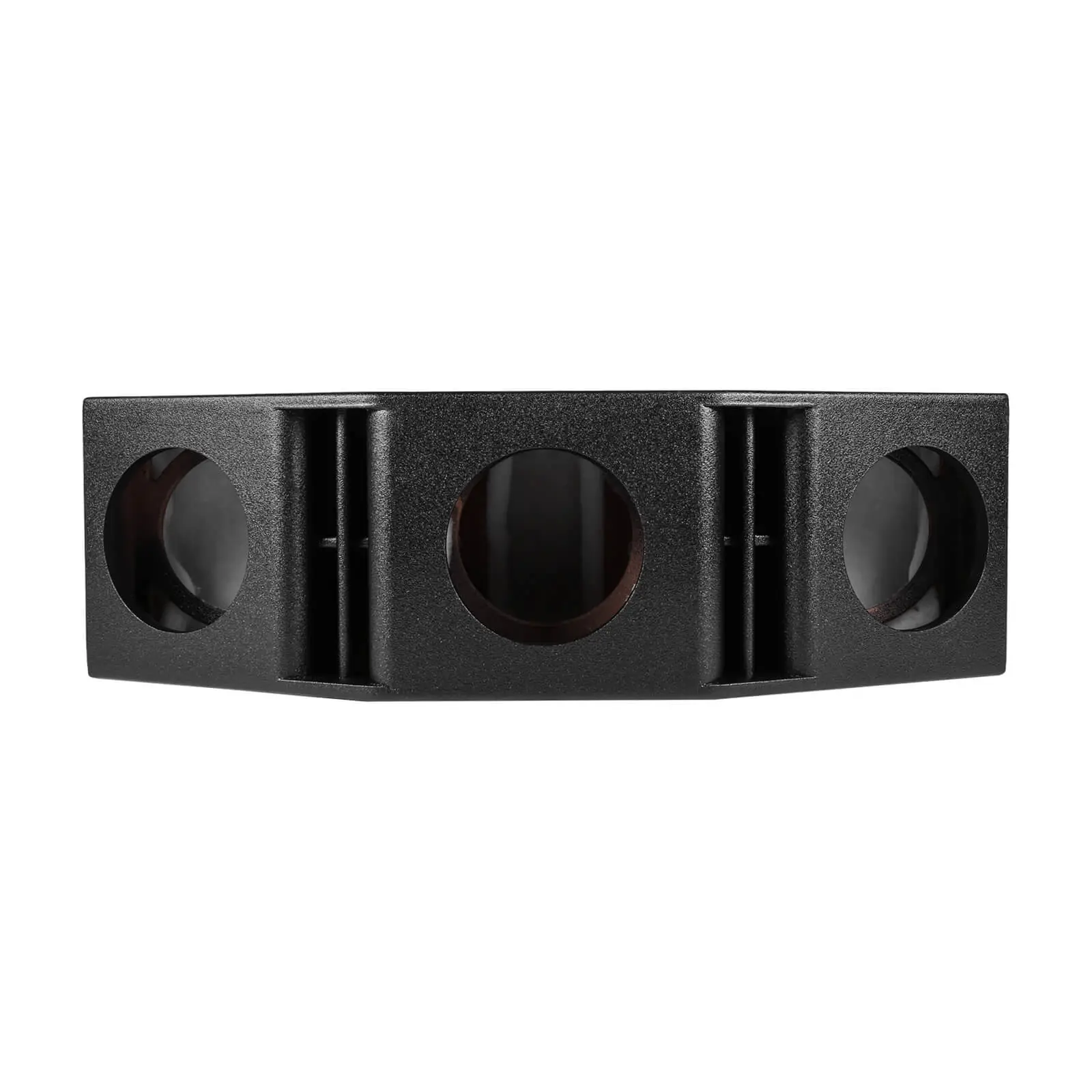

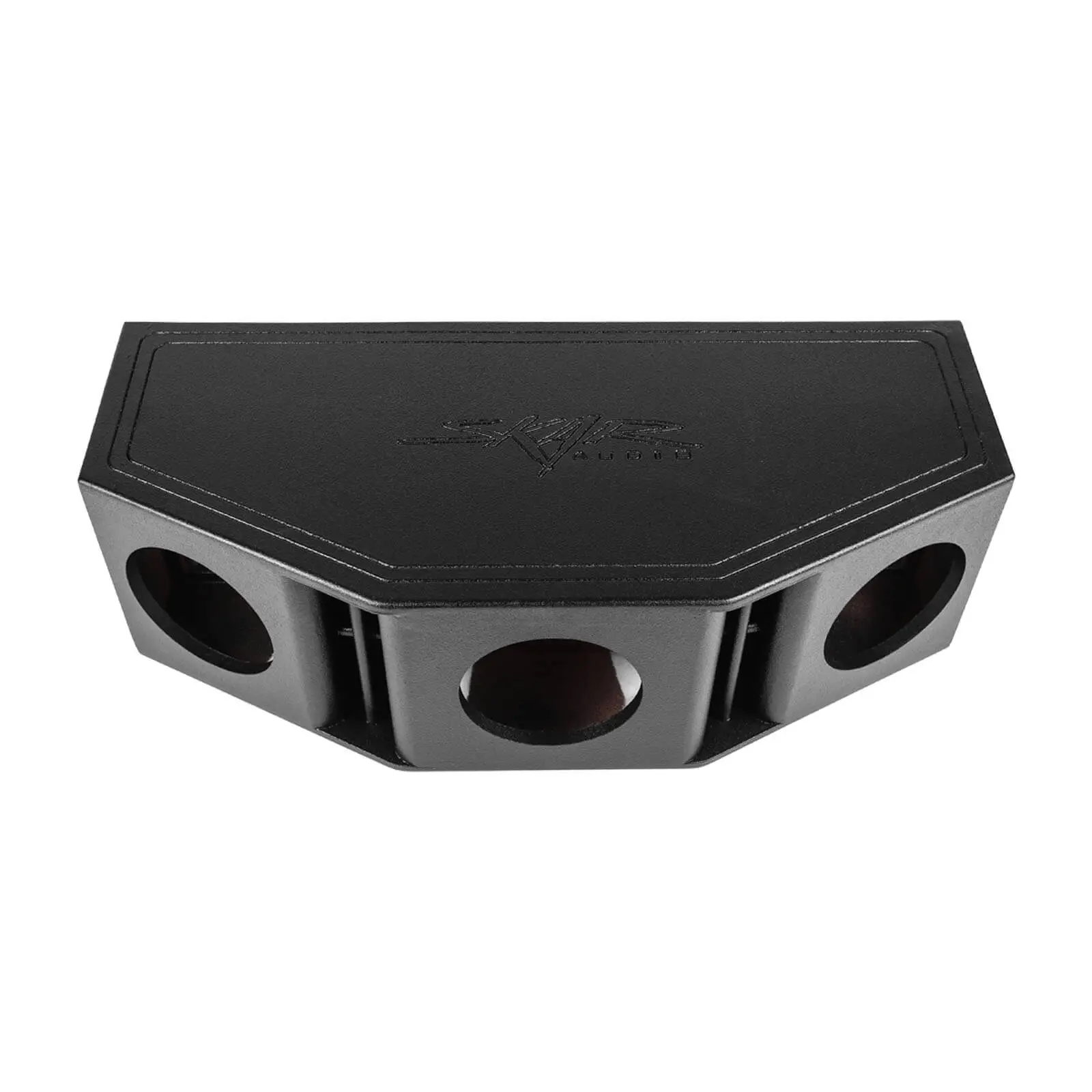

Triple 8" Armor Coated Ported Subwoofer Enclosure

Category
discount
1 Reviews

In Stock
MSRP:$349.99
Price:$229.99
CYBER MONDAY PRICE: $183.99

183.99 18399

The Skar Audio AR3X8V is a high performance, armor coated, triple 8", universal fit, ported subwoofer enclosure. From the minute you open the packaging, it is evident how high quality this enclosure is and that it stands completely in a league of it's own. Unlike any other pre-fabricated, universal fit enclosure the market has ever seen, this triple 8-inch enclosure is the ideal choice for audiophiles seeking to bring the very best performance out in their subwoofers.
Quick Facts
Mounting Depth
8.00"
Cut-Out Diameter
7.50"
Tuning Frequency
45 Hz
Total Gross Air Space (Volume)
2.30 ft3
It starts with the sophisticated engineering behind the independent, triple chamber design of this ported enclosure. Optimally tuned at 45 Hz, each chamber houses it's own subwoofer which isolates the sound pressure created by one subwoofer and routes that pressure through it's own independent port, preventing reverb and interference from other subwoofers (ultimately improving performance).

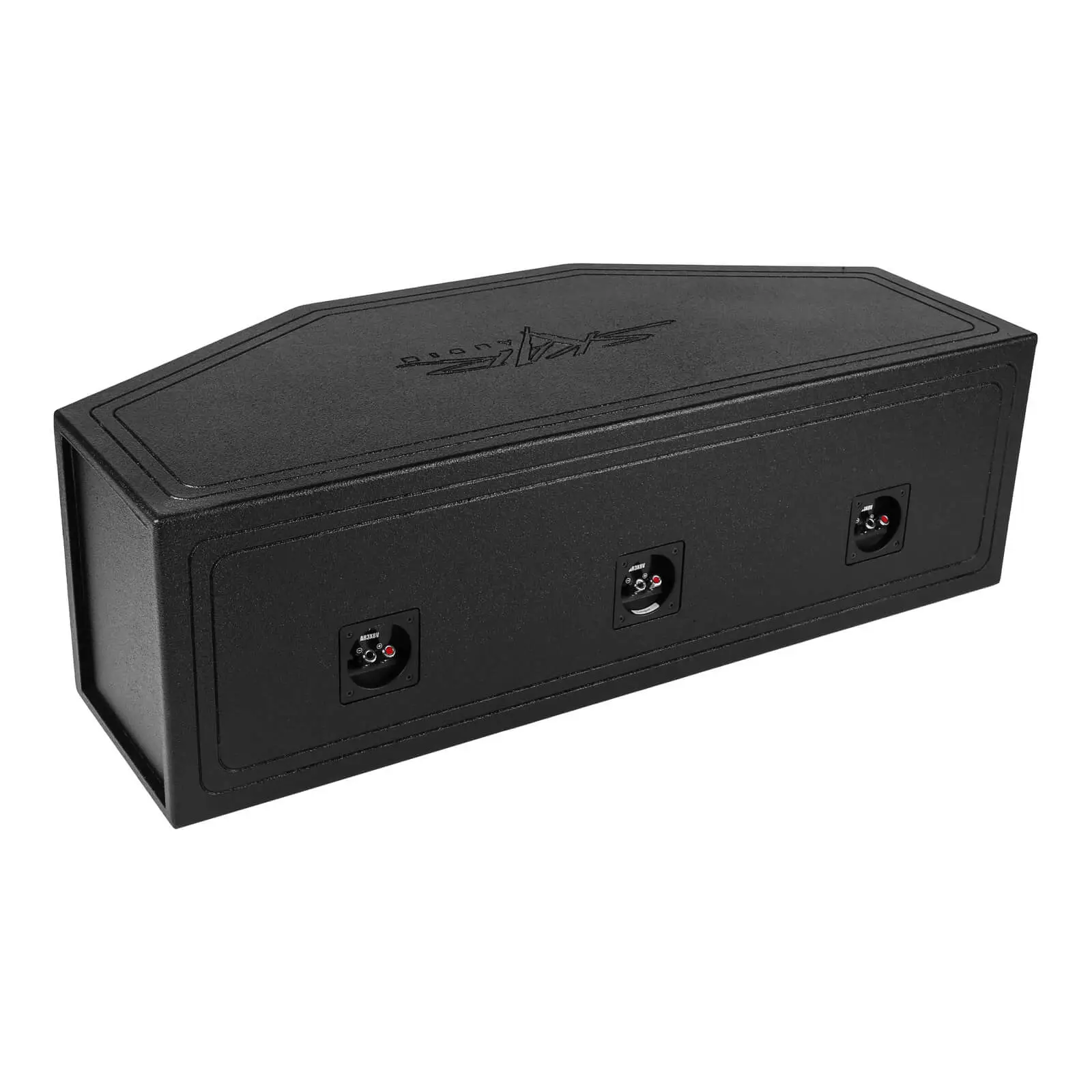

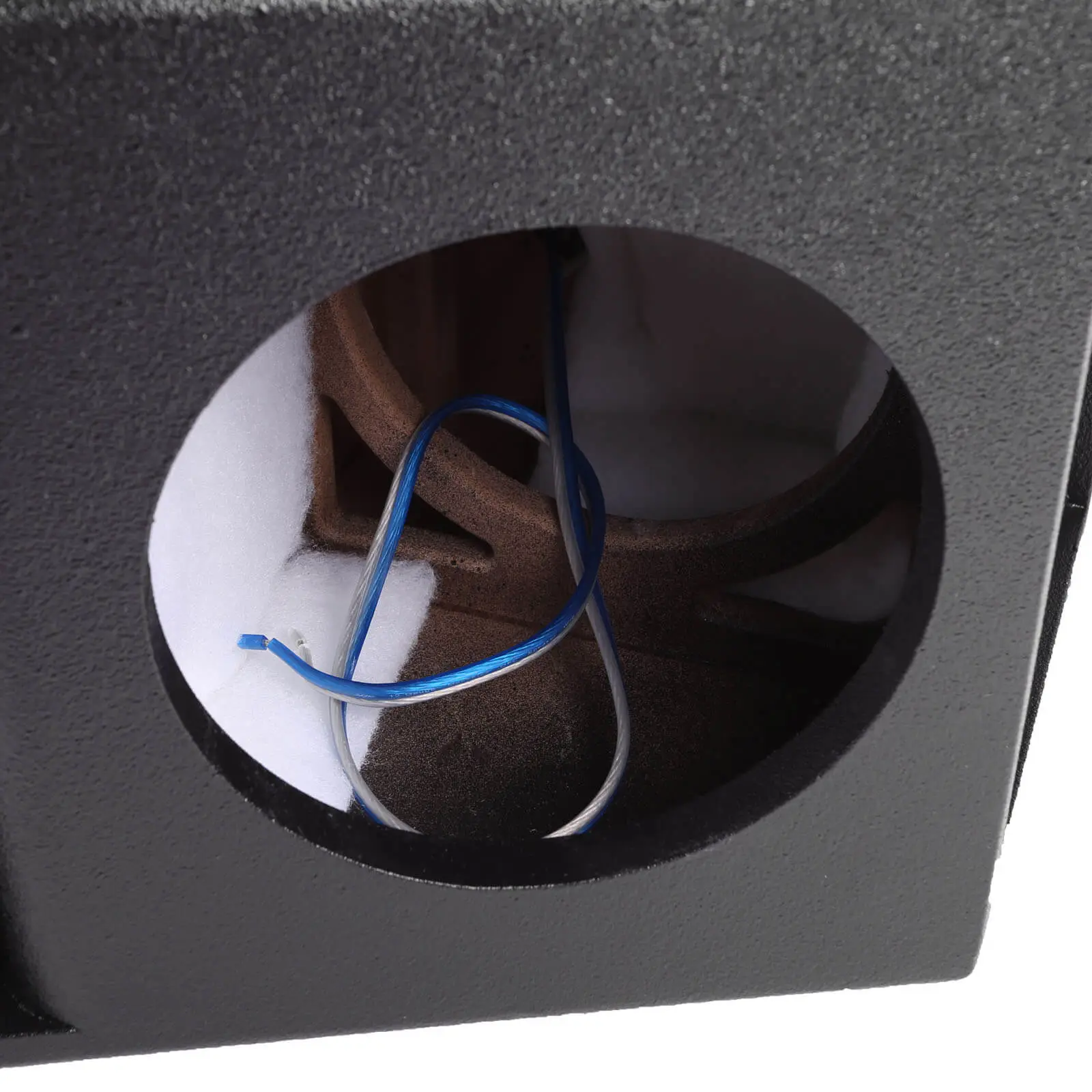

Unparalleled in strength and durability, the entirety of the enclosure is constructed out of ultra-high strength MDF, and is capable of withstanding even the highest levels of sound pressure output. In the rear of the enclosure are the push terminal connectors (one for each subwoofer chamber) which accept 8-gauge wire in, and come pre-wired internally with 12-gauge (OFC) speaker wire leads. Finally, it features a ultra-sleek, high strength, black, armor coated finish.
Product Info
MPN
AR3X8V
UPC
810028812079
General Specifications
Wood Type
MDF
Fitment Type
Universal
Enclosure Type
Ported
Wood Thickness
5/8"
Enclosure Finish
Armor Coated
Fits How Many Subs
3
Enclosure Finish Color
Black
Subwoofer Compatibility Size
8"
Internal Speaker Wire Leads Pre-soldered
12 AWG
External Push Terminal Wire Gauge Opening
8 AWG
Technical Specifications
Port Width
1.10"
Number of Ports
3
Total Box Volume
2.30 Cubic Ft
Number of Subwoofer Chambers
3
Tuning Frequency of Enclosure
45 Hz
Number of Terminal Cup Connections
3
Enclosure External Dimensions
Depth
16.75"
Height
11.85"
Length
38.75"
Subwoofer Mounting Parameters
Subwoofer Hole Cut-out Diameter
7.50"
Subwoofer Maximum Mounting Depth
8.00"

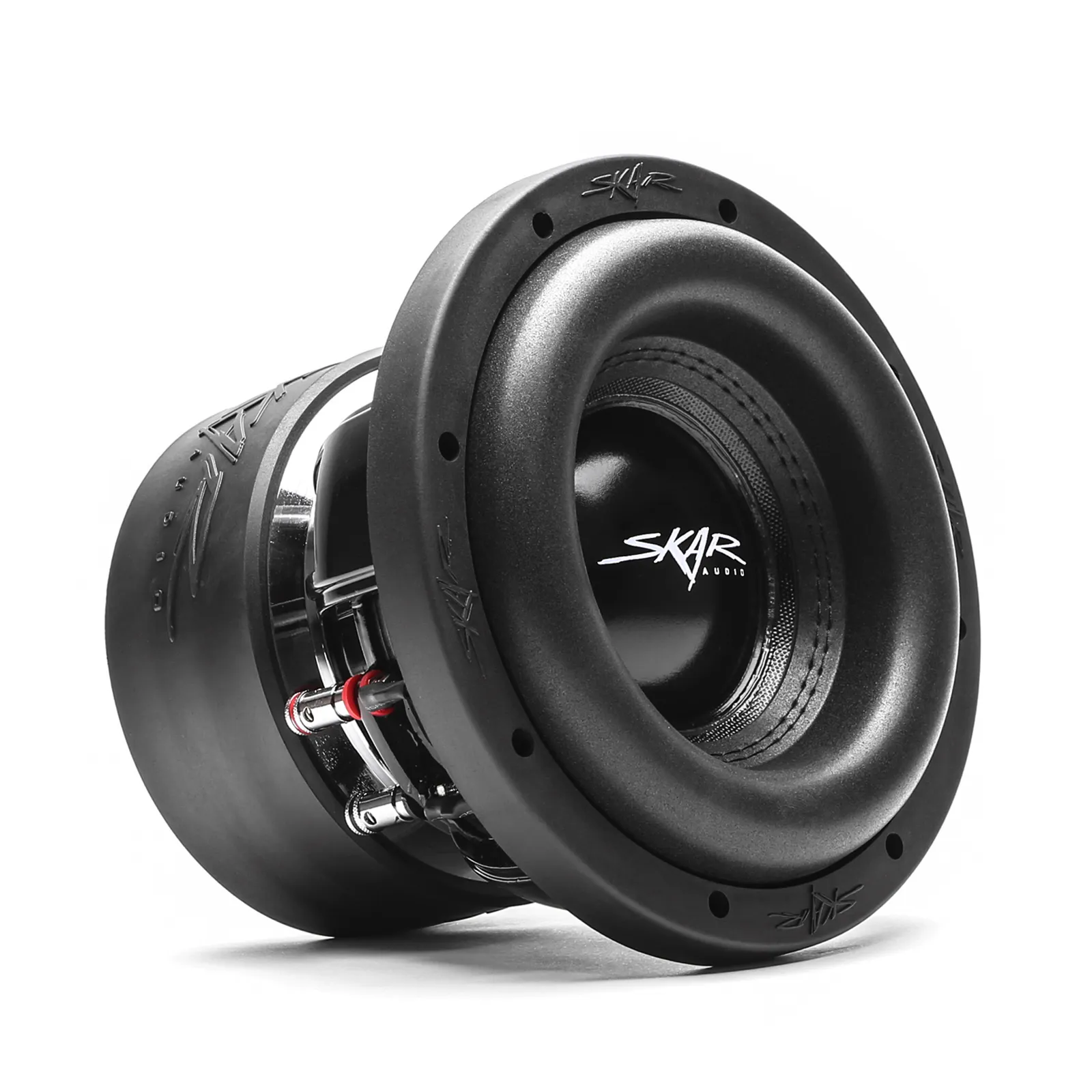

Compatibility Chart
IX-8 D2/D4
✔️
VD-8 D2/D4
✔️
EVL-8 D2/D4
✔️
SDR-8 D2/D4
✔️
SVR-8 D2/D4
✔️
ZVX-8 D2/D4
✔️
