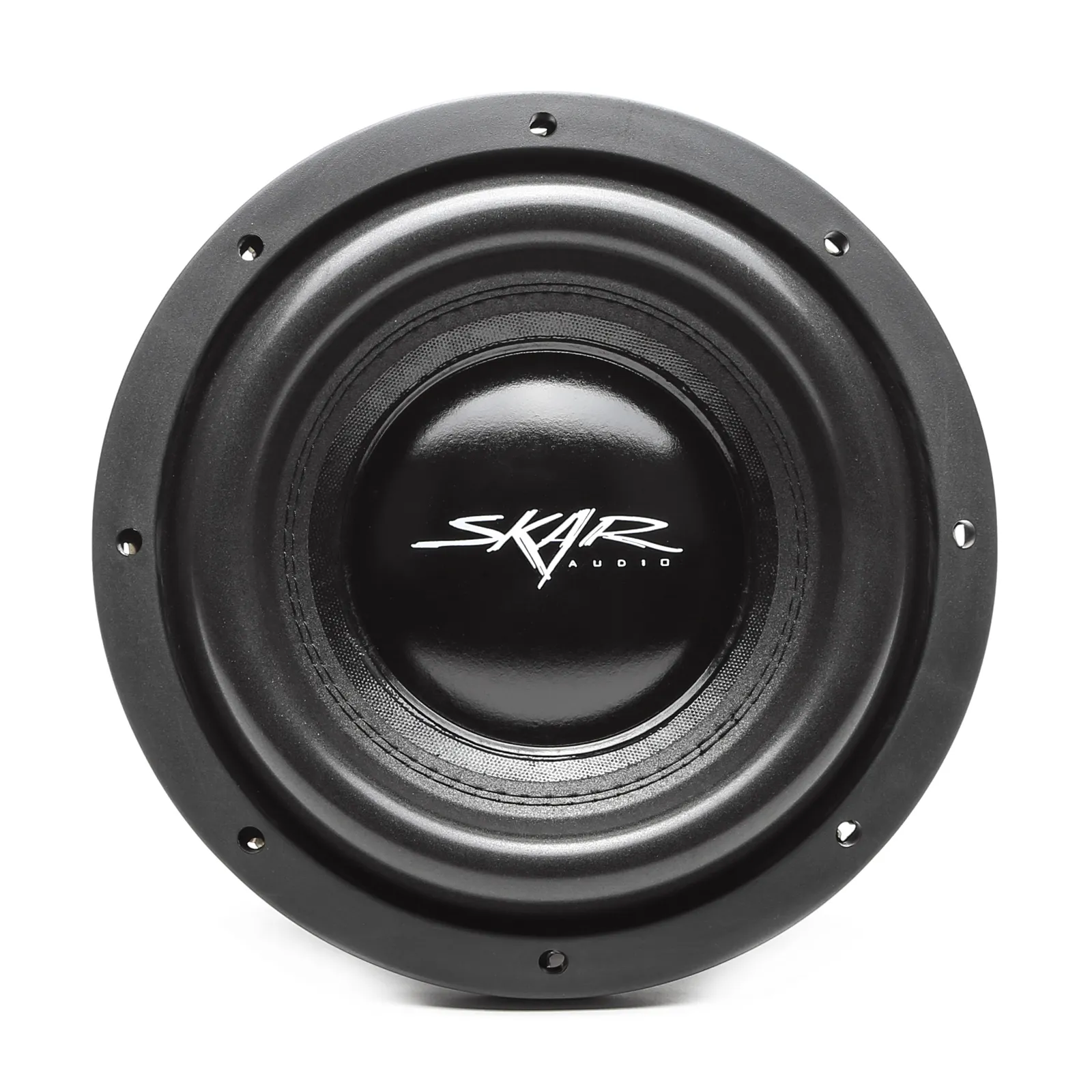

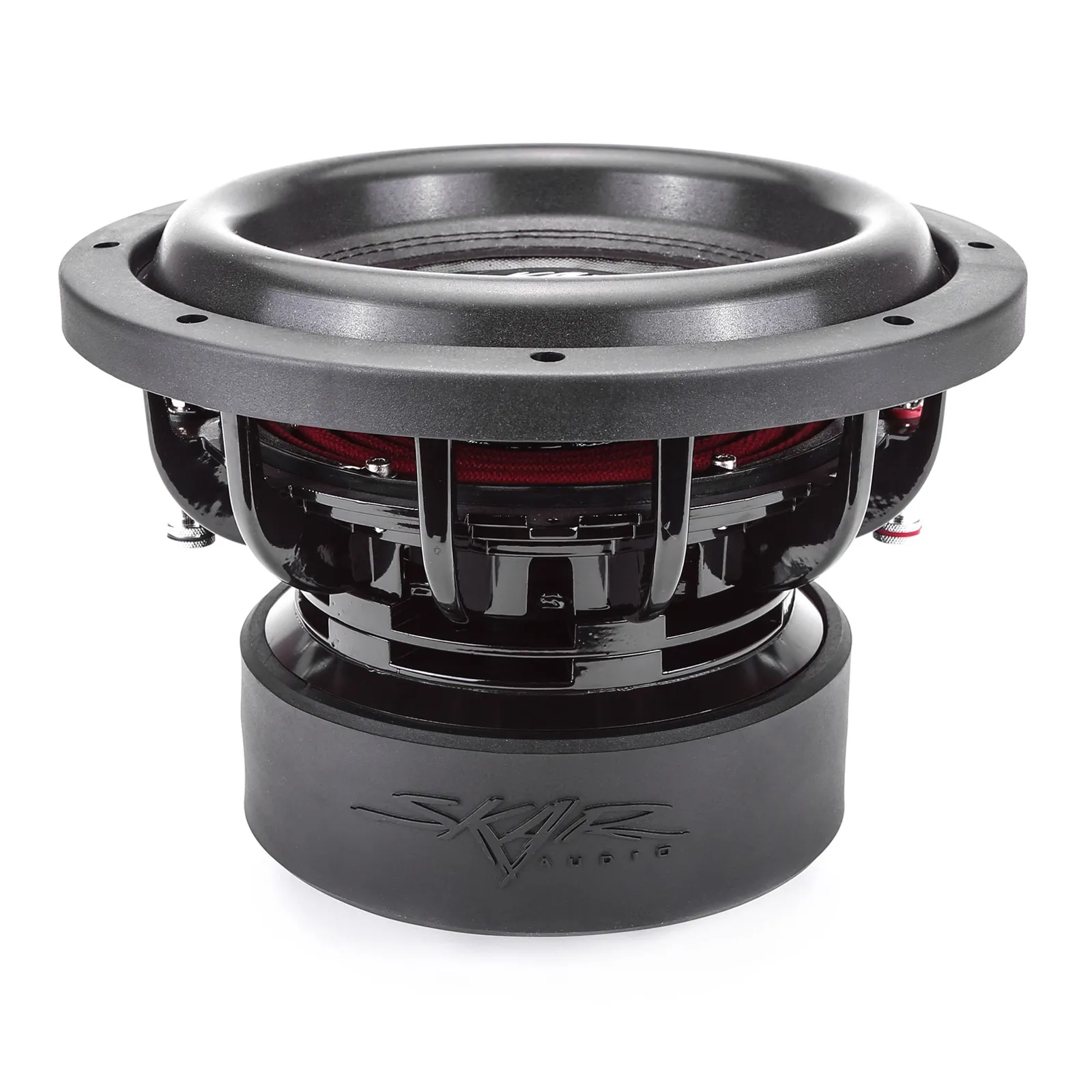

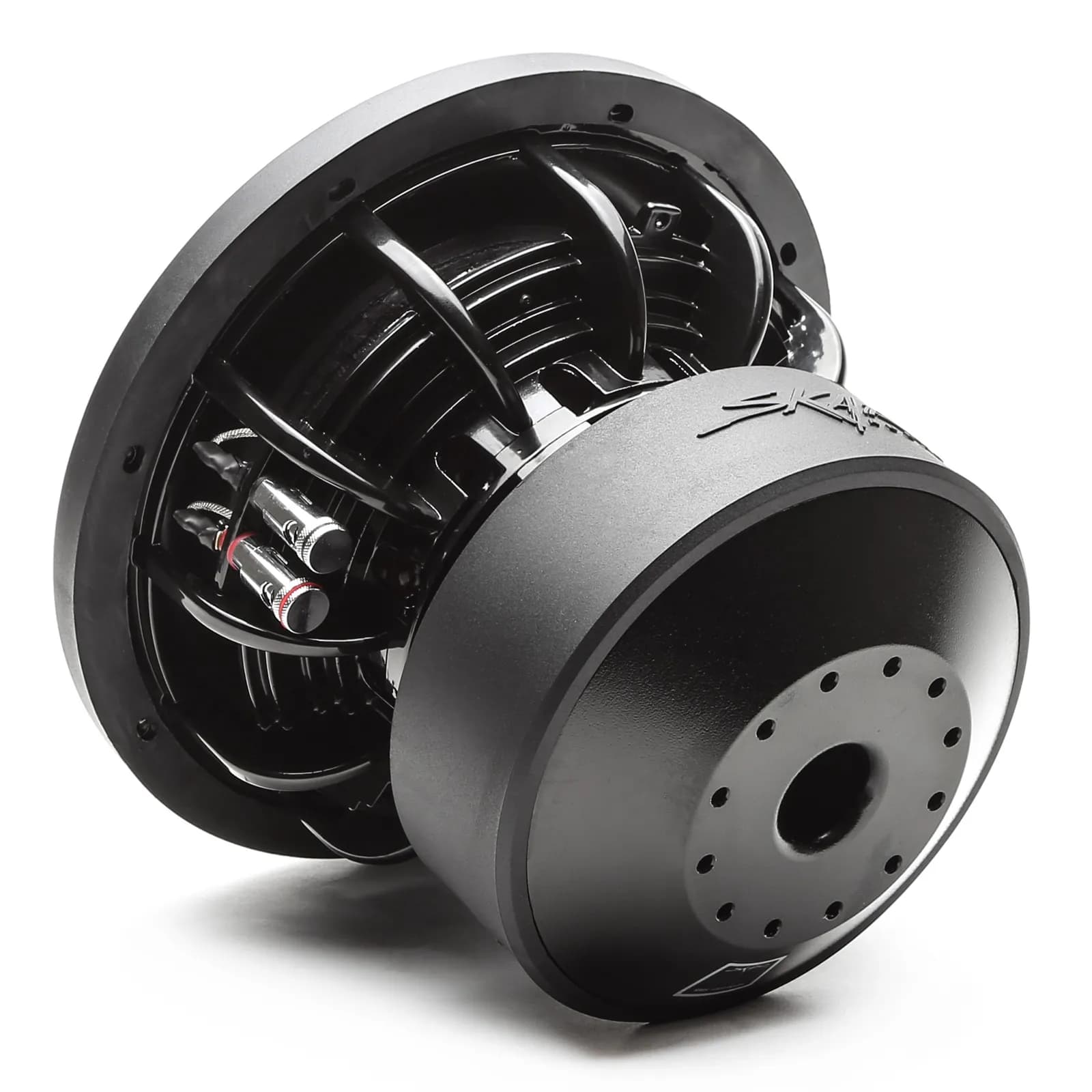

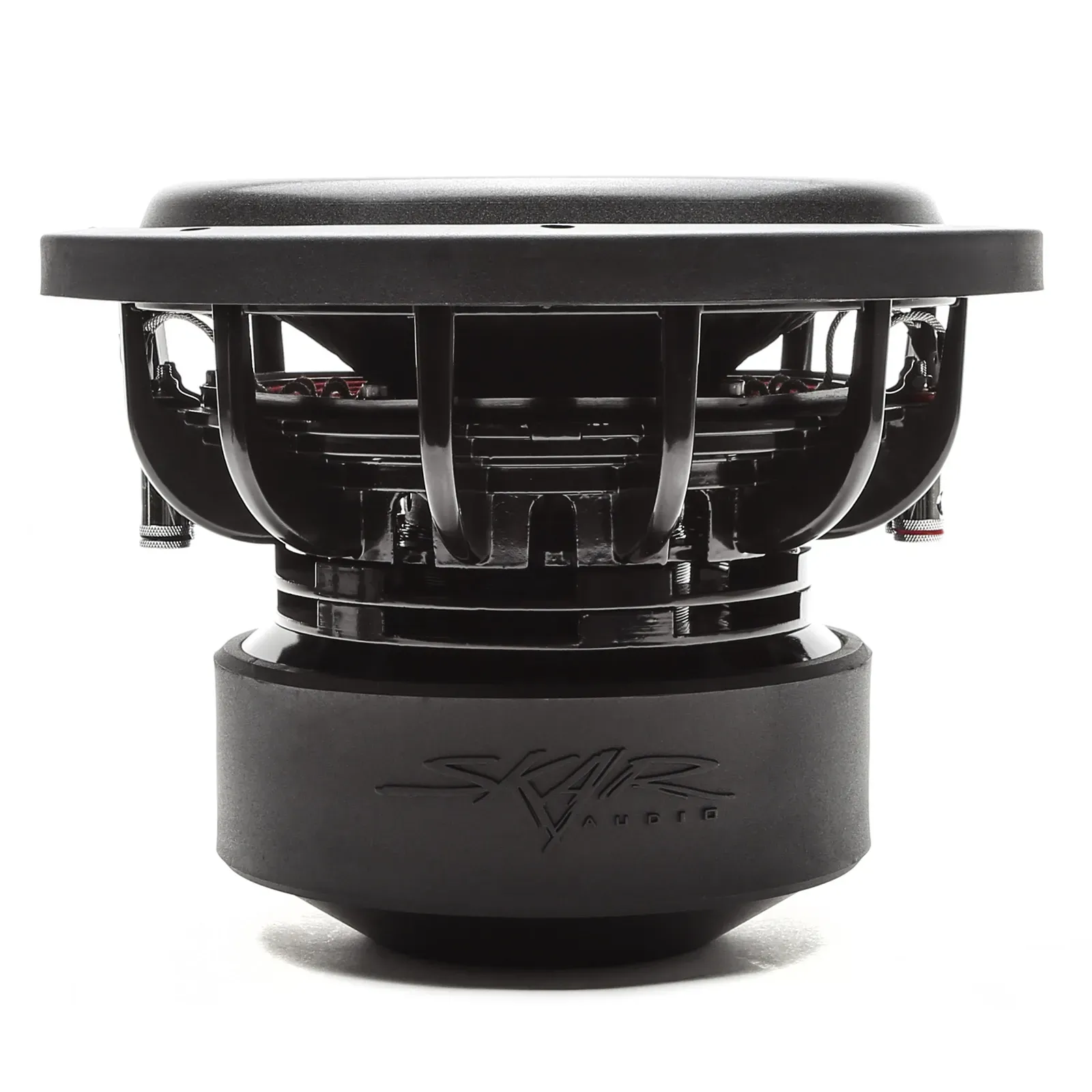

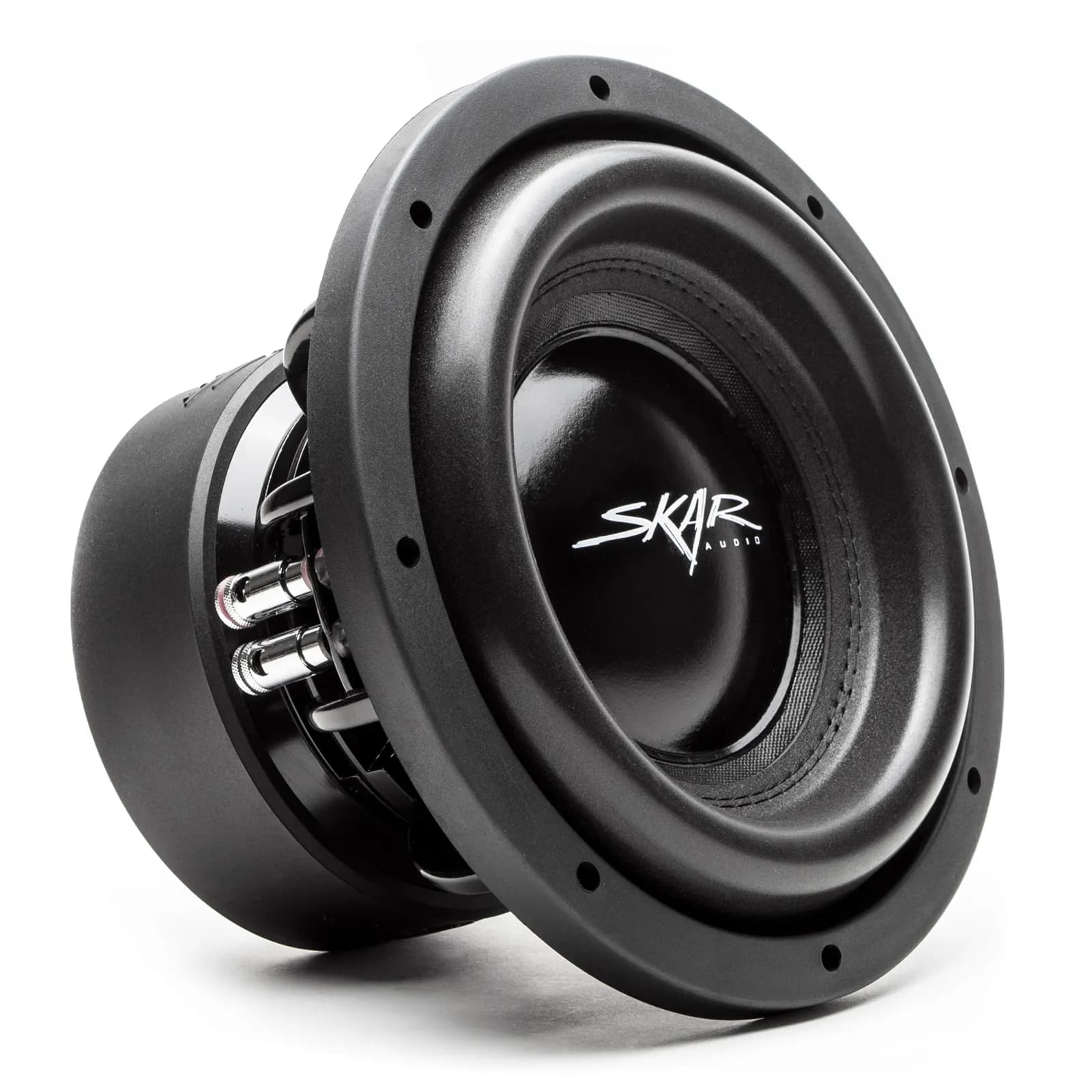

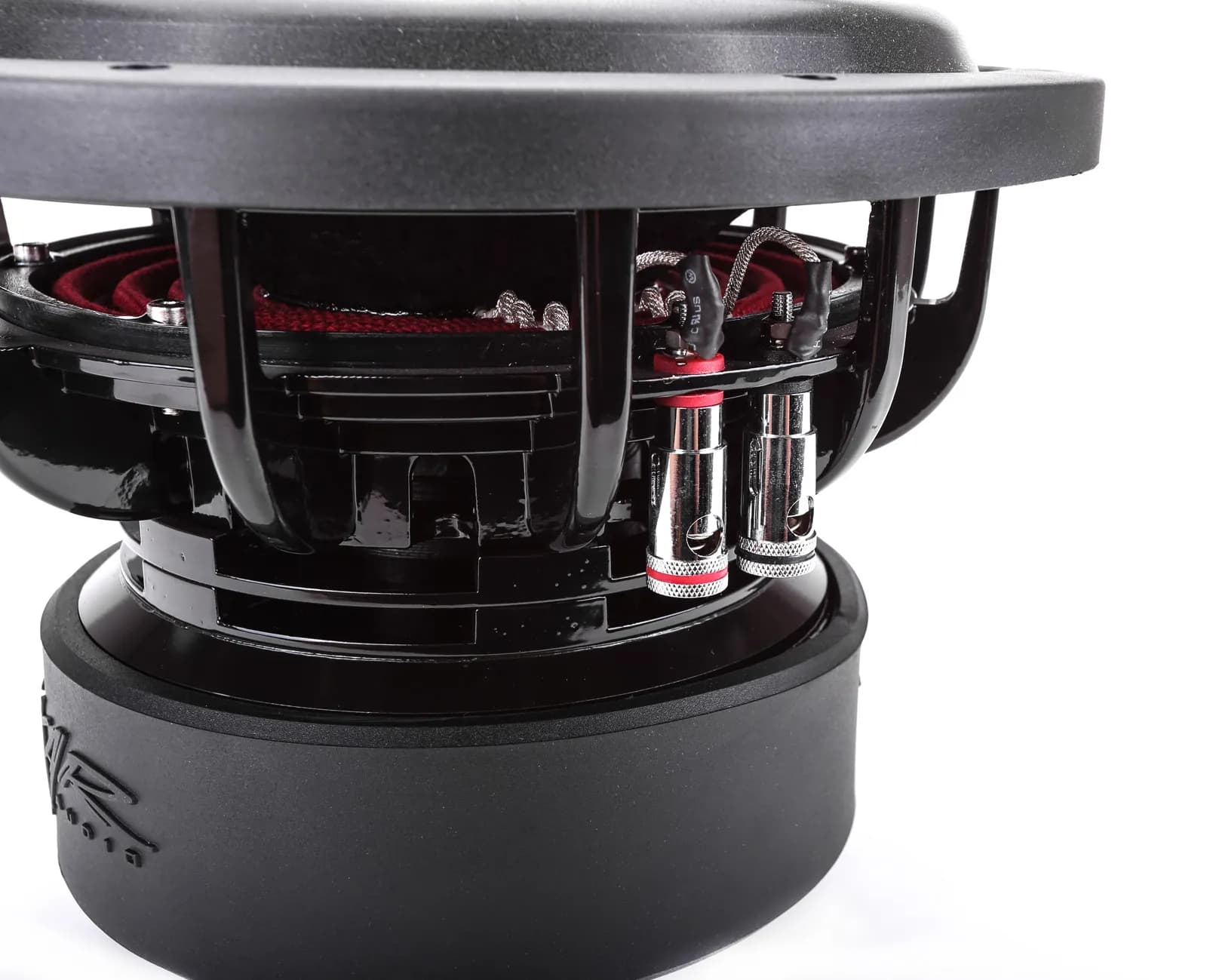

EVL-10 | 10" 2,000 Watt Max Power Car Subwoofer

Coil Configuration
  • The Skar Audio EVL-10 D2 10-inch dual 2-ohm subwoofer redefines the concept of low-end sound reproduction. The engineering that went into developing the EVL series is simply amazing, and it shows in the sound quality and performance that this subwoofer demonstrates. The EVL-10 can deliver incredibly accurate and powerful bass, due to a variety of unique, advanced design features that put this subwoofer in a class of its own.

    Conservatively rated at 2,000 watts peak power, the EVL-10 D2 features a massive high flux, double stack ferrite motor structure - which delivers the driving force behind the tremoring lows this subwoofer can produce. Combine the motor with the black coated 3" high temperature voice coil of this driver, as well as the advanced air flow cooling design of the basket, and it quickly becomes evident why this woofer is capable of being played at the highest levels of output for hours on end.

    Furthermore, the high roll foam surround incorporated into the design of this subwoofer is one of the reasons it can produce those ultra-low-end frequencies with such responsiveness. The suspension design of this subwoofer features the EVL's signature red, single damper, two-layer spider - which connects to the coil former with premium stitched lead wires. All these incredible features make this EVL subwoofer the unequivocal choice when looking for a high-quality car subwoofer.

    RMS Power Handling 1,000 Watts
    Peak Power Handling 2,000 Watts
    Voice Coil Size 3.0"
    Voice Coil Configuration Dual 2 Ω
    • 10-inch Dual 2 Ohm Voice Coil Configuration
    • Peak Power: 2,000 Watts
    • RMS Power: 1,000 Watts
    • Competition Grade Pressed Paper Cone
    • Stitched High Roll Foam Surround
    • Advanced Air Flow Cooling System
    • 3" 4-Layer Black Aluminum CCAW Voice Coil
    • Motor Weight: 166 oz
    • Frequency Response: 28 - 300 Hz
    • Sensitivity: 82.1 dB
    • Fs: 44 Hz
    • Re: Dual 2 Ω
    • Qms: 5.44
    • Qes: 0.66
    • Qts: 0.59
    • Mms: 258.6 gr
    • Cms: 0.048 mm/N
    • Bl: 20.9 n/a
    • Vas: 6.8 L
    • Sd: 314.1 cm²
    • Xmax: 23.5 mm

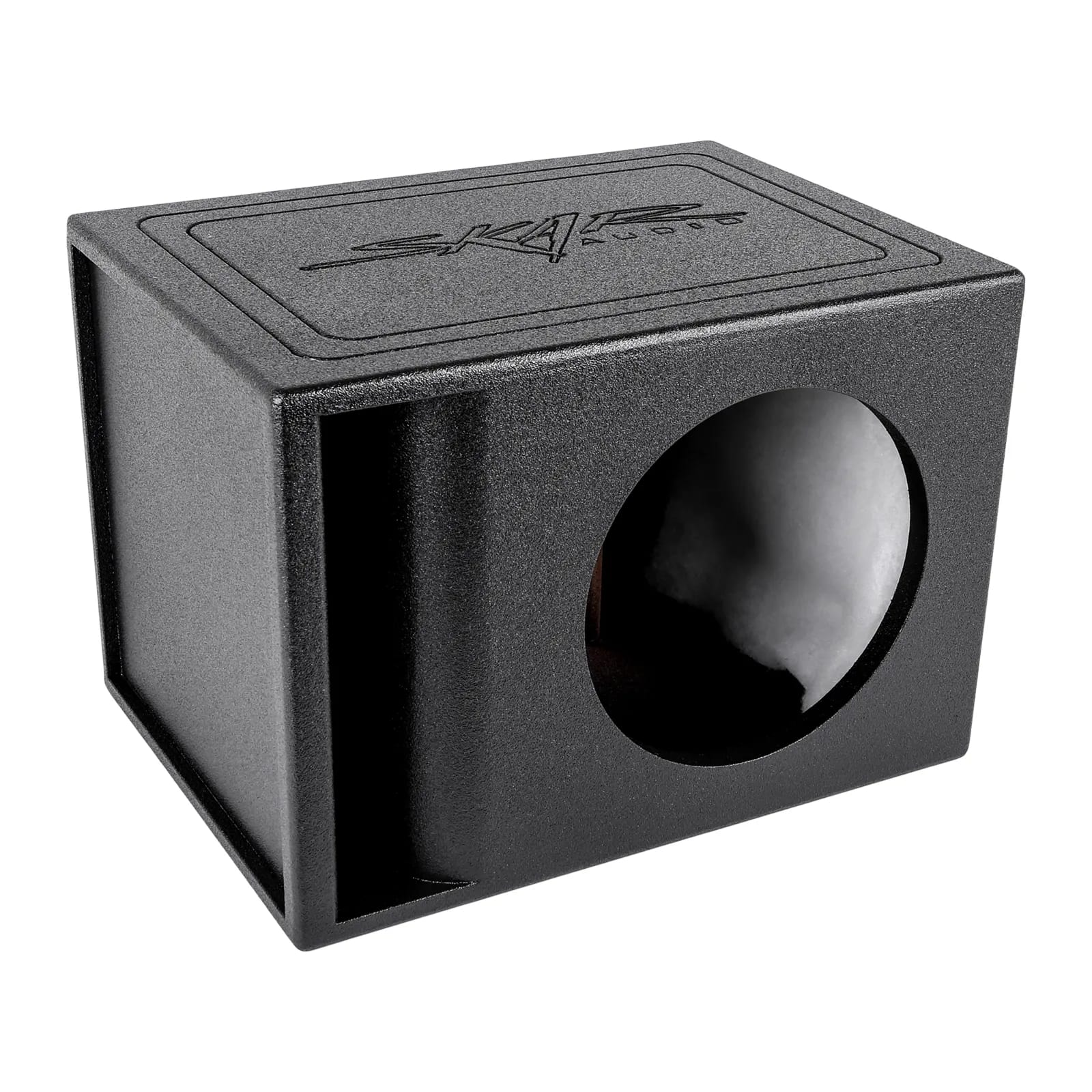

  • Recommended Enclosure Specifications
    • Recommended Sealed Volume: 1.25 ~ 1.50 ft³
    • Recommended Ported Volume: 1.75 ~ 2.00 ft³
    • Recommended Port Area: 22.0 in²
    • Recommended Tuning Frequency: 40 Hz
    • Enclosure recommendations above do not include subwoofer, bracing, and port displacement
    Subwoofer Measurements
    Cut-out Diameter 9.38"
    Mounting Depth 7.13"
    Total Height 8.25"
    Outside Diameter 10.91"
    Magnet Diameter 7.35"
  • The Skar Audio EVL-10 D4 10-inch dual 4-ohm subwoofer redefines the concept of low-end sound reproduction. The engineering that went into developing the EVL series is simply amazing, and it shows in the sound quality and performance that this subwoofer demonstrates. The EVL-10 can deliver incredibly accurate and powerful bass, due to a variety of unique, advanced design features that put this subwoofer in a class of its own.

    Conservatively rated at 2,000 watts peak power, the EVL-10 D4 features a massive high flux, double stack ferrite motor structure - which delivers the driving force behind the tremoring lows this subwoofer can produce. Combine the motor with the black coated 3" high temperature voice coil of this driver, as well as the advanced air flow cooling design of the basket, and it quickly becomes evident why this woofer is capable of being played at the highest levels of output for hours on end.

    Furthermore, the high roll foam surround incorporated into the design of this subwoofer is one of the reasons it can produce those ultra-low-end frequencies with such responsiveness. The suspension design of this subwoofer features the EVL's signature red, single damper, two-layer spider - which connects to the coil former with premium stitched lead wires. All these incredible features make this EVL subwoofer the unequivocal choice when looking for a high-quality car subwoofer.

    RMS Power Handling 1,000 Watts
    Peak Power Handling 2,000 Watts
    Voice Coil Size 3.0"
    Voice Coil Configuration Dual 4 Ω
    • 10-inch Dual 4 Ohm Voice Coil Configuration
    • Peak Power: 2,000 Watts
    • RMS Power: 1,000 Watts
    • Competition Grade Pressed Paper Cone
    • Stitched High Roll Foam Surround
    • Advanced Air Flow Cooling System
    • 3" 4-Layer Black Aluminum CCAW Voice Coil
    • Motor Weight: 166 oz
    • Frequency Response: 28 - 300 Hz
    • Sensitivity: 81.9 dB
    • Fs: 45 Hz
    • Re: Dual 4 Ω
    • Qms: 5.21
    • Qes: 0.69
    • Qts: 0.62
    • Mms: 243.2 gr
    • Cms: 0.046 mm/N
    • Bl: 12.3 n/a
    • Vas: 6.5 L
    • Sd: 314.1 cm²
    • Xmax: 23.5 mm
  • Recommended Enclosure Specifications
    • Recommended Sealed Volume: 1.25 ~ 1.50 ft³
    • Recommended Ported Volume: 1.75 ~ 2.00 ft³
    • Recommended Port Area: 22.0 in²
    • Recommended Tuning Frequency: 40 Hz
    • Enclosure recommendations above do not include subwoofer, bracing, and port displacement
    Subwoofer Measurements
    Cut-out Diameter 9.38"
    Mounting Depth 7.13"
    Total Height 8.25"
    Outside Diameter 10.91"
    Magnet Diameter 7.35"


Customer Reviews

Based on 63 reviews
98%
(62)
2%
(1)
0%
(0)
0%
(0)
0%
(0)
k
k.h.
My kickass subs

Ok got my box finished and my amp board done going to put it all in as soon as I get my explorer out of the shop lol I will post more pics as soon as I put it back in , lol did not want to leave it in as it sat outside the shop , I have 4 10in evl and 2 rp1500 amps omg cant wait to hear it , if heard it one 1 amp cant wait to shake the ground with 2 amps

R
R.
Very Beefy speakers

Very beefy magnets these thing weight a ton hoping same quality from these as my sdr 15 have yet to use them since I got to up date electrial ..

k
k.f.
Evl 10" in a 4th order

Purchased this who 10" for my wifes van put it in a 4th order birch box on a 2400w hifonics amp and still on low power breaking it in sounds amazing! Cant wait to crank some more power to it

a
a.k.
gottta update my last review

well since I wasn't happy I went out to see if maybe the issue was my end somehow, well I said screw it and went and got a 165 amp altinator built (compared to my 85 amp)
used 0gauge wire to hook up bat to alt, and used 0 for my main 2 grounds and well now I can actually say im impressed with this little 10, hits just as hard as the VXF15 I had from skar
so yeah if ur gonan run this equipment, make sure ur do ur upgrades or ur not gonna be happy at all like I was but now I cant wait for it to break in running the evl10 on the rp800.1 gain 3/4 up but I have a eq/line driver that's adds some power to it and WOW that's all I can say now is WOW
skar has won me back yet again

Z
Z.S.
Banger

The 10 I received is awesome. I have it in a 1.75cuft ported enclosure. Very crisp bass and great response. I went from 3x 8-SDRs to this and I'm in love. I listen to mostly deathcore and metalcore and this sub fills in nicely for those genres.
