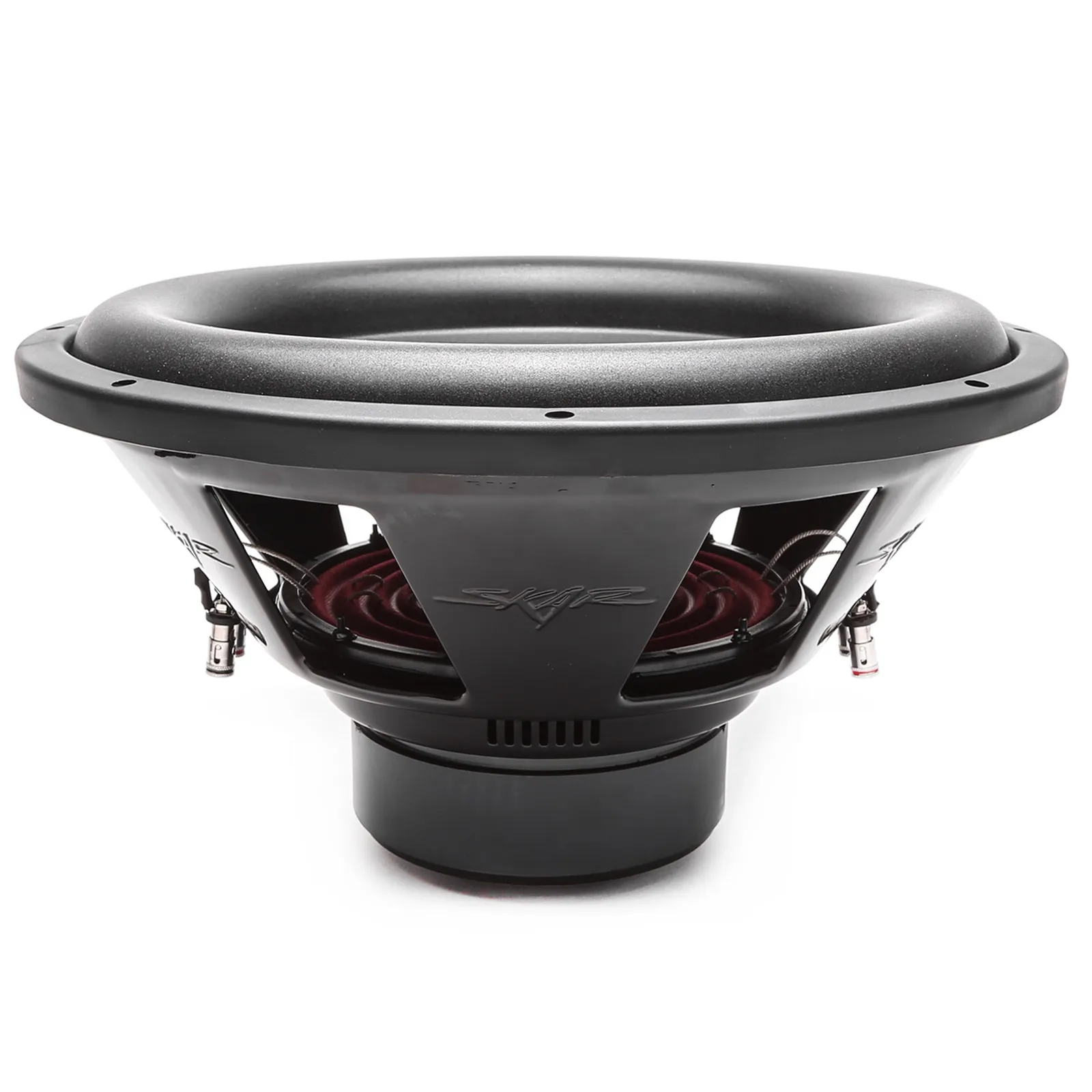

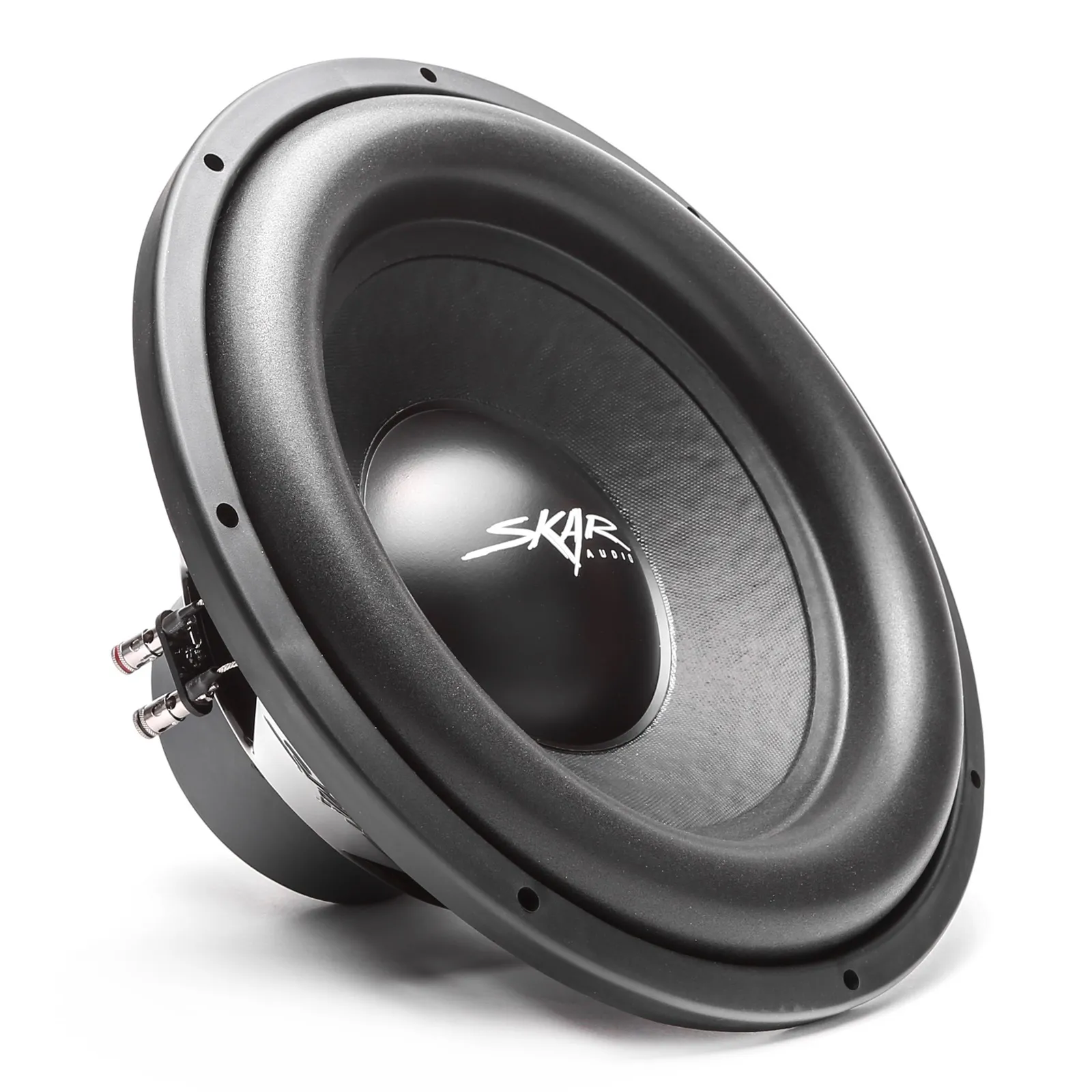

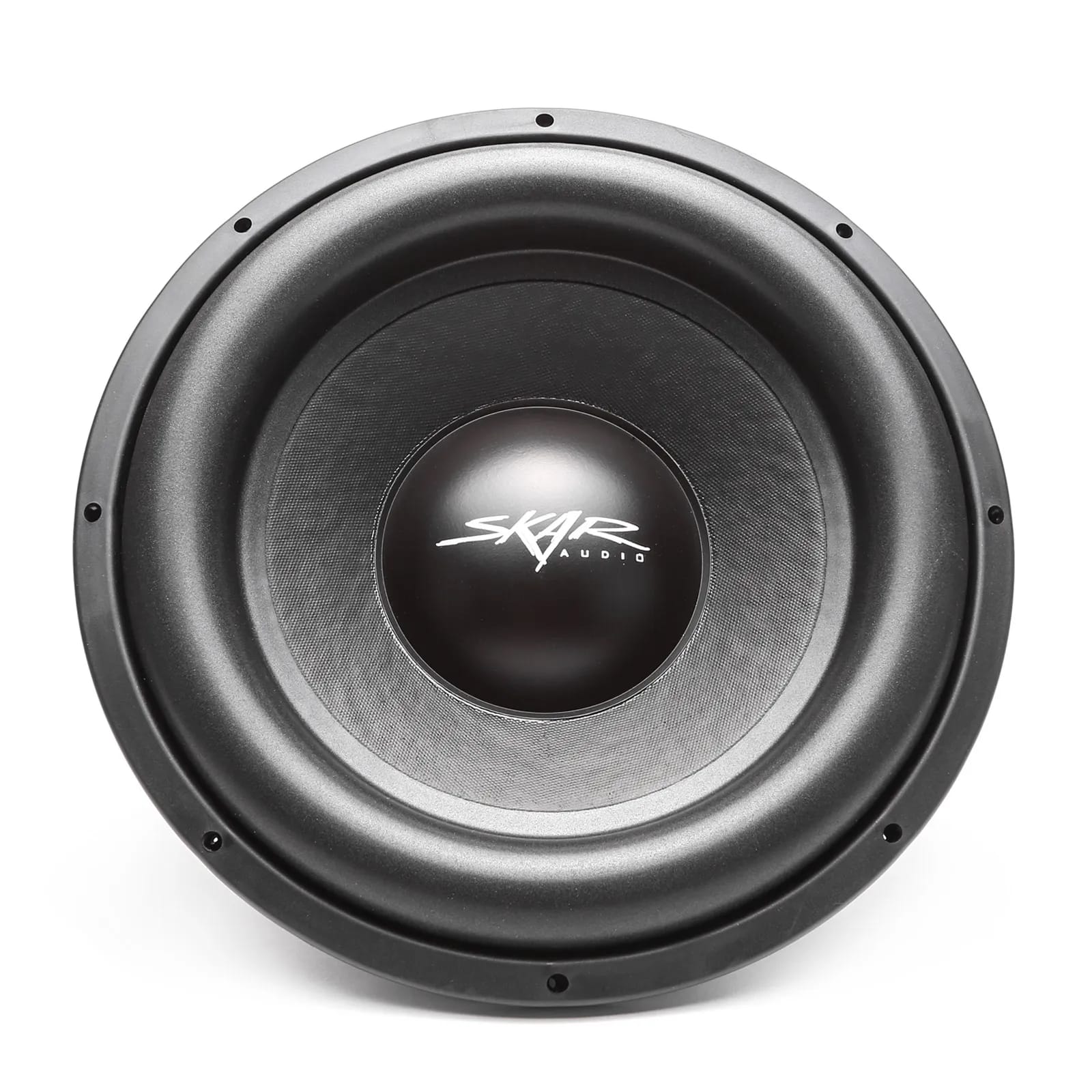

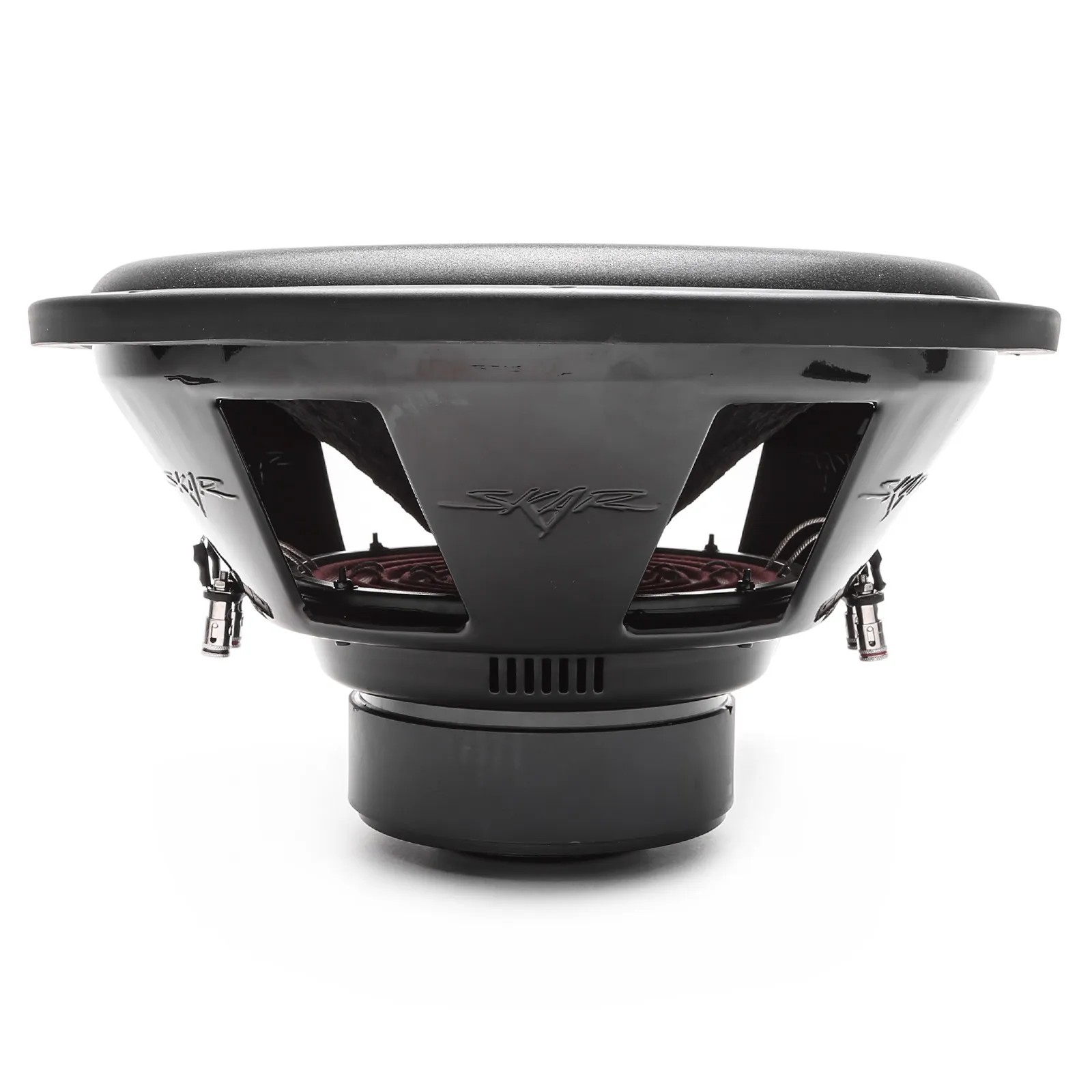

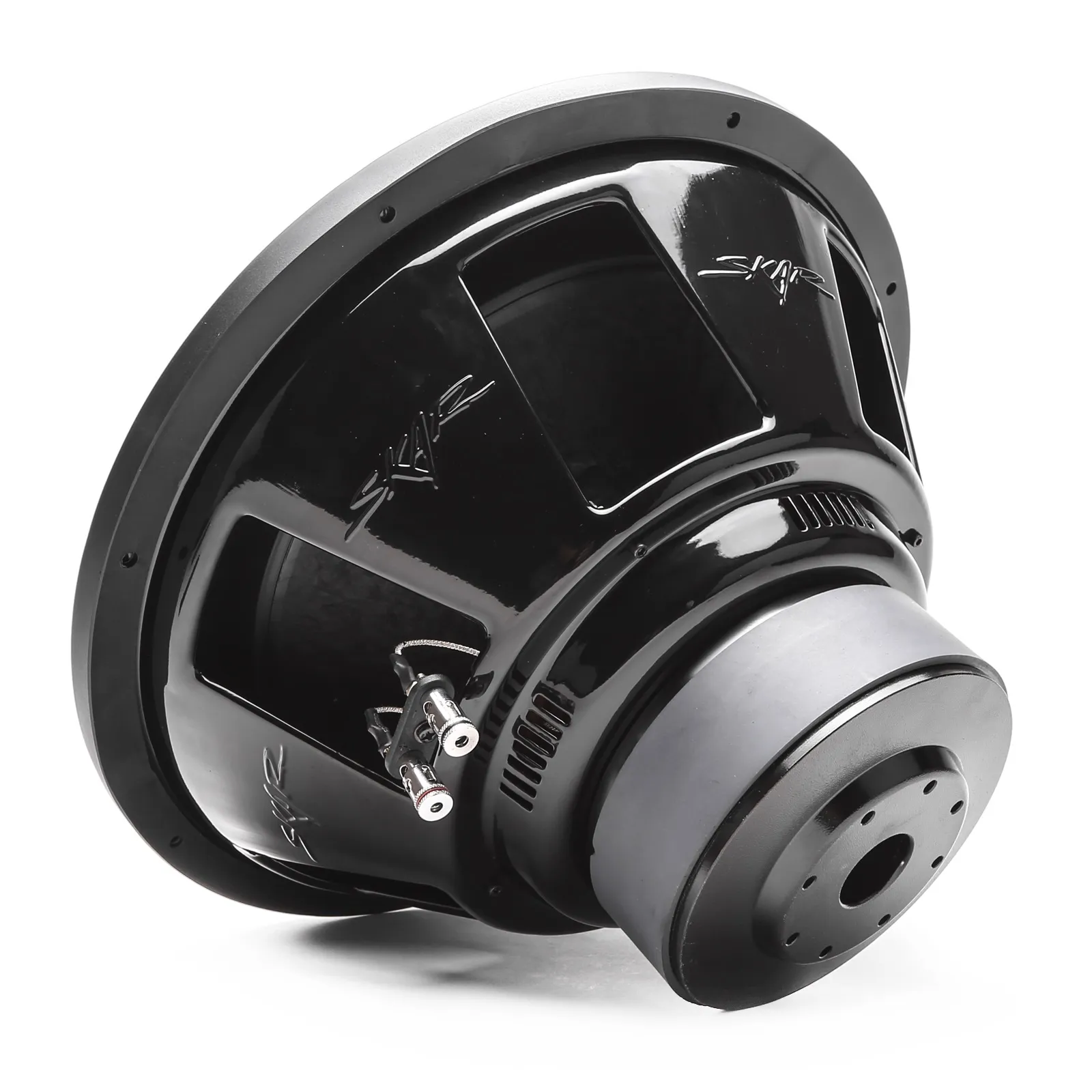

SDR-15 | 1,200 Watt Max Power Car Subwoofer

  • SDR-15 | 1,200 Watt Max Power Car Subwoofer

SDR-15 | 1,200 Watt Max Power Car Subwoofer


* Financing through our Partner, Bread

Description

Description

The Skar Audio SDR series was engineered to dish out reliable, hard hitting, and low spectrum sound. Featuring a high flux ferrite motor, this woofer will provide extreme power handling for extended periods of time. The SDR series will quickly become a customer favorite, as it's perfect for people just entering the world of car audio all the way up to seasoned pros.



The SDR series features a 2.5” high temperature 4-layer high temperature copper voice coil that is attached to our Skar Audio signature red spider. The surround on the SDR series is a high roll foam surround which allows the woofer to produce riveting low end bass response. The SDR series has a max power rating of 1,200 watts and a RMS power rating of 600 watts.

Specifications

  • Skar Audio SDR-15 D2 - 15" Component Car Subwoofer
  • Dual 2 Ohm Voice Coil Configuration
  • Peak Power: 1200 Watts
  • RMS Power: 600 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2.5" High Temperature Copper Voice Coil
  • Motor Weight: 97 oz
  • Frequency Response: 29 - 300 Hz
  • Sensitivity: 85.9 dB
  • Fs: 29 Hz
  • Re: 1.9 Ohms
  • Qms: 6.05
  • Qes: 0.75
  • Qts: 0.67
  • Nref: 0.247%
  • Cms: 0.11 mm/N
  • Bl: 16.36 n/a
  • Vas: 84.85 L
  • Mms: 299 gr
  • Sd: 754.7cm²
  • Xmax: 13.5 mm

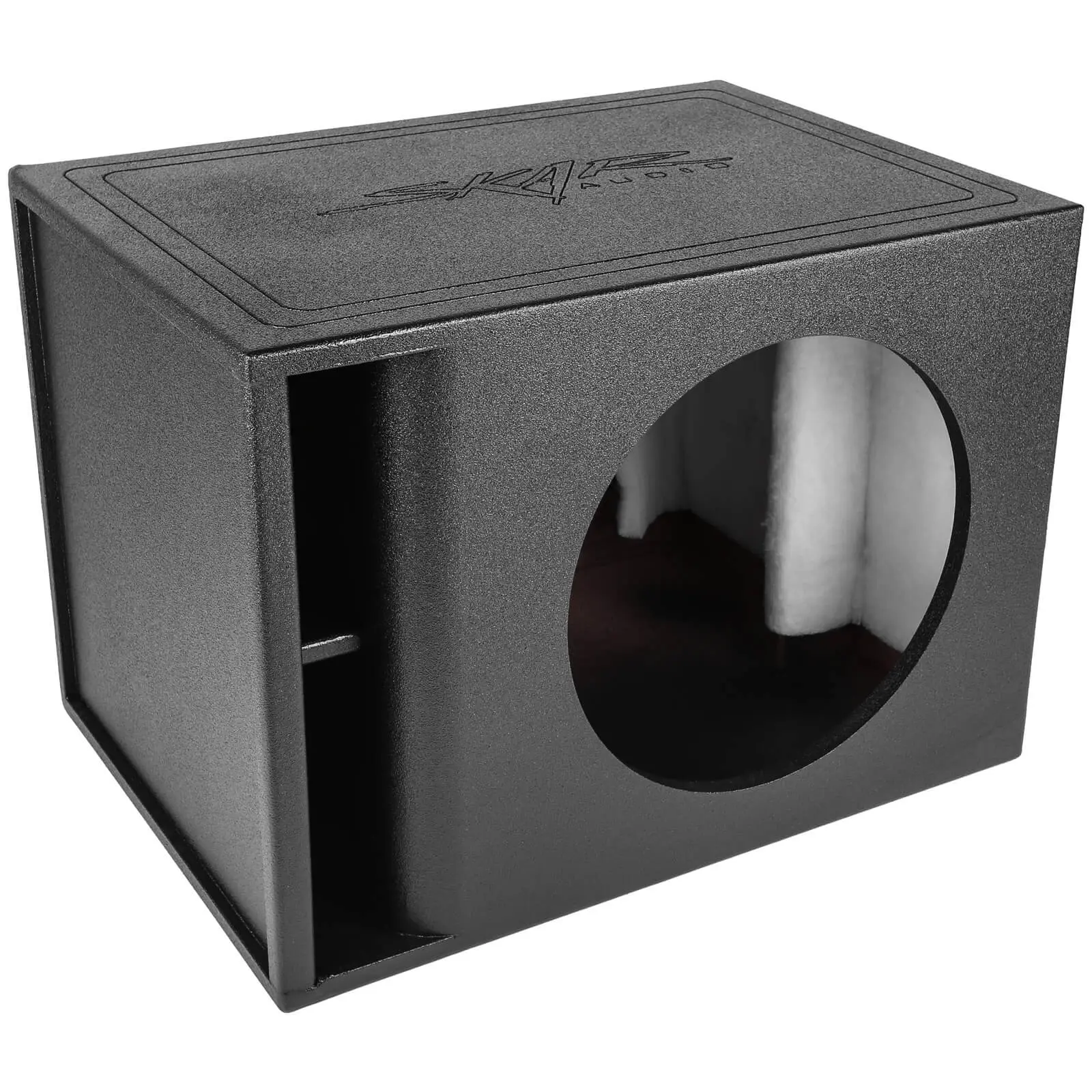

Enclosure Specifications

  • Sealed Volume: 2.95 ft³
  • Ported Volume: 3.75 ft³
  • Port Area: 42 sq in
  • Port Length: 23.375"
  • Tuning Frequency: 33Hz
  • Mounting Depth: 7.62"
  • Total Height:"
  • Outside Diameter: 15.32"
  • Cut-Out Diameter: 13.99"
  • Magnet Diameter: 6.00"
  • Subwoofer Displacement: .041 ft³
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Description

The Skar Audio SDR series was engineered to dish out reliable, hard hitting, and low spectrum sound. Featuring a high flux ferrite motor, this woofer will provide extreme power handling for extended periods of time. The SDR series will quickly become a customer favorite, as it's perfect for people just entering the world of car audio all the way up to seasoned pros.



The SDR series features a 2.5” high temperature 4-layer high temperature copper voice coil that is attached to our Skar Audio signature red spider. The surround on the SDR series is a high roll foam surround which allows the woofer to produce riveting low end bass response. The SDR series has a max power rating of 1,200 watts and a RMS power rating of 600 watts.

Specifications

  • Skar Audio SDR-15 D4 - 15" Component Car Subwoofer
  • Dual 4 Ohm Voice Coil Configuration
  • Peak Power: 1200 Watts
  • RMS Power: 600 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • 2.5" High Temperature Copper Voice Coil
  • Motor Weight: 97 oz
  • Frequency Response: 29 - 300 Hz
  • Sensitivity: 86.9 dB
  • Fs: 29 Hz
  • Re: 3.2 Ohms
  • Qms: 5.47
  • Qes: 0.57
  • Qts: 0.8
  • Nref: 0.307%
  • Cms: 0.12 mm/N
  • Bl: 9.33 n/a
  • Vas: 99.1 L
  • Mms: 267 gr
  • Sd: 754.7 cm²
  • Xmax: 13.5 mm

Enclosure Specifications

  • Sealed Volume: 2.95 ft³
  • Ported Volume: 3.75 ft³
  • Port Area: 42 sq in
  • Port Length: 23.375"
  • Tuning Frequency: 33Hz
  • Mounting Depth: 7.62"
  • Total Height:"
  • Outside Diameter: 15.32"
  • Cut-Out Diameter: 13.99"
  • Magnet Diameter: 6.00"
  • Subwoofer Displacement: .041 ft³
  • Enclosure specifications do not include subwoofer, bracing, and port displacement

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
J.
Beyond outstanding!

Put just ONE of these SDR-15's (D2) in a SEALED 100 liter box (3.53ft^3), with a designed Qtc of 0.730 (Fb of 41.0Hz), push 1200 Watts to it and you WILL easily get 120Db from this one sub (without in-car cabin gain), without any excursion over Xmax!!! Love it!

M
M.
admin ?!!!

WHEN WILL THERE BE MORE? I NEED MORE!!

M
M.
Skar Audio Sdr 15

These subs are amazing! I ordered two 15s to start with. I will be ordering more has my box was made for 3 15s. These two 15 s absolutely blow my old system out of the water! They sound great and hit hard! If I open my sub roof my hair starts to flap a little bit! I’ll definitely be posting videos to YouTube. Also I’m powering these bad boys with a Optidrive 2000d @ 2 ohms getting 1,100 Watts

M
M.
great sub

This sub is sweet! i have been out of the game for a while, but back in the day i had 2 15 inch kickers and this one sub blows them away running at 2 ohm at 750 watt. rms. also, i have the bass turned way down and the amp at about half power for the break in period and they still beet my old subs. and i do have to let you know, i always run in sealed boxes. for this sub i built .75 inch plywood 2.4 cubic foot box. very precise sound!
