SK3X10V | Triple 10" Ported Universal Fit Subwoofer Box

  • Skar Audio introduces its SK series of line-up of high-performance subwoofer enclosures to bridge the gap between competition-grade quality and universal fit pre-fabricated enclosures.

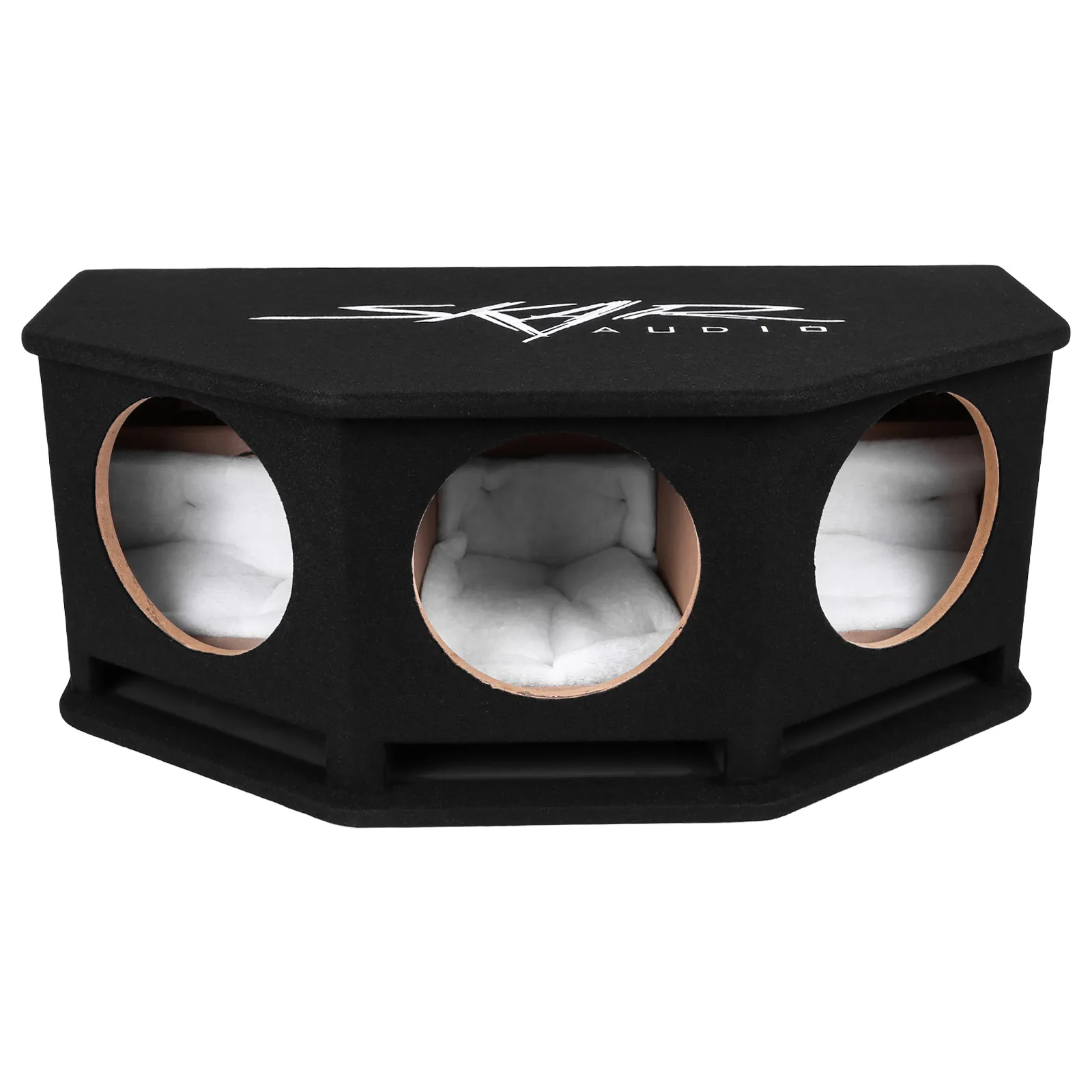

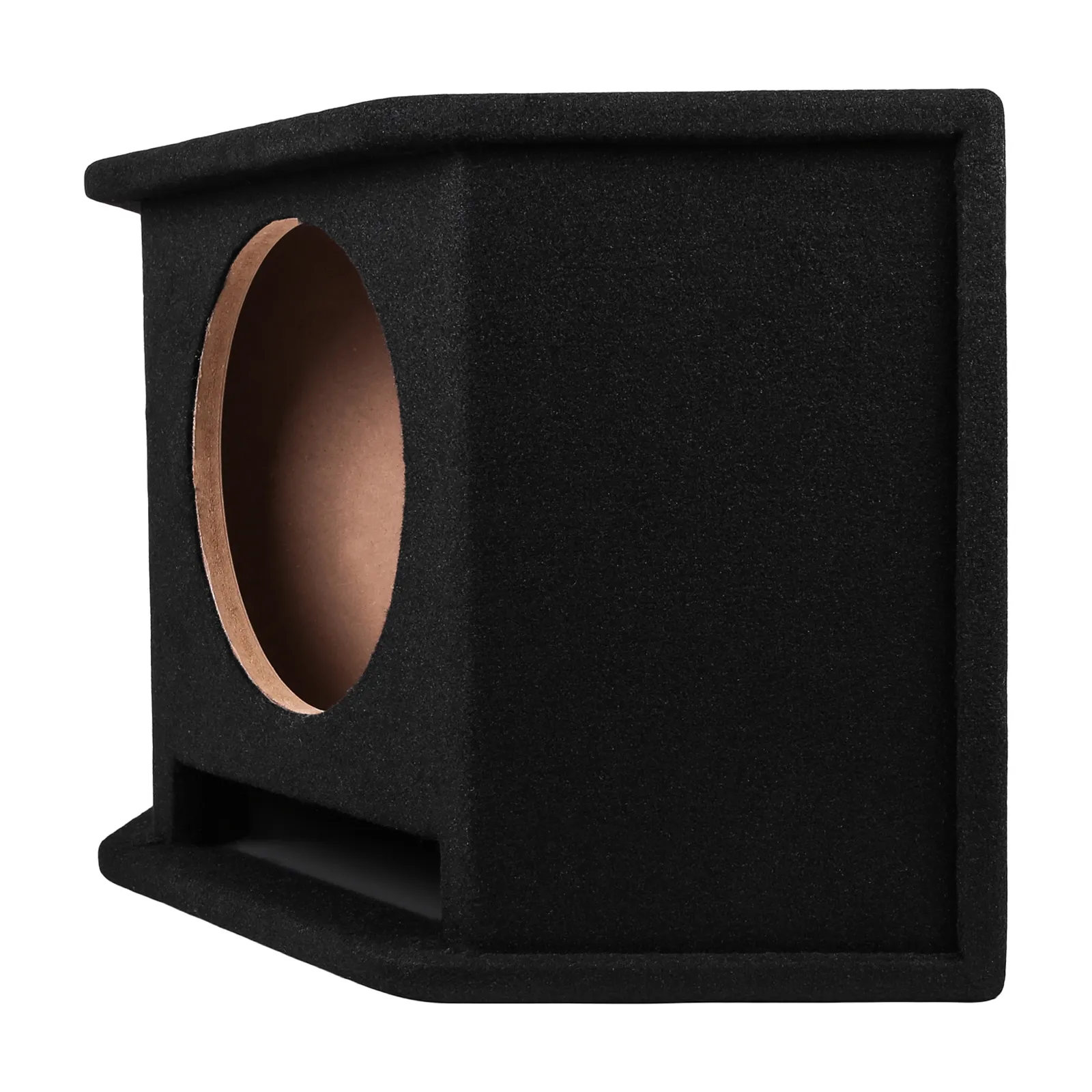

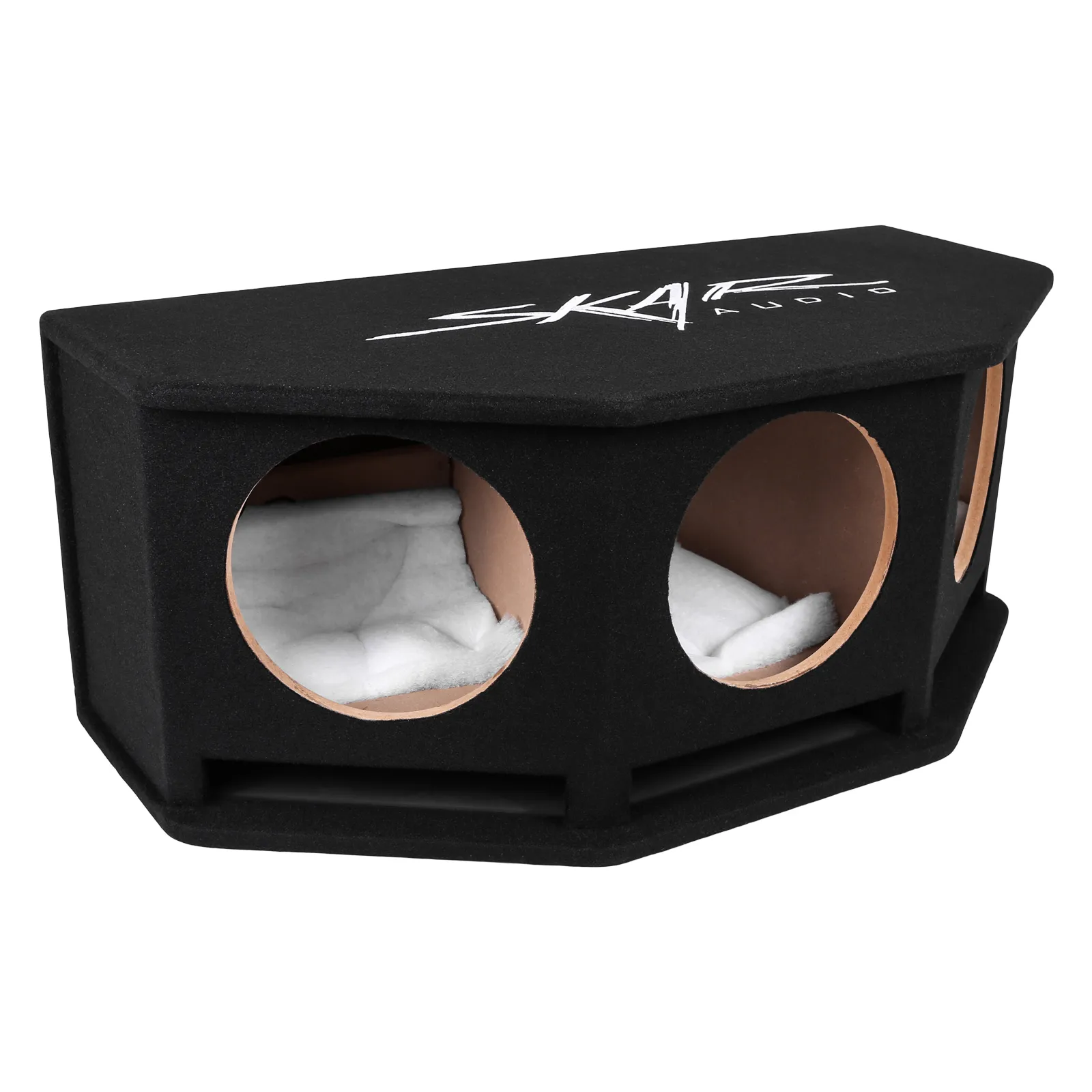

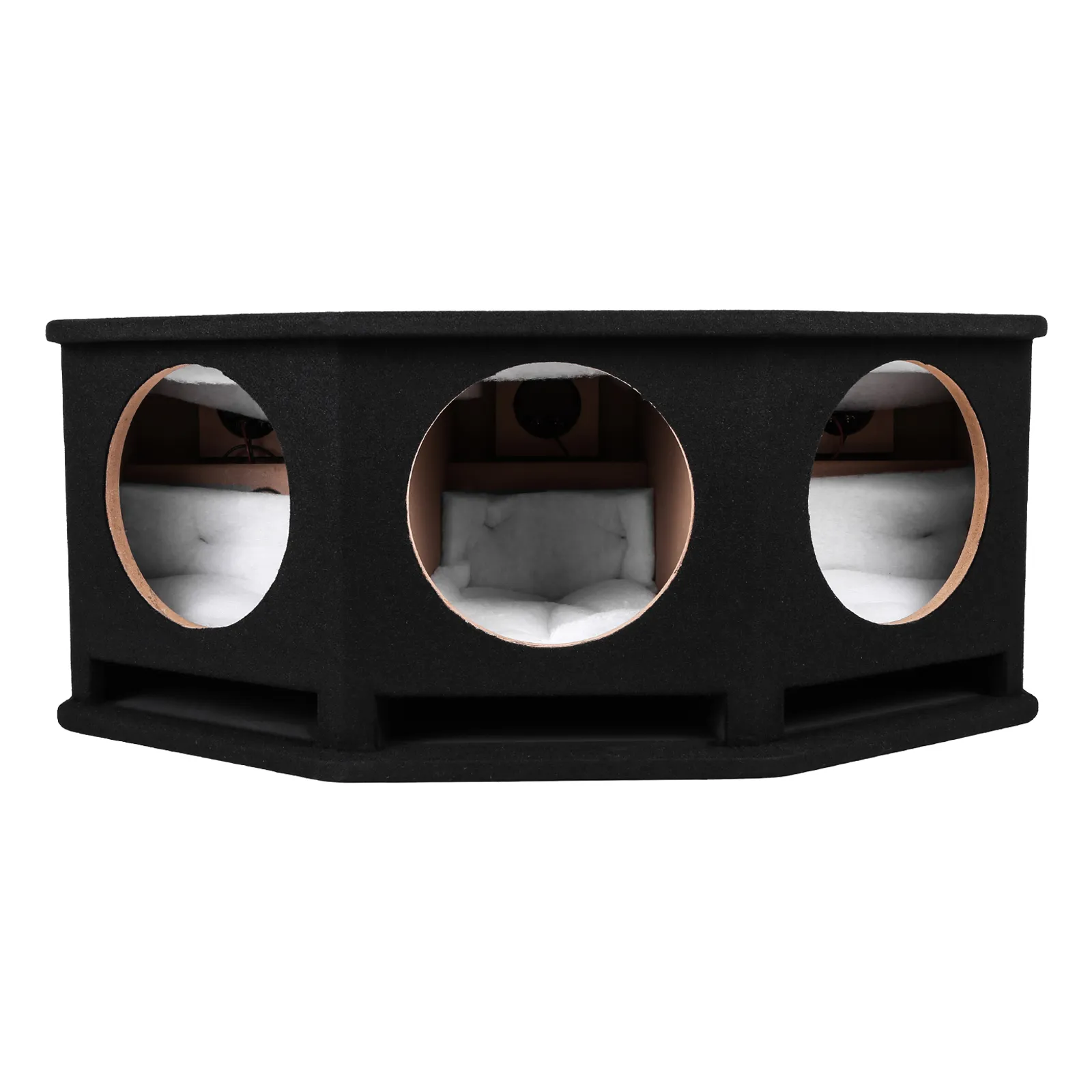

    The SK3X10V is a triple 10-inch, universal fit, ported subwoofer enclosure. Featuring three independent subwoofer chambers, we engineered this enclosure to produce incredibly accurate and responsive low-end frequency response. In addition, each chamber features its own slot port alongside the bottom of the enclosure, which is tuned for the optimal compatibility and performance of most 10" drivers.

    Quick Facts
    Total Gross Air Space (Volume) 4.80 ft3
    Tuning Frequency 38 Hz
    Cut-Out Diameter 9.375"
    Mounting Depth 7.25"

    When setting out to offer a line-up of premium, universal fit, subwoofer boxes, the end goal was to deliver a final product that was unlike anything else available on the market; setting new standards for quality and performance. That being said, all of our enclosures are hand built using only the finest materials. On top of its outstanding craftsmanship, this enclosure is also braced for extreme strength, and can handle even the most brutally powerful subwoofers.

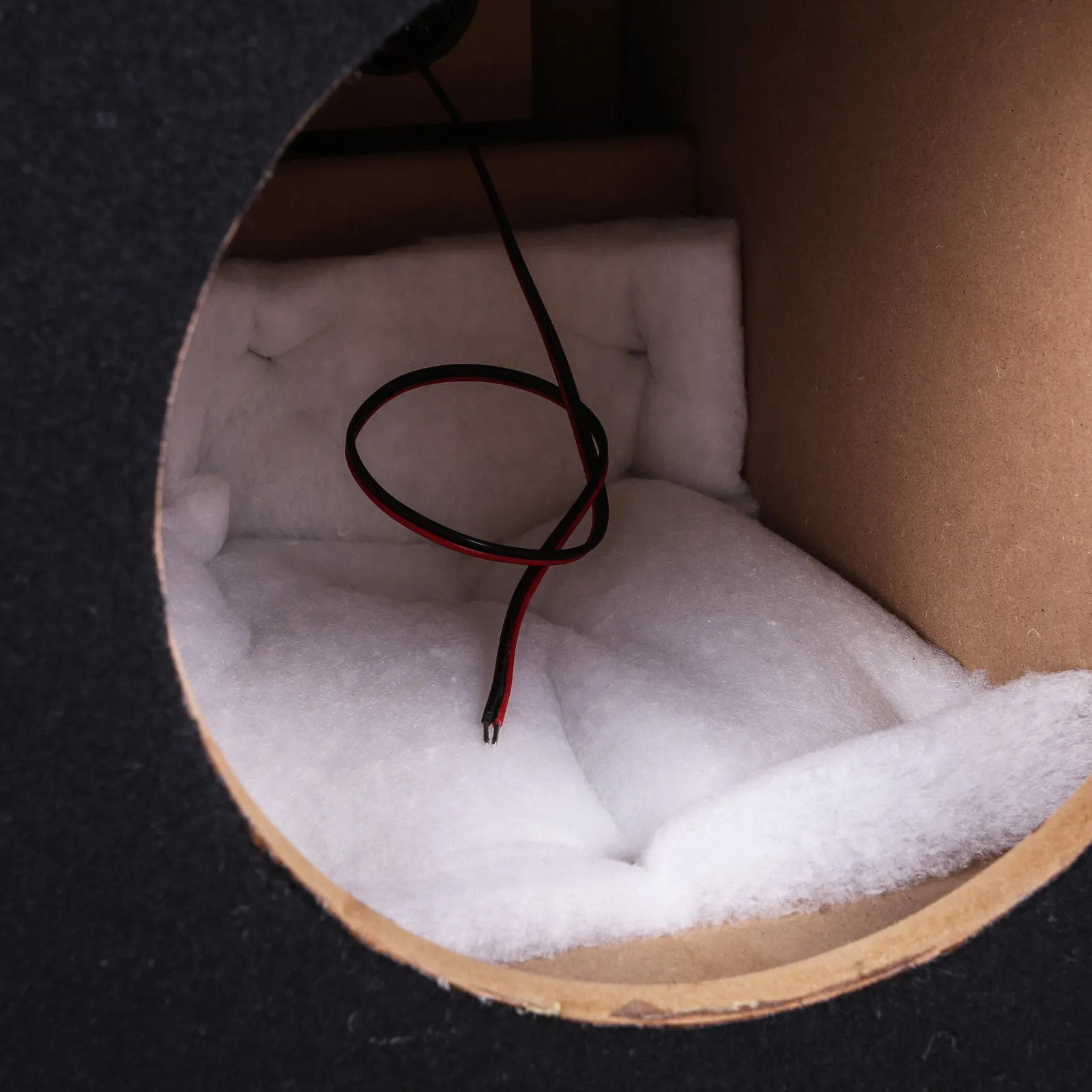

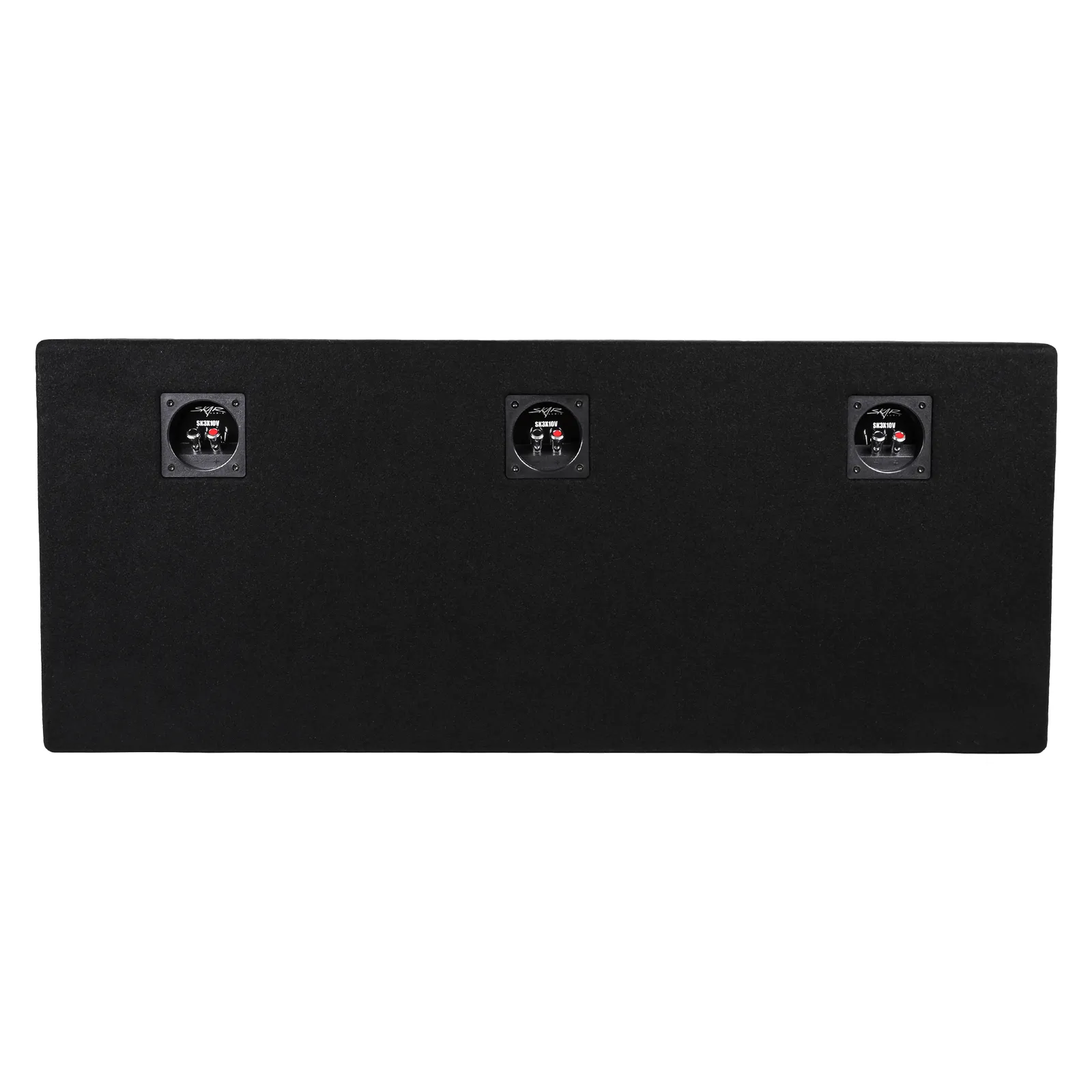

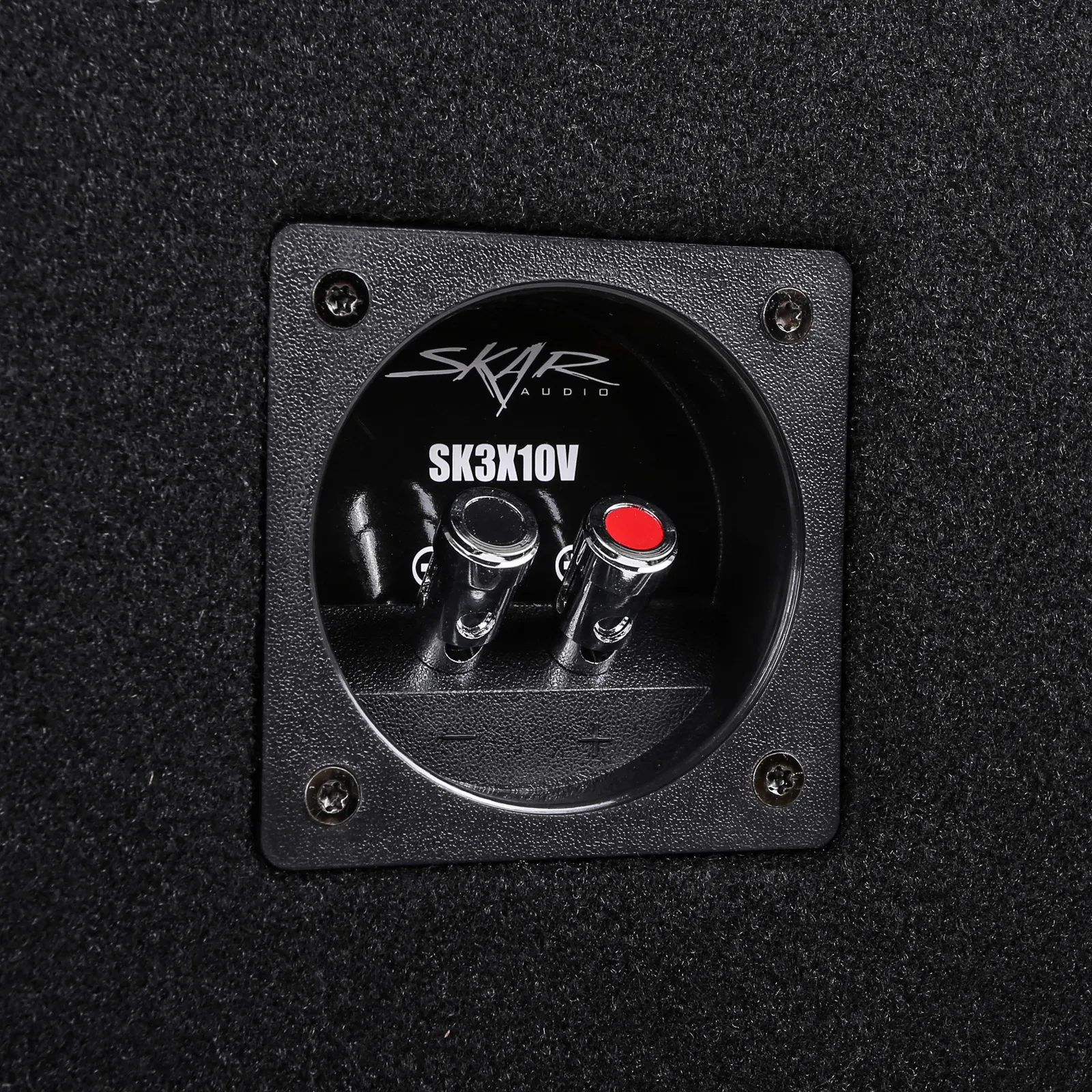

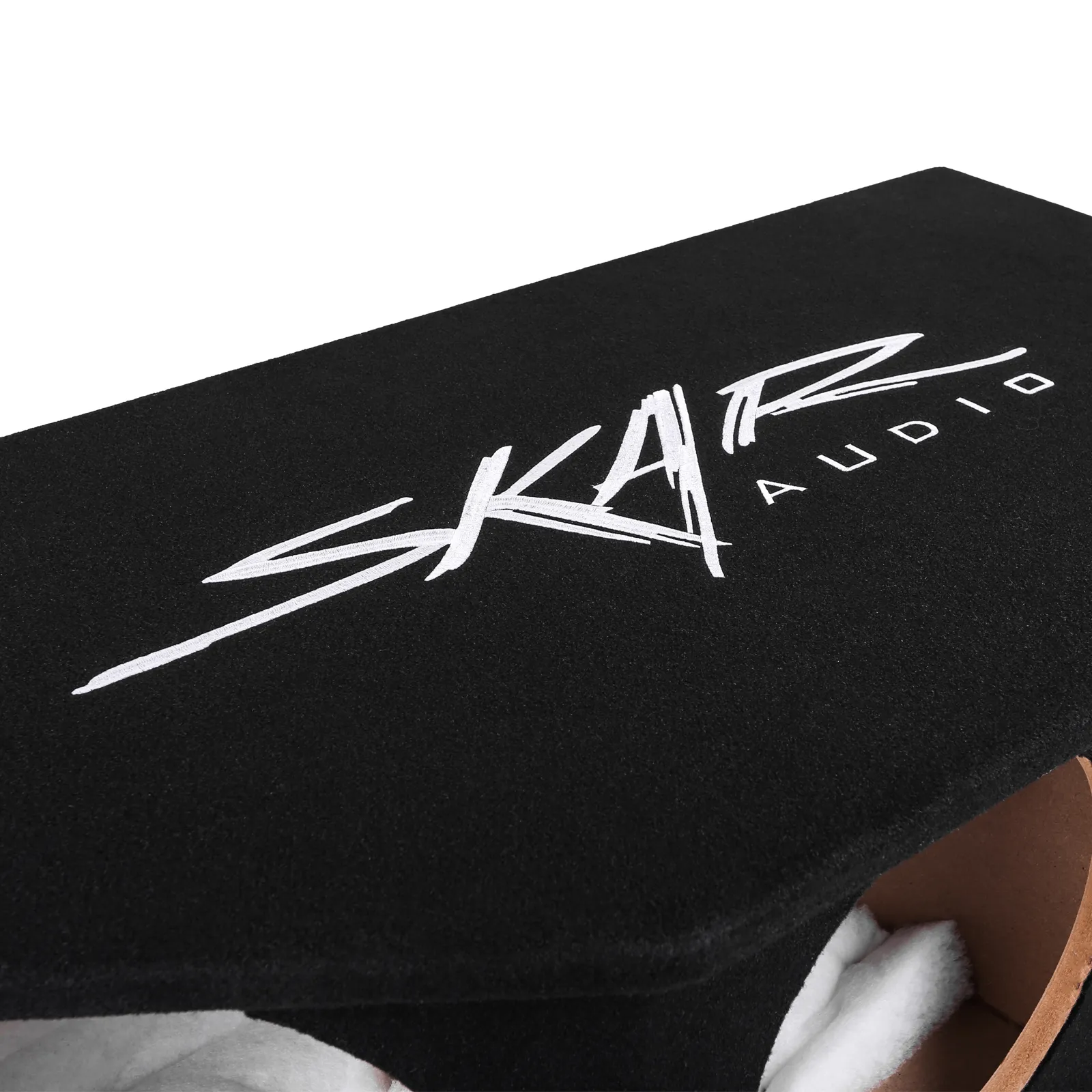

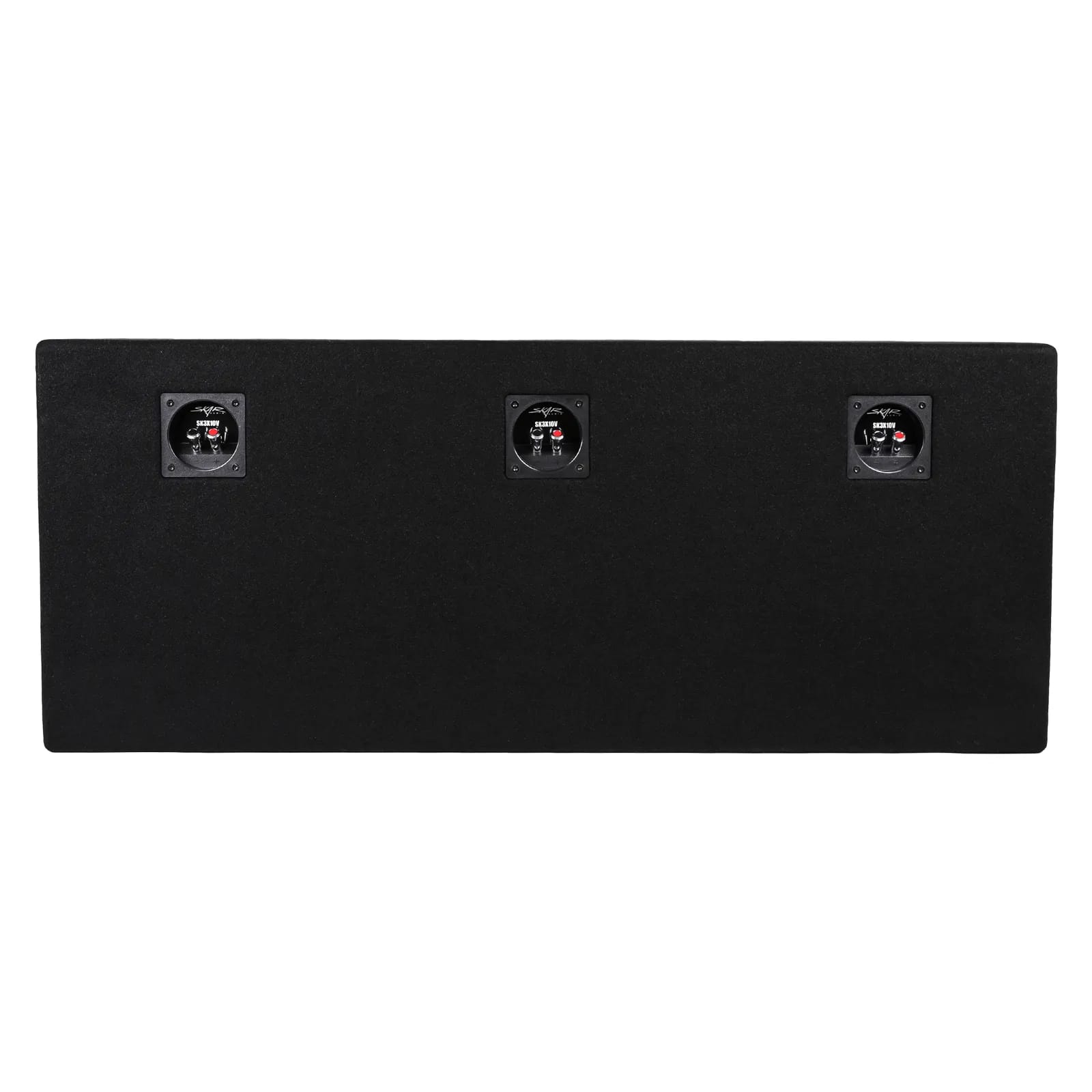

    Internally, we line several walls of the enclosure with poly-fill to enhance the overall versatility and depth of sound that this enclosure reproduces with any given subwoofer. Each subwoofer chamber also features independent terminal cups, which come pre-soldered and wired internally with 16 gauge speaker leads that allow for an easy subwoofer installation. Finally, the enclosure is finished in a premium black trunk liner carpet and features an embroidered Skar Audio logo on the top surface.

  • General Specifications
    Subwoofer Size 10"
    Subwoofer Chambers 3
    Enclosure Type Vented (Ported)
    Port Type Slot Ports (Bottom)
    Fit Type Universal / Rear-firing Angled Design
    Wood Type 5/8" MDF
    Enclosure Finish Premium Black Trunk Liner Carpet
    UPC 810028810587
    MPN SK3X10V
    Technical Specifications
    Total Gross Box Volume 4.80 ft3
    Volume per Subwoofer Chamber 1.60 ft3
    Tuning Frequency of Enclosure 38 Hz
    External Push Terminal Wire Gauge Opening 8 Gauge
    Internal Speaker Wire Leads Pre-soldered | 16 Gauge
    Enclosure External Dimensions
    Width 37.00"
    Depth 18.25"
    Height 15.00"
    Subwoofer Mounting Paramters
    Subwoofer Hole Cut-out Diameter 9.375"
    Subwoofer Maximum Mounting Depth 7.25"

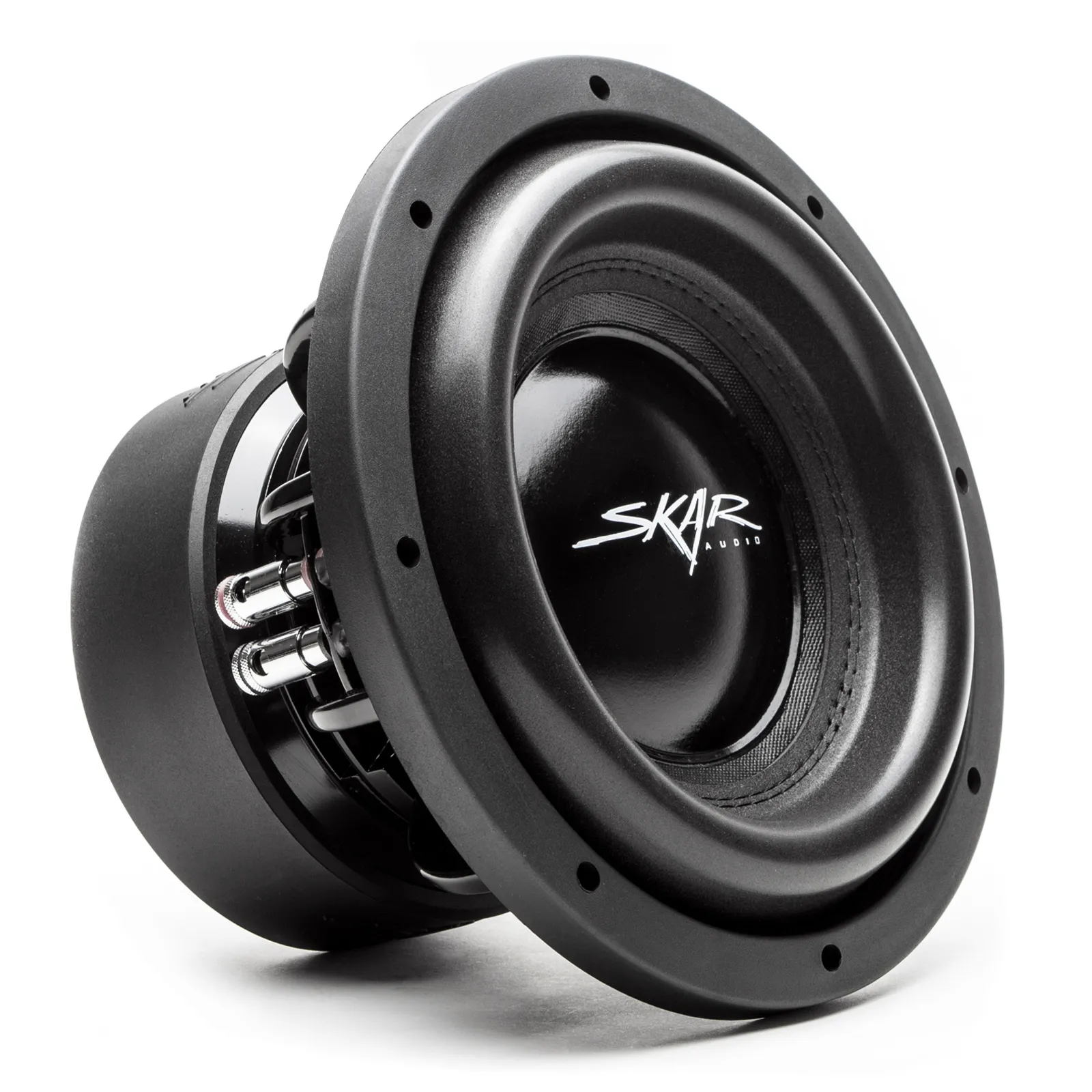

  • Subwoofer Model
    Fits
    IX-10 D2/D4
    VD-10 D2/D4
    SDR-10 D2/D4
    SVR-10 D2/D4
    DDX-10 D2/D4
    EVL-10 D2/D4


Customer Reviews

Based on 10 reviews
100%
(10)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
S.S.
love this box

I got this box with 3 audiopipe txx-bdc2-10's and man can I tell you this stuff bangs.. love the design and the durability. Takes a banging and keeps on taking it.

F
F.J.
Amazing

Decided to buy this box to swap my current subs from sealed to ported. Even though I only have two at the time the independent chambers allows me to use two of the three chambers without compromising the sound quality. Planning to upgrade to some evls. Upgraded the wiring to some skar 10 gauge. Overall box looks great, sturdy and the stitch logo really brings out the fine craftsmanship. Totally recommended.

A
A.C.
Great product! Great price!

Exactly as expected. High quality at a great price.

B
B.L.I.L.F.
Blue line industries Skar dealer Longwood Fl

We installed this Skar Audio SK3X10V | Triple 10 in our 1995 Ford Bronco with a 5 channel Skar amp, 6.5 Scar's in the doors and 6x8 Skar's in the back quarters. This install is stupid loud and very clear. The absolute best bang for the buck.

b
b.p.
Triple sub box

I had 3 jl audio subs in my garage and was in the market for an enclosure. I came across this box on the internet and in my opinion was the nicest one. I received it and the quality was good and my subs are in a new home. I have 2-8ohm subs and 1-4ohm sub to create 1-2ohm load.
