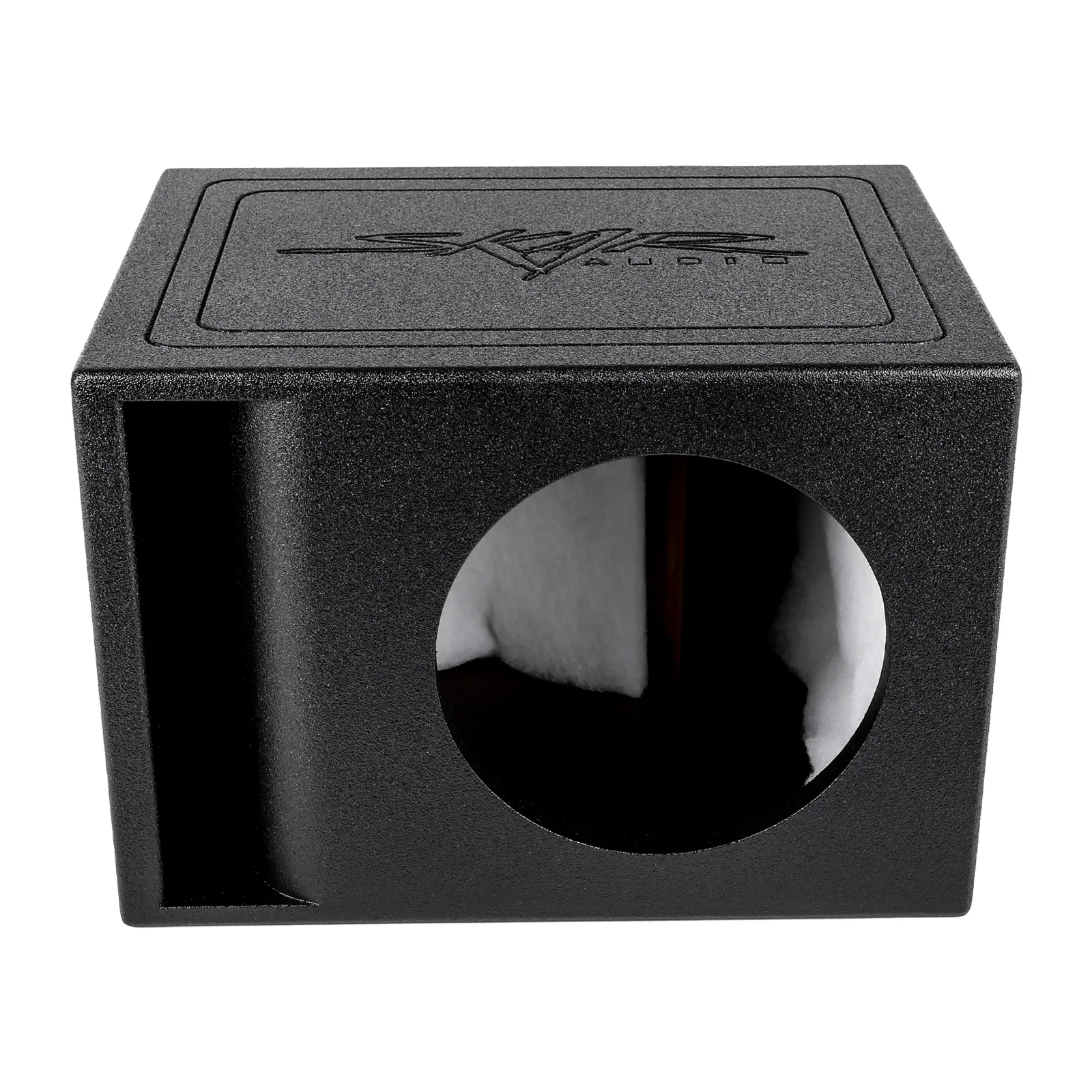

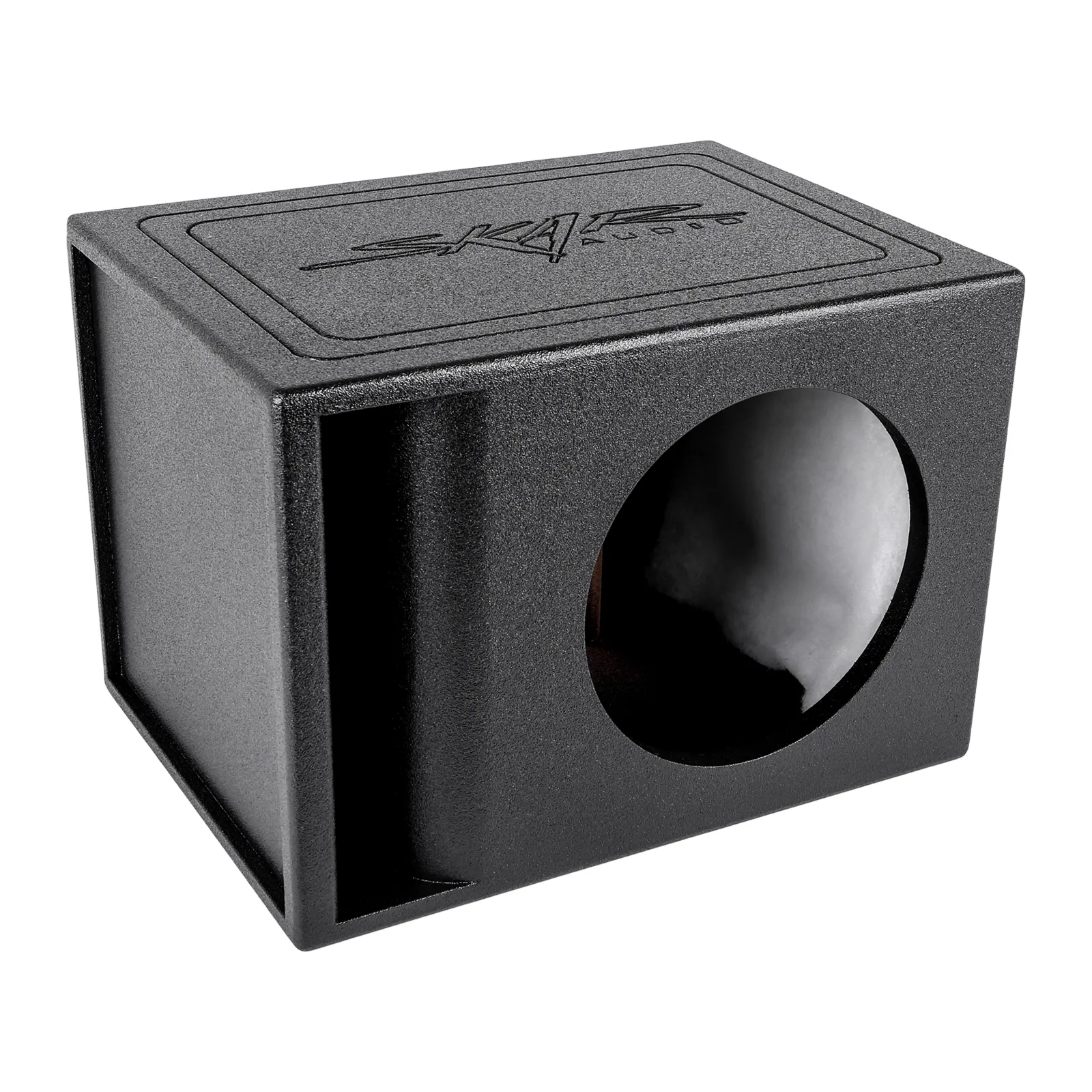

Skar Audio introduces its armored series of high-performance subwoofer enclosures...
Quick Facts
|
| Total Gross Air Space (Volume) |
1.40 ft3
|
| Tuning Frequency |
38 Hz |
| Cut-Out Diameter |
9.375" |
| Mounting Depth |
9.00" |
-
| General Specifications |
| Subwoofer Size |
10" |
| Subwoofer Chambers |
1 |
| Enclosure Type |
Vented (Ported)
|

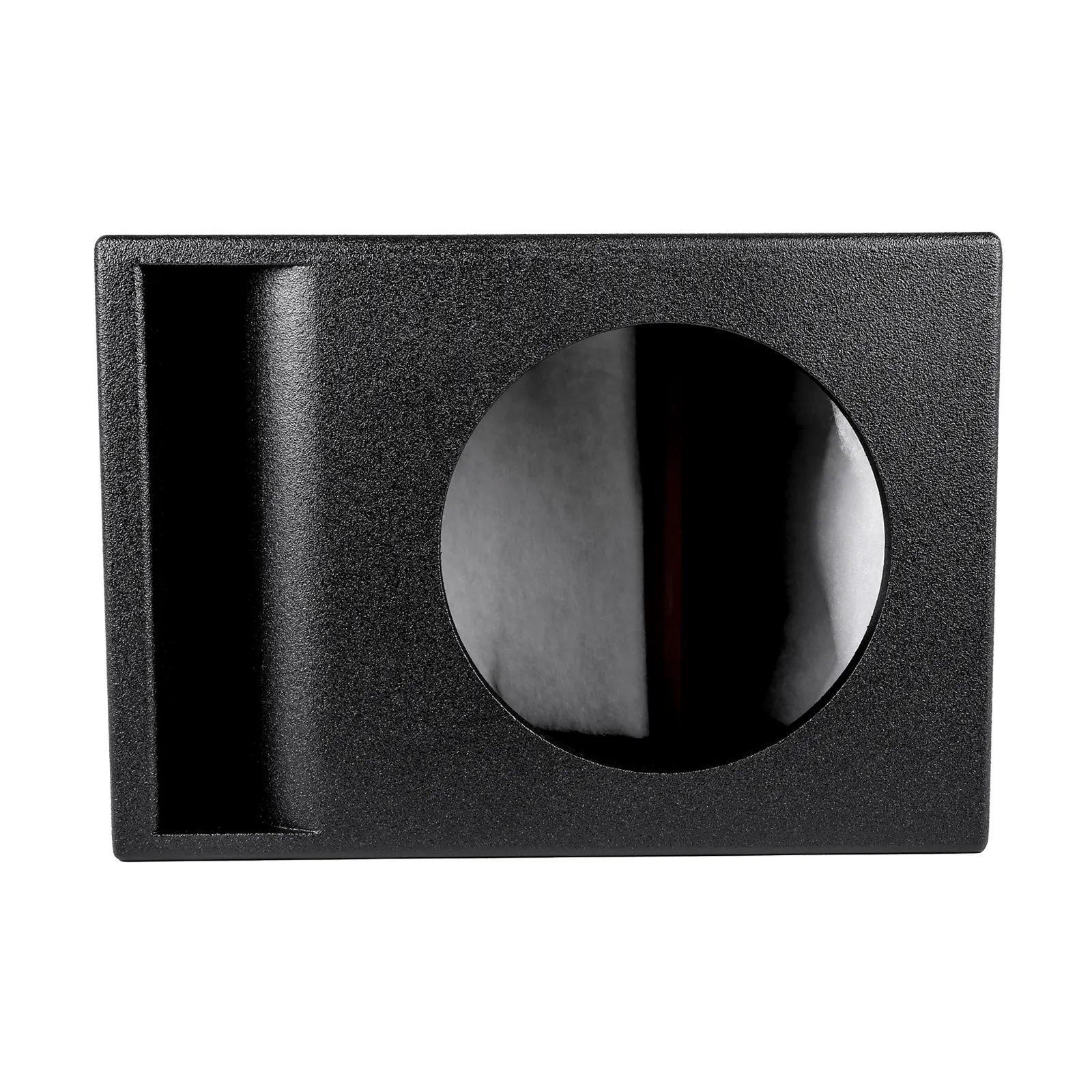

| Port Type |
Slot Kerf Port |
| Fit Type |
Universal |
| Wood Type |
5/8" MDF |

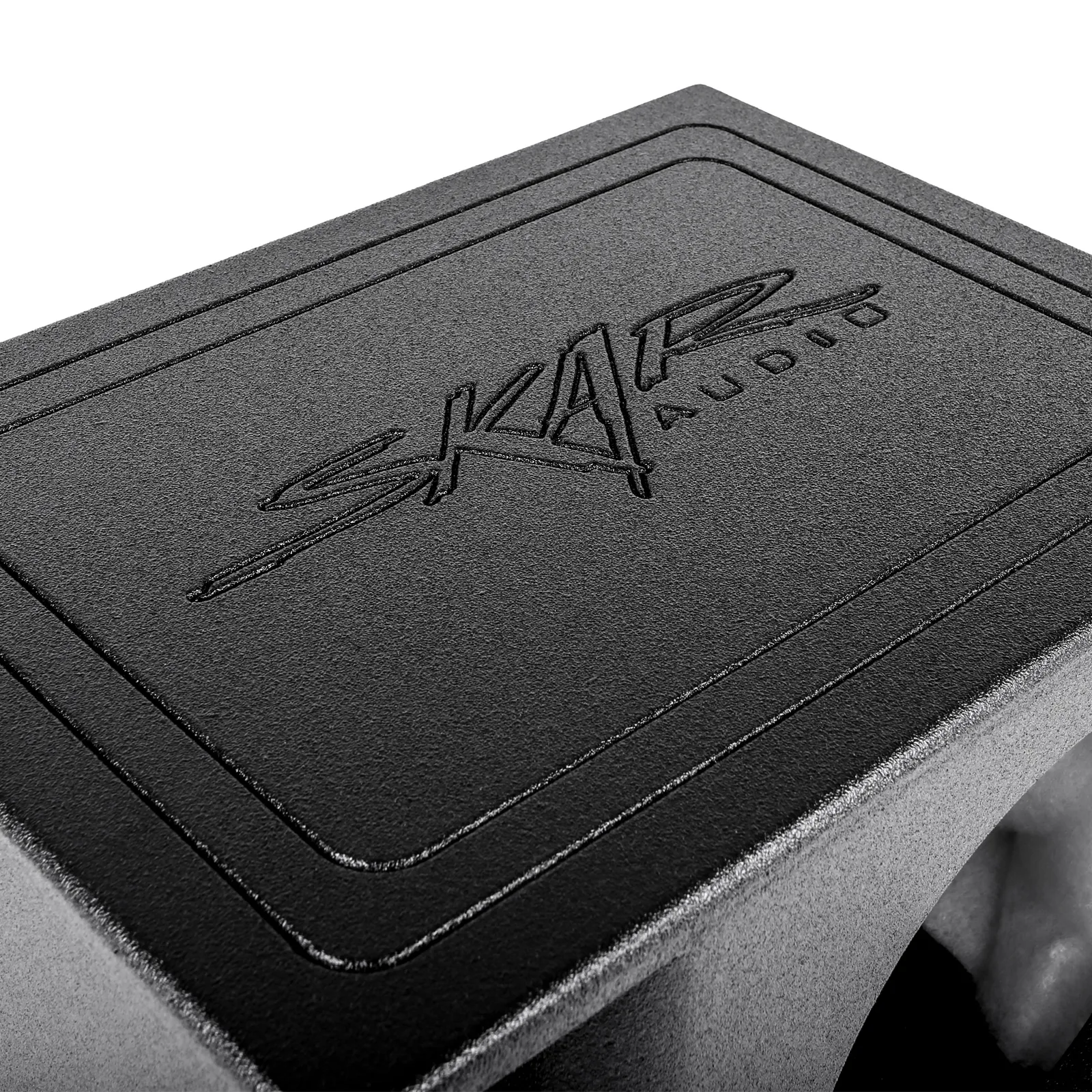

| Enclosure Finish |
Black Armor Coated Paint |
| UPC |
810028810723 |
| MPN |
AR1X10V |
| Technical Specifications |
| Total Gross Volume |
1.40 ft3
|
| Tuning Frequency of Enclosure |
38 Hz |

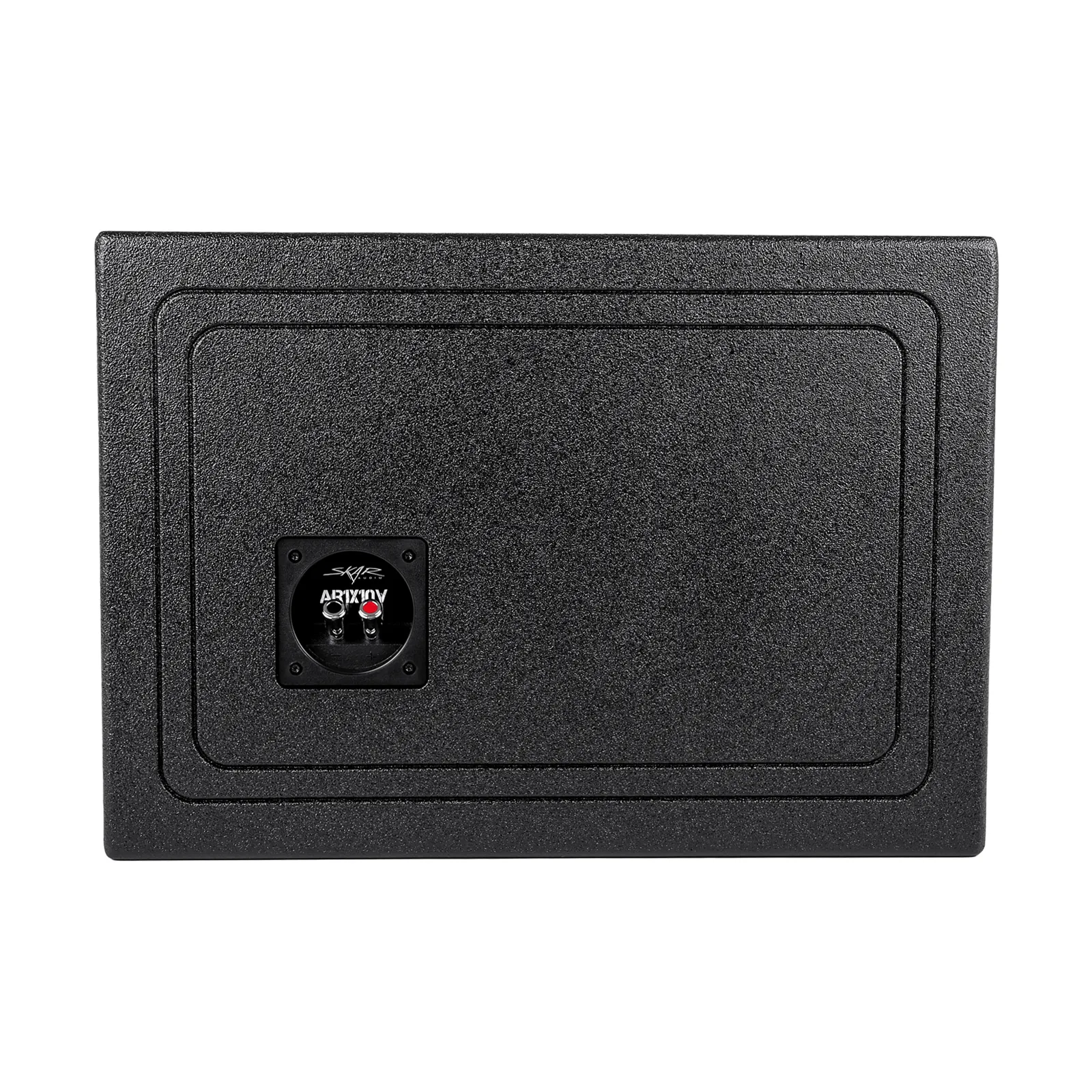

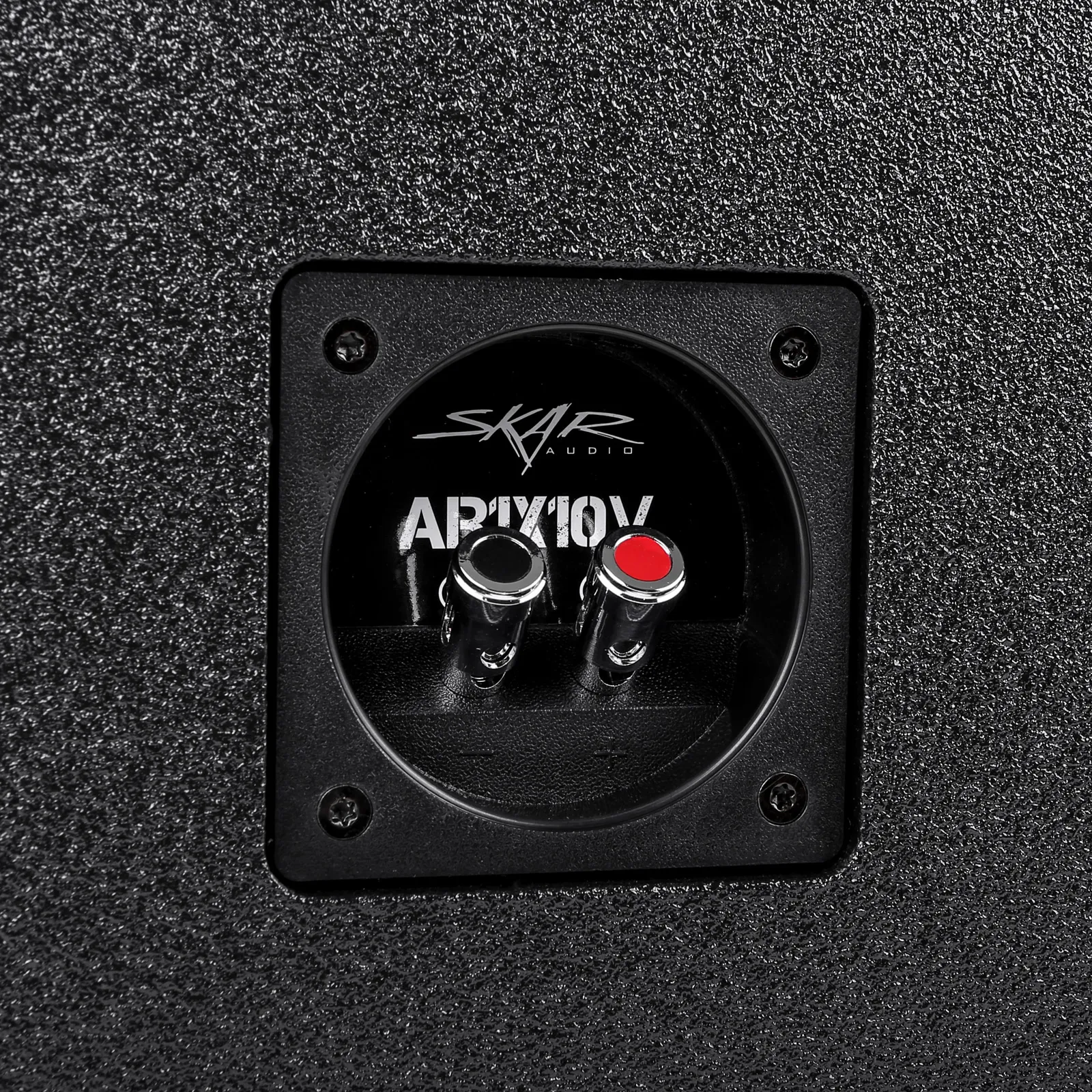

| External Push Terminal Wire Gauge Opening |
8 Gauge |

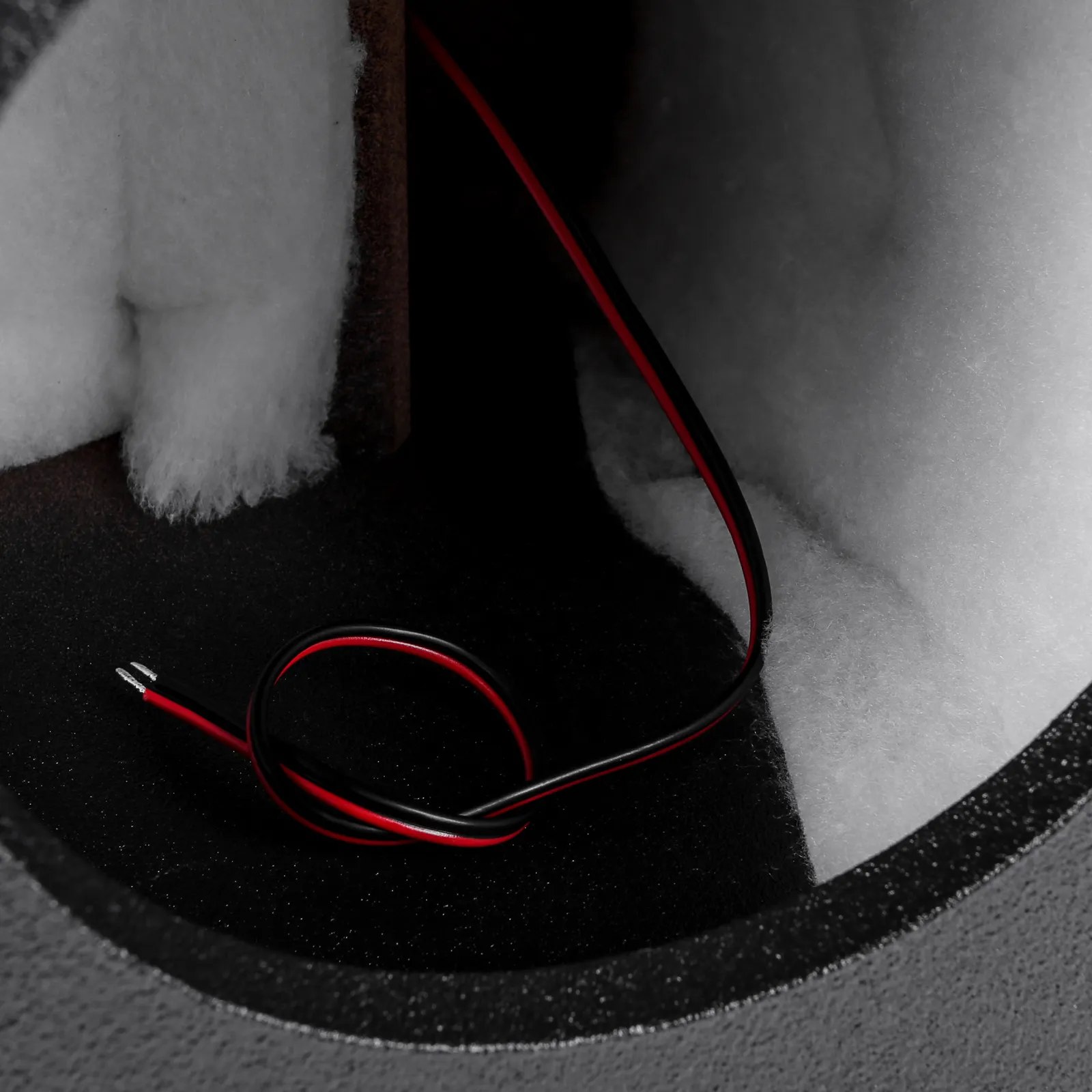

| Internal Speaker Wire Leads |
Pre-soldered | 16 Gauge |
| Enclosure External Dimensions |
| Width |
18.50" |
| Depth |
13.625" |
| Height |
13.00" |
| Subwoofer Mounting Paramters |
| Subwoofer Hole Cut-out Diameter |
9.375"
|
| Subwoofer Maximum Mounting Depth |
9.00" |
-

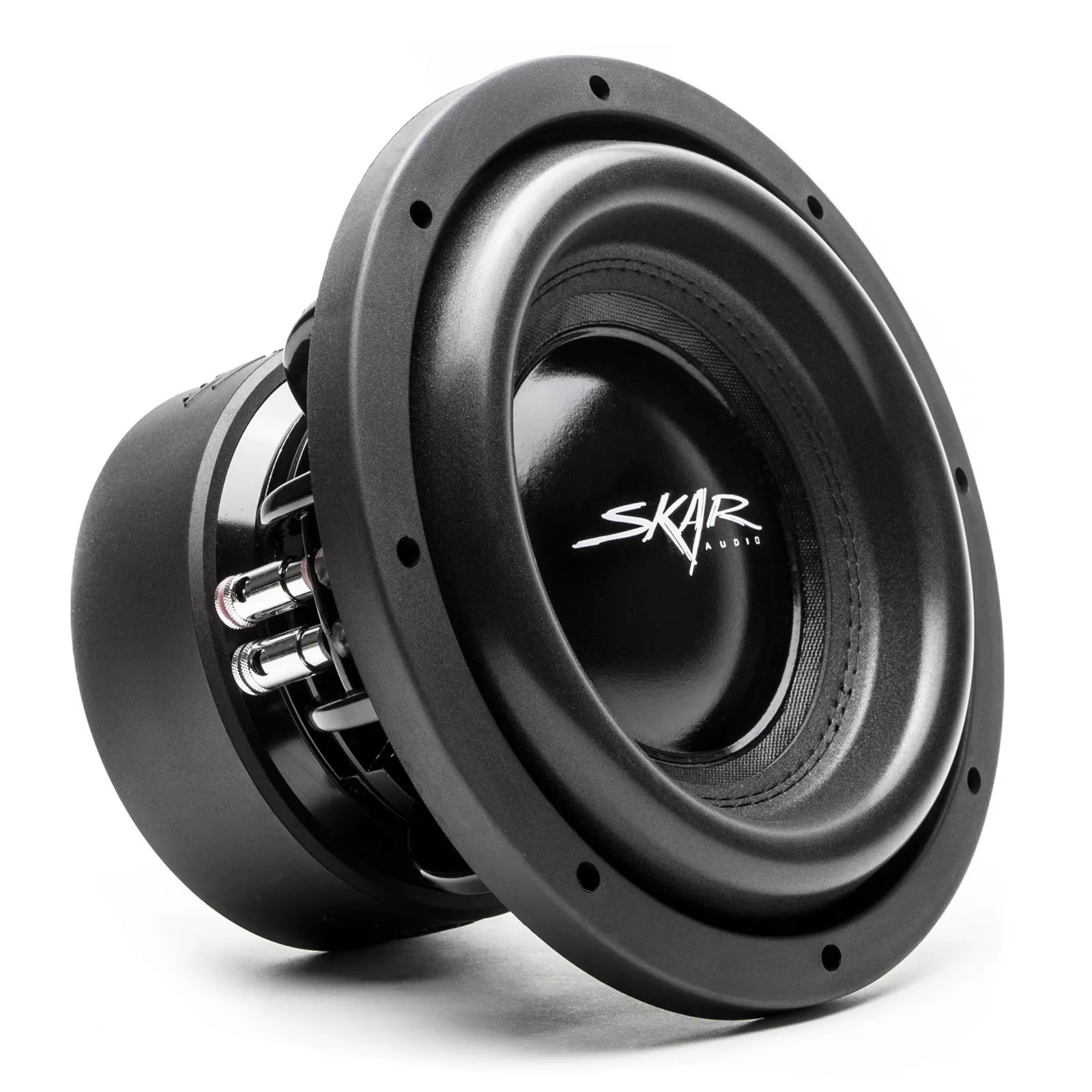

| Subwoofer Model |
Fits |
| IX-10 D2/D4 |
|
| VD-10 D2/D4 |
|
| SDR-10 D2/D4 |
|
| SVR-10 D2/D4 |
|
| DDX-10 D2/D4 |
|
| EVL-10 D2/D4 |
|
-
