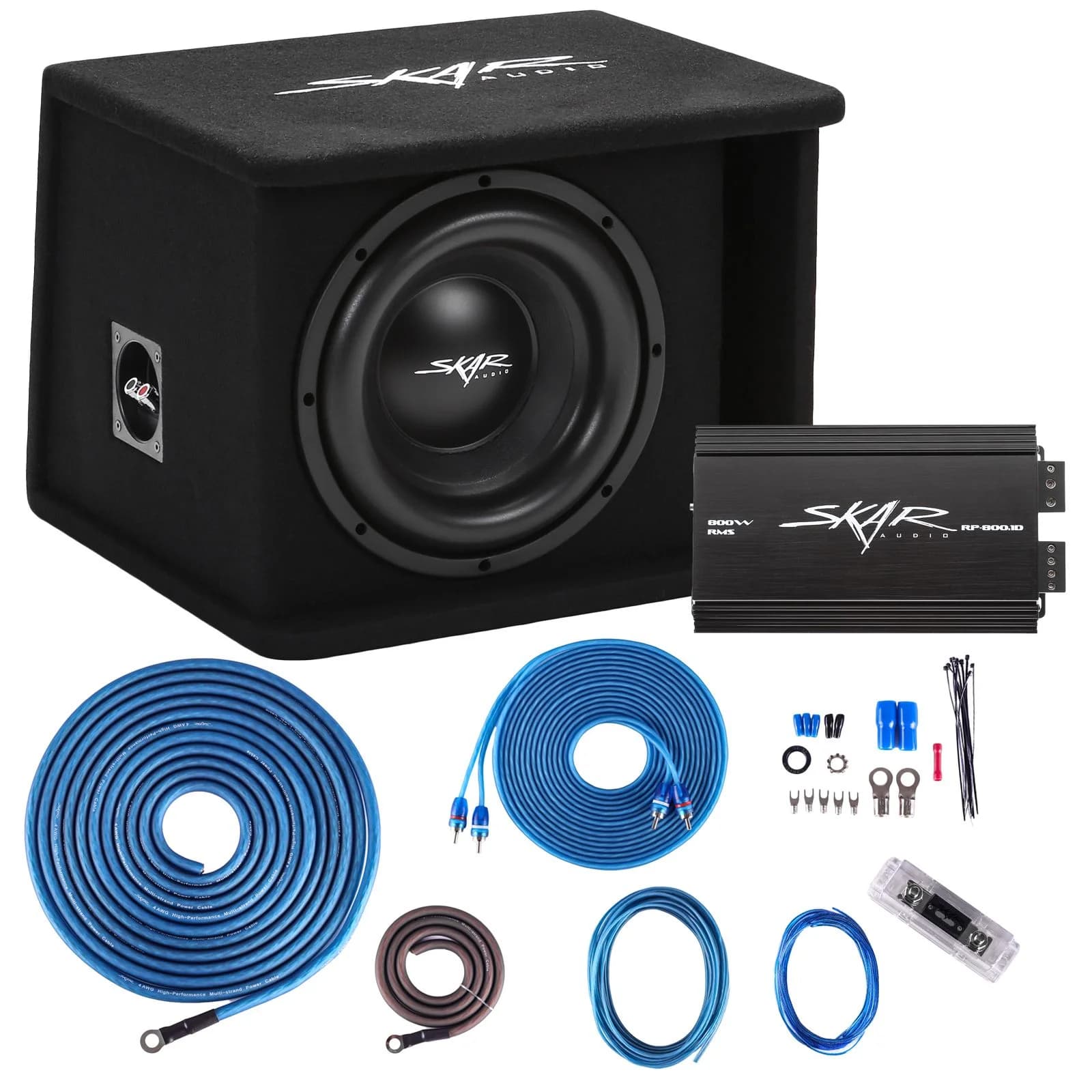

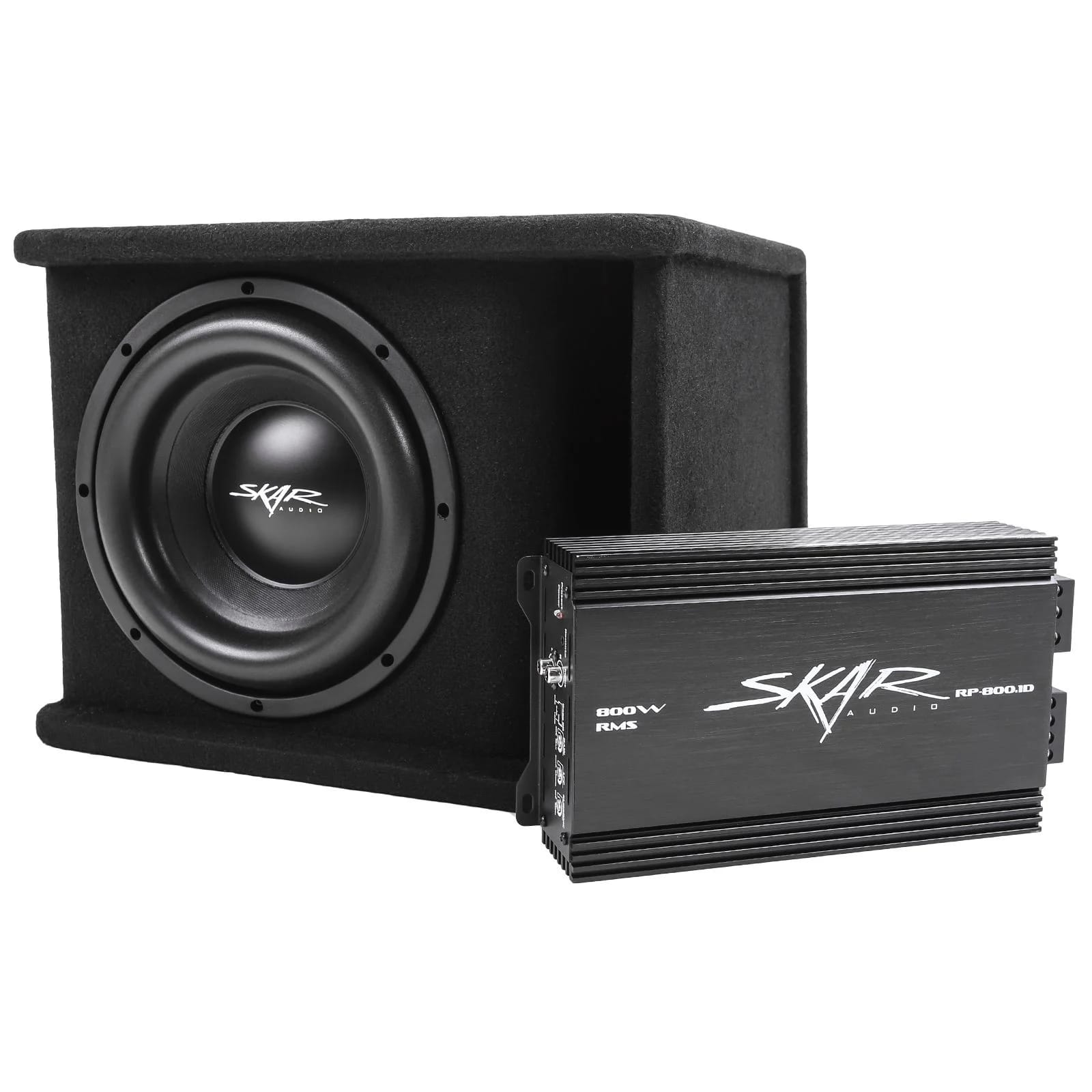

Single 10" 1,200 Watt SDR Series Complete Subwoofer Package with Vented Enclosure and Amplifier

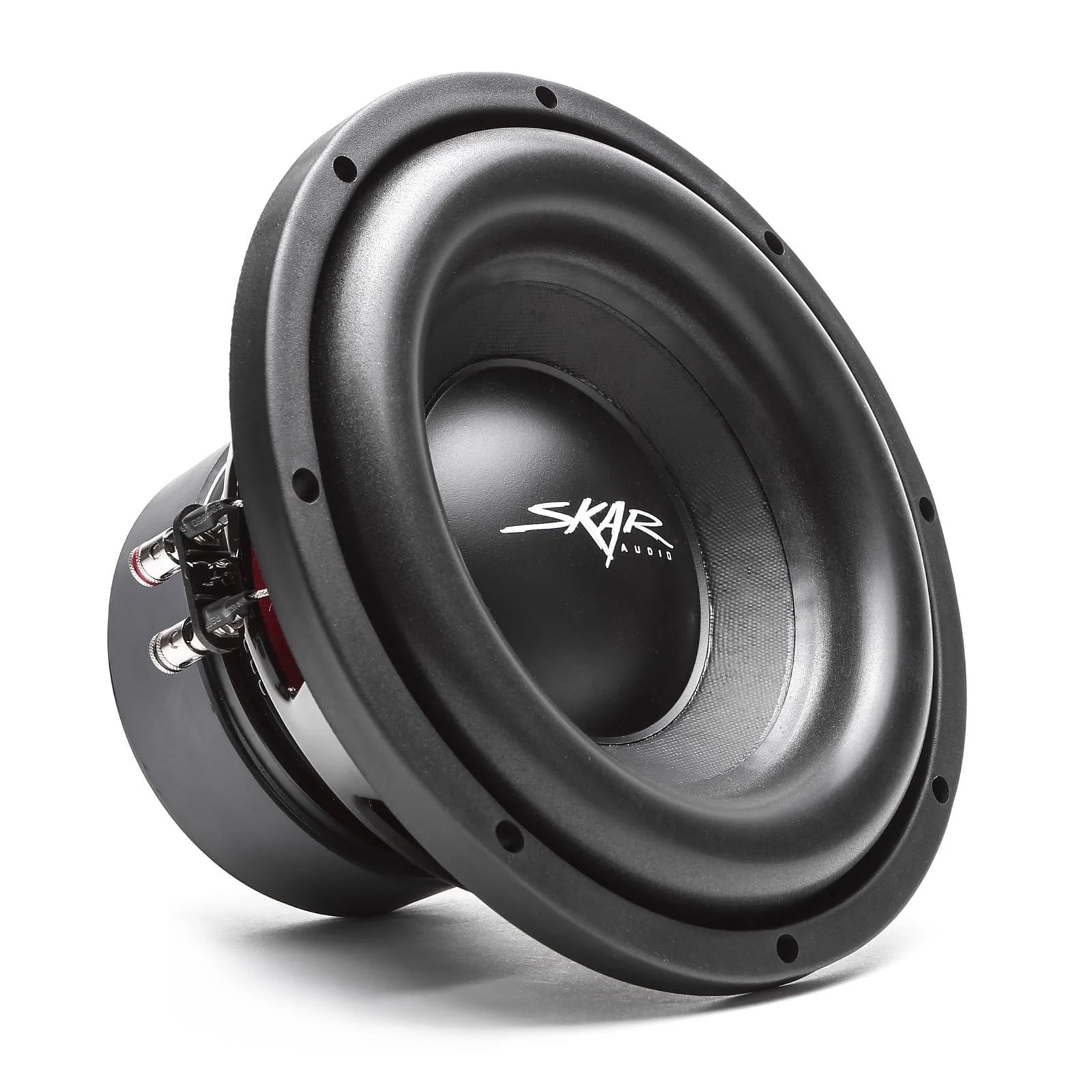

  • Skar Audio designed the SDR-1X10D2 loaded subwoofer enclosure complete bass package to make installing after-market bass in your vehicle easier than ever before. This package offers a simplified option to add a competition-grade subwoofer system, without the guesswork involved in designing it from scratch. The custom loaded enclosure features one, SDR-10 D2 subwoofer, which is pre-loaded and wired up inside of the single 10" vented enclosure. We also include the perfect amplifier in this package to power your new subwoofer with the Skar Audio RP-800.1D, which comes with a premium 4 gauge amplifier wiring kit to make installing the amplifier hassle free.

    This custom enclosure used in this package was engineered by Skar Audio specifically for the subwoofer that is loaded in it, ensuring perfect sound and compatibility. The enclosure features a unique kerf port design, allowing for extreme levels of bass output. Furthermore, the enclosure is finished in premium grade black carpet for a sleek appearance and features the Skar Audio logo in white on the top surface of the box.

    Quick Facts
    Peak Power Handling 1,200 Watts
    Enclosure Configuration Single - 10"
    Included Amplifier Skar Audio RP-800.1D
    Included Amp Kit 4 Gauge CCA Complete Kit
    Final Impedance Load 1 Ω

    The subwoofer comes pre-wired and loaded inside of the enclosure allowing for an easy and hassle free installation. The dual 2-ohm subwoofer is wired up inside of the enclosure so that the final impedance load is configured for 1-ohm at the terminals.

  • Enclosure Specifications
    Enclosure Type Single - 10" Vented (SDR-1X10D2)
    Fit Type x1 SDR-10 D2 Subwoofer (Pre-Loaded)
    Enclosure Style Wedge Design
    Port Type Kerf Style (Maximum Bass)
    Enclosure Feature Double Baffle - Countersunk Design
    Enclosure Finish Premium Black Carpet
    Wood Thickness & Material 5/8" MDF
    Front Baffle Thickness 1.25"
    Internal Air Space of Enclosure 1.30 ft3
    Tuning Frequency of Enclosure 39 Hz
    Push Terminal Location Left Side of Enclosure
    Final Impedance Load 1 Ω

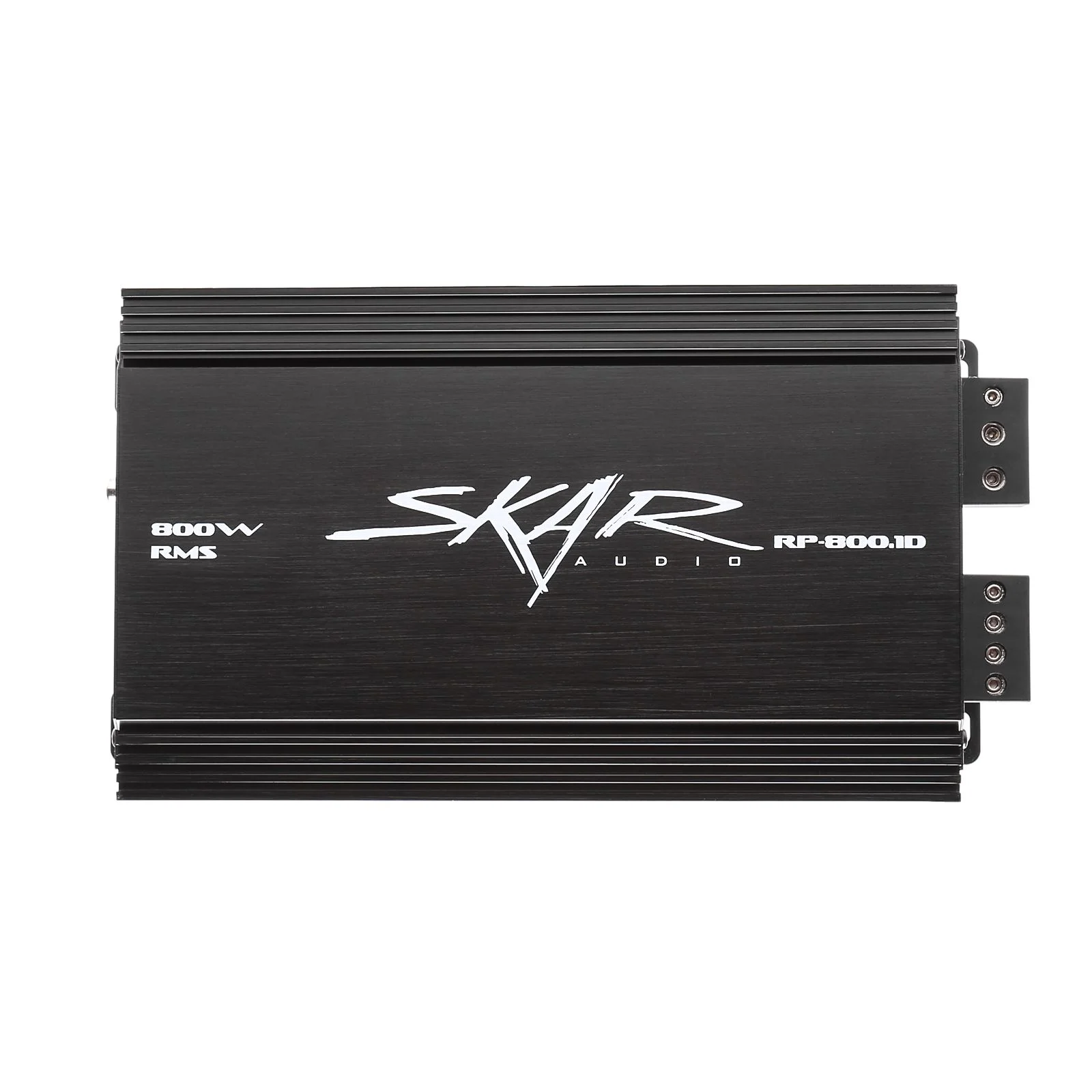

    Amplifier Specifications
    Model Name Skar Audio RP-800.1D Monoblock
    RMS Power at 1 Ω 800W x 1 Ch (14.4v)
    Peak Power at 1 Ω 1,200W x 1 Ch (14.4v)
    Power Supply High-Speed MOSFET
    Power & Ground Input Size 4 Gauge
    Remote Bass Knob and Cable Included Yes

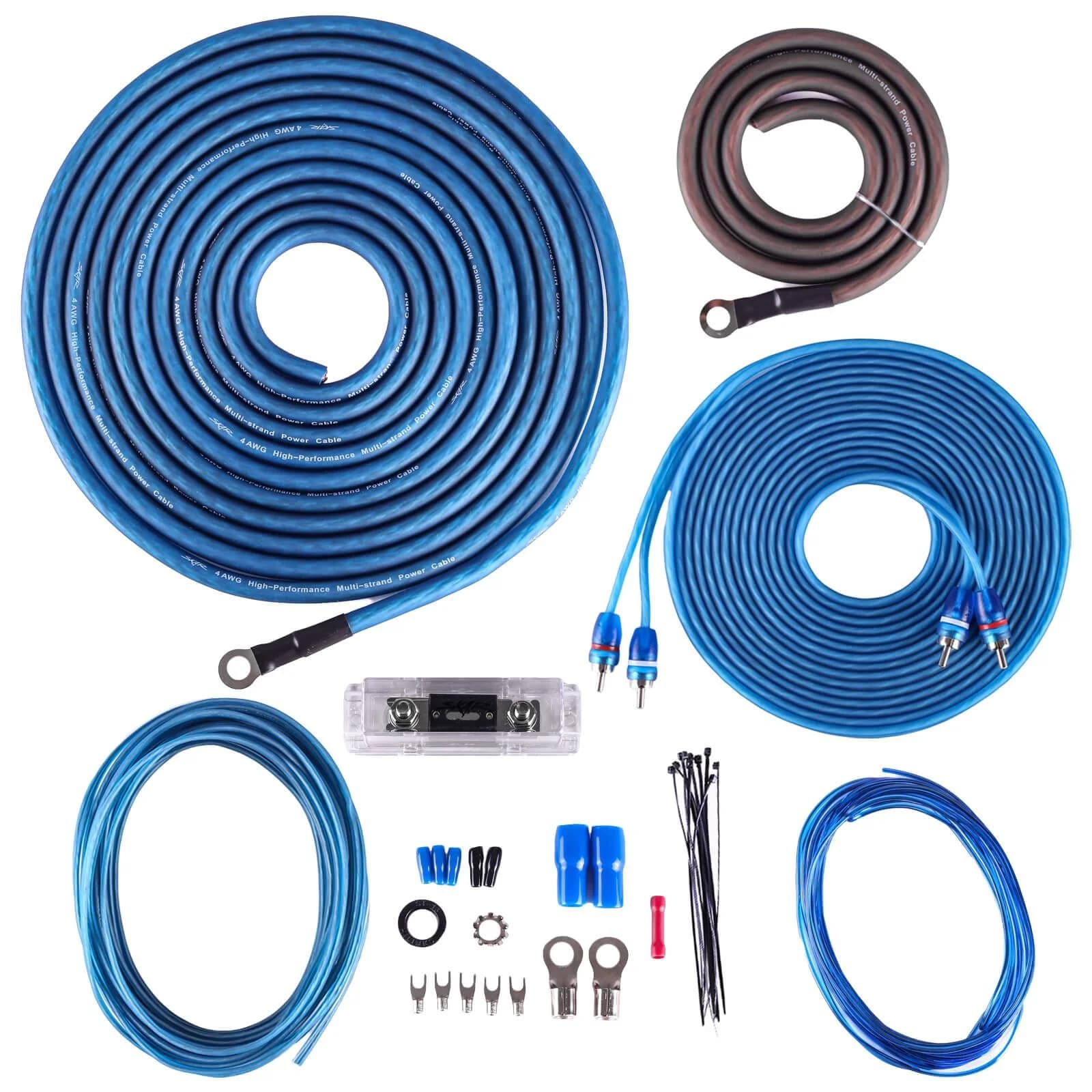

    Amp Kit Specifications
    Model Name SKAR4ANL-CCA 4 Gauge CCA Complete Kit
    ANL Fuse Size 100 Amp - Fuse Holder Included
    Power Cable 17 ft - 4 AWG Matte Blue
    Ground Cable 3 ft - 4 AWG Matte Brown
    Speaker Wire 20 ft - 16 Gauge Matte Blue
    RCA Interconnect Cable 17 ft - 2-Channel Blue Twisted Pair
    Remote Turn-on Wire 17 ft - Blue
    Accessories Ring/Ground Terminals & Vinyl Cable Ties Included
  • Performance
    RMS Power 600 Watts
    Peak Power 1,200 Watts
    Frequency Response 28 - 300 Hz
    Sensitivity (SPL) 82.0 dB
    Enclosure External Dimensions
    Width 16.50"
    Depth 1 (Bottom) Front to Back 15.00"
    Depth 2 (Top) Front to Back 13.25"
    Height 12.50"
