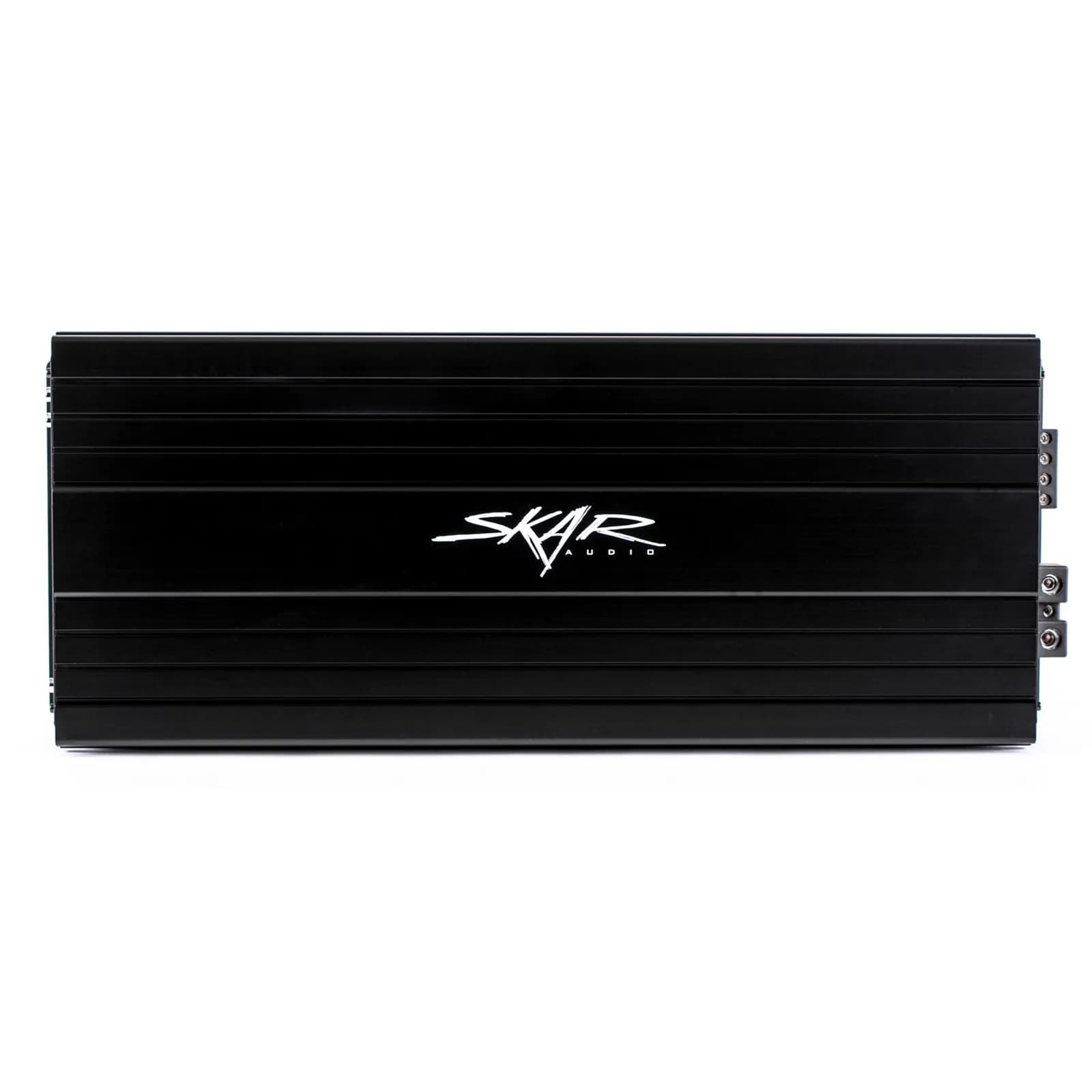

MPN | SKv2-3500.1D |
UPC | 739189979127 |
Type | Monoblock Car Amplifier |
Class | D |
Bridgeable | No |
Strappable | Yes |
Fuse Rating | 350 Amp |
MOSFET Type | High Speed MOSFET Power Supply |
Damping Factor | 200< |
Amplifier Width | 9.15" |
Bass EQ (Boost) | Yes (0 - 9 dB) |
Output Channels | 1 |
RCA Line Output | Yes |
Turn-On Circuit | Soft Turn-on Circuit |
Working Voltage | 8.5V - 16V |
Amplifier Height | 2.45" |
Amplifier Length | 22.62" |
Subsonic Control | 10Hz - 50Hz |
Tri-Mode Capable | No |
Frequency Response | 15Hz - 270Hz |
RMS Power at 1 Ohm | 3500 Watts x 1 Channel (14.4v) |
Peak Power at 1 Ohm | 4700 Watts x 1 Channel (14.4v) |
RMS Power at 2 Ohms | 2050 Watts x 1 Channel (14.4v) |
RMS Power at 4 Ohms | 1200 Watts x 1 Channel (14.4v) |
Efficiency at 4 Ohms | 0.86 |
Protection Built-in? | Yes - 4-Way (Thermal‚Voltage‚Speaker‚DC) |

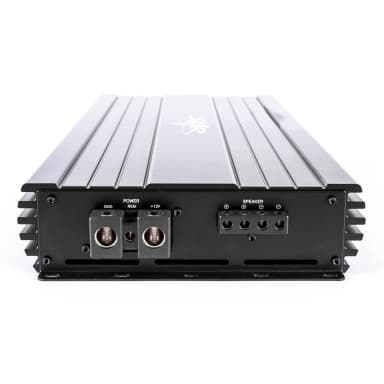

Power & Ground Inputs | 1/0 Gauge |
Signal-to-Noise Ratio | 95 dB |

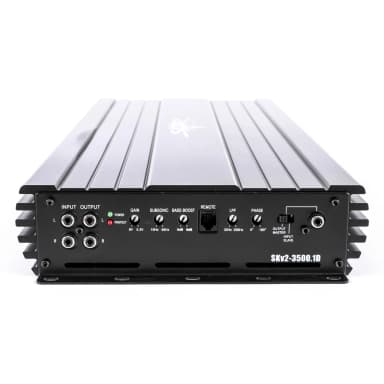

Low Level Input (Gain) | 6V - 0.2mV |
Low Pass Filter (Variable) | 35Hz - 250Hz |
Power & Protection Indicators | Yes - LED Indicators |

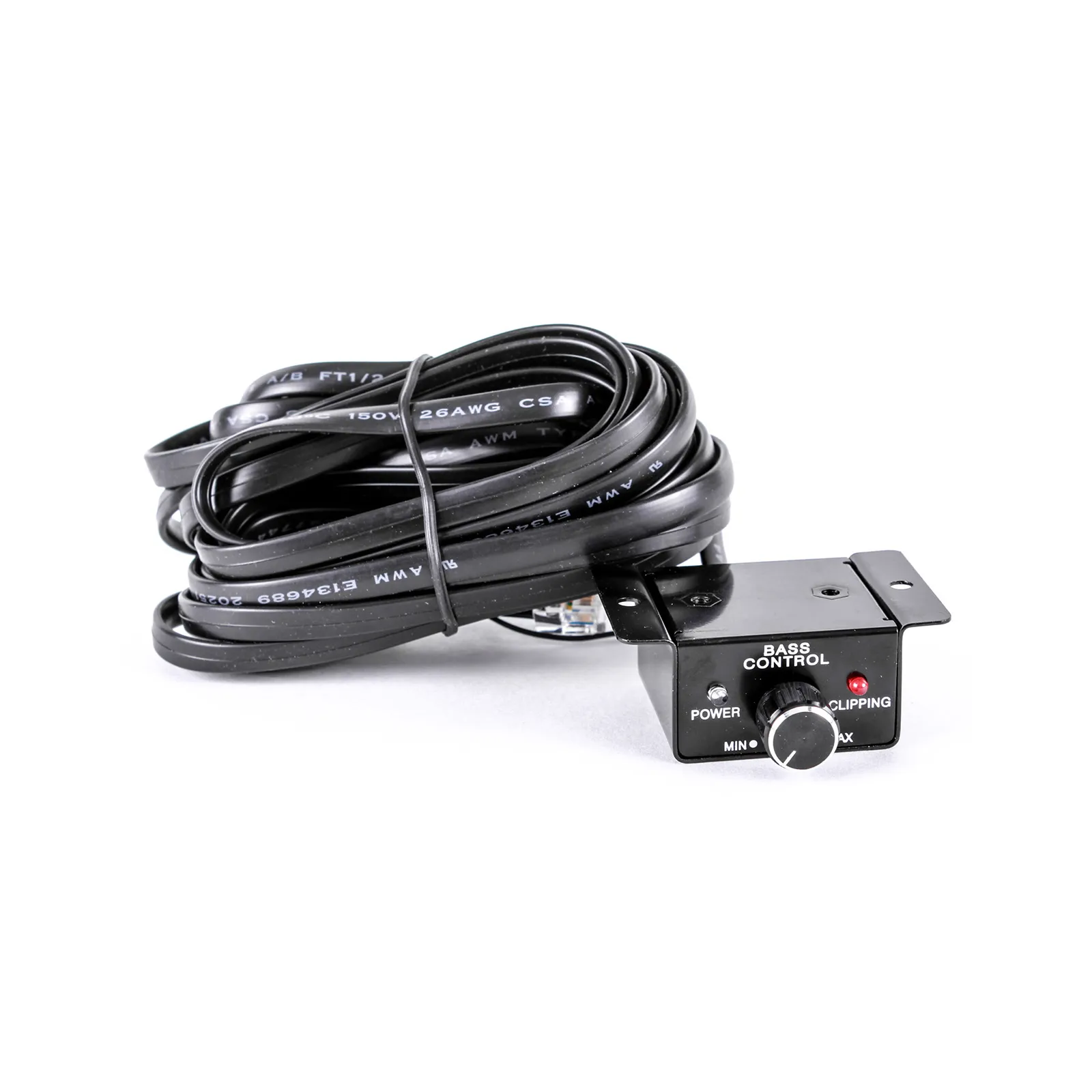

Remote Bass Knob & Cable Included | Yes |
User Manual (PDF) |
