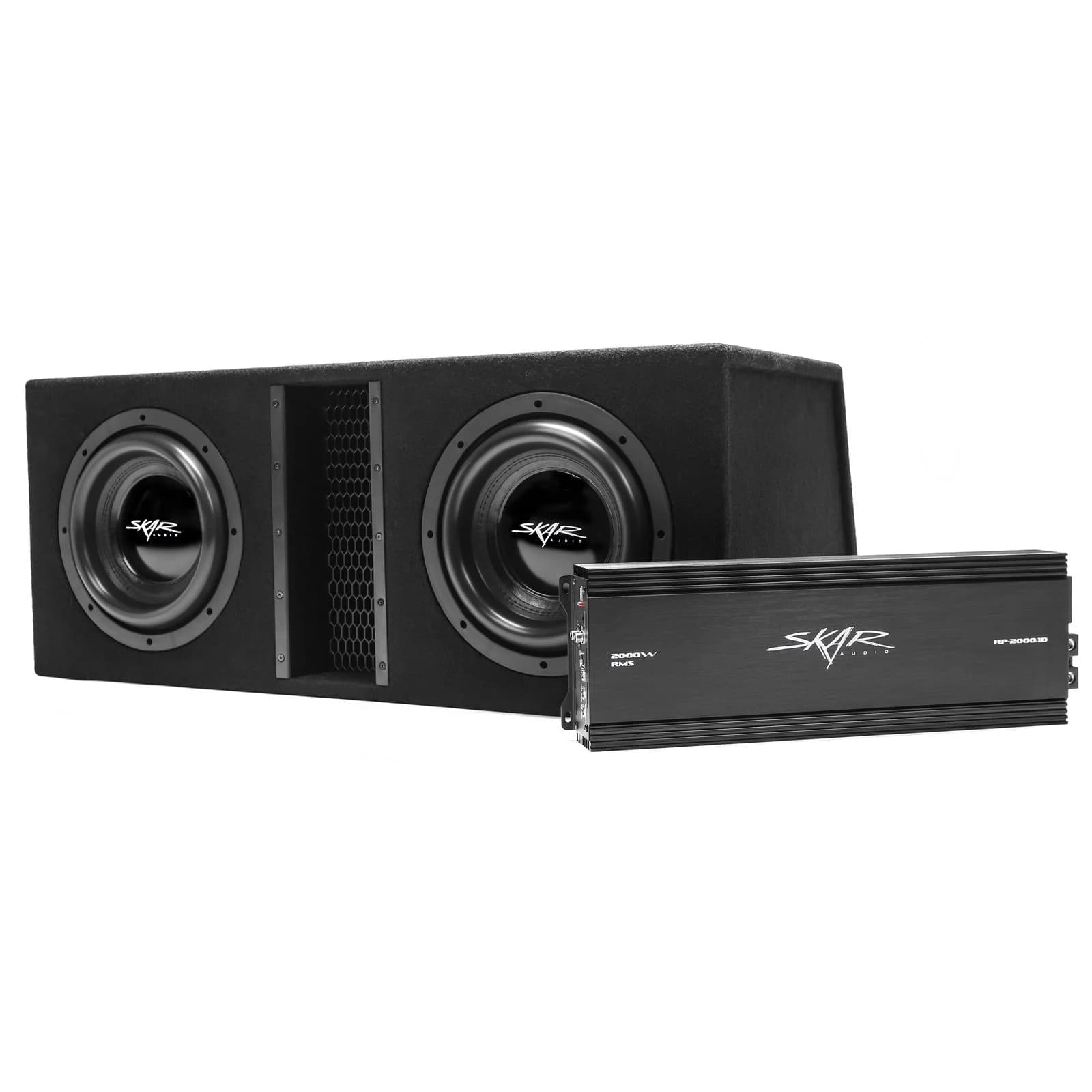

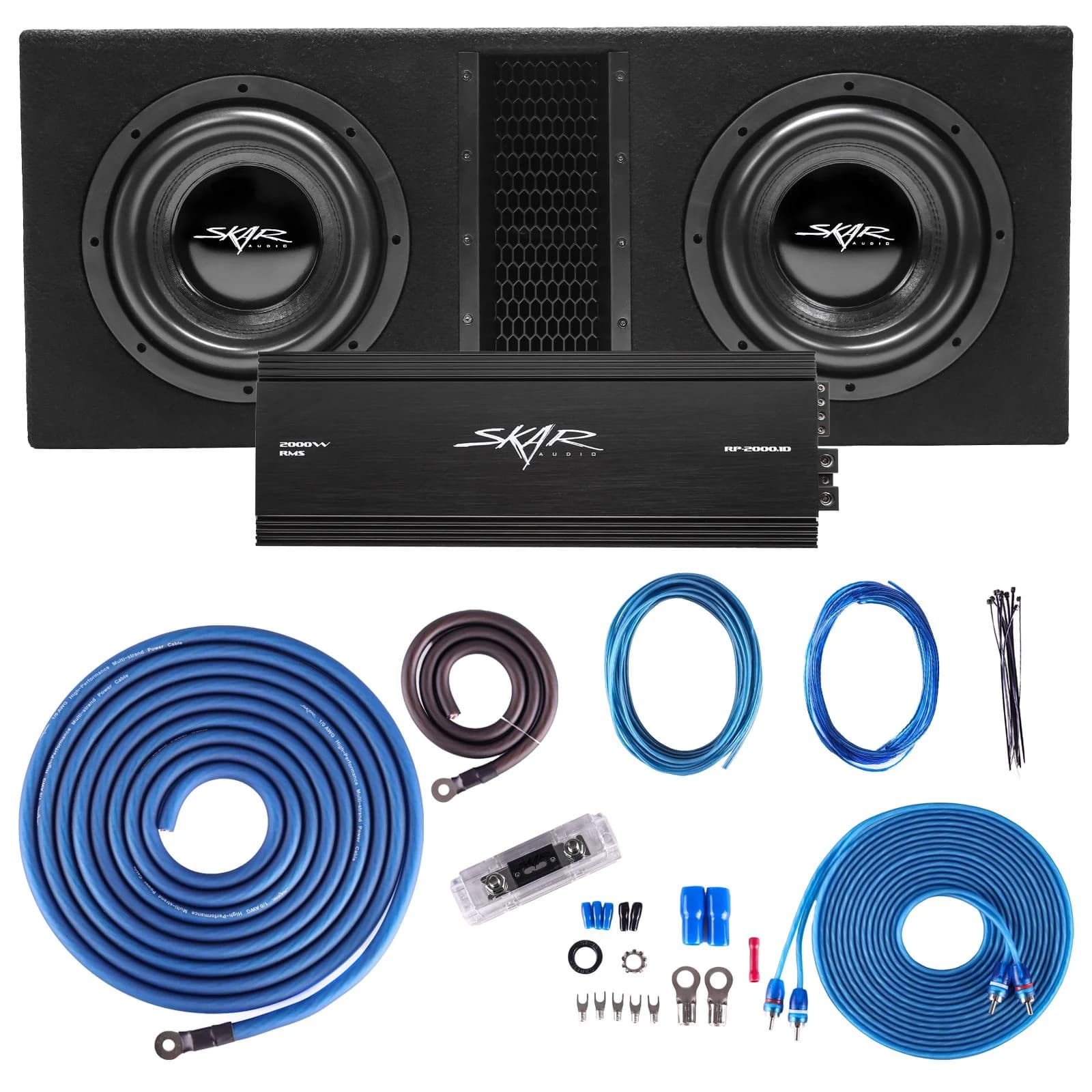

Dual 10" 4,000 Watt EVL Series Complete Subwoofer Package with Vented Enclosure and Amplifier

MSRP: $ 899.99 $ 729.99
  • Skar Audio Dual EVL 10" 4000 Watt Loaded Sub Box and Amplifier - Package View
Skar Audio Dual EVL 10 Skar Audio Dual EVL 10 Skar Audio Dual EVL 10 Skar Audio Dual EVL 10 Skar Audio Dual EVL 10 Skar Audio Dual EVL 10 Skar Audio Dual EVL 10

Dual 10" 4,000 Watt EVL Series Complete Subwoofer Package with Vented Enclosure and Amplifier

MSRP: $ 899.99 $ 729.99
Change ZIP

Description

Description

Skar Audio designed this custom EVL-2X10D4 loaded enclosure package to provide an all-in-one option to easily get competition-grade, thunderous bass in your vehicle. This package is equipped with two, 10-inch, dual 4-ohm, Skar Audio EVL Series subwoofers, which are pre-loaded and wired up inside of a custom dual 10" ported enclosure. The enclosure features our advanced port and split chamber woofer design, allowing for extreme levels of bass output, while reducing distortion. Due to the weight of the massive EVL motor, we built this enclosure with extensive internal bracing, ensuring structural integrity and reliability. Furthermore, this custom enclosure is covered in premium grade black carpeting, providing a sleek appearance that allows the enclosure to look as good as it sounds. We also include the perfect amplifier in this package to power your new subwoofer with the Skar Audio RP-2000.1D, which comes with a premium 1/0 gauge amplifier wiring kit with anl style fuse to make installing the amplifier hassle free.



The Skar Audio EVL series of subwoofers redefines the definition of low-end sound reproduction. The engineering behind developing a driver that is able to accurately handle the frequency range of these notes with authority is what makes this woofer so unique. From top to bottom, this subwoofer utilizes an array of design features and materials that distinctively put it in a class of it's own. Rated conservatively at 1,000 watts RMS and 2,000 watts max power each, the EVL-10 D4 features a high flux double stack ferrite motor, which, when combined with the 3-inch, high temperature, 4-layer, black aluminum ccaw voice coil - allow for extreme power handling for extended periods of time.



We take the guess work out of pairing the components of your system up, and make it easy to get the bass you've always wanted in your ride. The subwoofers come pre-wired and loaded inside of the enclosure allowing for an easy and hassle free installation. The dual 4 ohm subwoofers are wired up inside of the enclosure so that the final impedance load is configured for 1-ohm at the terminals (one terminal cup). Peak Power: 4,000 Watts, RMS Power: 2,000 Watts.

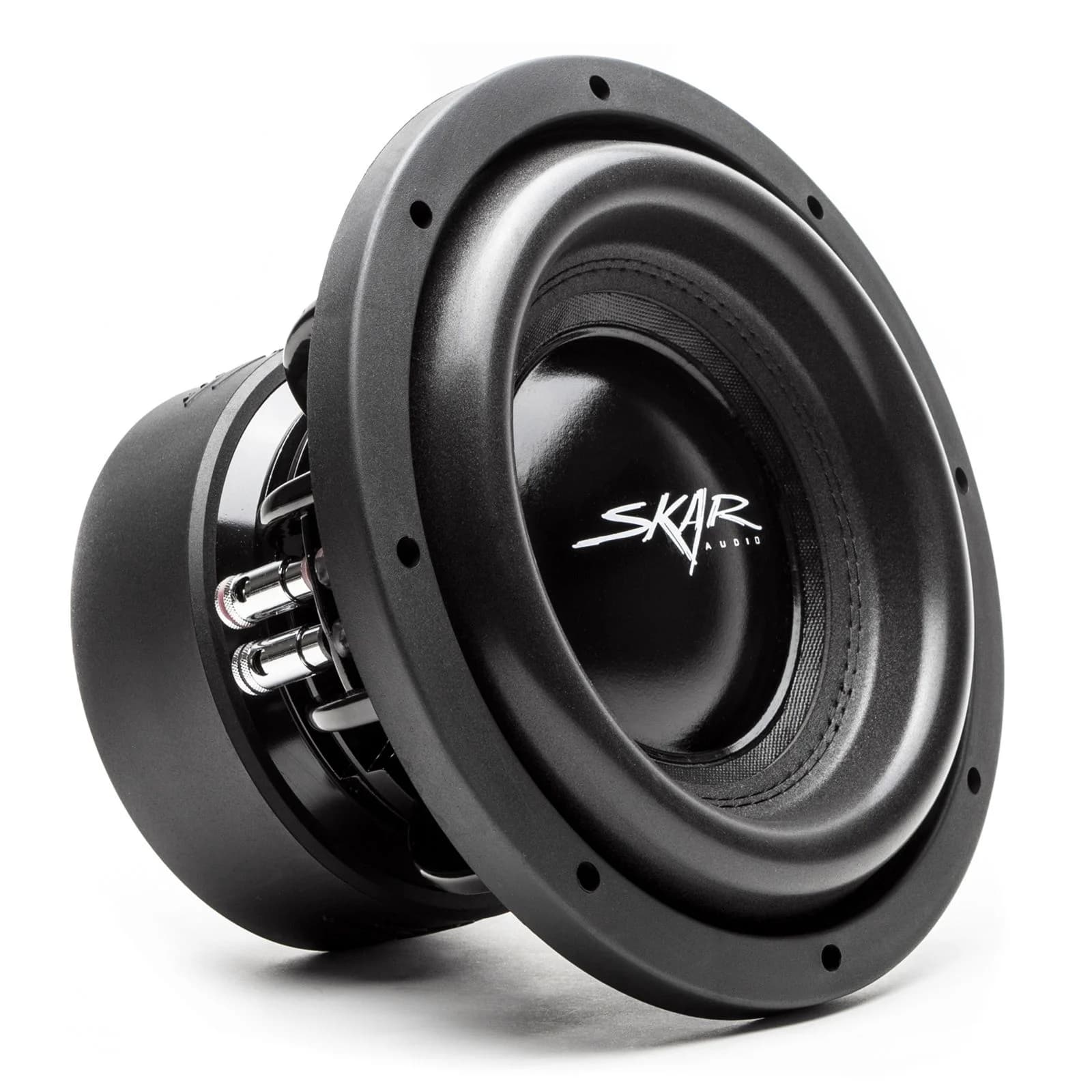

Subwoofer Specifications

  • Includes (2) Subwoofers Pre-Loaded Into Subwoofer Enclosure
  • Skar Audio EVL-10 D4 - 10" Dual 4 Ohm Subwoofers
  • Dual 4 Ohm Voice Coil Configuration
  • Peak Power: 4,000 Watts (pair) | 2,000 Watts (each)
  • RMS Power: 2,000 Watts (pair) | 1,000 Watts (each)
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Advanced Air Flow Cooling System
  • Voice Coil Size: 3"
  • 4 Layer Black Aluminum CCAW Voice Coil
  • Motor Weight: 166 oz
  • Frequency Response: 44-400 Hz
  • High Roll Foam Surround
  • Sensitivity: 81.9 dB
  • Fs: 45 Hz
  • Re: 3.8 Ohms
  • Qms: 5.21
  • Qes: 0.69
  • Qts: 0.62
  • Mms: 243.2 g
  • Cms: 0.046 mm/N
  • Bl: 12.3 n/a
  • Vas: 6.5 L
  • Sd: 314.1 cm²
  • Xmax: 24mm (one-way)

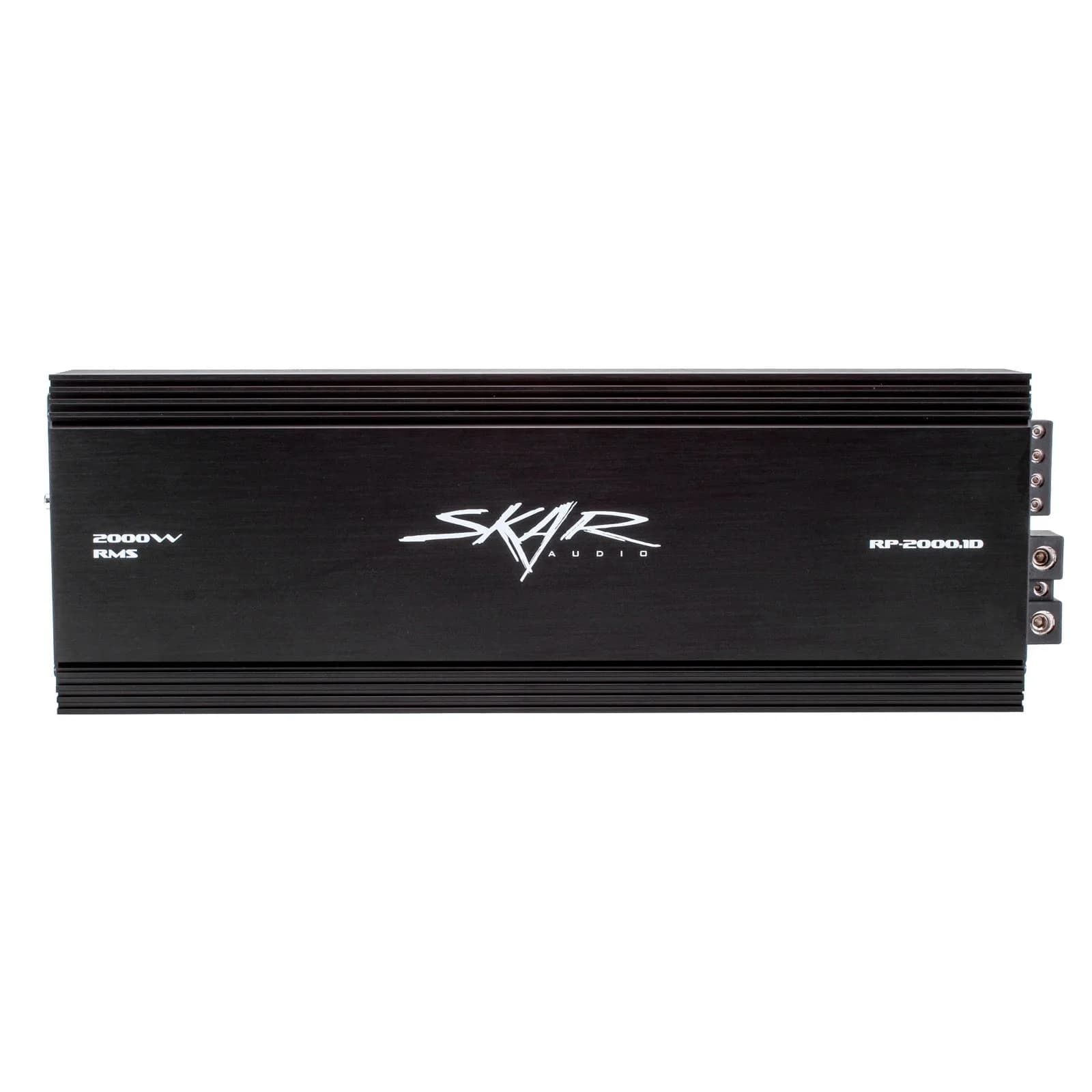

Amplifier Specifications

  • Skar Audio RP-2000.1D Class D Monoblock Car Subwoofer Amplifier
  • 1 Ohm Stable Class D Monoblock Subwoofer Amplifier
  • 4 Way Protection Circuitry: Thermal, Voltage, Speaker, DC
  • RMS Power @ 1 Ohms: 2,000 Watts x 1 Channel (14.4v)
  • RMS Power @ 2 Ohm: 1,400 Watts x 1 Channel (14.4v)
  • RMS Power @ 4 Ohms: 800 Watts x 1 Channel (14.4v)
  • MOSFET Power Supply
  • Soft Turn on Circuit
  • Frequency Response: 20 Hz ~ 250 Hz
  • Signal to Noise Ratio: 85dB
  • Damping Factor: 150<
  • Low Pass Filter (Variable): 50 Hz ~ 220 Hz
  • Subsonic Filter: Off~50Hz
  • Remote Bass Knob & Wire Included
  • 1/0 Gauge Power and Ground Terminals
  • Working Voltage: 8.5V-14.4V
  • Fuse Rating: 200 Amp
  • Dimensions: 17" (Length) x 6.3" (Width) x 2.2" (Height)

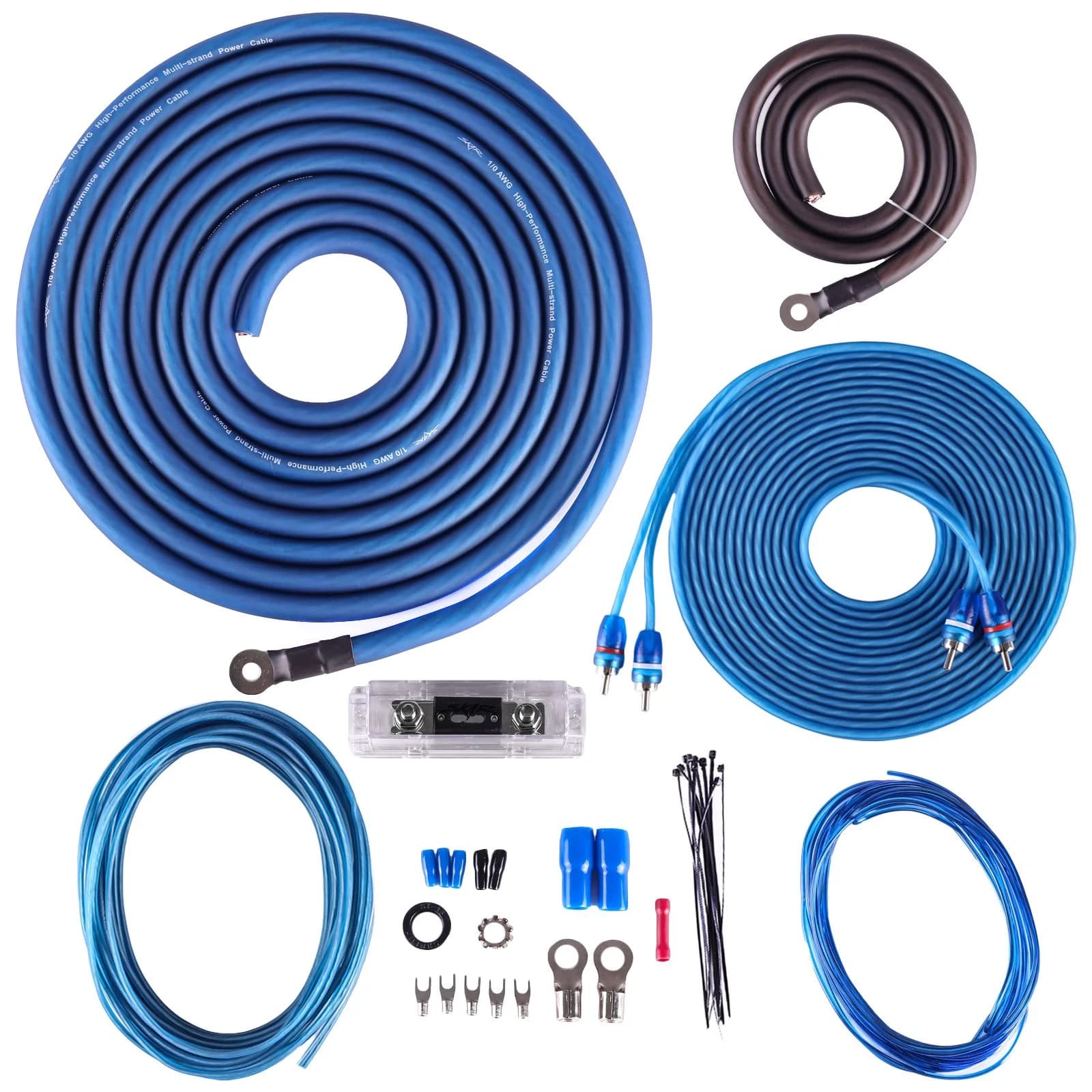

Amp Kit Specifications

  • Skar Audio Model: SKAR0ANL-CCA
  • 1/0 Gauge Complete Amplifier Installation Kit
  • Everything You Need to Install & Wire Up Your Amplifier
  • Great for Amplifiers up to 2,000 Watts
  • 17 ft. of 1/0 Gauge CCA Matte Blue Ultra Flexible Power Cable
  • 3 ft. of 1/0 Gauge CCA Matte Brown Ultra Flexible Ground Cable
  • 17 ft. of Blue Remote Turn-on Wire
  • 20 ft. of 12-Gauge Premium Multi-stranded Speaker Wire
  • 17 ft RCA 2-Channel Blue Twisted Pair Shielded Interconnect Cable
  • High Current Waterproof ANL Fuse Holder
  • 200 Amp ANL Fuse Included
  • Ring Terminals
  • Ground Terminals
  • Vinyl Cable Ties

    Enclosure Specifications

    • Dual 10-Inch Vented (Ported) Subwoofer Enclosure
    • Custom Engineered Skar Audio Enclosure specifically Designed for use with the Skar Audio EVL-10 D4 (x2) Subwoofers
    • Wedge Style Vented Design allows for Extreme Low End Bass Output Levels and Responsiveness
    • Wood Thickness & Material: 5/8" MDF
    • Front Baffle Thickness & Material: 1.25" MDF
    • Finish: Industrial-Grade Black Colored Carpet
    • Premium Push Terminals Located on Left Side of Enclosure (one terminal cup only - woofers are wired internally to reach a 1-ohm final load)
    • Internal Air Space of Enclosure: 3.30 ft³
    • Tuning Frequency of Enclosure: 32 Hz
    • Box Outer Dimensions:
    • Width: 34.75"
    • Depth #1: 14.75" (Top Depth)
    • Depth #2: 18.75" (Bottom Depth)
    • Height: 13.875"
