DDX-12 | 12" 1,500 Watt Max Power Car Subwoofer

263 Reviews

MSRP:$289.99
Current Price:$179.99
Sale Price:
$152.99



Coil Configuration

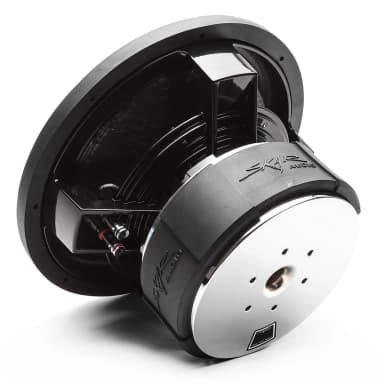

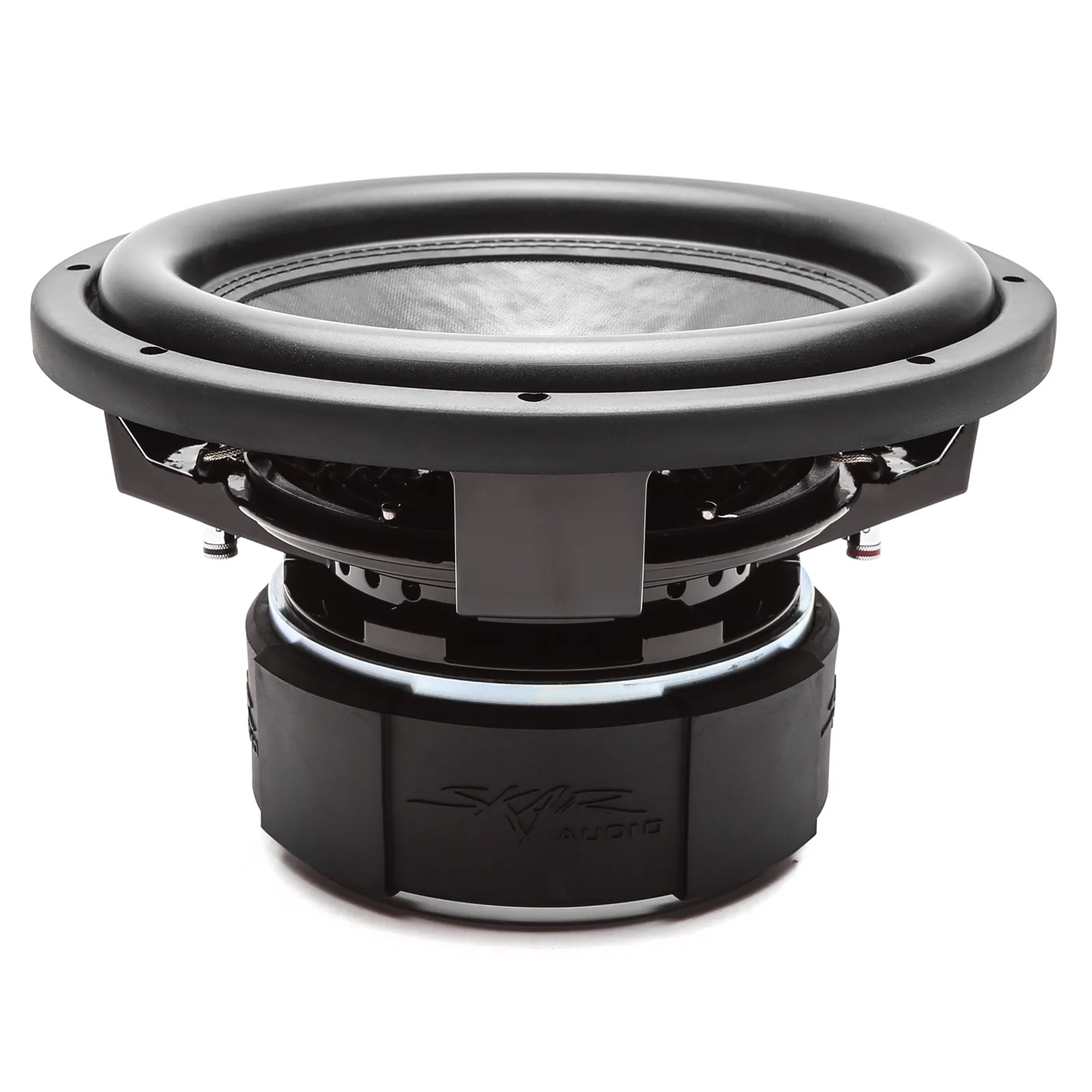

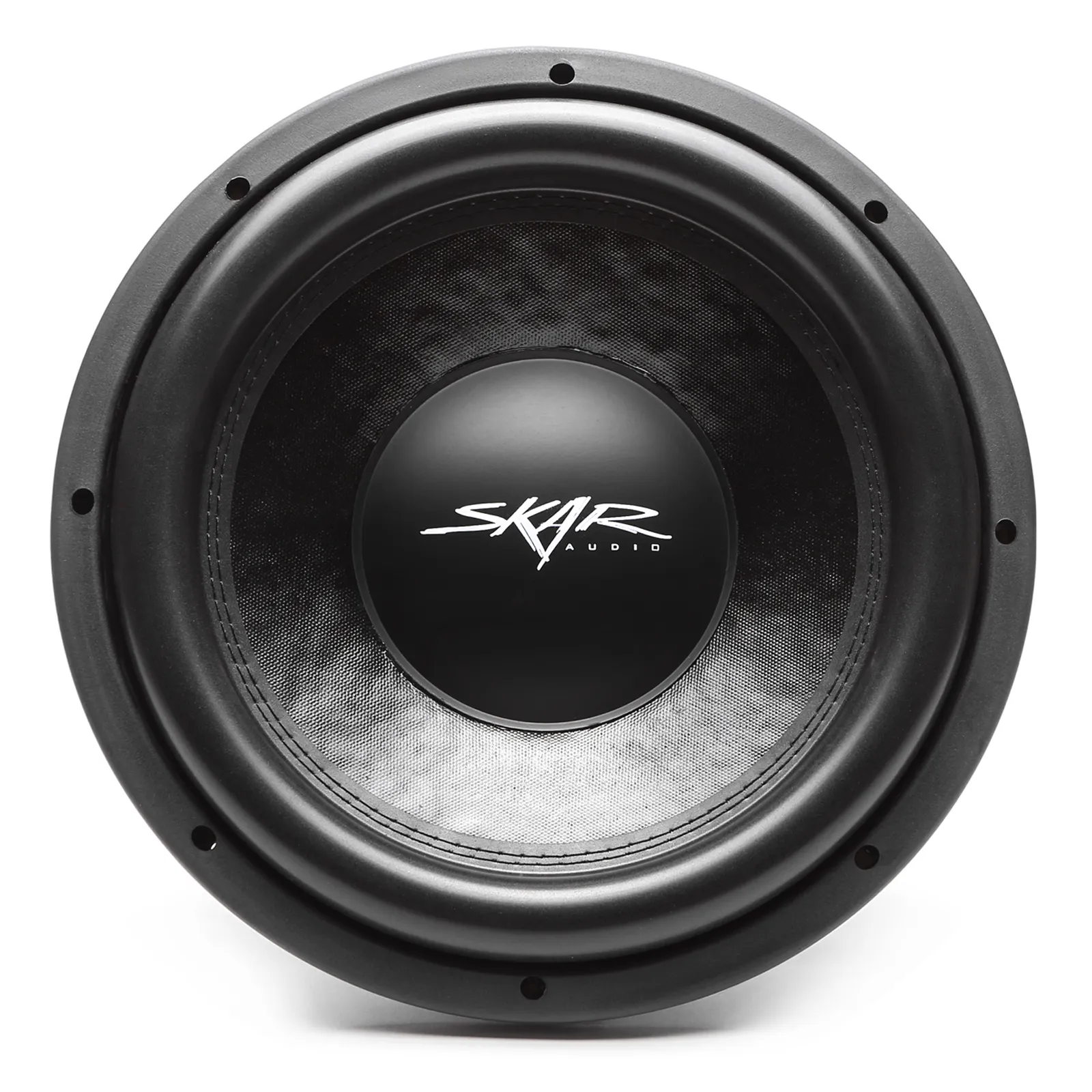

The Skar Audio DDX-12 D2 is a competition grade, 12-inch, dual 2-ohm, car subwoofer. The DDX line-up was engineered by Skar Audio to be a SPL grade woofer that could also be utilized in daily system applications, allowing non-competitors to use the same subwoofers as those competing in the lanes. The DDX-12 is equipped with an advanced air flow cooling system to help dissipate heat, enabling it to provide continuous reliable power.
Conservatively rated at 1,500 watts peak power and 1,000 watts RMS power, this subwoofer was engineered to be extremely loud. Featuring a massive double stack 202 oz motor, 2.5" pure copper high temperature voice coil, and a competition grade pressed paper cone, stitched to the high roll foam surround, the DDX-12 comes equipped ready to handle serious amounts of power.
Product Info
MPN
DDX-12 D2
UPC
852679805604
General Specifications
Type
Car Subwoofer
Cone Type
Competition Grade Pressed Paper Cone
RMS Power
1000 Watts
Peak Power
1500 Watts
Surround Type
Stitched High Roll Foam Surround
Subwoofer Size
12"
Voice Coil Size
2.50"
Magnet Slug Count
Double
Voice Coil Layers
4
Voice Coil Material
Copper (Pure Copper)
Voice Coil Impedance
Dual 2 Ω
T/S Parameters
Bl
25.5 n/a
Fs
33.8 Hz
Re
Dual 2 Ω
Sd
510.0 cm2
Cms
0.07 mm/N
Mms
243.0 gr
Qes
0.37
Qms
4.10
Qts
0.34
Vas
24.8 L
Nref
0.40%
Xmax
15 mm (one-way)
Sensitvity
88.0 dB
Recommended Enclosure Specifications
Enclosure Disclaimer
Enclosure recommendations above do not include subwoofer, bracing, and port displacement
Recommended Port Area
32.0 in²
Recommended Ported Volume
2.50 ft³
Recommended Sealed Volume
1.75 ft³
Recommended Tuning Frequency
38 Hz

Subwoofer Measurements
Total Height
7.53"
Mounting Depth
6.58"
Magnet Diameter
7.60"
Outside Diameter
12.56"

Shipping Image
Returns Image
Money Back Logo
Warranty Image
