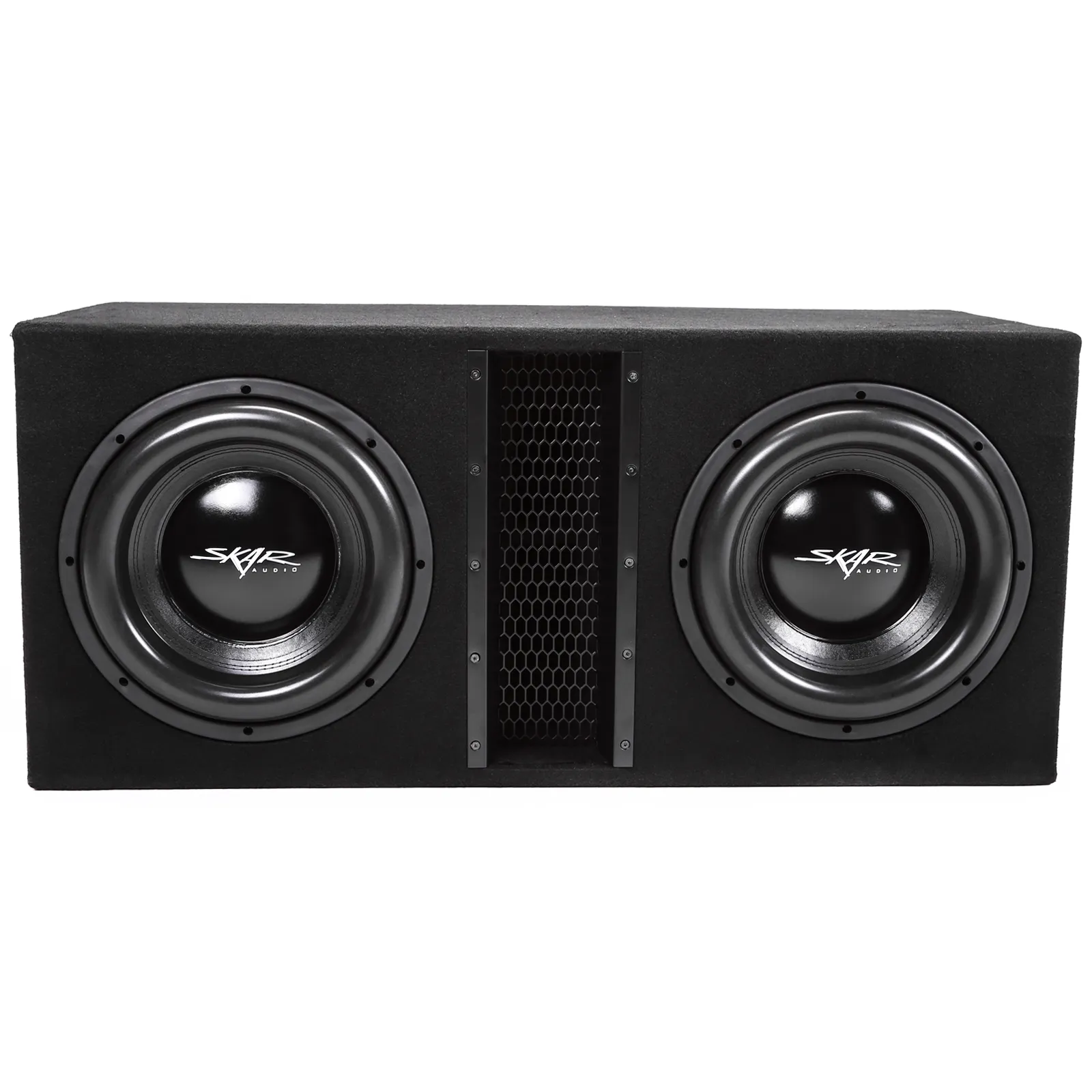

Dual 12" 2500 Watt EVL Series Loaded Vented Subwoofer Enclosure

  • Skar Audio EVL-2X12D4 Dual 12

Dual 12" 2500 Watt EVL Series Loaded Vented Subwoofer Enclosure

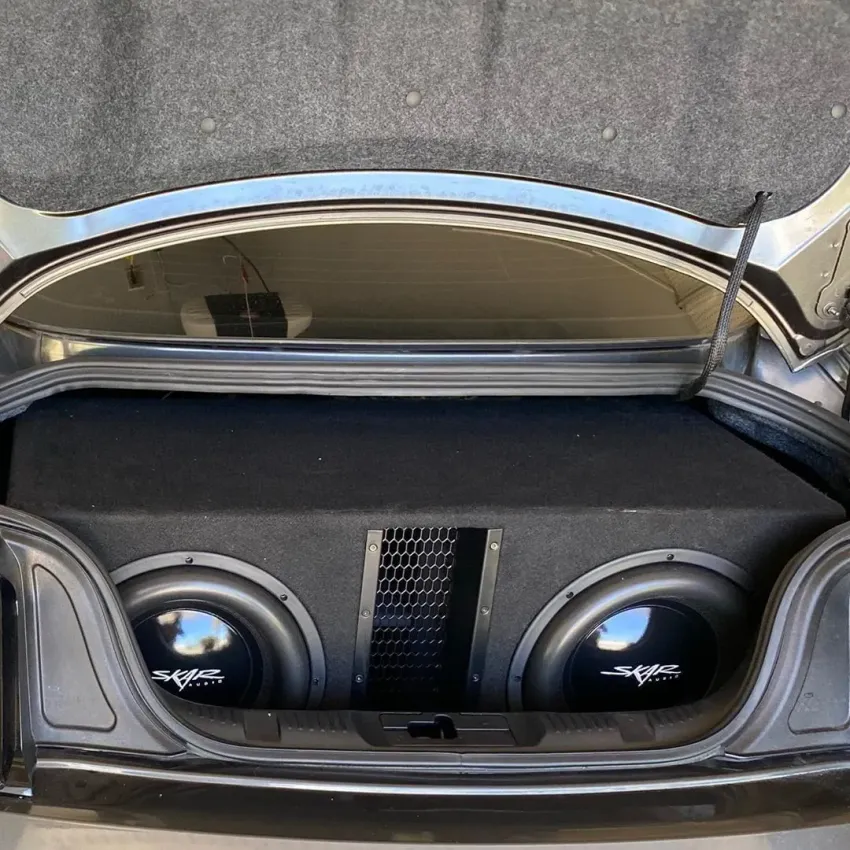

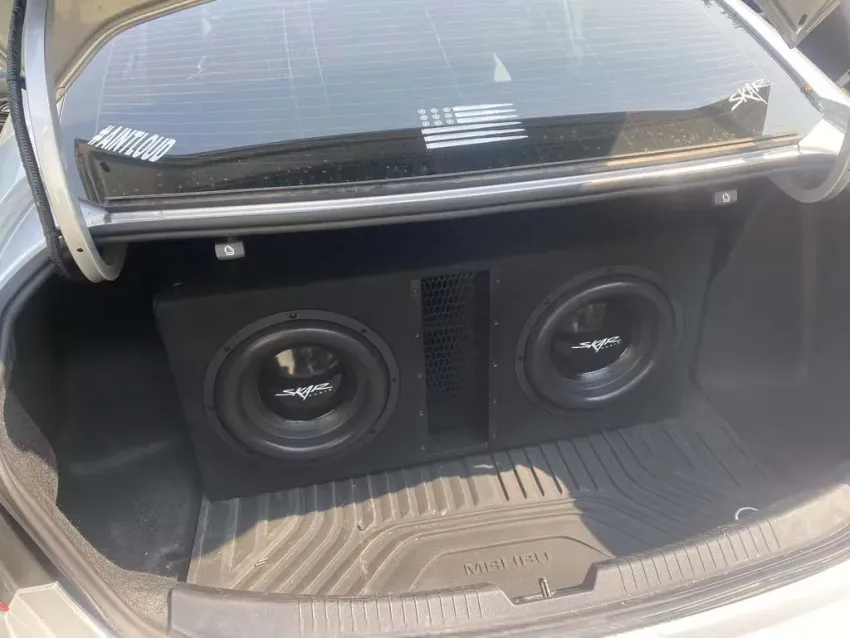

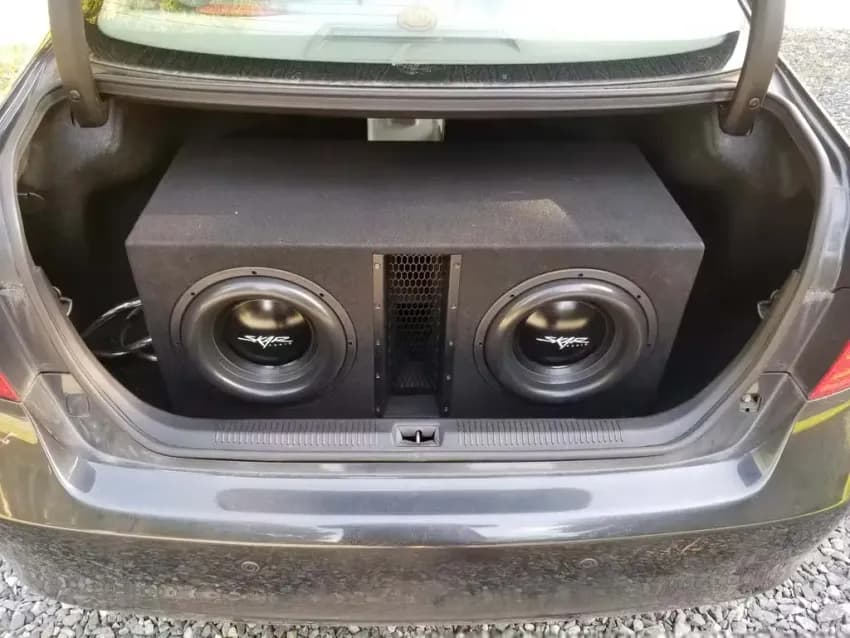

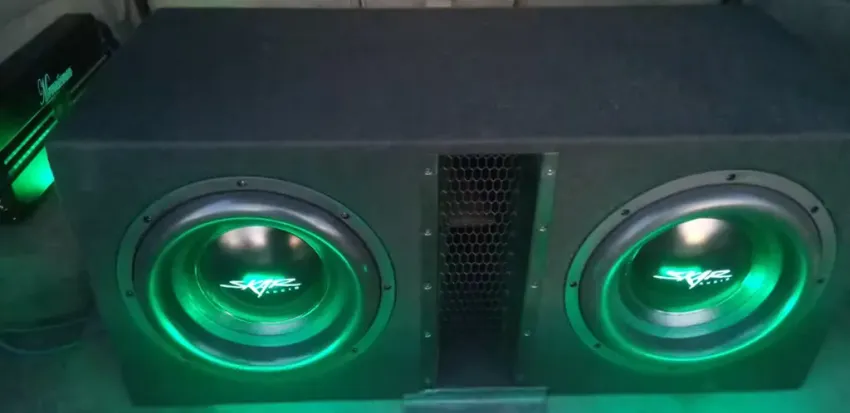

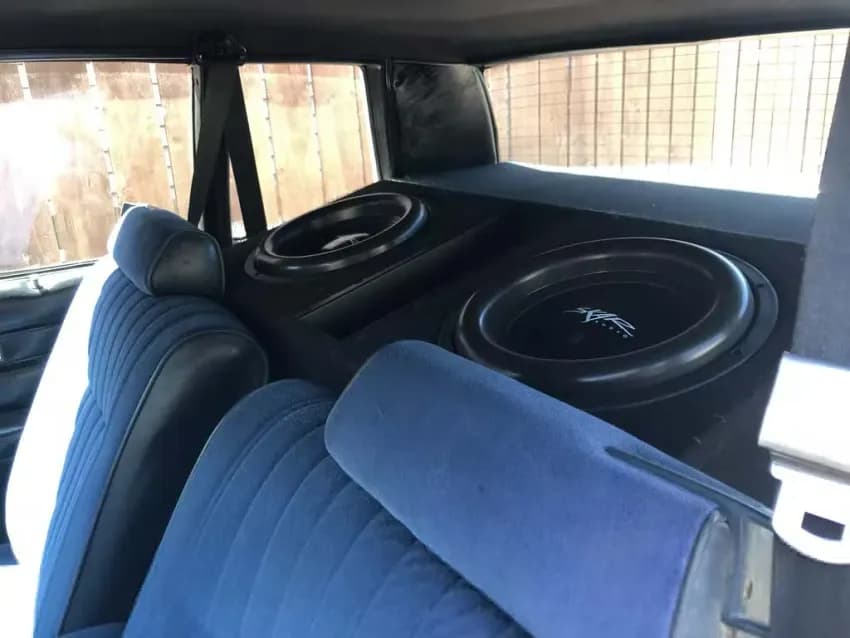

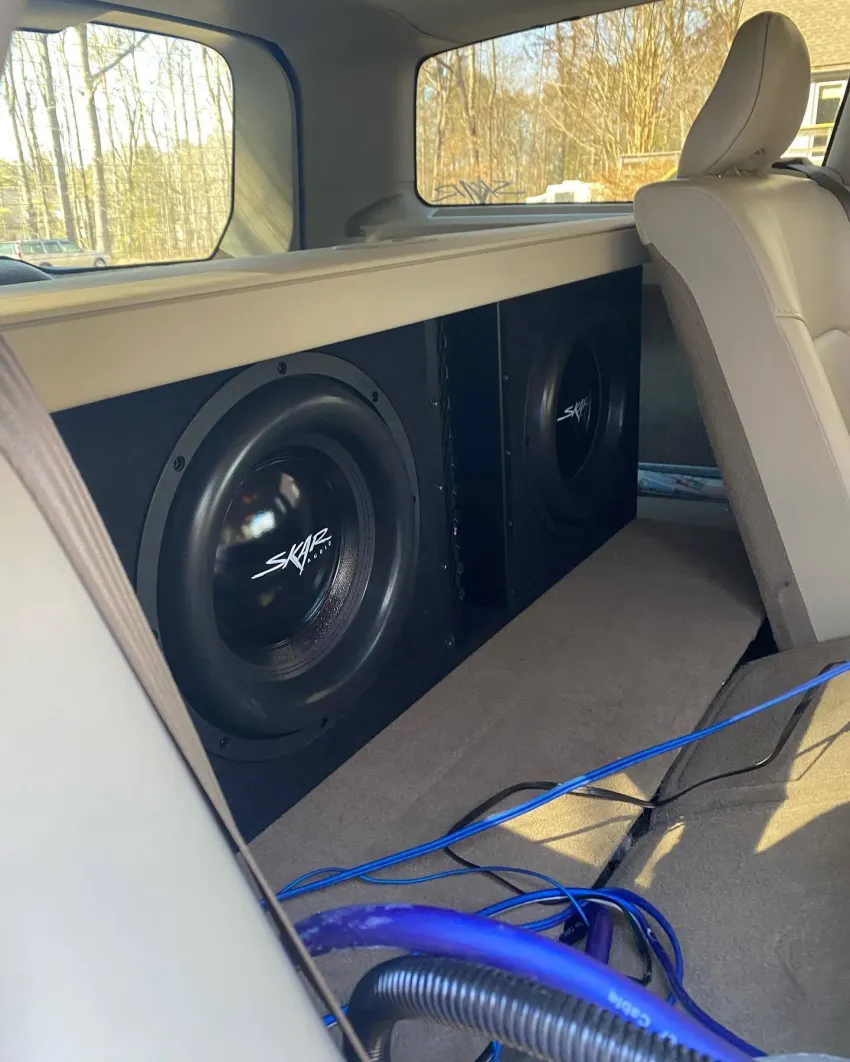

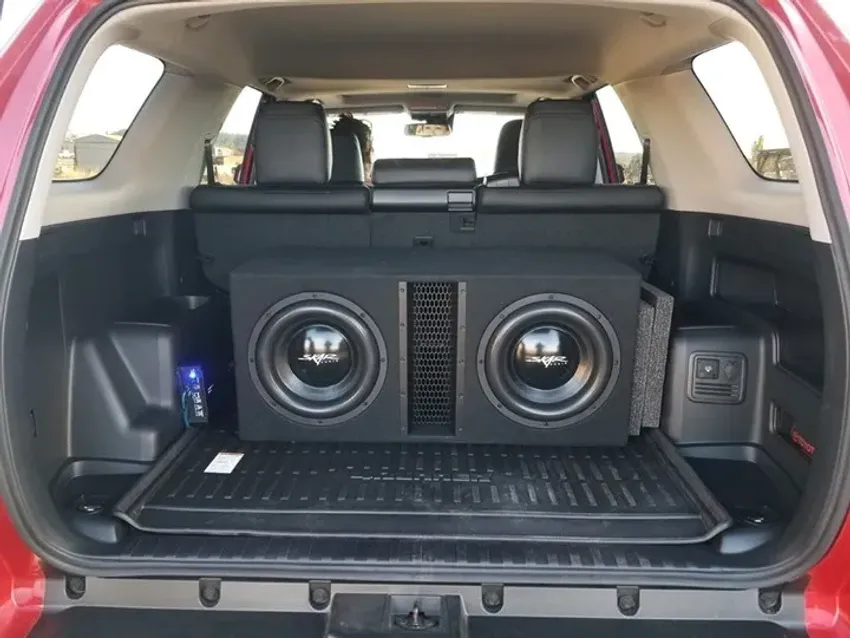

Skar Audio created this premium loaded enclosure package to make it easier than ever to add low-frequency, head-turning bass to your vehicle. This package is equipped with two, 12-inch, dual 4-ohm, Skar Audio EVL Series subwoofers, which are pre-loaded and wired up inside a ruggeed dual 12-inch wedge-style ported enclosure.

This enclosure is covered in industrial-grade black carpet and features the debut of our advanced port design, which promotes generous air movement, while reducing distortion. This package was put together by our installation experts to ensure compatibility and allow for an easy installation. We take the guess work out of pairing the components of your system up, and make it easy to get the bass you've always wanted in your ride.


The dual 4-ohm subwoofers included in this package are pre-configured and wired up inside of the subwoofer enclosure at a 1-ohm final load to ensure an easy and hassle free installation.

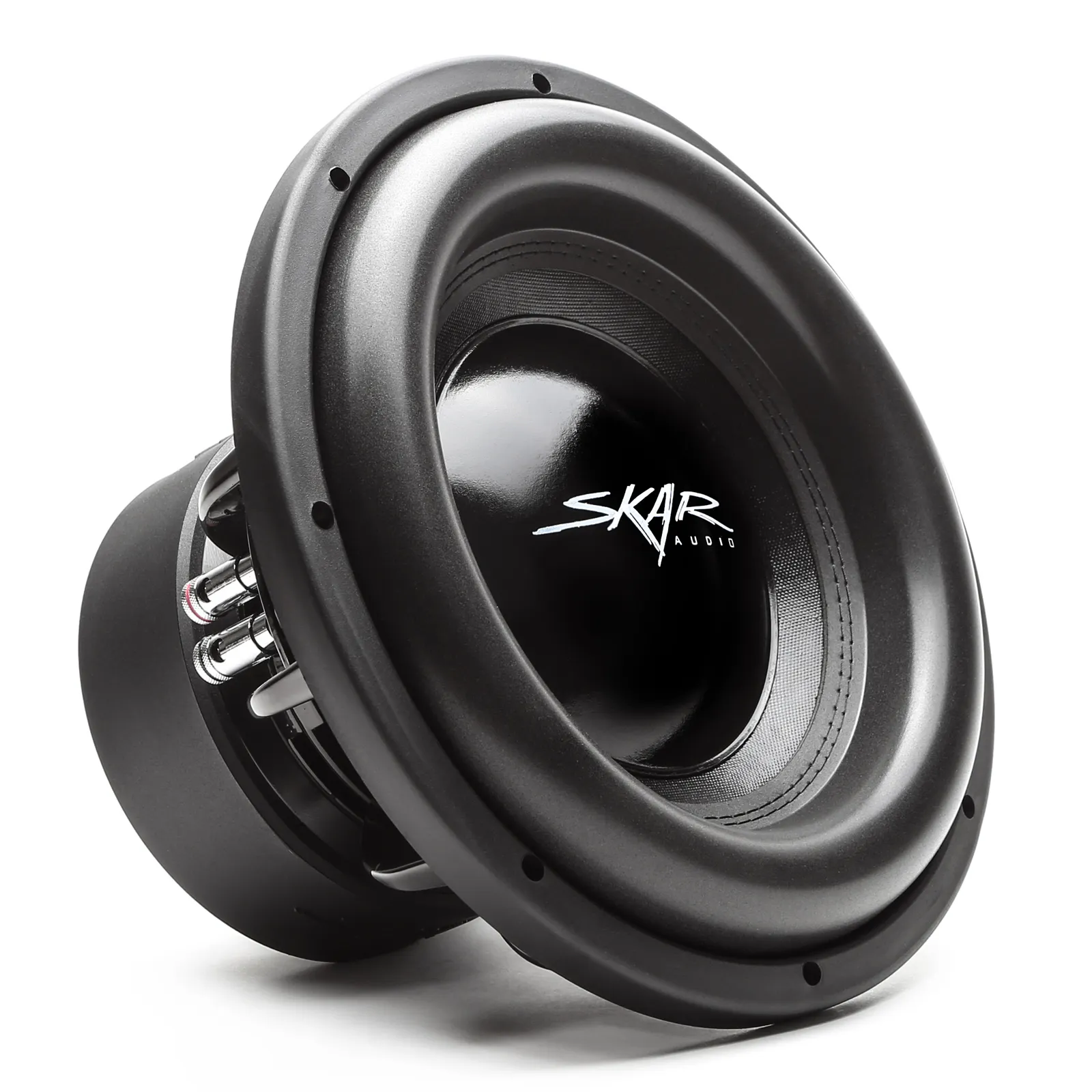

Subwoofer Specifications

  • Skar Audio EVL-12 D4 12" Competition Car Subwoofer
  • Dual 4 Ohm
  • RMS Power: 1,250 Watts
  • Peak Power: 2,500 Watts
  • Voice Coil Size: 3"
  • 4 Layer Black Aluminum CCAW Voice Coil
  • Frequency Response: 30-300 Hz
  • High Roll Foam Surround
  • Sensitivity: 85.3 dB
  • Fs: 40 Hz
  • Re: 3.8 Ohms
  • Qms: 5.00
  • Qes: 0.76
  • Qts: 0.65
  • Mms: 256.3 g
  • Cms: 0.059 mm/N
  • Bl: 12.8 n/a
  • Vas: 18.2 L
  • Sd: 471.4 cm²
  • Xmax: 23.5mm (one-way)

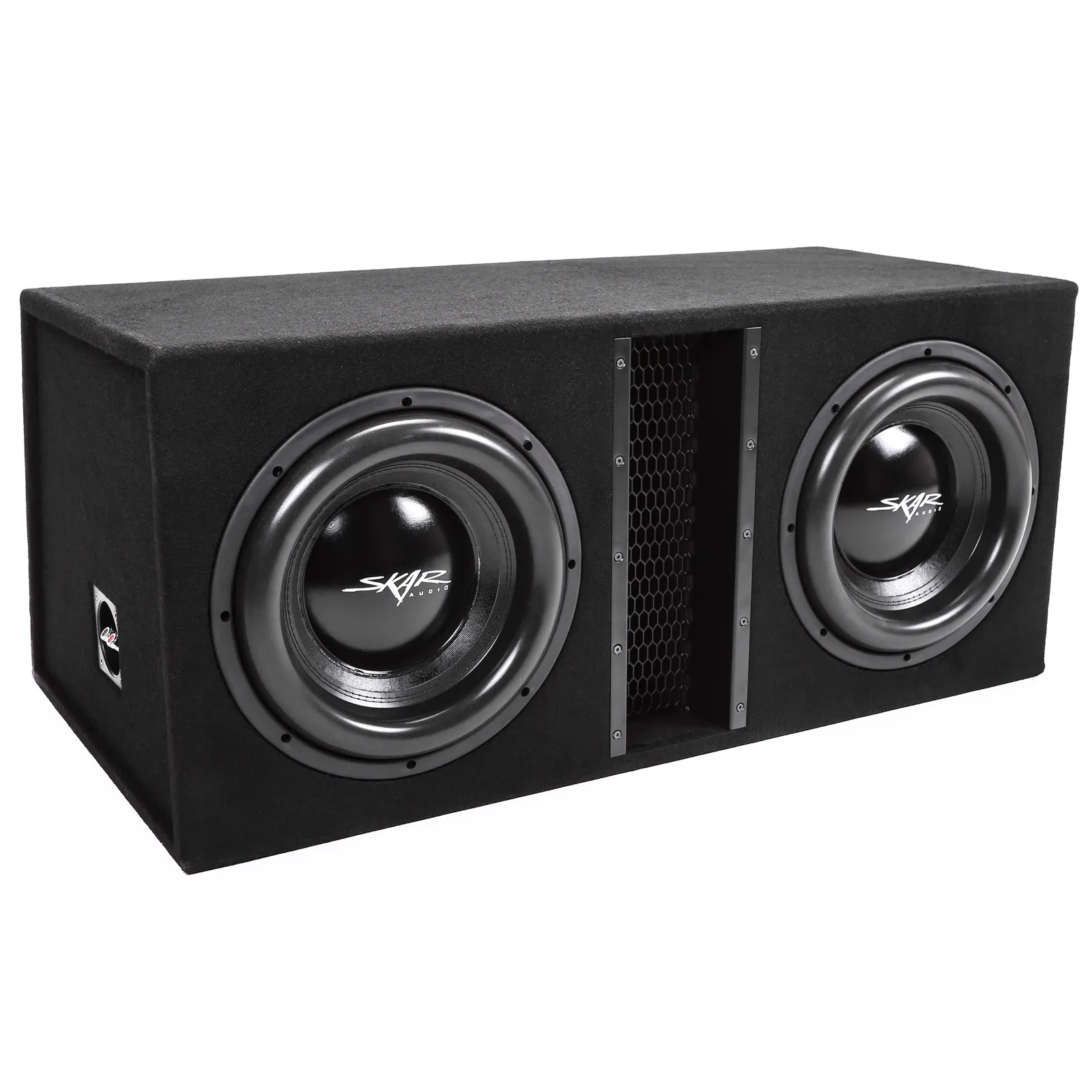

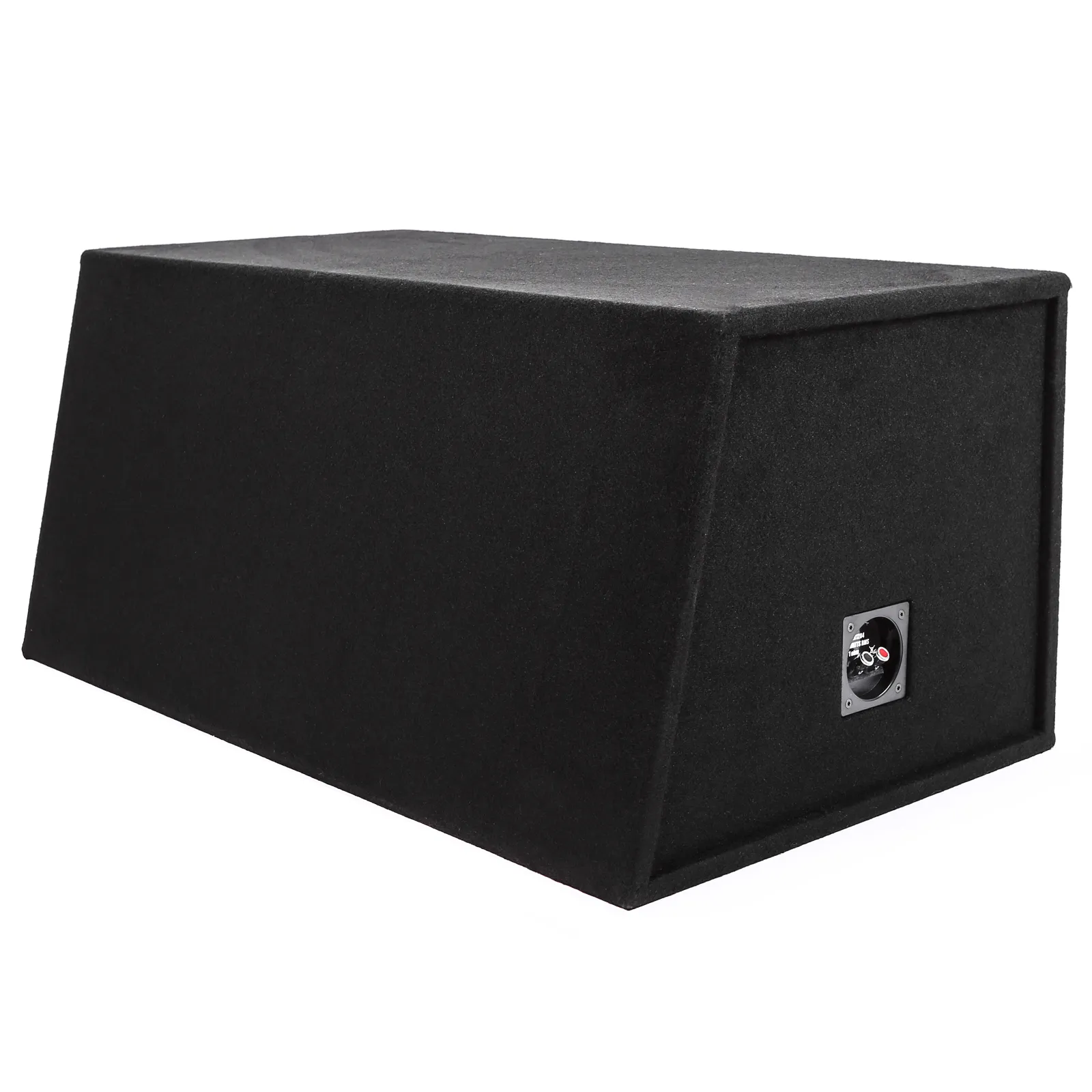

Enclosure Specifications

  • Dual 12-Inch Ported Subwoofer Enclosure
  • Wedge Style Design
  • 2-Hole 12" Vented Carpeted box
  • 5/8" MDF
  • Industrial-Grade Black Colored Carpet

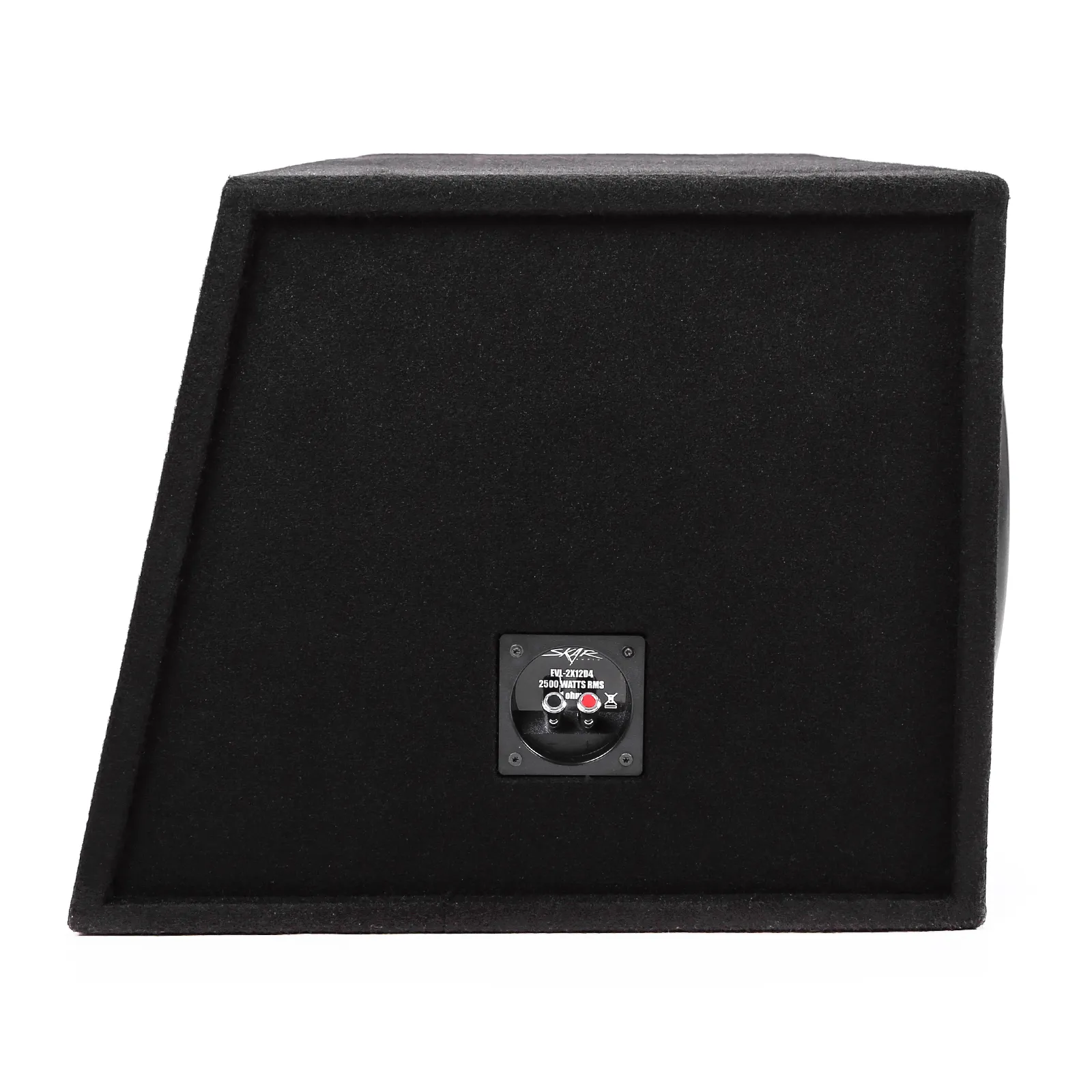

  • Premium Spring-loaded Terminals
  • Air Space: 2.0 Cubic Feet (per sub)
  • Tuning: 32 Hz
  • Height: 15.75"
  • Width: 35.5"
  • Depth #1: 20.5"
  • Depth #2: 17.0"
  • Depth Measurements Include the Subwoofers
  • Port Dimensions: 24.21" L x 2.36" W x 14.57" H

Customer Reviews

Based on 1 review

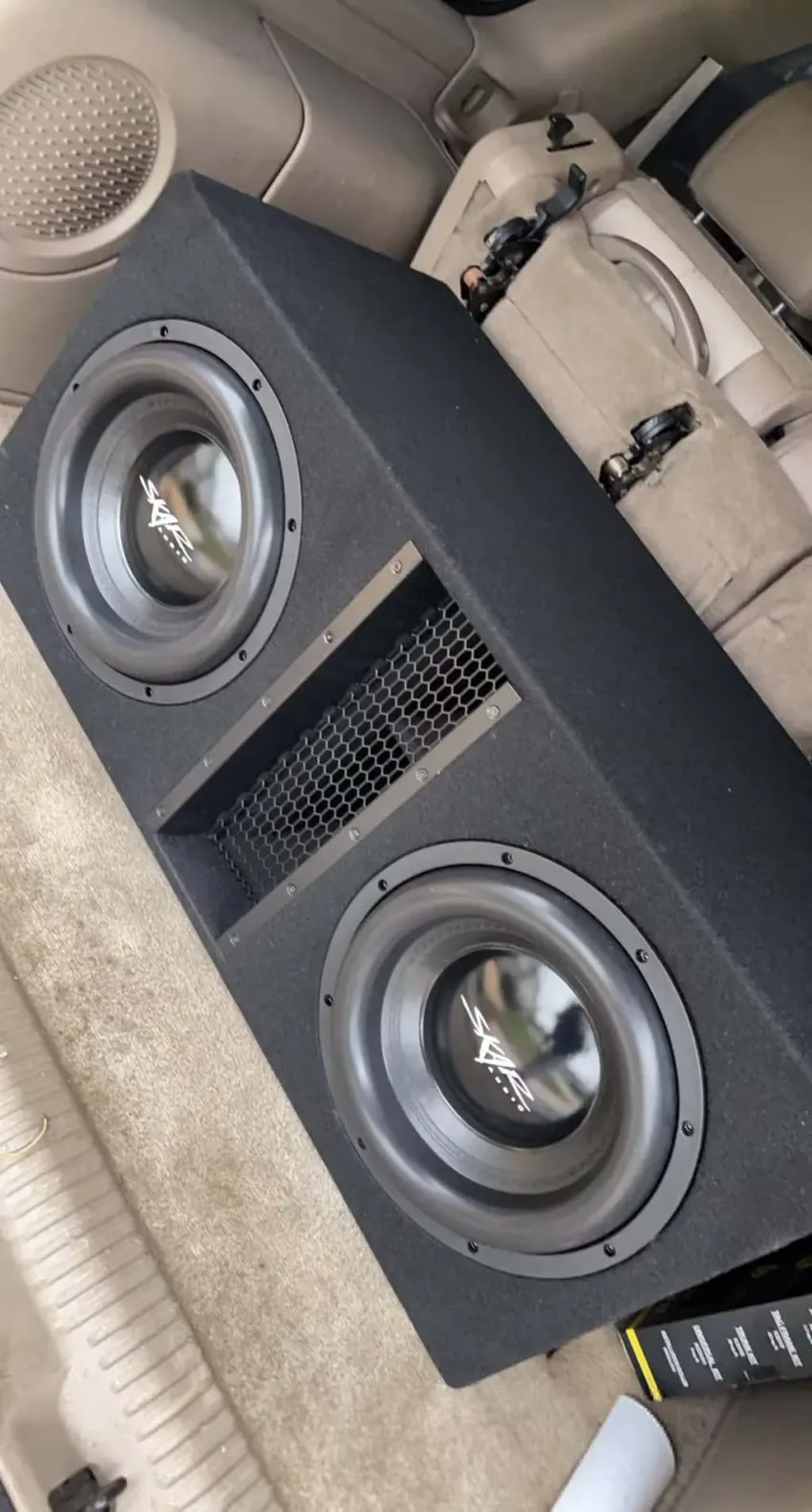

What else is there to say about the EVL series that has my already been said. These hit HARD and the box is really really nice and solid and it pushes the air better than expected. It hits the lows really good and it's just simply nasty. Best $500 system out there.
