Skar Audio designed the EVL-2X10D4 loaded enclosure to extract the immense output capacity of the EVL-10 driver, while still providing outstanding sound quality. We remove the guesswork from designing a competition grade system, as this enclosure arrives pre-wired and ready to provide thunderous low-end bass response. This loaded enclosure is equipped with two EVL-10 D4 2,000 watt max power subwoofers, giving this enclosure a combined max power of 4,000 watts. The subwoofers are pre-loaded and wired inside of a custom designed, wedge-style vented enclosure, featuring our advanced port design which promotes generous air movement, while reducing distortion.
This custom enclosure is covered in premium grade black carpeting, providing a sleek appearance that allows the enclosure to look as good as it sounds. Due to the weight of the massive EVL motor, we built this enclosure with extensive internal bracing, ensuring structural integrity and reliability. Our experts designed this enclosure specifically for the EVL subwoofers, ensuring impeccable sound quality and compatibility.
The subwoofers come pre-wired and loaded inside of the enclosure allowing for an easy and hassle free installation. The dual 4 ohm subwoofers are wired up inside of the enclosure so that the final impedance load is configured for 1-ohm at the terminals (one terminal cup). Peak Power: 4,000 Watts, RMS Power: 2,000 Watts.
Subwoofer Specifications
- Includes (2) Subwoofers Pre-Loaded Into Subwoofer Enclosure

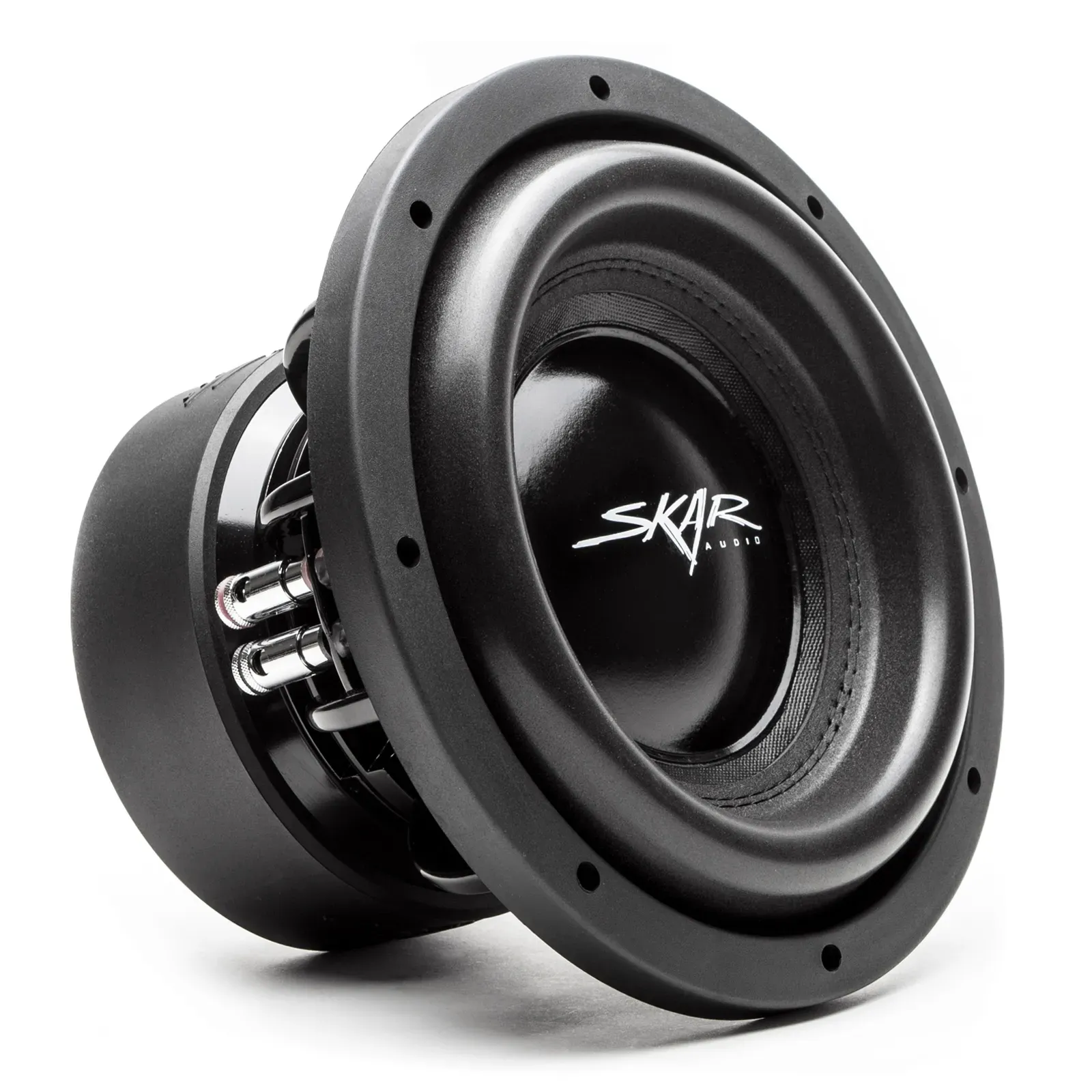

- Skar Audio EVL-10 D4 - 10" Dual 4 Ohm Subwoofers
- Dual 4 Ohm Voice Coil Configuration
- Peak Power: 4,000 Watts (pair) | 2,000 Watts (each)
- RMS Power: 2,000 Watts (pair) | 1,000 Watts (each)
- Competition Grade Pressed Paper Cone
- Stitched High Roll Foam Surround
- Advanced Air Flow Cooling System
- Voice Coil Size: 3"
- 4 Layer Black Aluminum CCAW Voice Coil
- Motor Weight: 166 oz
- Frequency Response: 44-400 Hz
- High Roll Foam Surround
- Sensitivity: 81.9 dB
- Fs: 45 Hz
- Re: 3.8 Ohms
- Qms: 5.21
- Qes: 0.69
- Qts: 0.62
- Mms: 243.2 g
- Cms: 0.046 mm/N
- Bl: 12.3 n/a
- Vas: 6.5 L
- Sd: 314.1 cm²
- Xmax: 24mm (one-way)
Enclosure Specifications

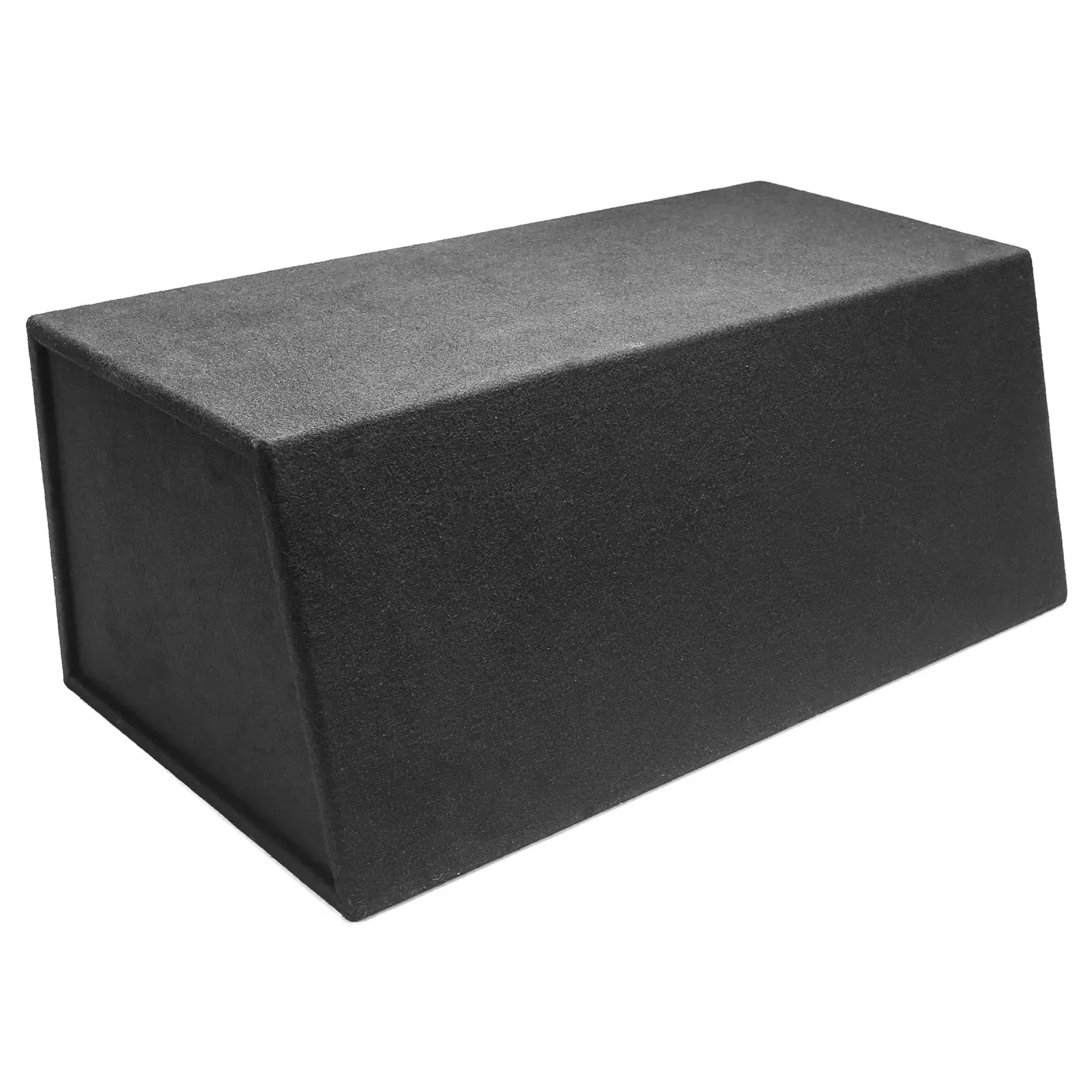

- Dual 10-Inch Vented (Ported) Subwoofer Enclosure
- Custom Engineered Skar Audio Enclosure specifically Designed for use with the Skar Audio EVL-10 D4 (x2) Subwoofers
- Wedge Style Vented Design allows for Extreme Low End Bass Output Levels and Responsiveness
- Wood Thickness & Material: 5/8" MDF
- Front Baffle Thickness & Material: 1.25" MDF
- Finish: Industrial-Grade Black Colored Carpet
- Premium Push Terminals Located on Left Side of Enclosure (one terminal cup only - woofers are wired internally to reach a 1-ohm final load)
- Internal Air Space of Enclosure: 3.30 ft³
- Tuning Frequency of Enclosure: 32 Hz
- Box Outer Dimensions:
- Width: 34.75"
- Depth #1: 14.75" (Top Depth)
- Depth #2: 18.75" (Bottom Depth)
- Height: 13.875"
