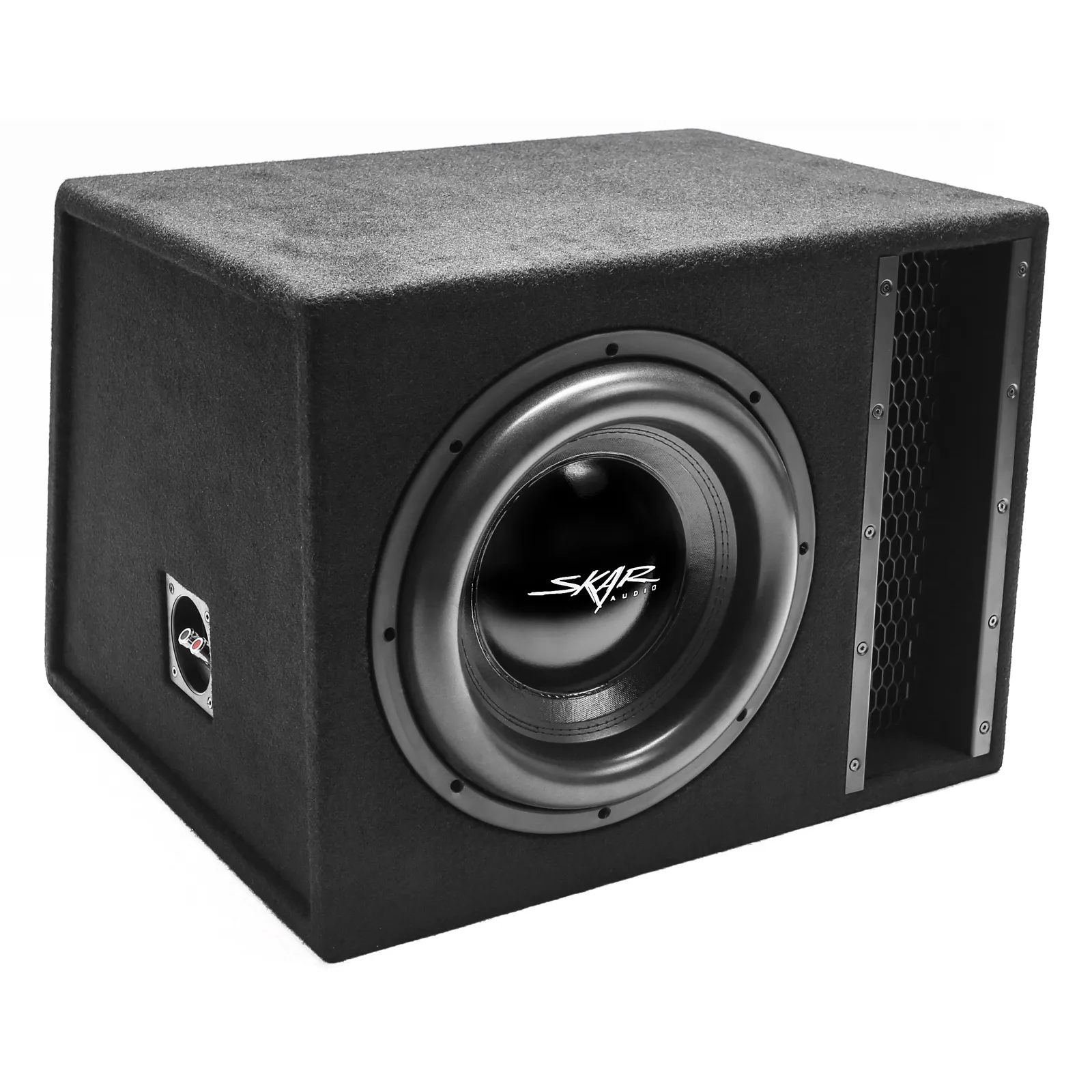

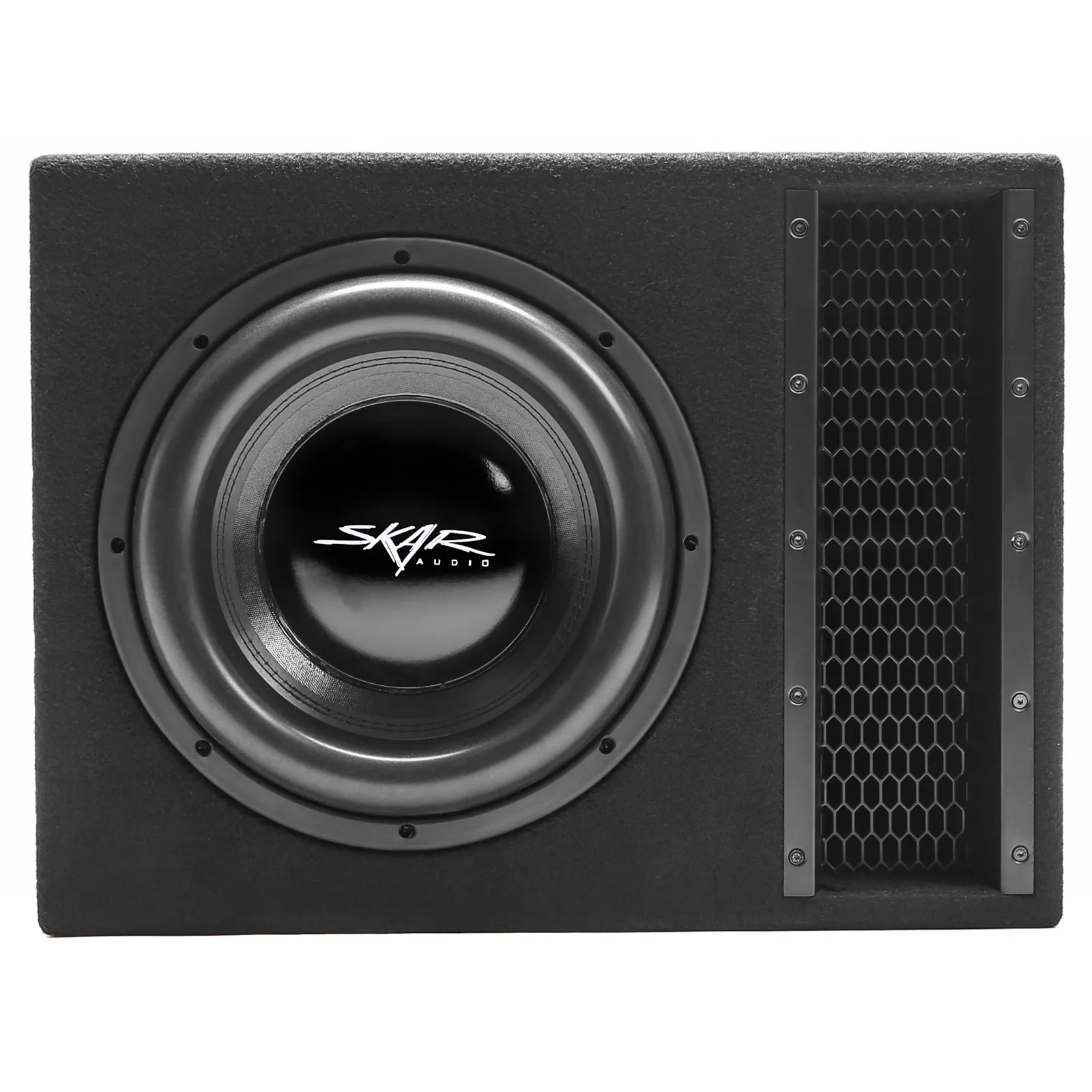

Skar Audio puts together this premium loaded ssubwoofer enclosure package to provide a simple solution to add low-frequency, thumping bass to your vehicle. This package is equipped with one, 12-inch, dual 2-ohm, Skar Audio EVL Series subwoofer, which is pre-loaded and wired up inside of a premium single 12-inch wedge-style ported enclosure.
The Skar Audio EVL series of subwoofers redefines the definition of low-end sound reproduction. The engineering behind developing a driver that is able to accurately handle the frequency range of these notes with authority is what makes this woofer so unique. From the bottom to the top, this subwoofer utilizes an array of design features and materials that distinctively put it in a class of it's own. Rated conservatively at 1,250 watts RMS and 2,500 watts Max power, the EVL-12 features a high flux double stack ferrite motor, which, when combined with the 3-inch, high temperature, 4-layer, black aluminum ccaw voice coil - allow for extreme power handling for extended periods of time.
This enclosure is covered in industrial-grade black carpet and features the debut of our advanced port design, which promotes generous air movement, while reducing distortion. This package was put together by our installation experts to ensure compatibility and allow for an easy installation. We take the guess work out of pairing the components of your system up, and make it easy to get the bass you've always wanted in your ride.
The dual 2-ohm subwoofer included in this package is pre-configured and wired up inside of the subwoofer enclosure at a 1-ohm final load to ensure an easy and hassle free installation.

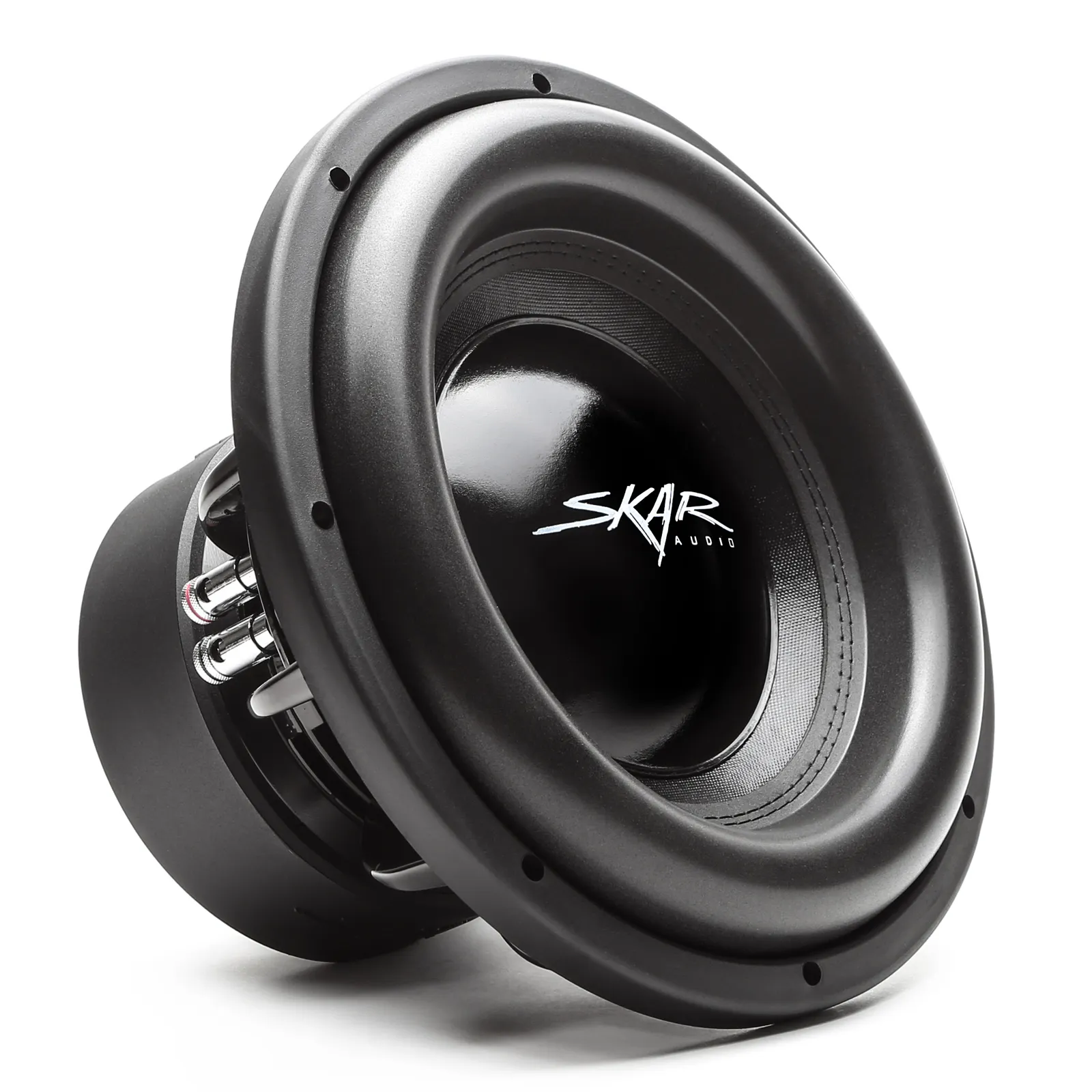

- Skar Audio EVL-12 D2 12" Competition Car Subwoofer
- Dual 2 Ohm
- RMS Power: 1,250 Watts
- Peak Power: 2,500 Watts
- Voice Coil Size: 3"
- 4 Layer Black Aluminum CCAW Voice Coil
- Motor Weight: 166 oz
- Frequency Response: 30-300 Hz
- High Roll Foam Surround
- Sensitivity: 85.1 dB
- Fs: 39 Hz
- Re: 1.8 Ohms
- Qms: 4.83
- Qes: 0.60
- Qts: 0.53
- Mms: 260.8 g
- Cms: 0.06 mm/N
- Bl: 27 n/a
- Vas: 19.1 L
- Sd: 471.4 cm²
- Xmax: 23.5mm (one-way)

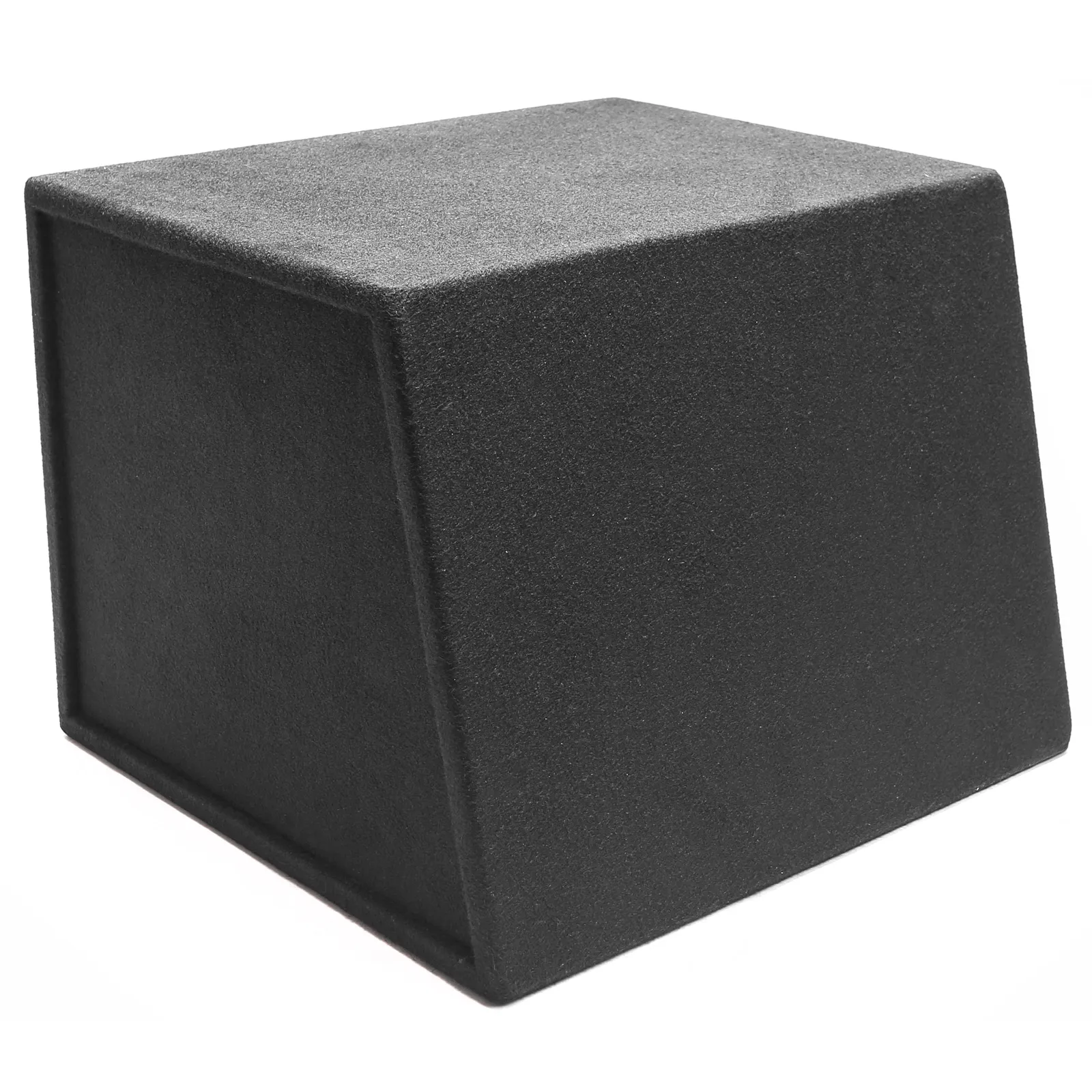

- Single 12-Inch Ported Subwoofer Enclosure
- Wedge Style Design
- 1-Hole 12" Vented Carpeted box
- 5/8" MDF
- Industrial-Grade Black Colored Carpet

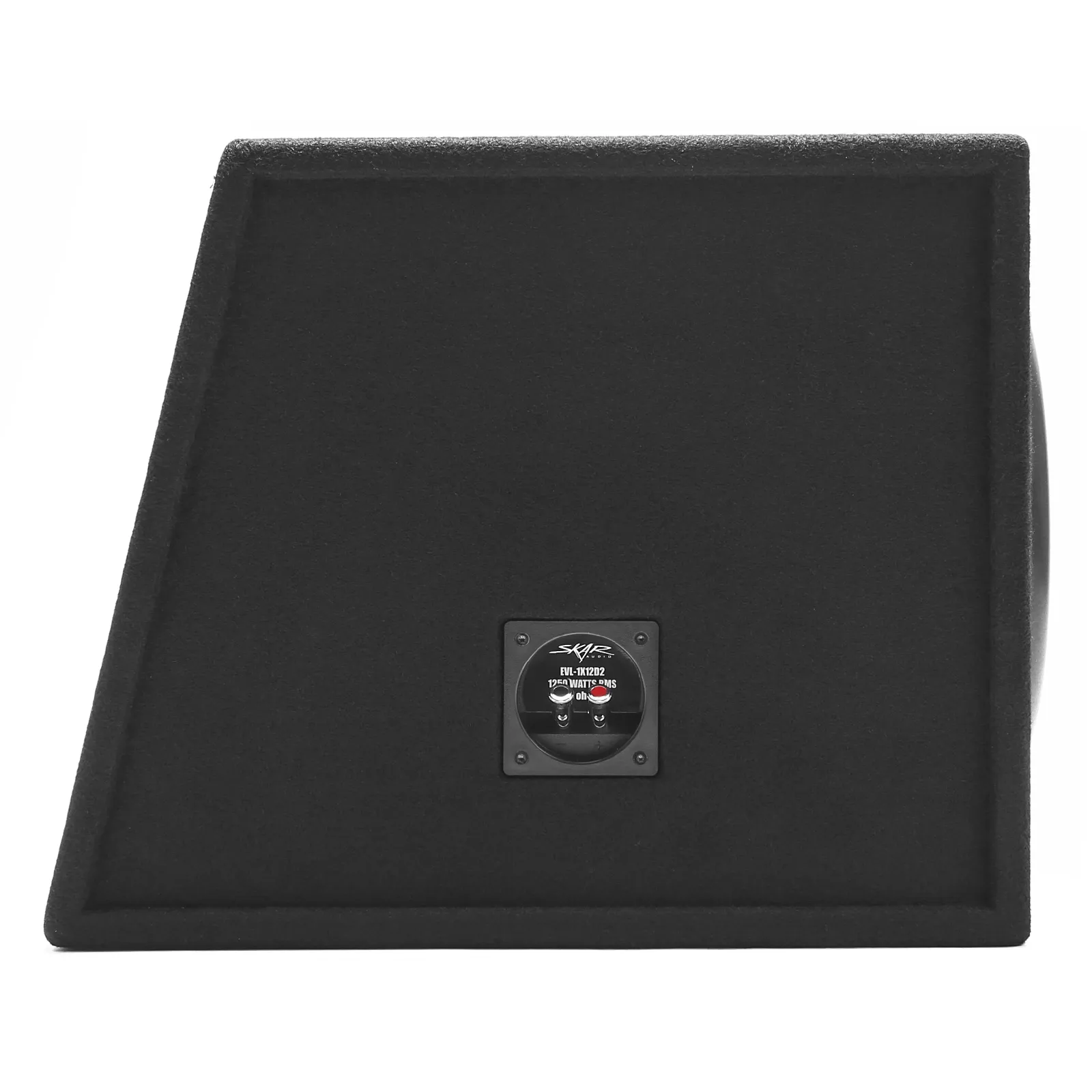

- Premium Spring-loaded Terminals
- Air Space: 2.00 Cubic Feet
- Tuning: 38 Hz
- Height: 15.875"
- Width: 21.0"
- Depth #1: 15.75"
- Depth #2: 19.25"
- Second Depth Measurement Includes the Subwoofer
- Port Dimensions: 26" L x 2.5" W x 14.375" H
